RSL Switch set 1-channel Max. range (open field) 70 m

Overview

Turn the receiver on and off wirelessly
For inserting in conventional flush-mounted sockets
Makes your electrical sockets wireless switchable

Description

With the RSL wireless switch with voltage detection, you can switch suitable receivers, such as Radio controlled sockets, wireless on and off.

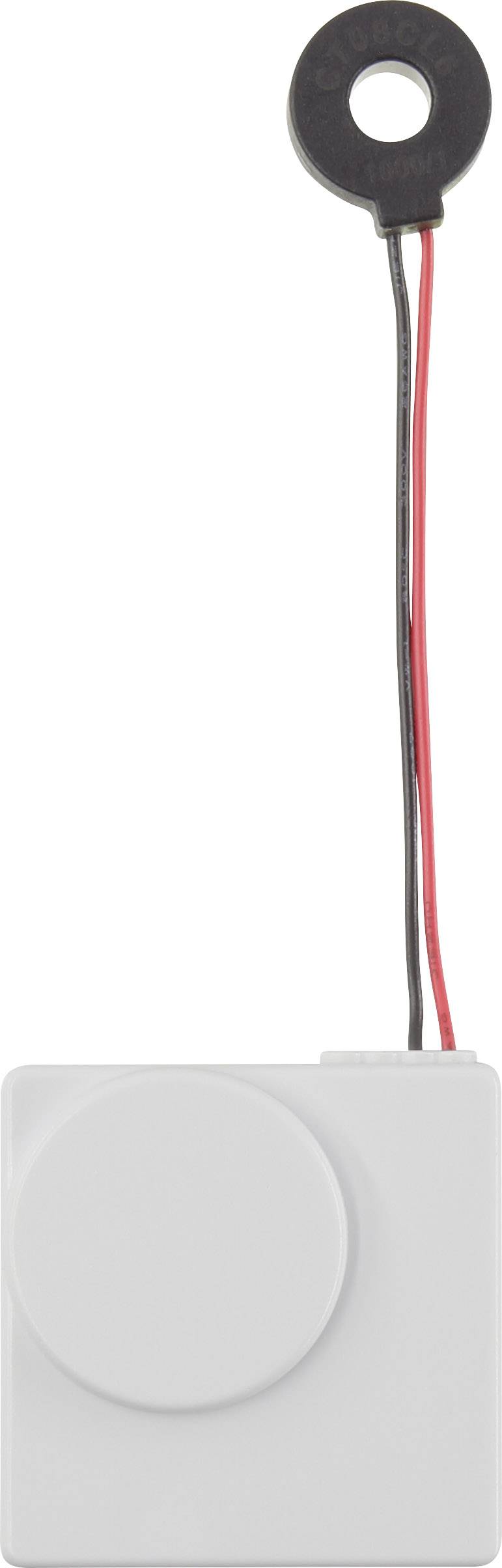

Built-in voltage detection: Connect the wireless switch to an insulated, commercially available electrical line. When a voltage is detected or lost, it sends a radio signal to a suitable receiver of an RSL system. The device is operated via a 3 V lithium battery.

Comfortable installation - convenient switching.
You can realize your desired switching with the practical RSLR3 built-in radio receiver: Install, program remote control - done! For example, you can switch on all the lights in your room at the same time and with just one keystroke.

Loads of up to max. 2000 W (resistive load) or 300 W (inductive load) can be connected. To protect your devices, the built-in switch also has an integrated overload protection.

Easy to set up
Thanks to its compact dimensions, the receiver fits in any commercially available flush or surface-mounted socket. This is installed in just a few minutes and is ready for use, which it is inserted directly into the flush or surface-mounted socket.

Up to 10 different transmitters can be programd to one built-in receiver. And since all components of the RSL wireless switching system are compatible with each other, you can easily extend the system to suit your requirements at any time.

Characteristics

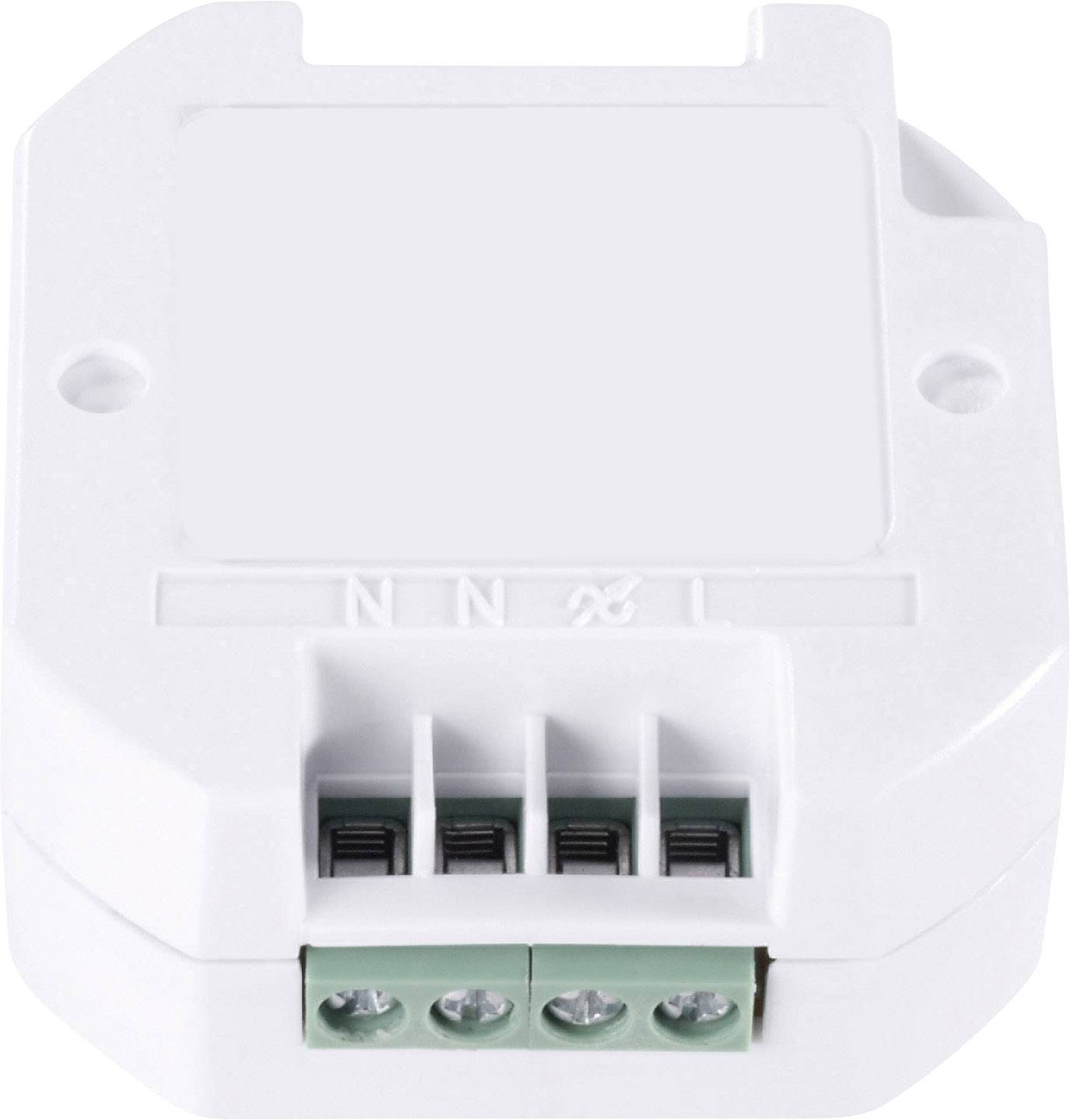

Flush-mounted radio switch · Inputs: L and N · Outputs: N and switched L · LED for status display · Compatible with all radio transmitters of the RSL system · Can be coupled with up to 10 different RSL transmitters.

Information

All components of the RSL radio switching system are inter-compatible and thus offer a great introduction to home automation.

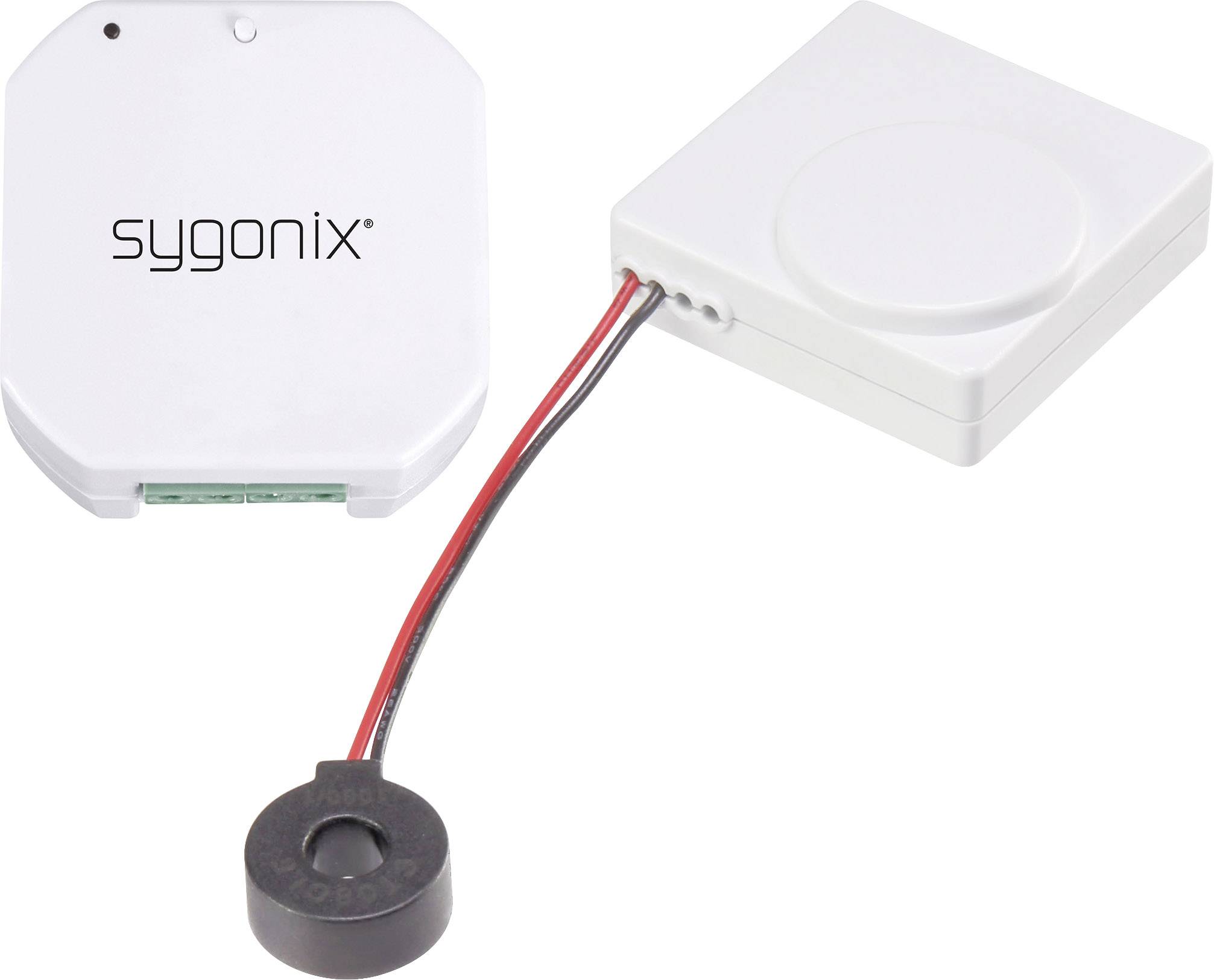

Delivery content

• RSL wireless switch
• RSL wireless flush-mounted switch
• User manuals.
