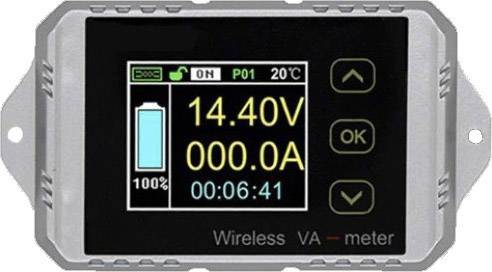

Joy-it VAX 1100

Overview

Voltage, current, work, power, temperature, real-time capacity, charging and discharging times
Measurement range current: 1 to 100 A.
26 communication channels
Interfaces: Wireless and micro USB
Temperature sensor

Description

This multimeter can measure voltage, current, power, work, temperature, real-time capacity and charge and discharge times in DC circuits. The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection. The 26 communication channels enable several devices to communicate with the measuring device at the same time.
Surge, undervoltage and overcurrent protection by connecting an external relay (not included).

Characteristics

Relays
Externally connectable (optional)
Communication channels / address range A - Z (26 channels) / 01 - 99
Wireless communication range up to 10m
Sampling rate 5 per second
Negative overcurrent protection NCP* 0 - -100A*
Positive overcurrent protection OCP* 0 - 100A*
Overvoltage PROTECTION OVP* 0 - 100V*
Undervoltage protection LVP* 0 - 100V*
Protection delay time 0 - 10 seconds
Special functions: Charging and final charging time measurement, power
Display module: 0.5W / Measuring module: 0.4W

Delivery content

• Display

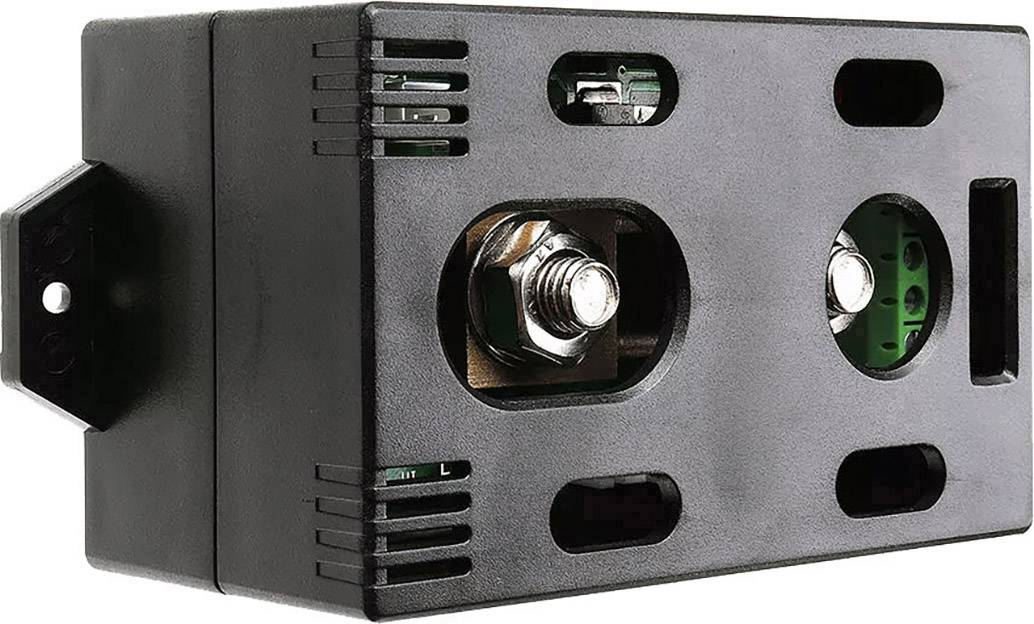

• Measurement module
• Micro USB cable
• Temperature sensor

Keywords

04250236818450, Joy-it, VAX 1100, Joy it, joy-it

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
