Overview
Power supply unit output 600 W
PCI-Express (6+2-Pin) 2x
Cable management No
80 PLUS Bronze

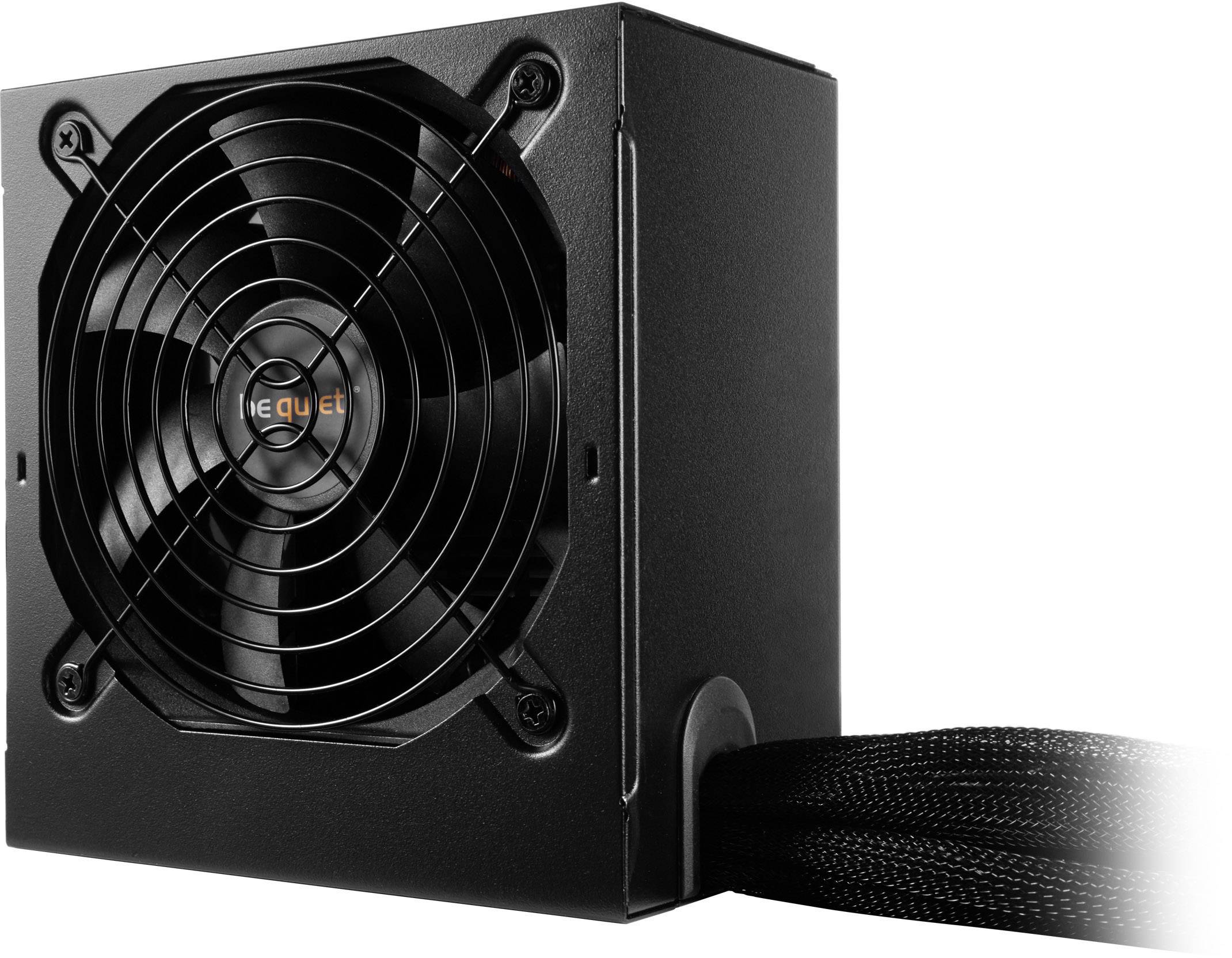

BeQuiet System Power B9 Bulk PC power supply unit 600 W ATX 80 PLUS Bronze
Product description
Description
Be quiet! System Power B9 600W (Bulk) offers the for be quiet! Well-known reliable and quiet operation and is perfectly suitable for the price-conscious PC construction.
- Production-optimized bulk packaging
- Two strong 12V cables
- Stable running performance thanks to the DC/DC technology
- Two PCI Express connectors for powerful multi-GPU systems
- Quiet, temperature-controlled 120mm quality fan
- Standby consumption of less than 0.15 watts
- 80 PLUS® Bronze Efficiency of up to 89%
- Attractive, black sheathed cable
- Complete equipment with top safety functions
- Meets Intel® C6/C7, ERP, and Energy Star 6.1 guidelines
OPTIMIZED FOR SYSTEM INTEGRATORS
Cost-effective and efficient handling.
The Power B9 system was developed for the requirements of professional system integrators. It is delivered in a production-optimized large packaging, which ensures fast and easy handling in the production of preconfigured PCs.
VERY QUIET OPERATION
Achieved by using a quality fan.
The Power B9 600W system is equipped with a temperature-controlled 120mm fan. It offers the well-known quiet operation of be quiet! For cost-effective systems.
80 PLUS BRONZE CERTIFIED
High operational efficiency. The 80 PLUS Bronze certification is a convincing proof for the efficient and energy-saving operation of this power supply. With an efficiency of up to 89%, this represents a remarkable performance for a PSU in its class.
HIGH PERFORMANCE FOR PC SYSTEMS
Proven reliability for CPU and GPU.
The Power B9 600W system provides a stable and reliable power supply for CPU and GPU. It is equipped with two independant 12V lines and supports graphics card configurations with two PCI Express connectors.
INNOVATIVE DC/DC TECHNOLOGY
Equipped with a wealth of advanced technology.
The DC/DC converter provides for a strong voltage regulation – and this even with heavy cross-loads. This makes the power supply a reliable companion for the next generations of processors and graphics cards.

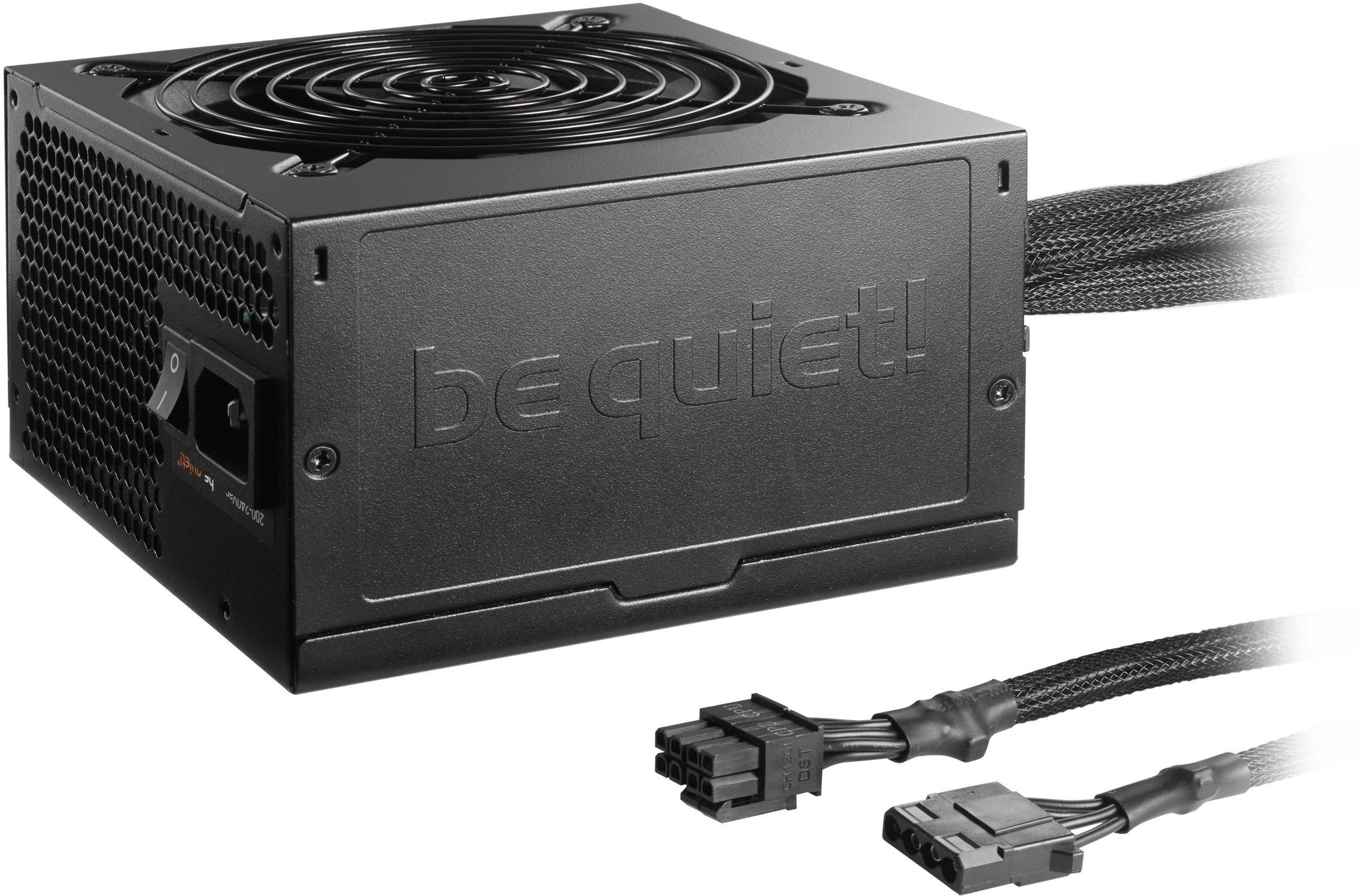

HIGH-QUALITY CABLE DESIGN
Attractive appearance for powerful systems.
The high-quality, black-coated cables give each PC system an attractive appearance.
COMPREHENSIVE PROTECTION
Fully equipped with security features.
Top component protection with comprehensive safety functions, including OCP, OVP, OPP, OTP UVP and SCP, to ensure uncompromising safe operation.
Characteristics
Model: System Power 9 | 600W bulk
Continuous power (W): 600
Form factor ATX 12V: Version 2.4
EPS 12V form factor: Version 2.92
Topology: DC-DC
Mains voltage (Vac) 200-240
Mains frequency (Hz): 50
Nominal current (A): 6
PFC: Active
Power factor at 100% load:
Supports Intel C6/C7: ✓
Power consumption in standby (W):
Average life (h / 25°C): 100000
Operating range up to (°C): 40
12V lines (multi-rail operation): 2
+3.3V (A): 24
+5V (A): 15
+12V1 (A): 28
+12V2 (A): 22
-12V (A): 0.3
+5Vsb (A): 3
Max. Total power 12V (W) 576
Max. TOTAL POWER 3.3V + 5V (W): 120
Hold-up time at 100% load (ms @ 100%): 17 @ 75% load
Fan: High-quality fan
Engine technology: 4-pole fan motor
Bearing technology: Sleeve
Fan size (mm) 120
Max. Fan speed (rpm), temperature-dependant 2100

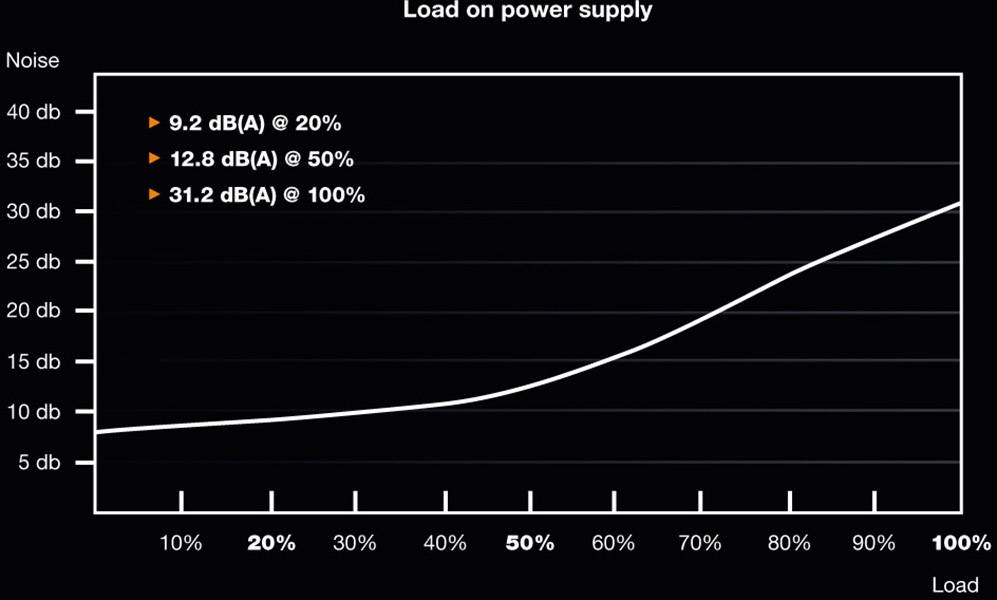

DB(A) at 20% load: 9.2
DB(A) at 50% load: 12.8
DB(A) at 100% load: 31.2

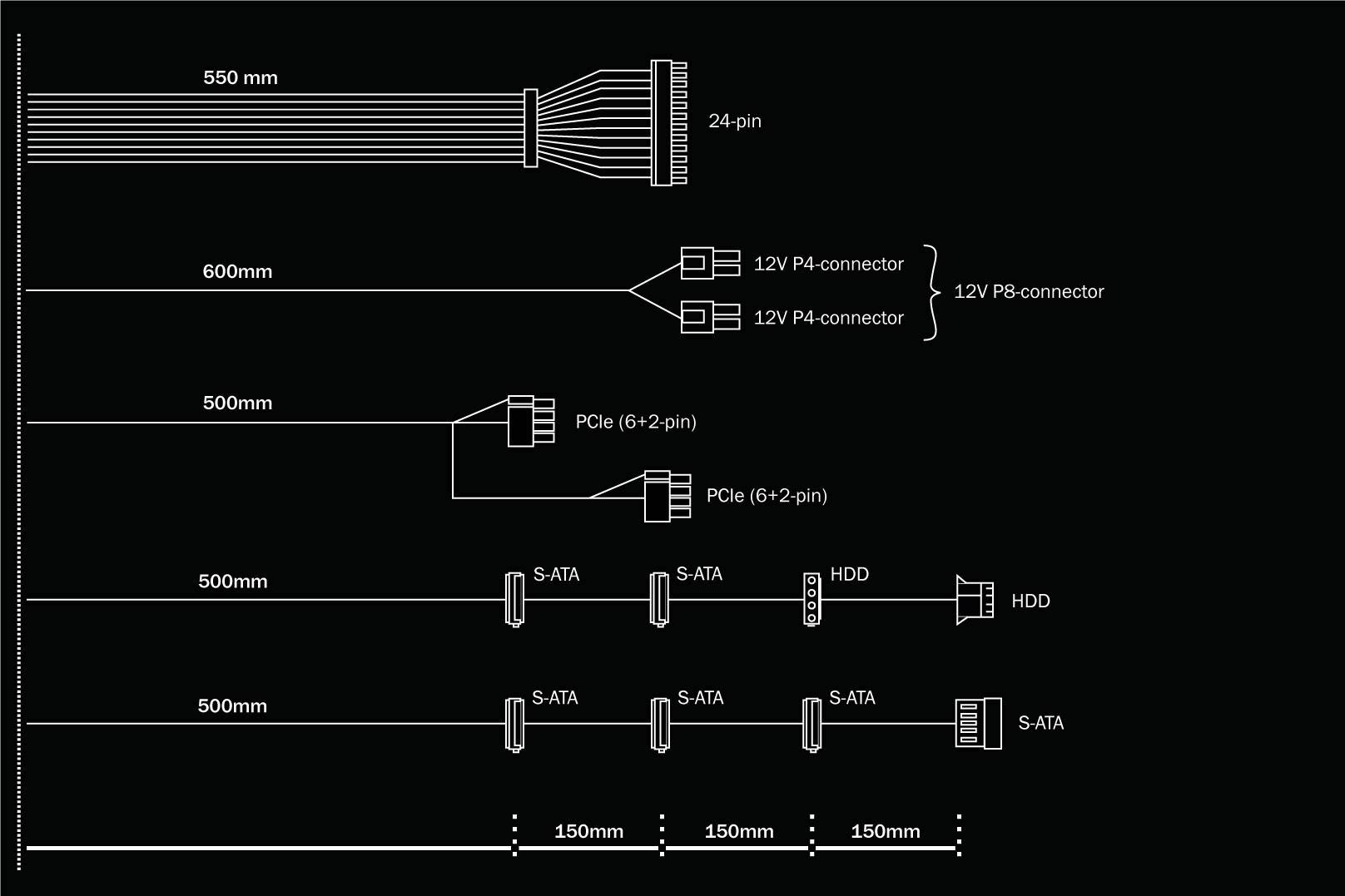

Cable length to mainboard (cm): 55
Cable length to 1. Connector (cm): 50
Maximum cable length (cm): 95
Number of cables: 5
ATX mainboard (20+4-pin): 1x 24
P4+4 (CPU): 1
PCI-E 6+2 PIN (GPU): 2
PATA 4 pin 2
SATA 15-pin(HDD, Drives): 6
