Overview
Programming cassette for wall convectors
Suitable for the series FPE, KSE and KLE
With frost protection mode, the temperature is approx. 5°C

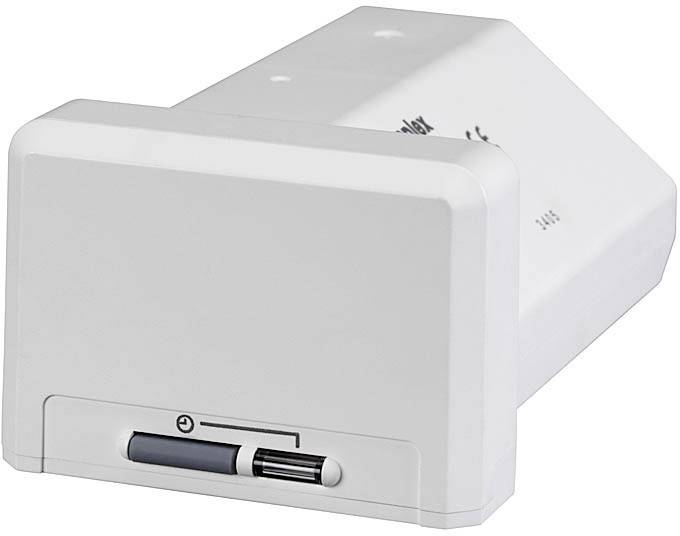

Radiator programming unit Dimplex RXTIRB
Product description
Description
Programming cassette for wall convectors with electronic thermostat establishing a limited heating time of 0.5 - 4.0 h, adjustable in 0.5 h steps. At the end of the set heating time the device will turn off or on frost protection. When connecting several devices via a common control cable is a control of a maximum of 10 devices by means of a programming cassette is possible. To the control cable can also be connected to devices of the series FPE, KSE and KLE.
Mode Standard
Immediately after pressing the Start button, the heater will be switched on for a preset time. The room temperature is controlled according to the thermostat setting on the heater. After the set time has elapsed, the timer switches the heater off. If necessary, the program again by pressing the start button can be activated.
Operating mode comfort
Immediately after pressing the Start button, the heater will be switched on for a preset time. The room temperature is controlled according to the thermostat setting on the heater. At the end of the set time, the timer in the lowering operating mode and reduces the on the thermostat set room temperature for the next 24 h at 5°C. In turn, after the end of this 24 h and the frost protection mode is active. The thermostat of the heater controls the room temperature in the range of 5 °C. This setting is retained.
Characteristics
Time range from 0.5 hours to 4 hours
Mode Standard, or comfort
Timer setting via DIP switch
Delivery content
RX TI RB programming module + User manual.
