Dehner Elektronik CT-204 CT-204 Controller board 1 pc(s)

Overview

Enables: Control of output voltage in a range of 0-105%, and/or output current of 0-105% of the AEK/AE Cotek series via RS232 or RS485 in serial operation.

Description

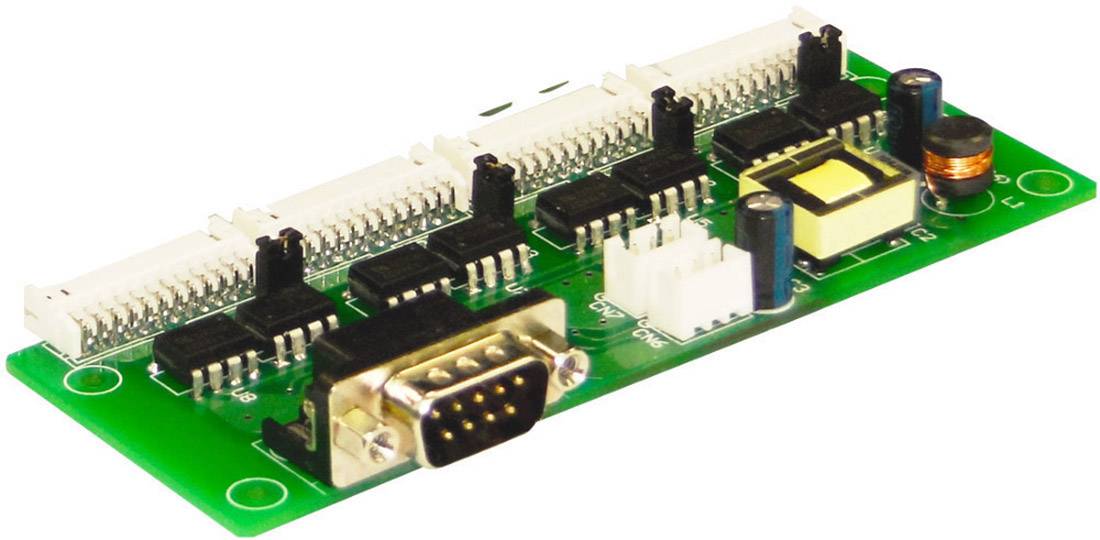

Control board CT-204 Serial operation
The CT-204 board is used to control several power supplies in serial operation (voltage validation).
4 power supplies per board can be connected. It can be extended to up to 8 power supplies, through another circuit board CT-204
other.
It has a RS232 or COM port (CN5) and 4 connection plugs (CN1 – CN4).
A connection to another CT-204 can be created at CN6.

This article consists of –
1x control board CT-204 as well as 4x connection cable (COTEK Part no. 47-0124-0001)

Additional hardware required
The following additional components are required to control the power supplies:
- Power supply COTEK AE / AEK - Series
- PC or laptop with existing COM port/RS232, USB-to-RS232 adapter or USB-to-RS485 adapter
- null modem cable

Delivery content

• 1x control board
• 4x connection cable
