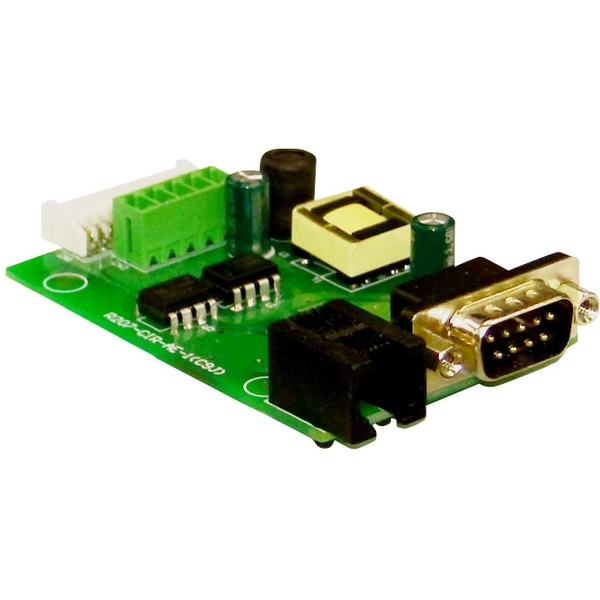

Dehner Elektronik CT-251 CT-251 Controller board 1 pc(s)

Overview

Enables: Control of output voltage in a range of 0-105%, and/or output current of 0-105% of the AEK/AE Cotek series via RS232 or RS485 in parallel operation

Description

Control board CT-251 is used as master for control in parallel operation (current modulation).
The board has a RS232 or COM port (CN3), a RS485 port
For controlling further power supplies with CT-551 and a connection plug (CN1) to the power supply.
A maximum of 8 power supplies can be controlled for parallel operation. (1 Master CT-251 and 7 Slaves CT-551 - Conrad Item No. R090181)
This article consists of – Control Board CT-251 and the connecting cable (COTEK Part no. 47-0124-0001)
Enables: Control of the output voltage in a range of 0-105%, as well as the output current of 0-105%

The following additional components are required to control the power supplies:
- Power supply COTEK AE / AEK - Series
- Control board CT-551 for each additional power supply (slave)
- PC or laptop with existing COM port/RS232, USB-to-RS232 adapter or USB-to-RS485 adapter
- null modem cable

Delivery content

• Control board
• Connecting cable
