Overview
Power supply unit output 400 W
PCI-Express (6+2-Pin) 2x
Cable management Yes (optional)
80 PLUS Bronze

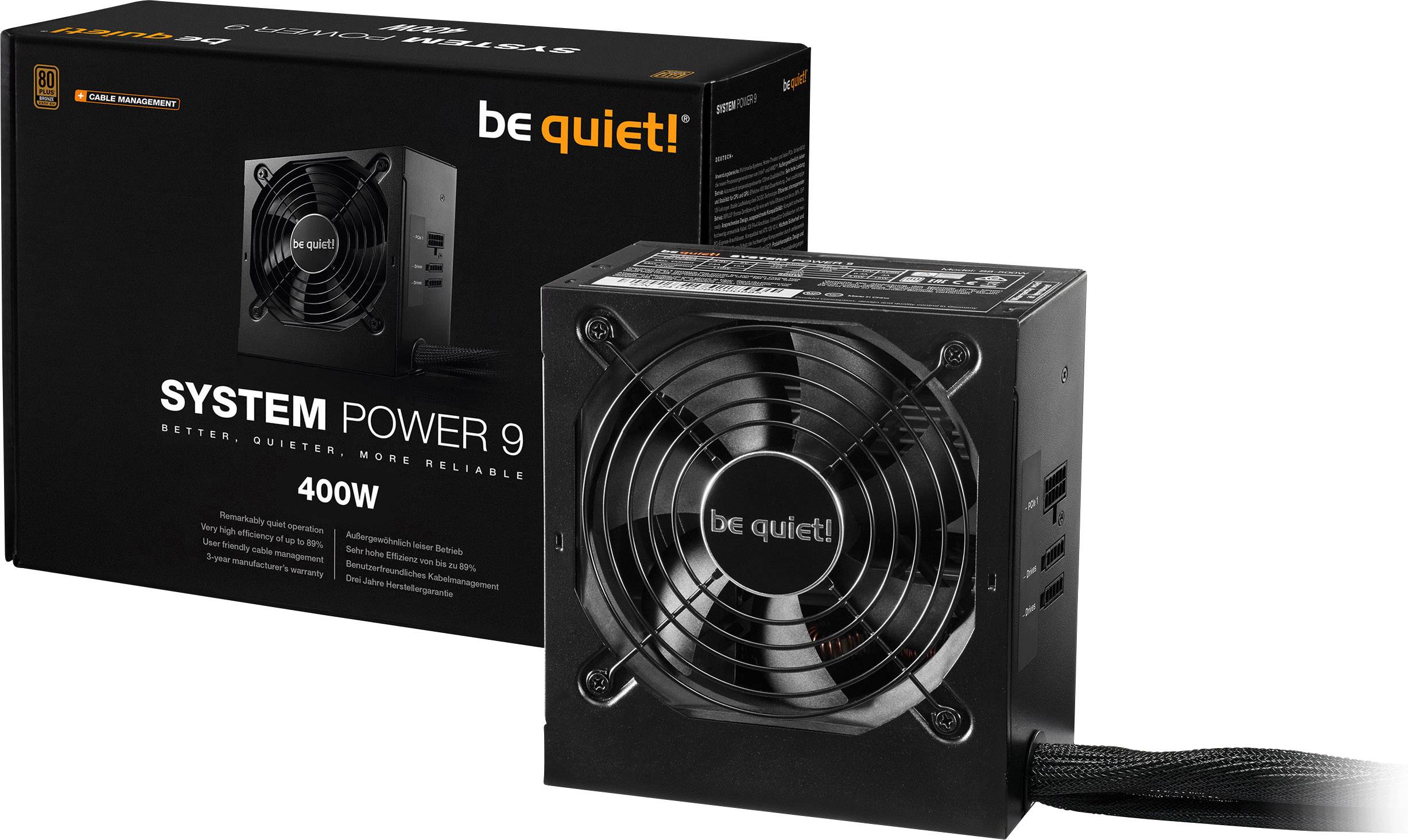

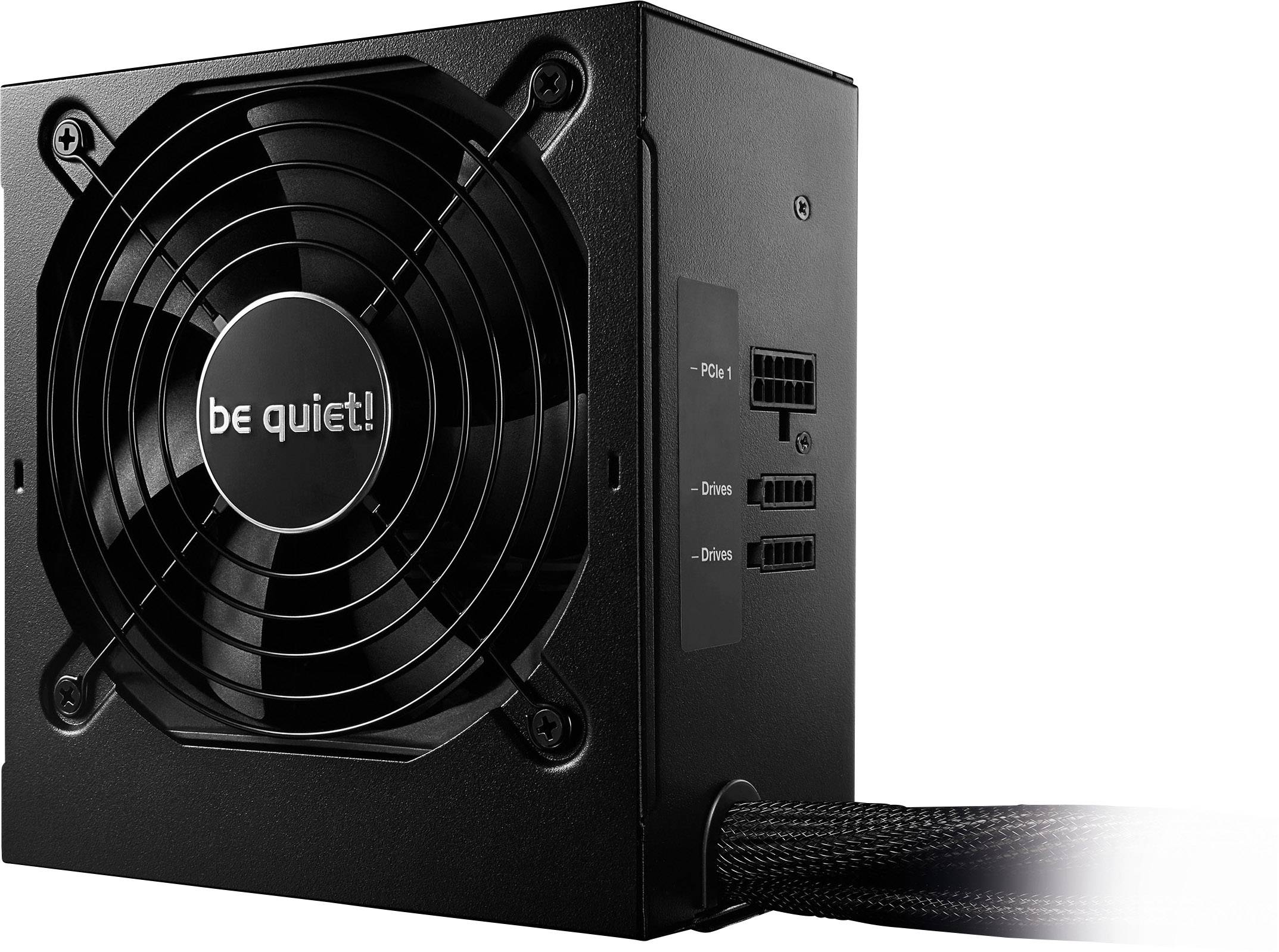

BeQuiet System Power 9 CM PC power supply unit 400 W ATX 80 PLUS Bronze
Product description
Description
Be quiet! System Power 9 400W CM offers the for be quiet! Well-known reliable and quiet operation and is perfectly suitable for the price-conscious PC construction.
- Two strong 12V cables
- Stable running performance thanks to the DC/DC technology
- Two PCI Express connectors for powerful multi-GPU systems

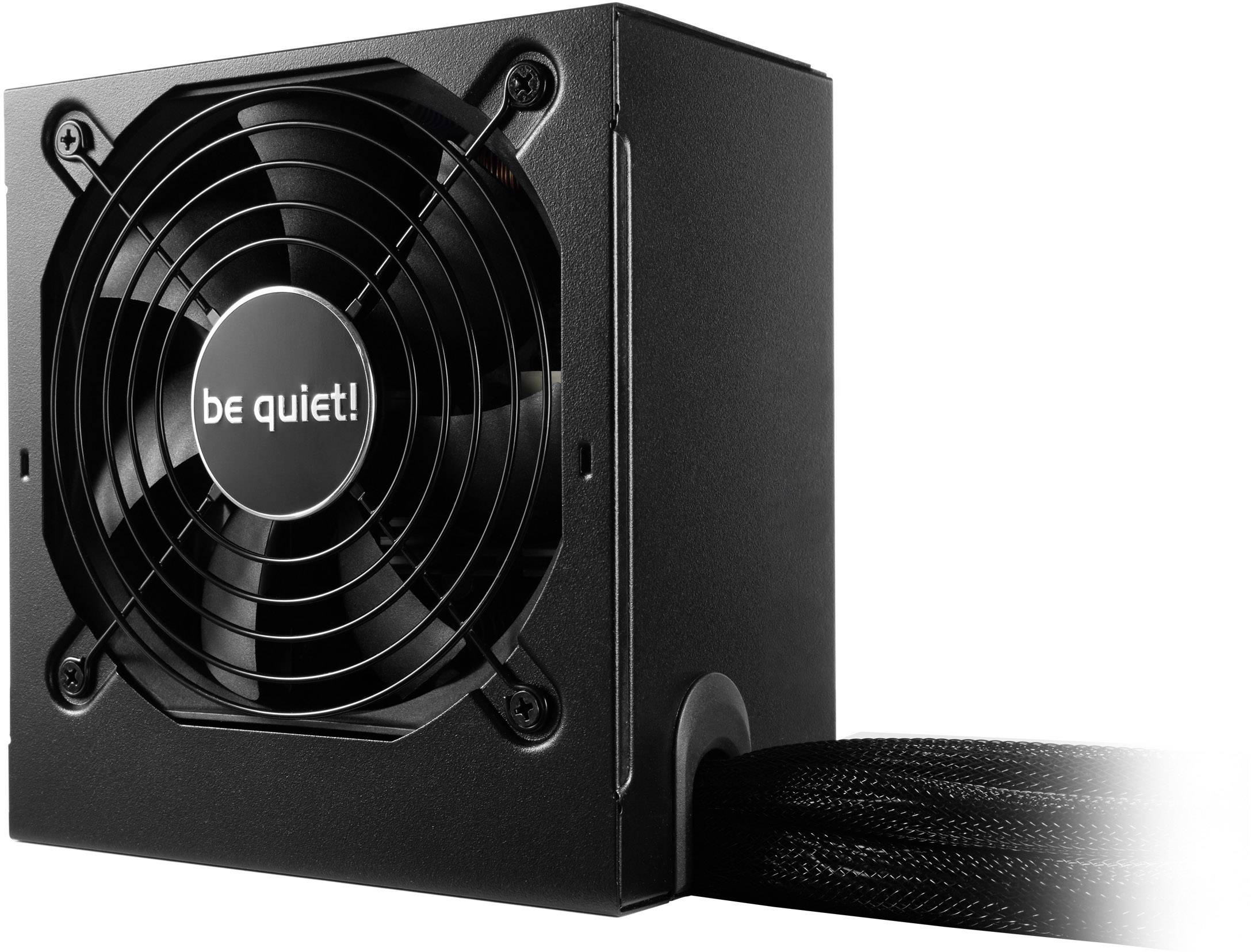

- Quiet, temperature-controlled 120mm quality fan
- Standby consumption of less than 0.15 watts
- 80 PLUS® Bronze Efficiency of up to 89%
- Semi-modular, high-quality sheathed and flat ribbon cables
- All-in-one cable with SATA, HDD and FDD connectors
- Complete equipment with top safety functions
- Meets Intel® C6/C7, ERP, and Energy Star 6.1 guidelines

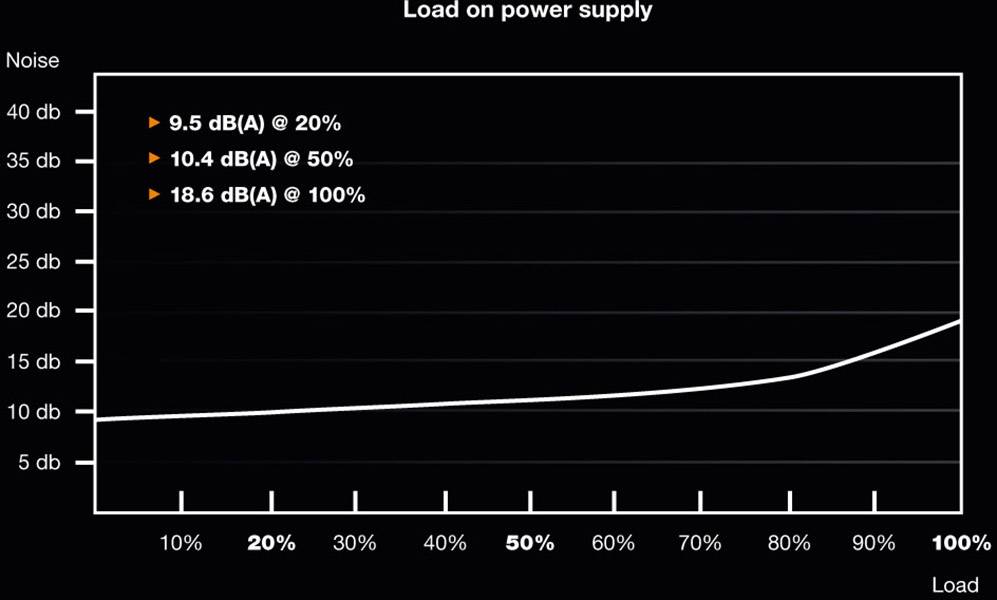

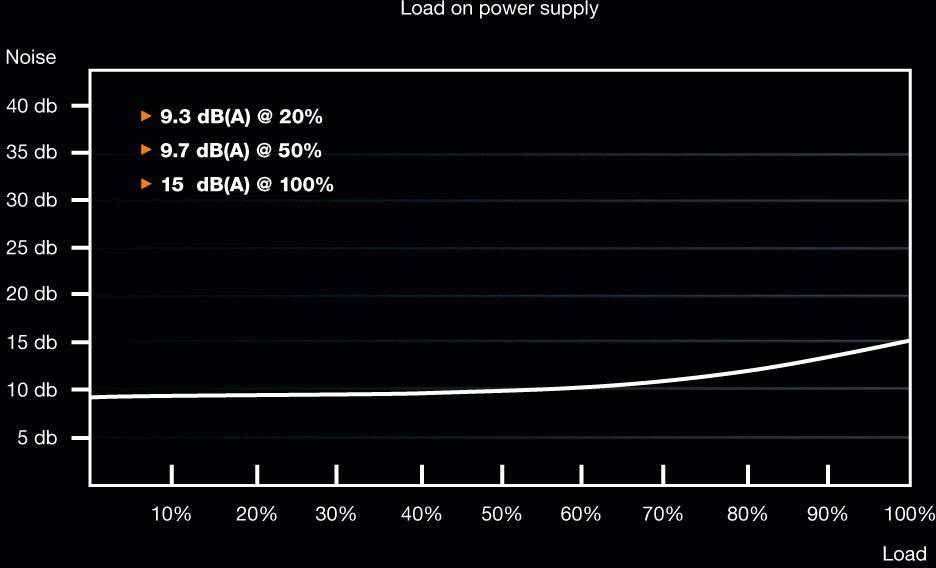

VERY QUIET OPERATION
Achieved by using a quality fan. The Power 9 400W CM system is equipped with a temperature-controlled 120mm quality fan. It offers the well-known quiet operation of be quiet! For cost-effective systems.
80 PLUS BRONZE CERTIFIED
The 80 PLUS Bronze certification is a convincing proof for the efficient and energy-saving operation of this power supply. With an efficiency of up to 89%, this represents a remarkable performance for a PSU in its class.
HIGH PERFORMANCE FOR PC SYSTEMS
Proven reliability for CPU and GPU. The system Power 9 400W CM offers a stable and reliable power supply for CPU and GPU. It is equipped with two independant 12V lines and supports graphics card configurations with two PCI Express connectors.
INNOVATIVE DC/DC TECHNOLOGY
Equipped with a wealth of advanced technologies. The DC/DC converter provides for a strong voltage regulation – and this even with heavy cross-loads. This makes the power supply a reliable companion for the next generations of processors and graphics cards.

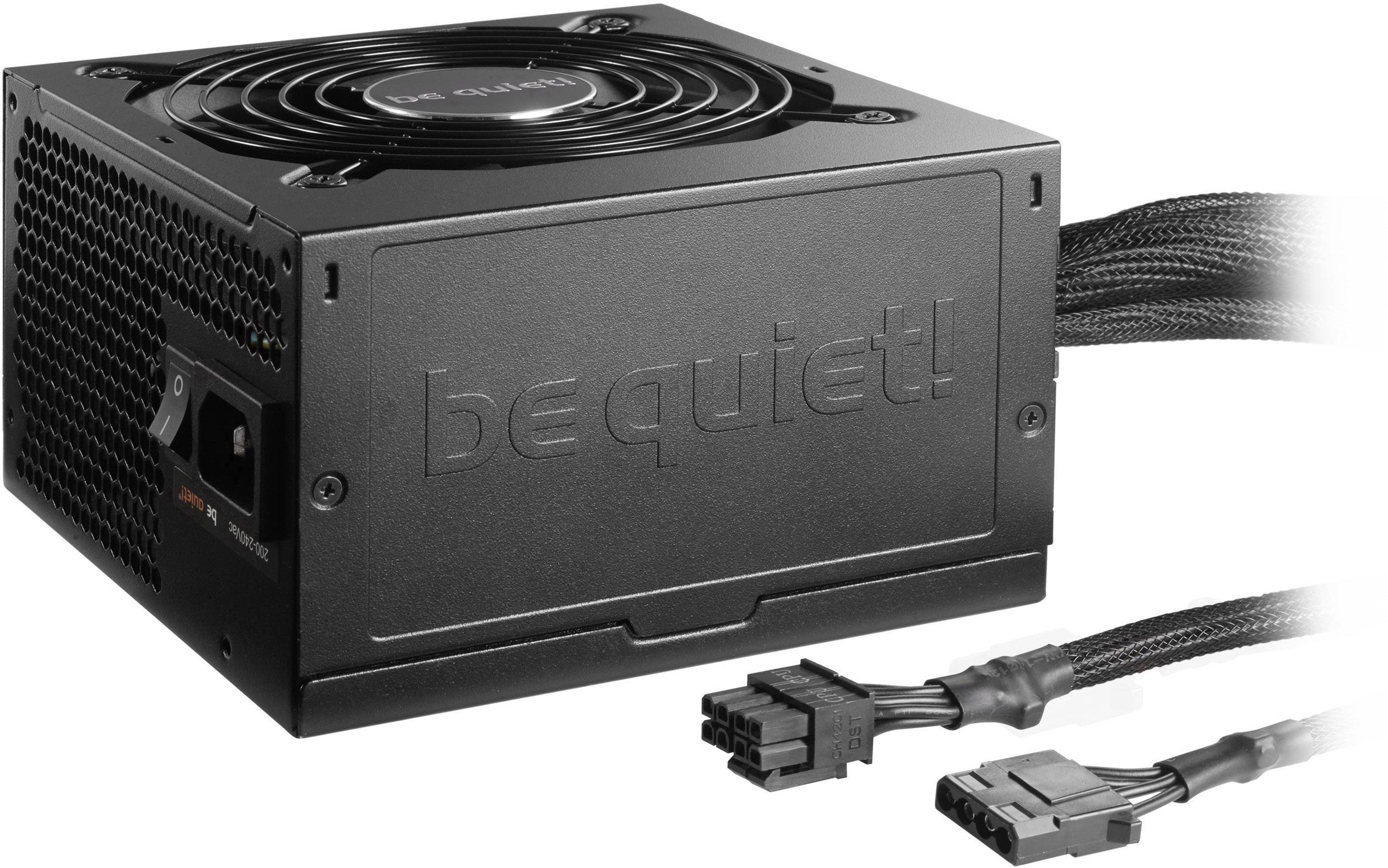

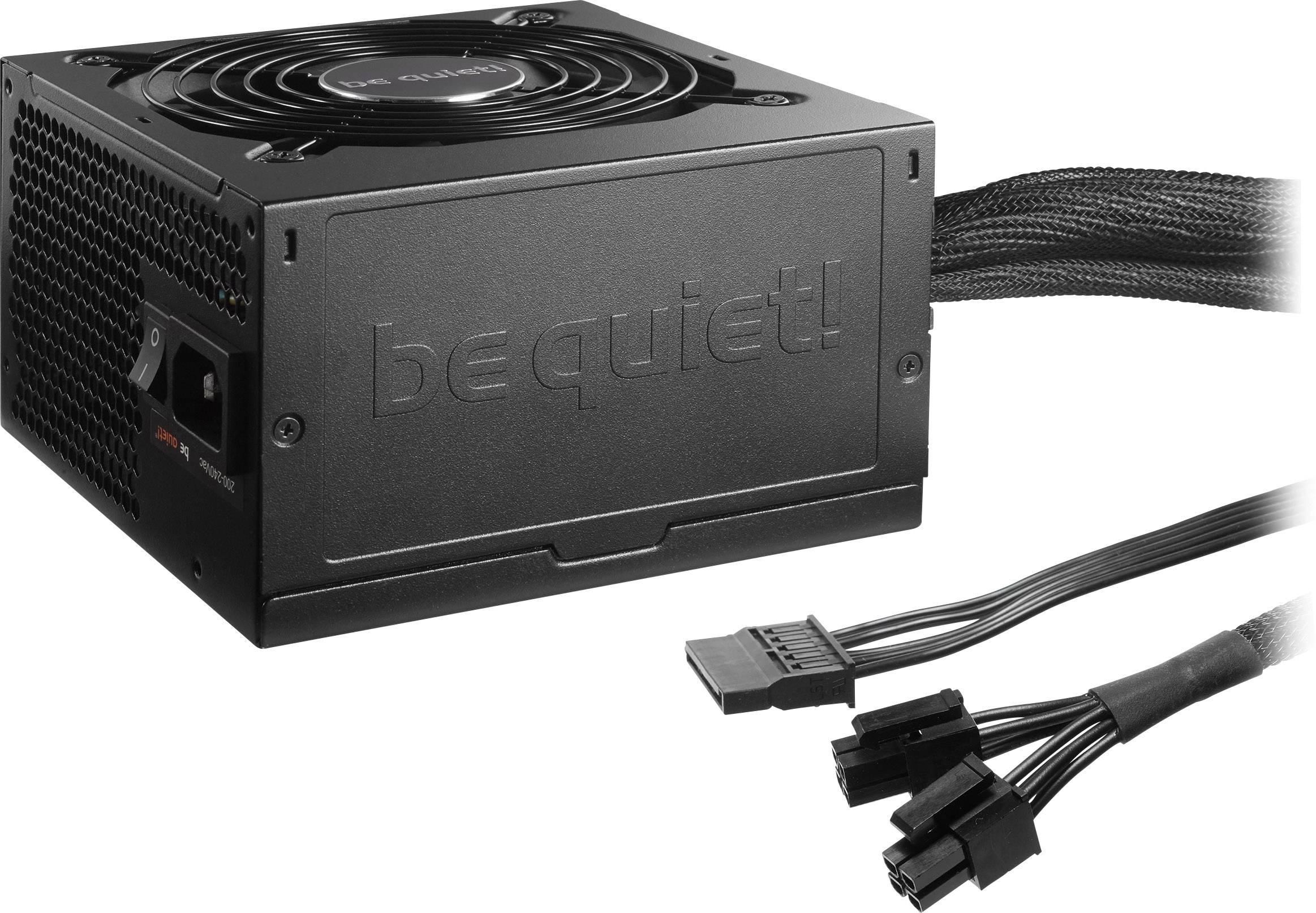

PART MODULAR CABLE MANAGEMENT
Attractive design and absolute user-friendliness. The high-quality, black sheathed cable of the System Power 9 400W CM gives each PC system an attractive appearance. Thanks to the partially modular cable management, only the cables that are really needed are used.
COMPREHENSIVE PROTECTION
Fully equipped with security features. Top component protection with comprehensive safety functions, including OCP, OVP, OPP, OTP UVP and SCP, to ensure uncompromising safe operation.
Characteristics
Model: System Power 9 | 400W CM
Continuous power (W): 400
Form factor ATX 12V:Version 2.51
Mains voltage (Vac):200-240
Mains frequency (Hz):50
Nominal current (A): 6
PFC: Active
Power factor at 100% load:
Power consumption in standby (W):
Average life (h / 25°C): 100000
Operating range up to (°C): 40
12V lines (multi-rail operation): 2
+3.3V (A): 24
+5V (A): 15
+12V1 (A): 22
+12V2 (A): 18
-12V (A): 0.3
+5Vsb (A): 3
Max. Total power 12V (W): 384
Max. TOTAL POWER 3.3V + 5V (W): 103

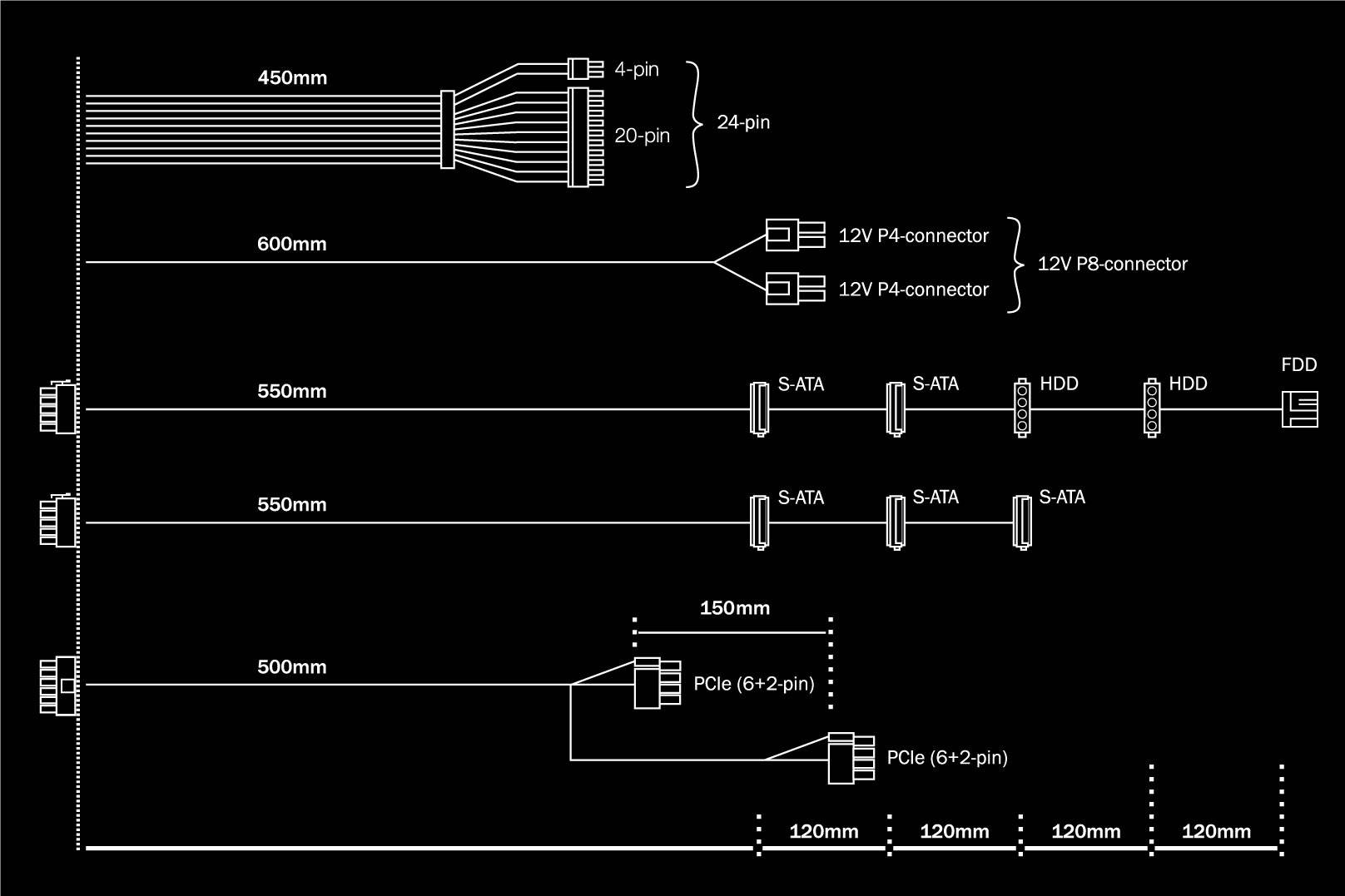

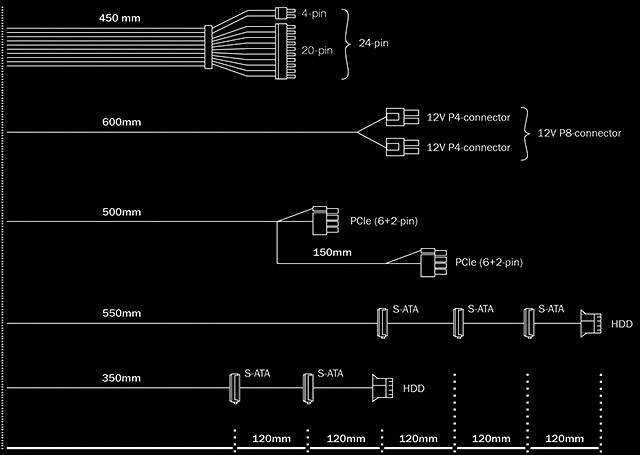

Ribbon cable: PCIe, drives
Cable length to mainboard (cm) 54
Cable length to 1. Connector (cm): 45
Maximum cable length (cm) 103
Number of cables: 5
ATX mainboard (20+4-pin): 1
P4+4 (CPU): 1
PCI-E 6+2 PIN (GPU): 2
PATA 4 pin 2
SATA 15-pin(HDD, Drives): 5
FDD (floppy): 1
