Deditec COS-DA2-16_ISO COS-DA2-16_ISO Multifunction module CANopen No. of inputs: 0 x No. of outputs: 2 x 7 V, 24 V 1 pc(s)

  • item model number: Q101302
Industrial electronics module with status LEDs and connection terminals, mounted on a DIN rail. Control of CANopen devices.

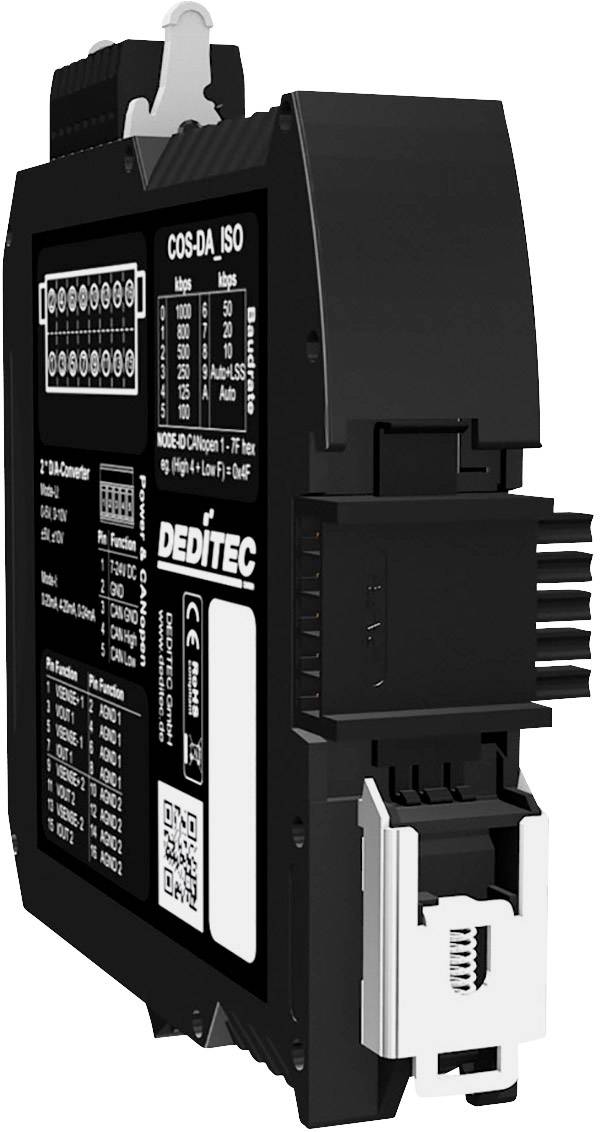

Electronic relay module with a black casing, multiple connections and labels. Brand name visible on the side.

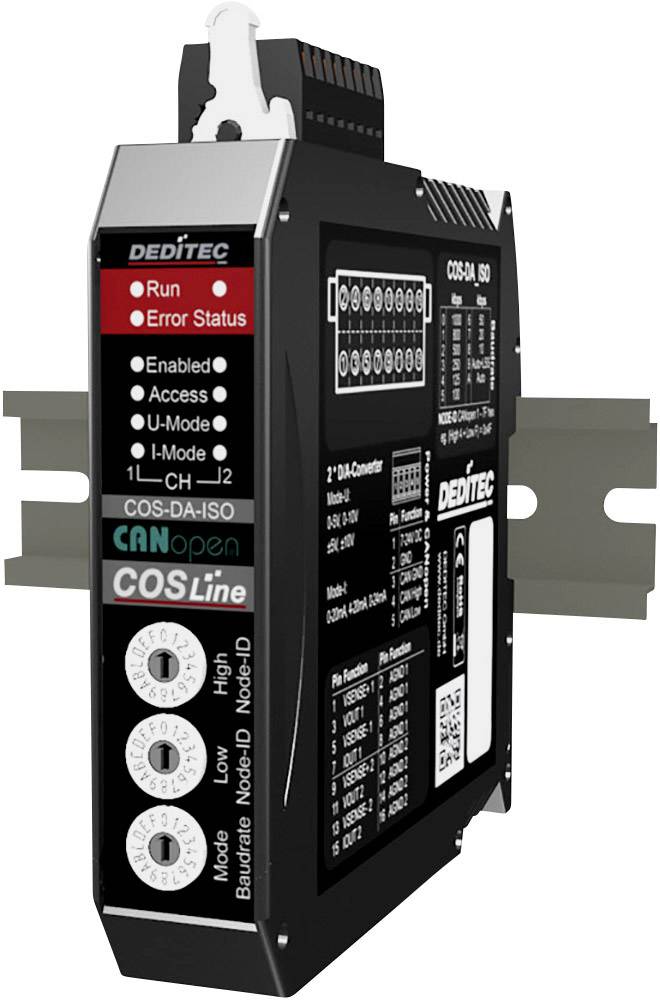

A black electronic module by Deditec with LEDs and various connections for mounting on a DIN rail.

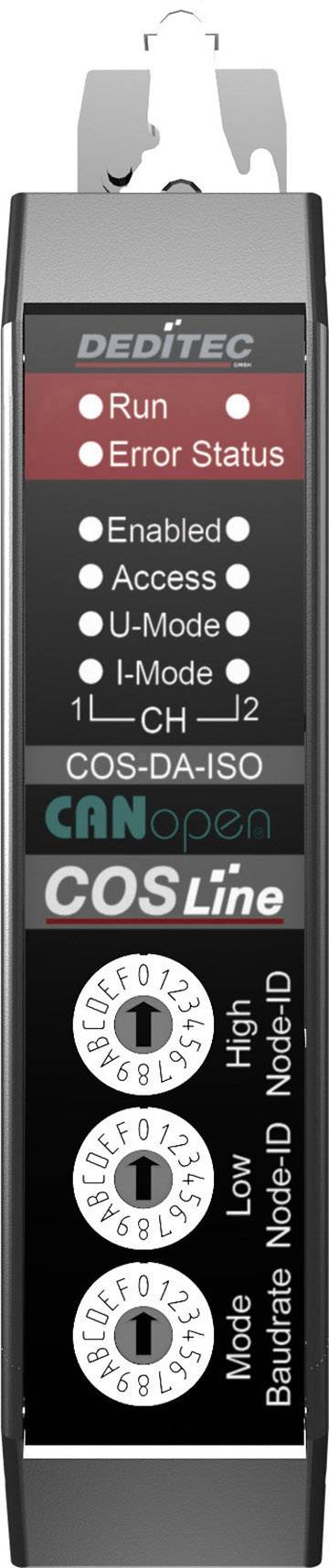

On a vertical module housing from DEDITEK, there are status indicators and three rotary switches with labels for CANopen settings.
A rectangular electronic device with multiple switches and displays on the front panel. Pushbuttons and an LED display are visible at the top.
Illustration of an electronic device with status indicators for Run, Error, and Status. There are also switches for different modes.
Sold out
Deditec COS-DA2-16_ISO COS-DA2-16_ISO Multifunction module CANopen No. of inputs: 0 x No. of outputs: 2 x 7 V, 24 V 1 pc(s)
Sold out

Product description

Overview

CANopen profiles according to CIA® specification CIA 301, CIA 305 and CIA 401
Galvanic isolation of the CAN bus
16-bit D/A converter with galvanic isolation
2 channels
Output ranges (volts):
0-5V, 0-10V+5V, +10V
Output ranges (current):
0-20mA, 4-20mA, 0-24mA
Node number and baud rate can be configured via coding switch or LSS
LED status display for D/A converter
Suitable for DIN rail mounting (TS35)

Description

The COS series are digital and analogue I/O modules with CANopen interface. These products can be operated both stand-alone and in combination. This makes the COS series ideal for almost all applications in modern automation technology.

In the network, the CAN bus and the power supply can be passed on via The In-rail bus connector.

Delivery content

  • Connectors
  • Voltage plug
  • Actuator tool
  • DEDITEC installation CD
  • Flyers

Keywords

04053199984343, Deditec, COS-DA2-16_ISO, gateways, interfaces

Industrial electronics module with status LEDs and connection terminals, mounted on a DIN rail. Control of CANopen devices.
Electronic relay module with a black casing, multiple connections and labels. Brand name visible on the side.
A black electronic module by Deditec with LEDs and various connections for mounting on a DIN rail.
On a vertical module housing from DEDITEK, there are status indicators and three rotary switches with labels for CANopen settings.
