Overview
Modular, stackable development system M5Stack
Powerful ESP32 micro-controller
Programmable via Arduino, MicroPython or Blockly
MAKERFACTORY Sensor kit M5Stack Fire Kit M5Stack FIRE Kit (new psram version)
Product description
Description
M5 stack is a modular, stackable ESP 32 Development System. Equipped with the powerful ESP 32 micro-controller. The boards as well as the accessory products can be installed to a housing, since they simply "stacked"/plugged in together. Thus, individual projects can be realized easily and various problems to solve. M5 Stack stands for M = modular, 5 = 5 x 5 cm (size of the module 5.4 x 5.4 cm), stack = stackable (stackable).

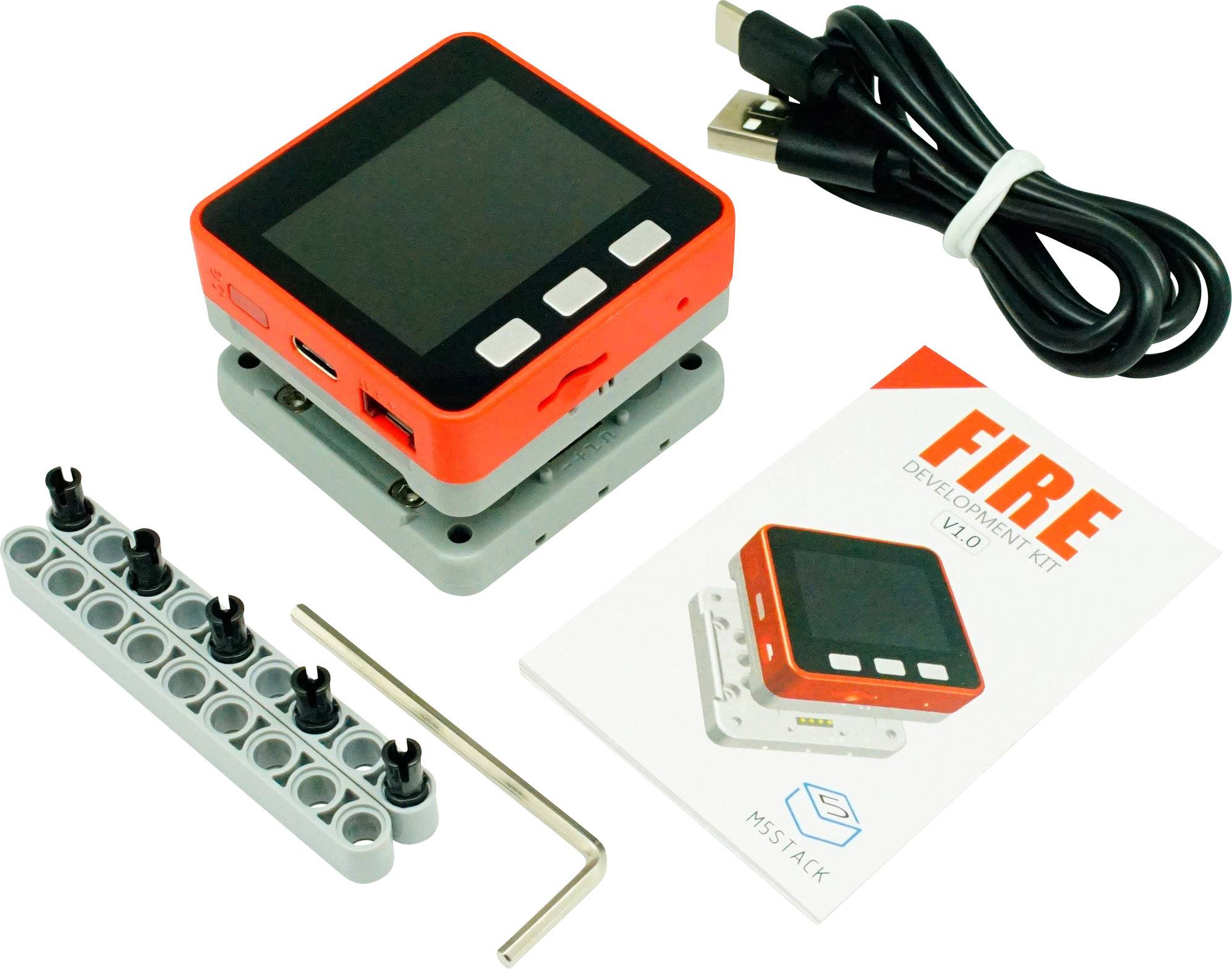

The kit consists of a red M5 and a M5, M5 Go Base Core Go CHG. You can use the M5 Stack FIRE via Arduino, Micro Python or ray program.
The M5 Stack FIRE equips the ESP 32 with everything what to program, execute, and develop on the ESP 32 is required. It also has a 9-axis MEMS (Gyro + G-sensor + Magnetometer) (MPU6886 + BMM150) and a TFT LCD display. So that you can, for example, a 3D-remote-controlled gesture control controller, a simple "Leap Motion" via M5 Stack fire in a day instead of a few weeks.

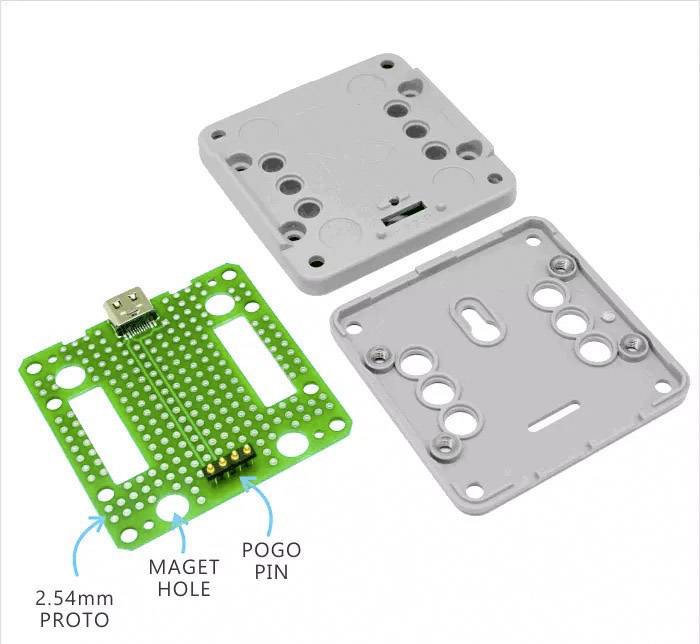

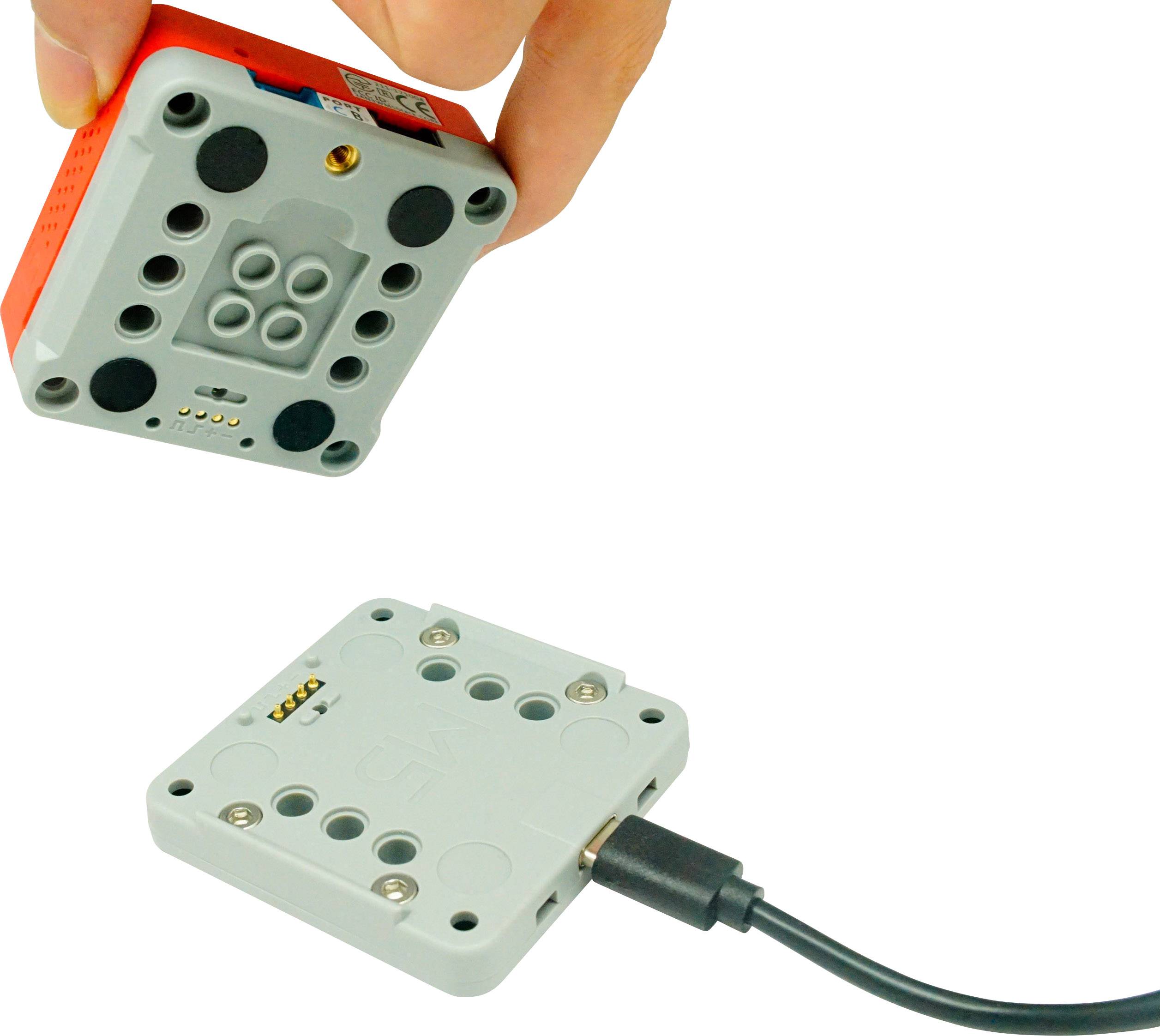

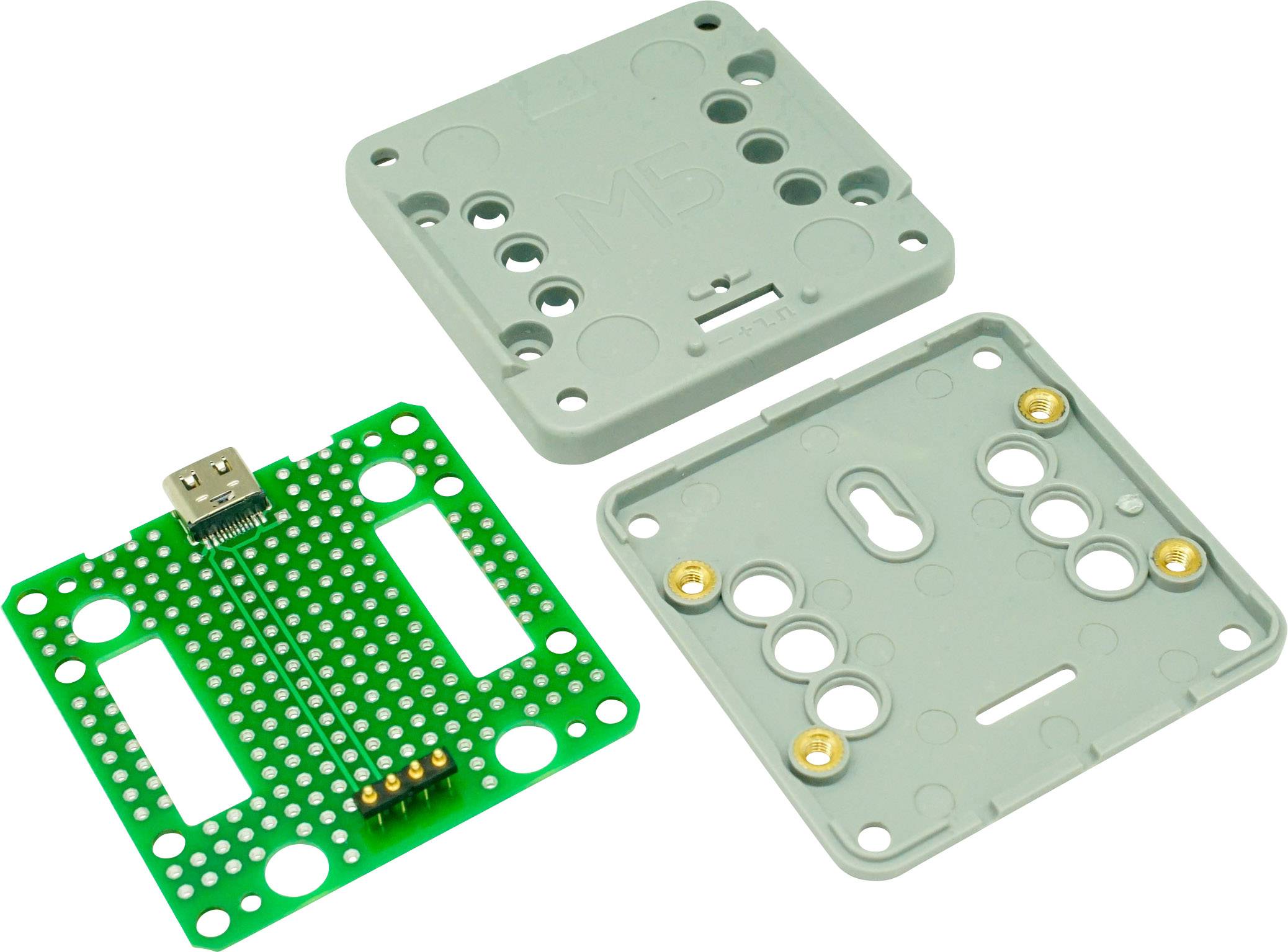

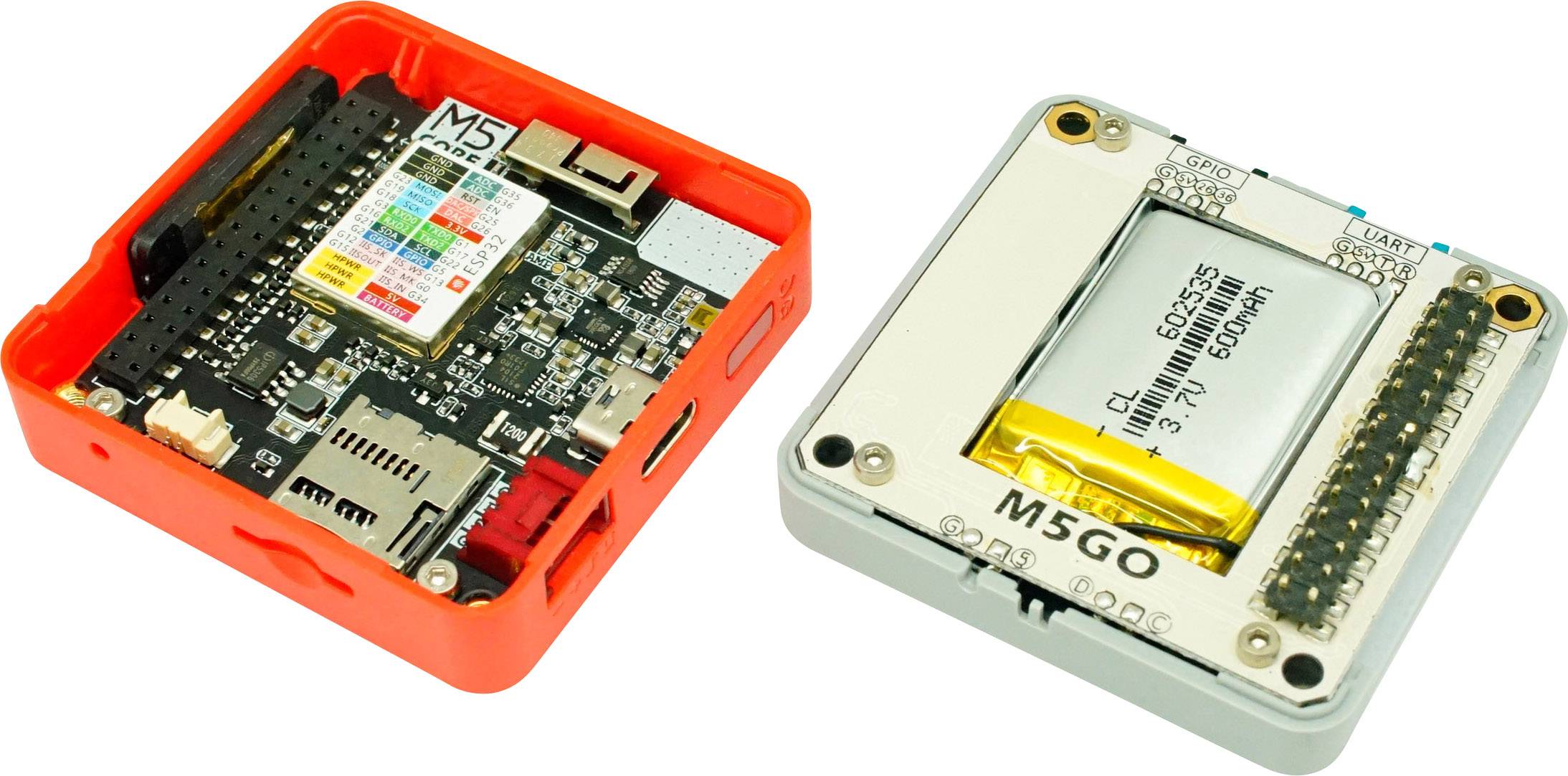

M5 Go CHG-the base consists of a POGO pin. M5 Go base consists of port B, PORT C, 2 RGB LED bars (SK 6812), a microphone and a 600mAh battery.
