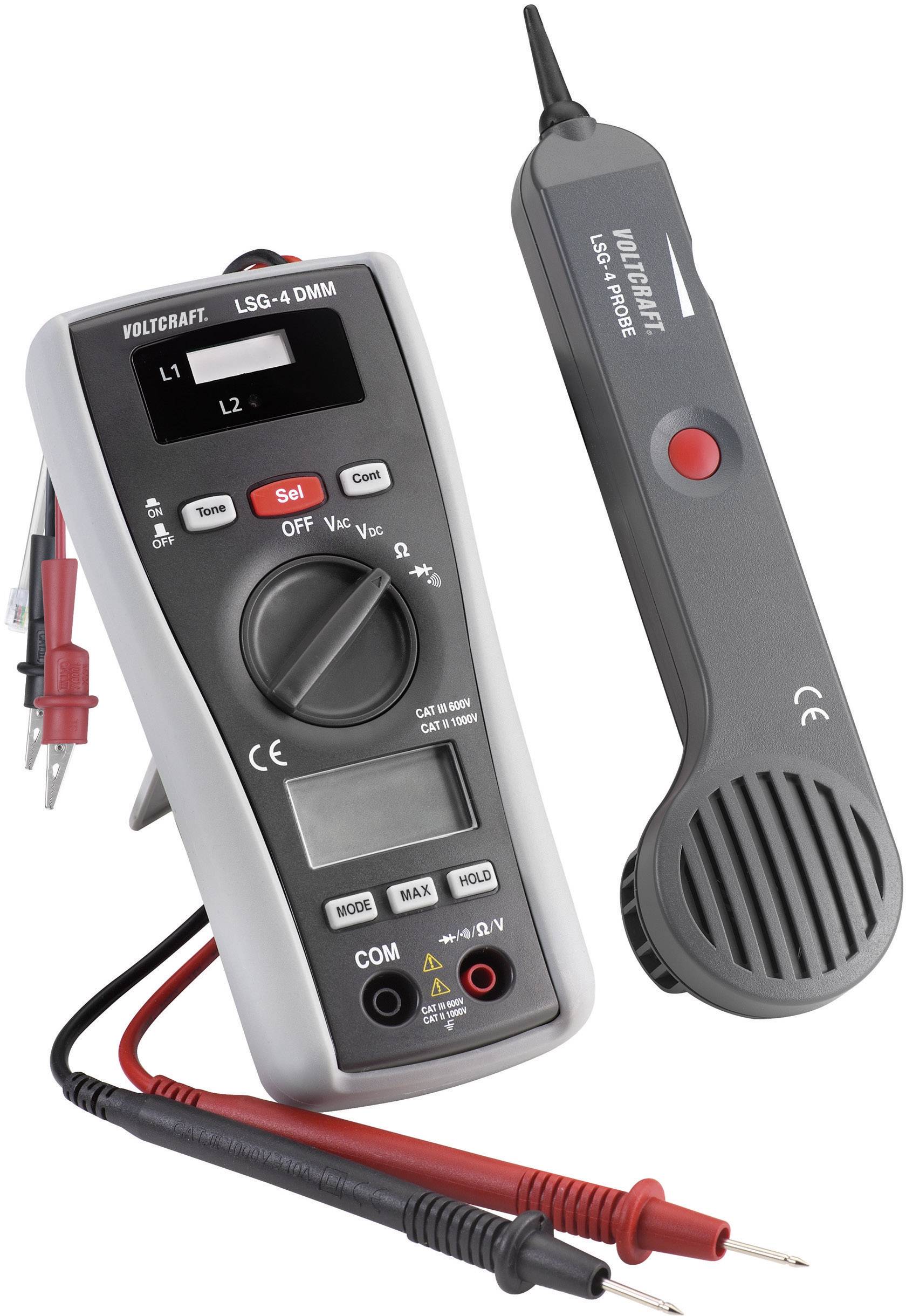

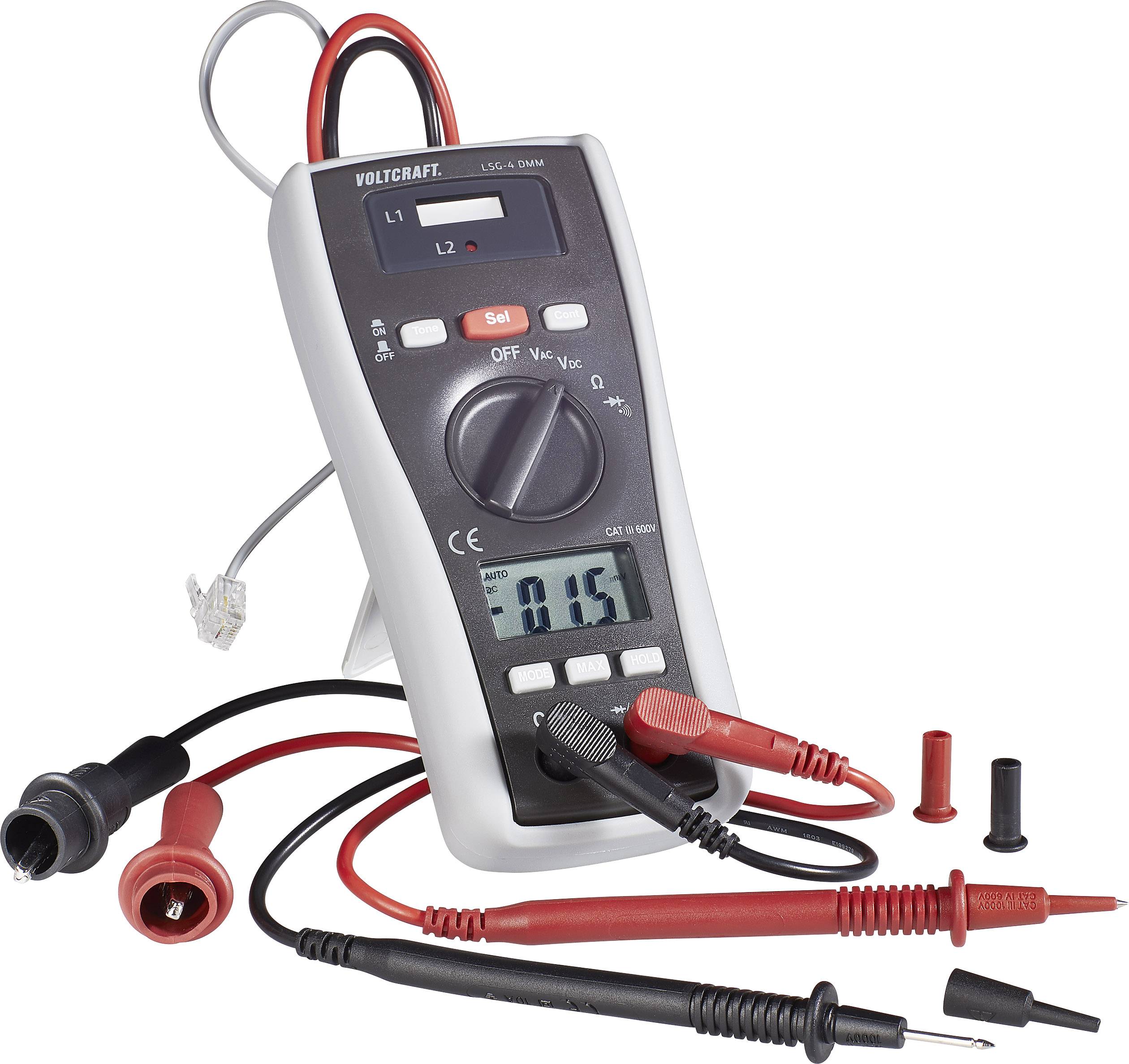

VOLTCRAFT LSG-4 Cable locator, signal tracer, continuity tester, multimeter

Overview

Adjustable sensitivity
Multimeter with all Standard Functions

Description

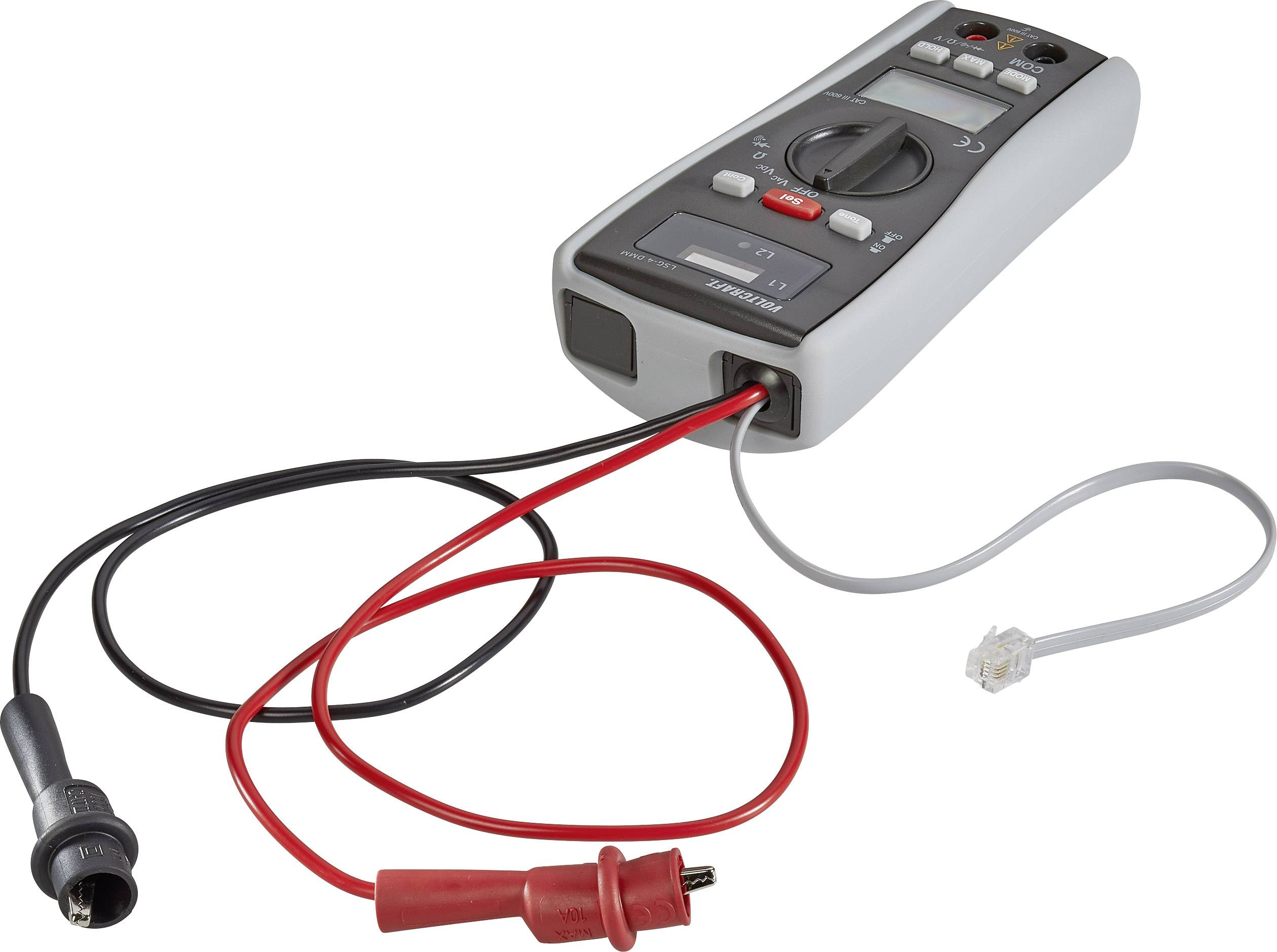

Save the cables and conductors with the LSG-4 DMM The LSG-4 uses a high-frequency tone generator which modulates a HF signal on the test cable. It also includes a highly sensitive inductive receiver, which can detect cables up to 15 cm inside a wall. This allows you to track cable layouts precisely. the Signal of the sound generator can be feeded alternatively via a RJ11 connector or via an alligator clip in the conductor that has to be measured Furthermore, the device is available with various functions of a Multimeter No need to buy an extra device. The rubber protection makes the LSG-4 DMM suitable for construction site use.

Characteristics

Sound signal switch-able (period/pulse) · continuity and voltage tester on the searching conductor · Measuring functions V/AC, V/DC, Ω, audio continuity tester and Diode test · Max and Hold Function.

Delivery content

• LSG-4 DMM
• Receiver probe
• 2 Micro Batteries (AAA)
• 2 x 9 V Block
• 1 set of measuring leads
• operating instructions

Keywords

04053199991488, VOLTCRAFT, VC-10906565, LSG-4
