Schabus 200362 SHT 8800 Water detector for analogue inputs

  • item model number: A201812

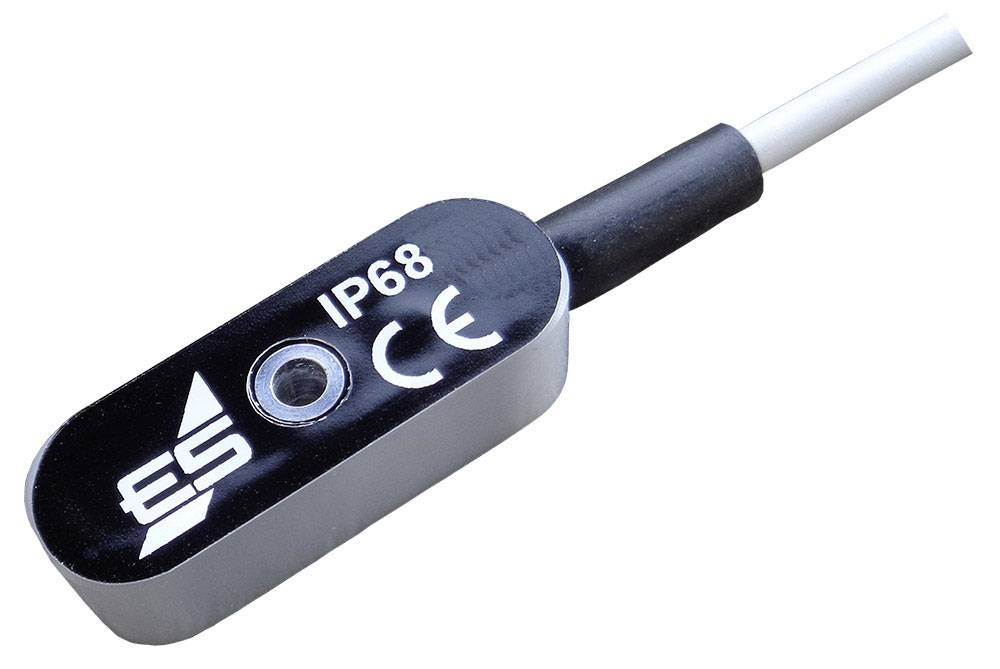

Schabus 200362 SHT 8800 Water detector for analogue inputs

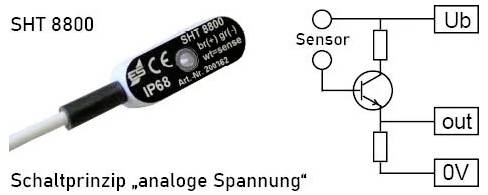

A sensor (SHT 8800) with switching principle diagram: Sensor is connected to Ub, out and 0V, showing analogue voltage control.

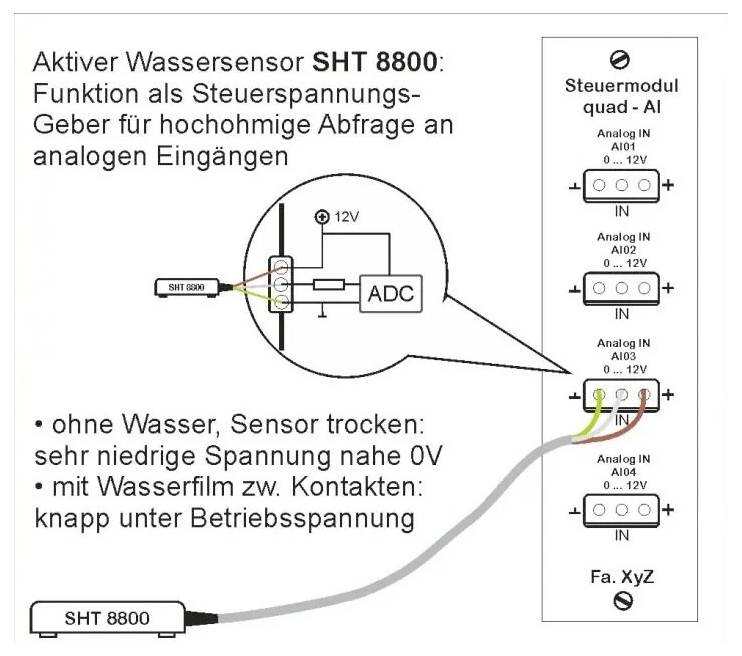

Schematic shows active water sensor SHT 8800, which functions as a control voltage generator with high-impedance polling at analogue inputs.
Active Water Sensor SHT 8800 for Analogue Inputs. Features: ground-mountable with 4m cable, corrosion-resistant, produced in Germany.

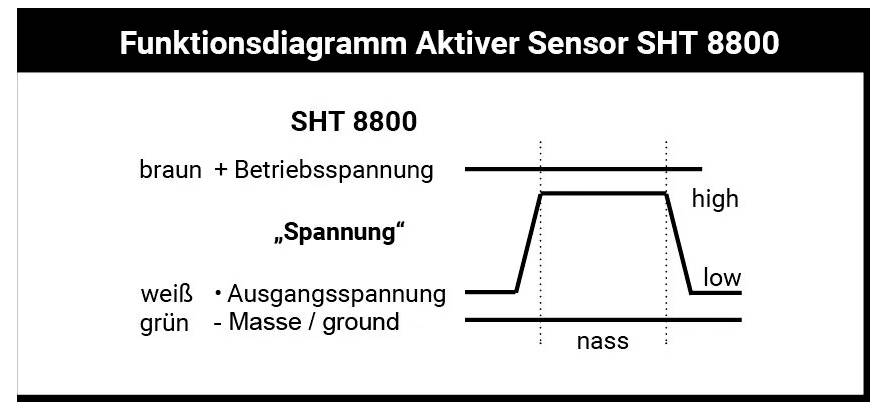

'Functional Diagram Active Sensor SHT 8800': shows voltage progression in relation to humidity with 'high' and 'low' markings.
60,01 €
VAT included
plus
Delivery time: 1-2 days
in stock
30 days free return shipment
Schabus 200362 SHT 8800 Water detector for analogue inputs
60,01 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : 59,40 € 1,0 % savings
from 5 piece : 58,80 € 2,0 % savings
from 10 piece : 58,20 € 3,0 % savings

Product description

Description

Sensor with two V4A metal contacts molded in plastic housing. As soon as water or another conductive liquid touches the two contacts, the output voltage increases from close to 0V to just below the applied operating voltage. The sensor cables can be easily extended (cross-section: 3 x 0.14 square millimeter

Water sensor with cast electronics - ideal for the assignment of previously unused analogue inputs in home automation and building control technology - corrosion-resistant casting for highest safety and durability for floor mounting - screw-on compact, heavy design, tough-elastic, impact-resistant, conditional protection against accidental entry.

The SHT 8800 water sensor is not suitable for connection to Schabus water detectors.

Keywords

04044764004207, Schabus, 200362, SHT 8800

Schabus 200362 SHT 8800 Water detector for analogue inputs
A sensor (SHT 8800) with switching principle diagram: Sensor is connected to Ub, out and 0V, showing analogue voltage control.
Schematic shows active water sensor SHT 8800, which functions as a control voltage generator with high-impedance polling at analogue inputs.
Active Water Sensor SHT 8800 for Analogue Inputs. Features: ground-mountable with 4m cable, corrosion-resistant, produced in Germany.

Product specifications
