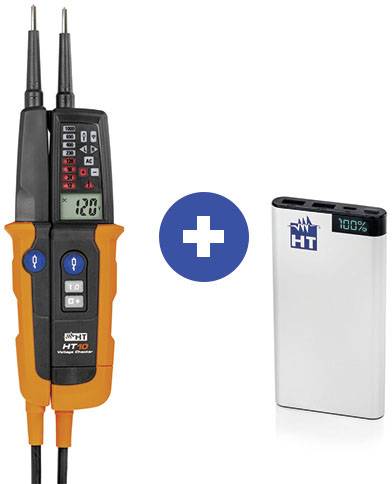

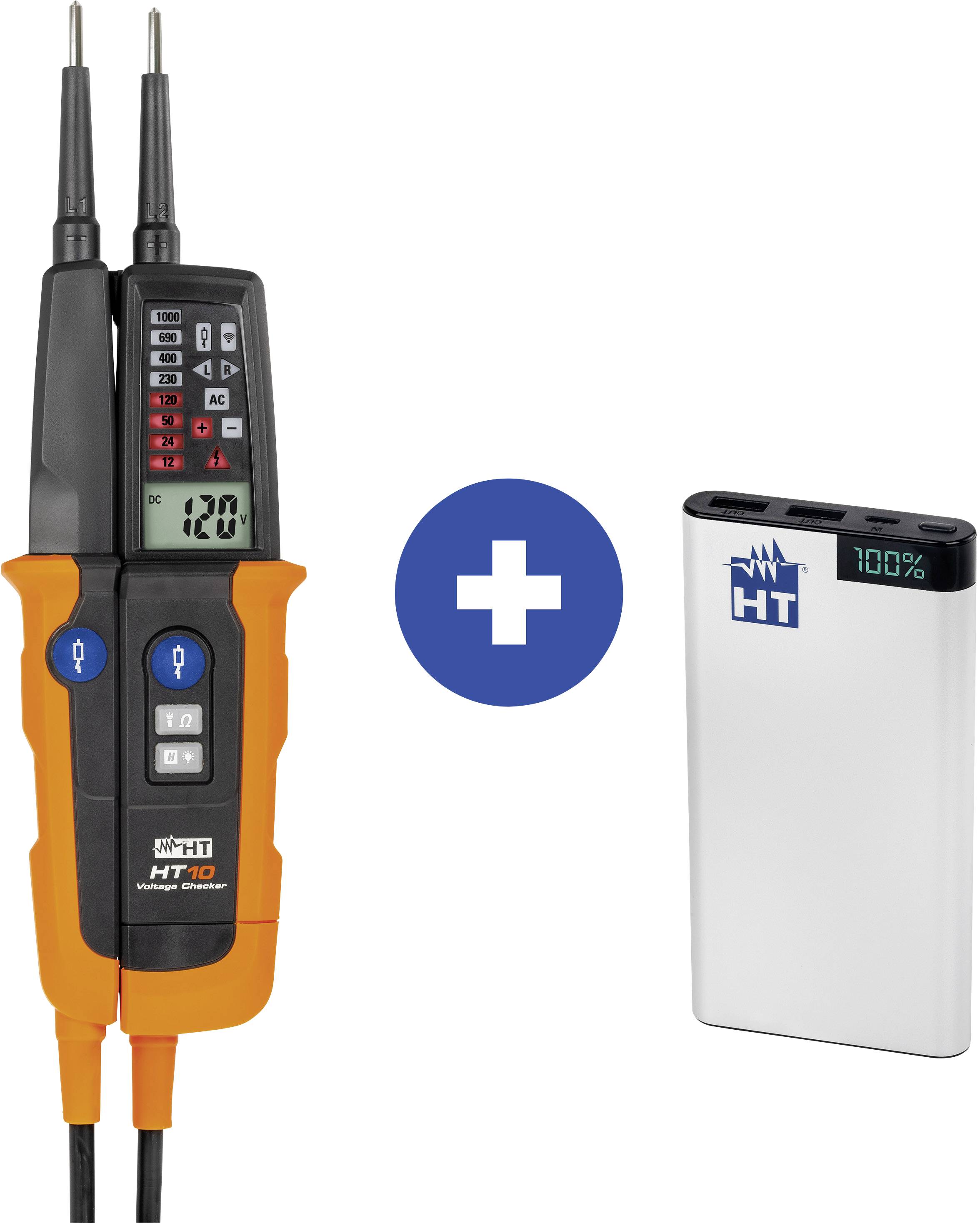

HT Instruments HT10 + Powerbank Two-pole voltage tester Acoustic, Bargraph, LCD, LED

Overview

Voltage from 3 V to 1000 V AC/DC
Push button for load switching (RCD tripping 30 mA)
Large LCD display with lighting
Bar graph display from 12 V AC/DC
Measuring point lighting with white LED
19 mm contact distance for one-handed testing
SAFETY ACCORDING TO CAT III 1000 V, CAT IV 600 V.
TÜV/GS-tested

Characteristics

DC and AC voltage up to 1000 V AC/DC
Bar graph with 12 / 24 / 50 / 120 / 230 / 400 / 690 / 1000 V.
Voltage measurement with low internal resistance
Single-pole phase test
Polarity indicator
Determination of rotary field direction of rotation
Resistance measurement 0 Ω ÷ 1999 Ω
Optical & acoustic continuity test 0 Ω ÷ 400 kΩ
Fixed impedance ~ 350 kΩ ( 3.5 mA at 1000 V)
Data HOLD
Auto switch-off

Delivery content

• Fixed probe tip cover with compartment for protective caps and metal sleeves
• 4 mm metal sleeves with internal thread
• 2 batteries 1.5 V type AAA
• Protective case
• User manual
• Powerbank

Keywords

HT Instruments, 2009880, HT10 + Powerbank, voltage tester, current tester, two-pole voltage tester
