Description

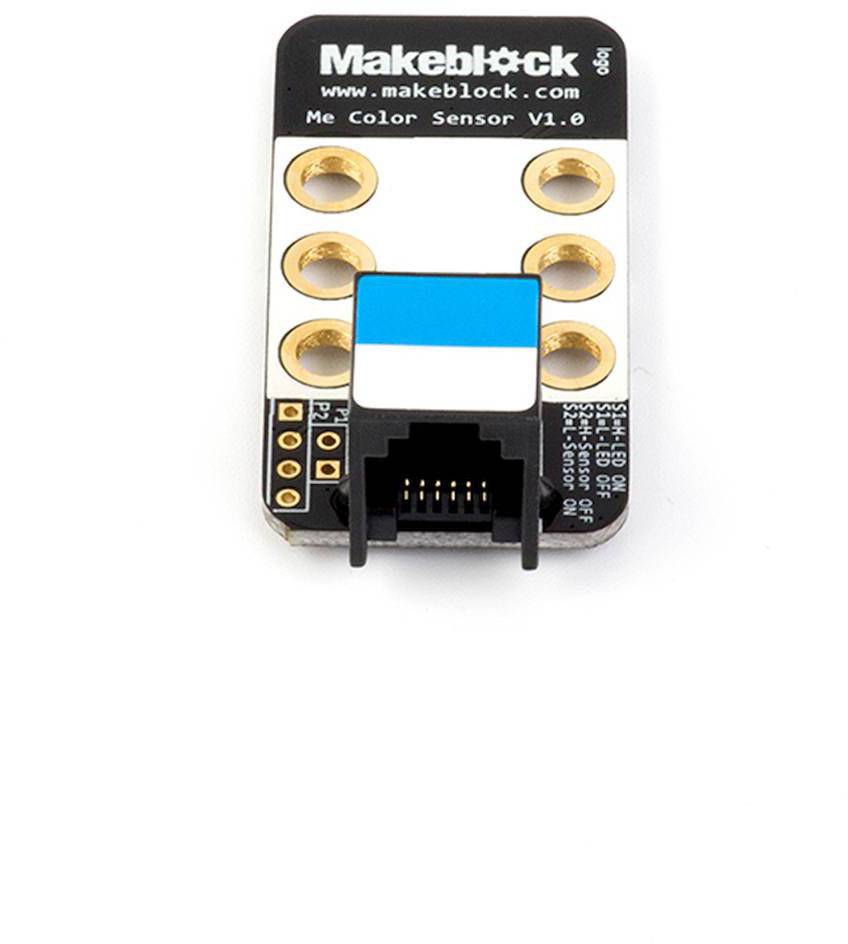

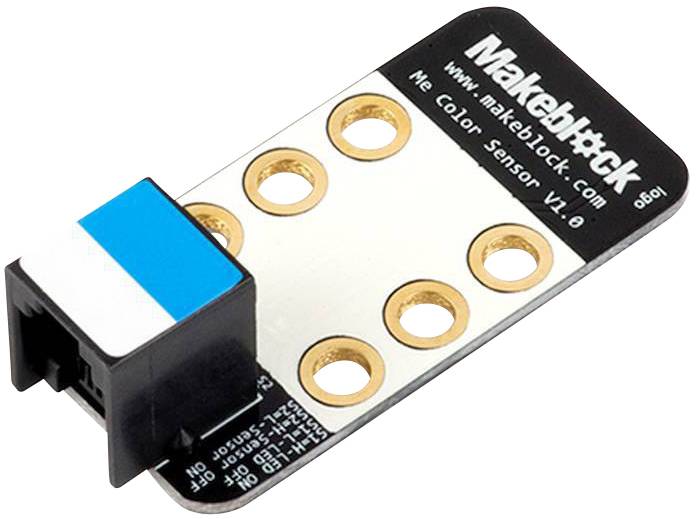

The Me Color Sensor is a color sensor that can detect a total of six colors, including black, white, red, blue, yellow and green. The interface of this module is a standard blue and white interface and uses the I2C protocol for communication. It must be connected directly to a motherboard with a blue and white interface port.
Connection with RJ25 because the color sensor module has a blue and white interface, it must be connected to the blue and white port of the motherboard when using the RJ25 cables. The figure below shows an example with Makeblock MegaPiPro, in which ports 6, 7, 8, 9, 10, 11 and 12 can be used.

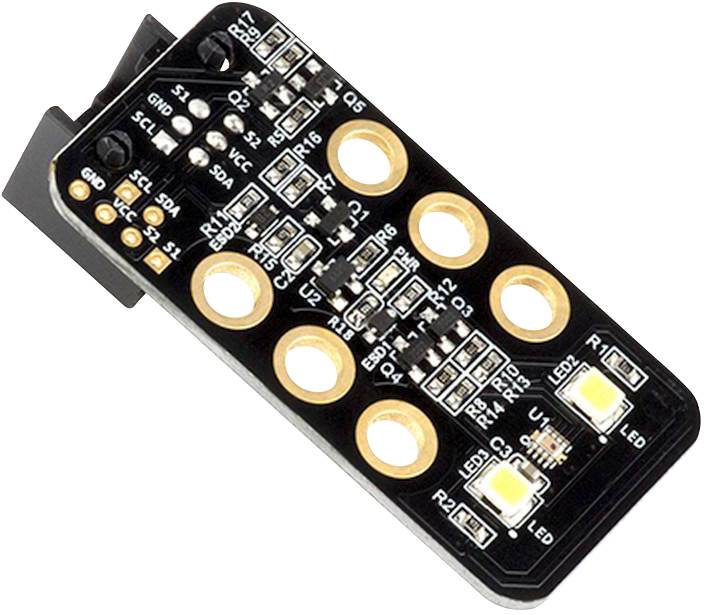

Connection with Dupont cable When using a DuPont cable to the Arduino Mega2560 motherboard, the SCL and SDA pins of the module must be connected to the I2C port, and the S1 and S2 pins must be connected to the digital interface that are the A10 and A11 ports.
The Me Color Sensor is a color sensor that can detect a total of six colors, including black, white, red, blue, blue, yellow and green. The interface of this module is blue and white by default and uses the I2C protocol for communication. It must be connected directly to a motherboard with a blue and white interface.
