Overview

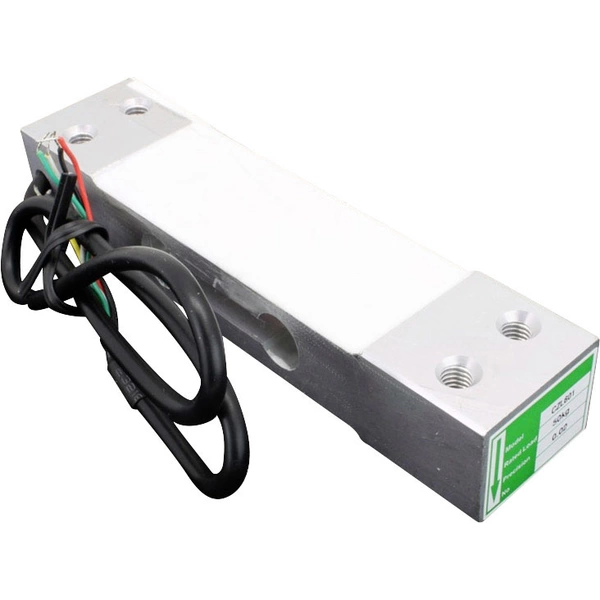

Load cell
0-50kg measuring range
0.02% accuracy
Compatible with Load Cell Bricklet
TinkerForge 6128 Load cell Suitable for (single board PCs) TinkerForge 1 pc(s)
29,99 €
VAT included
plus
Environmental tax included 0,02 €
Delivery time:
2-3 days
in stock
30 days free return shipment
29,99 €
VAT included
plus
Environmental tax included 0,02 €
Product description
Description
This micro load cell is compatible with Load Cell Bricklet 2.0.
Characteristics
Model: CZL601-50kg
Measurement range: 0kg to 50kg
Nominal output ratio: 2.0±0.2mV/V
Non-linearity: 0.013%FS
Hysteresis: 0.016%FS
Repeatability: 0.013%FS
Drift: 0.02%FS/30min
Temperature effect at zero point: 0.02%FS/10°C
Temperature effect over measuring range: 0.03%FS/10°C
Zero point balance: ±1.5%FS
Input impedance: 405±10Ω
Output impedance: 350±3Ω
Insulation resistance: ≥ 5000MΩ at 50V (DC)
Recommended Excitation voltage: 9V to 12V (DC)
Permitted Excitation voltage: 5V to 18V (DC)
Compensated temperature range: -10°C to +40°C
Operating temperature range: -20°C to +55°C
Limit range Overload: 120%FS
Maximum overload: 150%FS
Connections: Eale Overload: Excitation+: Red; Excitation-: Black; Signal+: Green; Signal-: White
