Overview
Wireless home automation
Controls wireless sockets (supported sockets)
Can control radio sockets with DIMM function
Can read radio socket remote controls
TinkerForge 289 Remote Switch Bricklet 2.0 Expansion board TinkerForge
Product description
Description

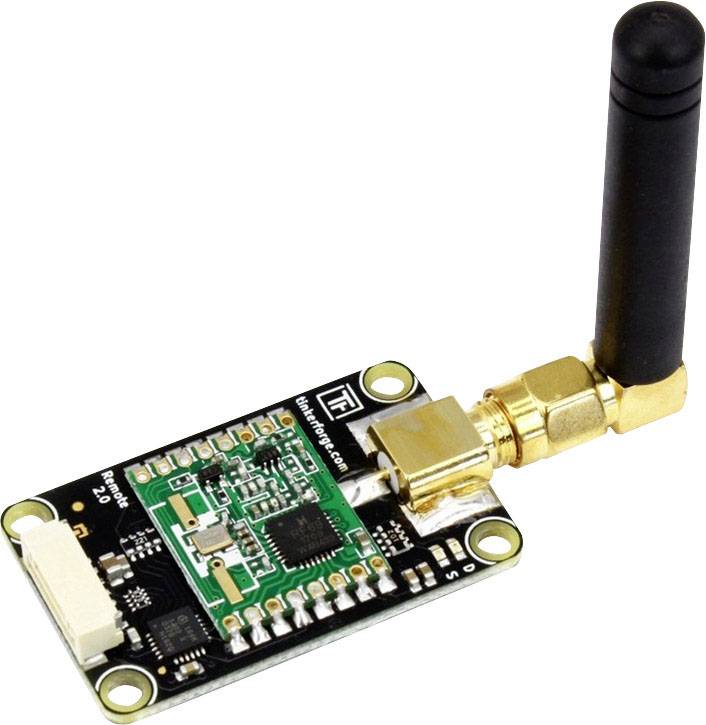

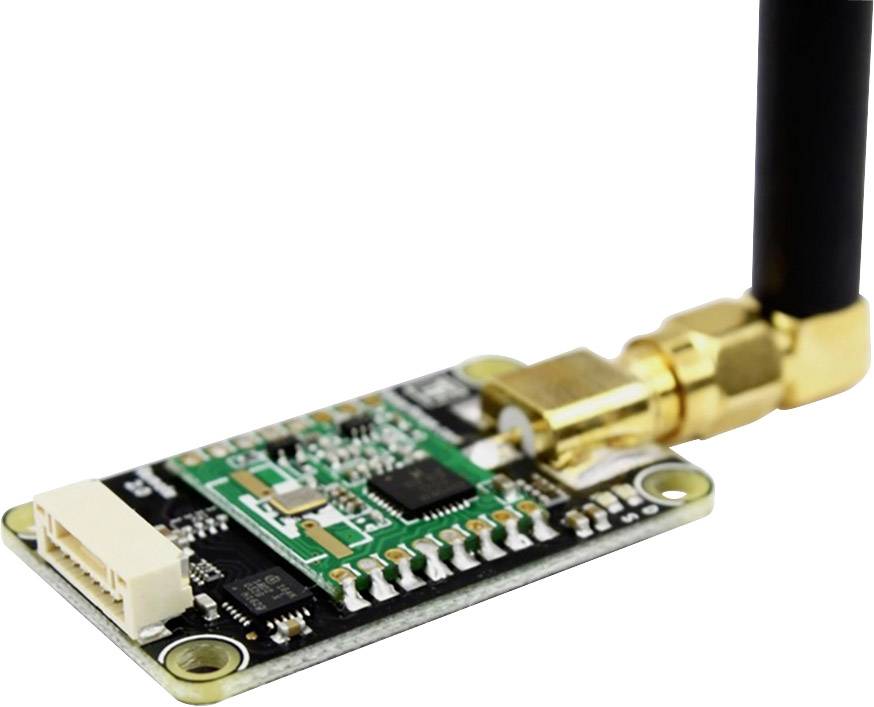

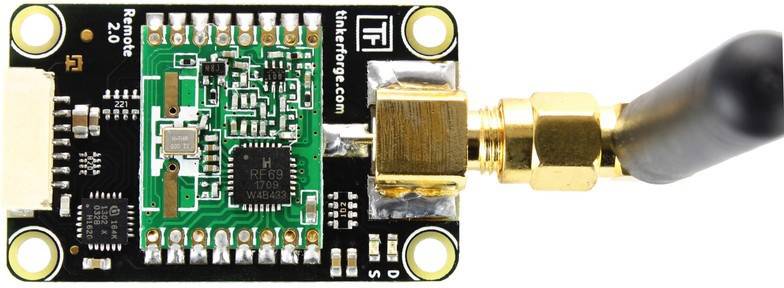

The remote switch Bricklet 2.0 is equipped with a 433MHz radio module (433MHz SMA antenna is included). It can be used to control all radio sockets based on the PT2262 or HX2262 IC via a brick.
The house code and receiver code of the socket to be switched can be configured via the API.
The Bricklet can also be used as a receiver of the remote controls.
The Remote Switch Bricklet 2.0 has a 7-pin Bricklet connector and is connected to a brick with a 7p-10p Bricklet cable.
Characteristics
Radio module: RFM69HW
Power consumption: 113mW (inactive), 231mW (transmit)
Radio frequency: 433MHz
supported Radio sockets: All based on PT2262 and HX2262
