7.1cm (2.8") LCD with 128x64 pixel resolution
Embedded font and GUI for simple text display and GUI elements
Touch screen with callback for x/y coordinates and contact pressure
Automatic swipe detection (left, right, up and down)

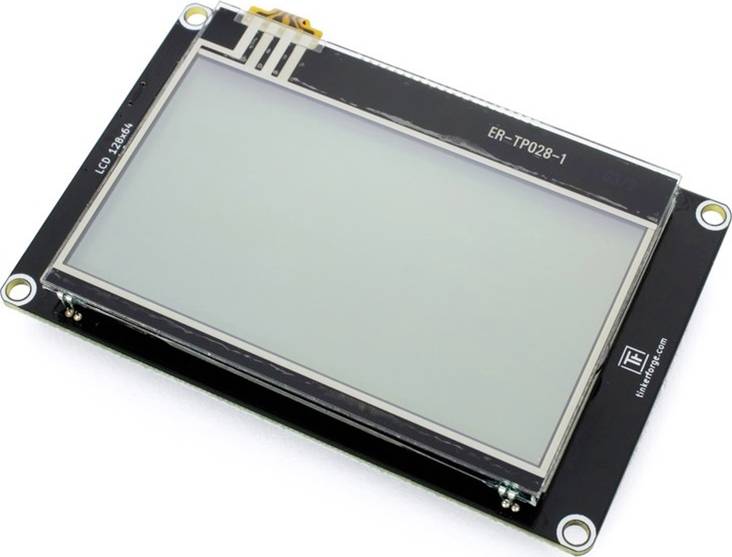

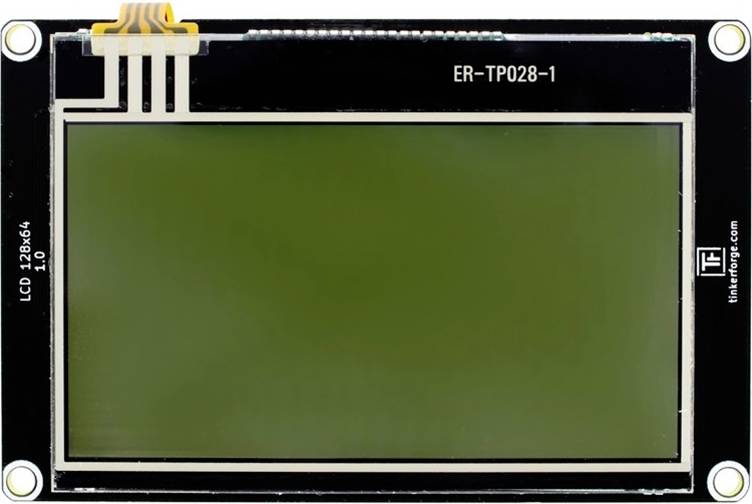

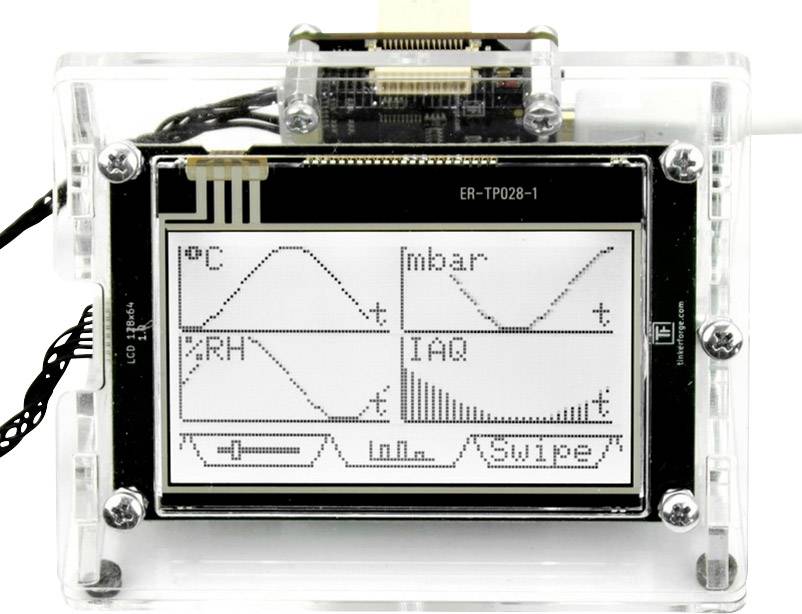

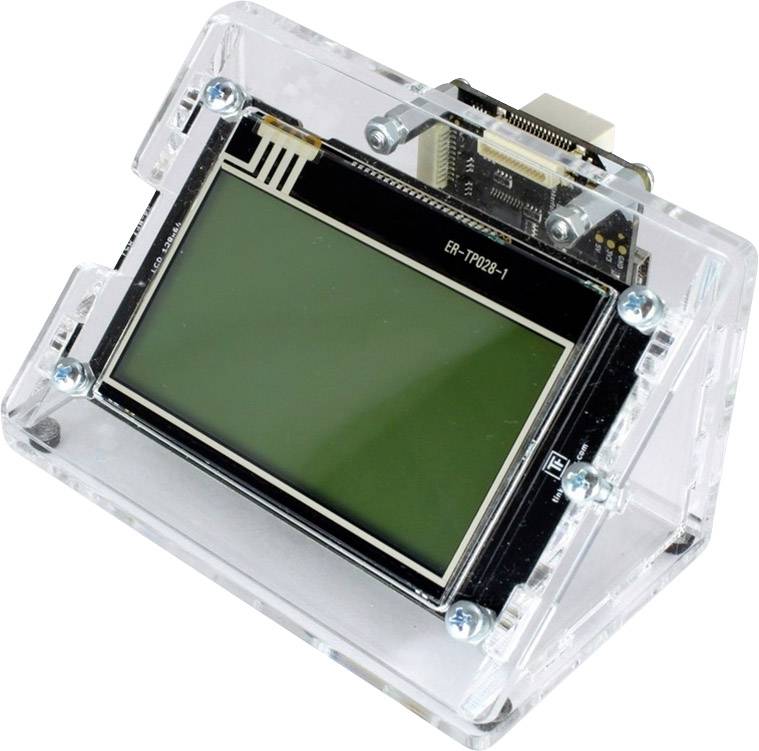

The LCD 128x64 Bricklet is an LCD display with a resolution of 128x64 pixels and resistive touch screen.
Each pixel can be controlled individually, thus the display is graphics-capable. This allows a versatile use and detailed representations, compared to the alphanumeric LCD 20x4 Bricklet with its fixed character set. The size of the display is very similar to the old LCD 20x4 Bricklet, so that it can be used as a direct replacement.

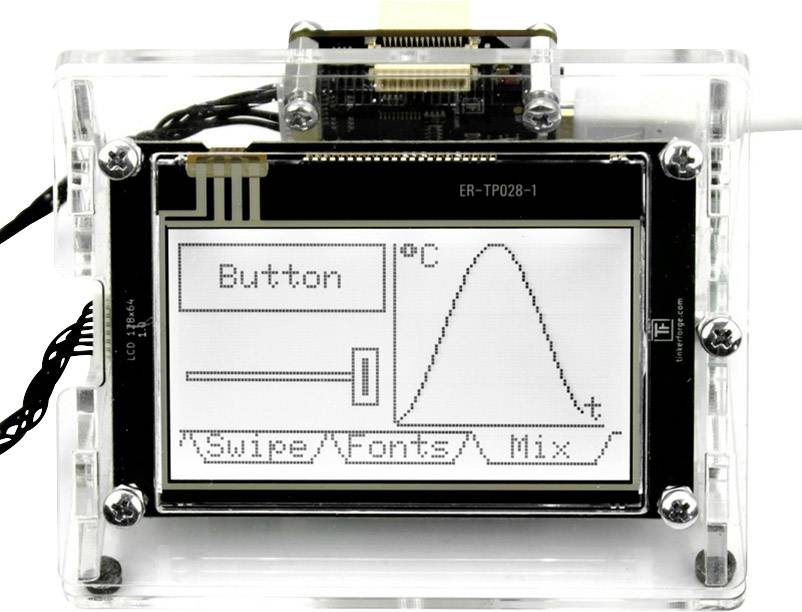

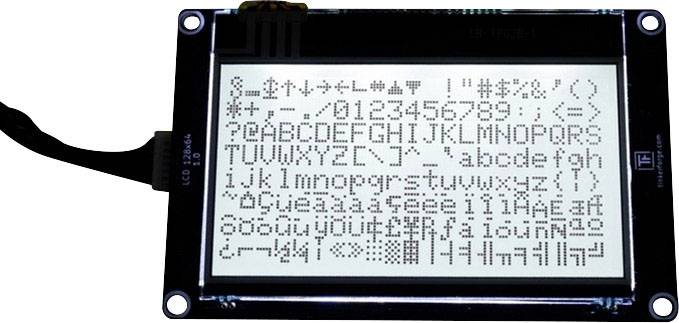

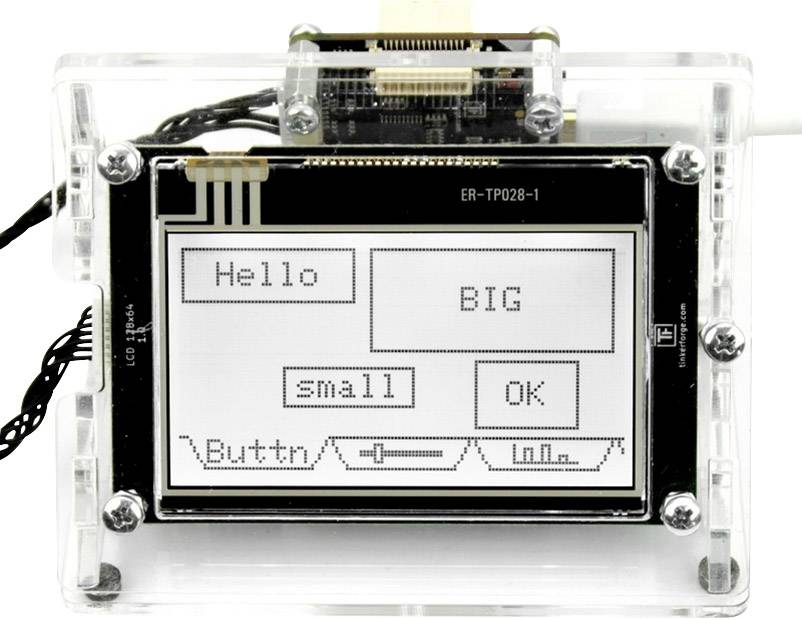

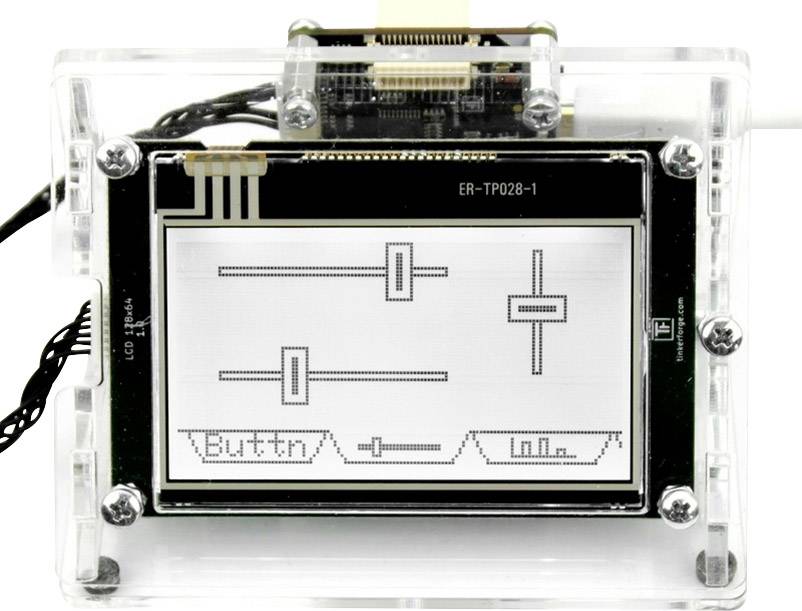

Text can be displayed quickly and easily with the help of the embedded character set. In addition, there is an embedded GUI.
The touch screen has an easy-to-use callback for x/y coordinates and contact pressure. In addition, the Bricklet automatically detects swipe gestures.
High update rates up to uz 60Hz are possible.

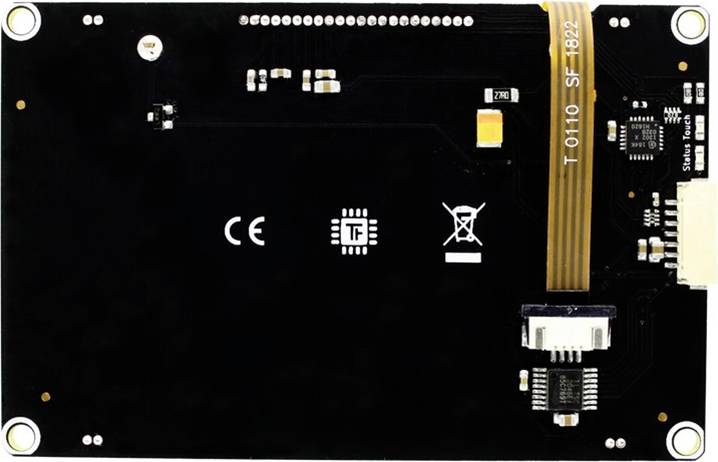

The LCD 128x64 Bricklet has a 7-pin Bricklet connector and is connected to a brick with a 7p-10p Bricklet cable.
Power consumption: 40mW (8mA at 5V, background lighting off); 545mW (107mA at 5V, background lighting 100%)
Display resolution: 128x64 pixels, 26x8 characters
Display size: 7.1cm (2.8")
Display colors: Black/white
Touch screen type: Resistive
touch screen resolution: 128x64
Touch screen pressure: 0-300
04251640702755, TinkerForge, 298, Bricklet
