Overview
Independant measurement of two voltages between -35V and +35V (DC)
24Bit A/D converter for high resolution
Individually calibrated
Accuracy of 0.1% / ±4MV over the entire measuring range
Up to 976 measured values per second

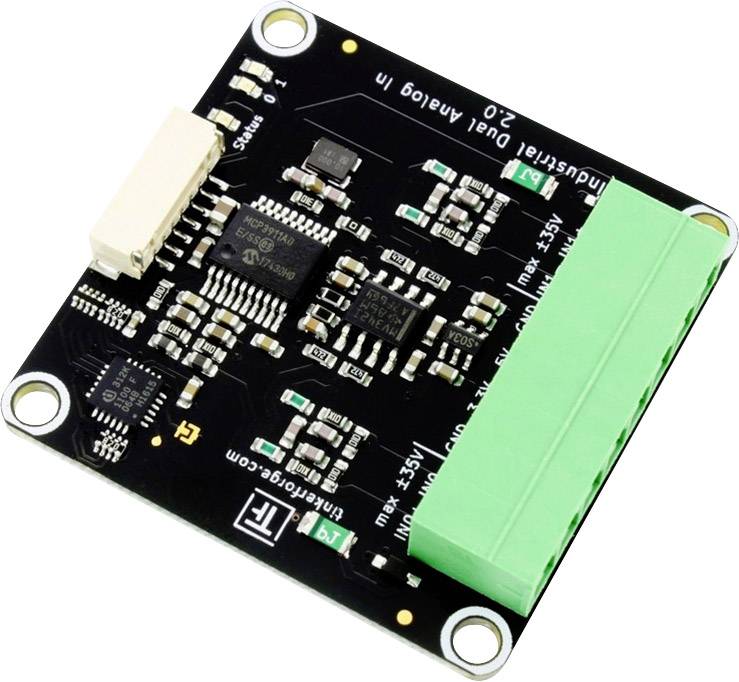

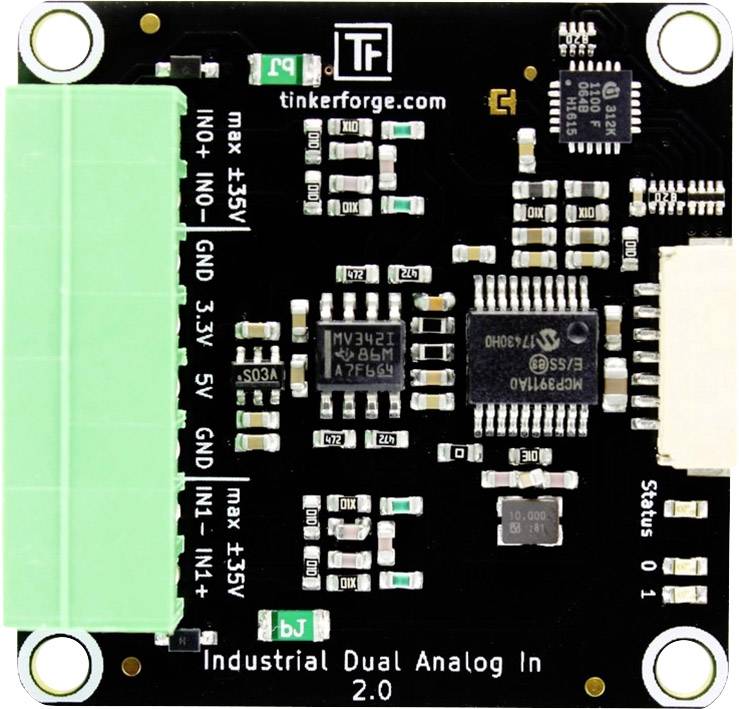

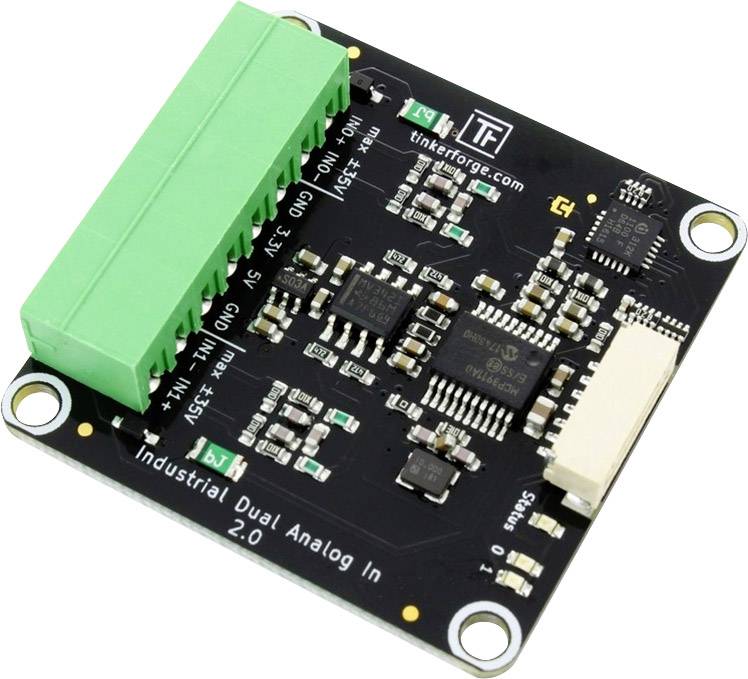

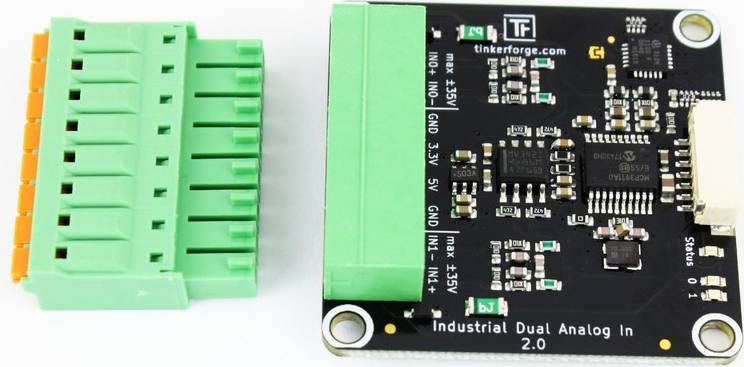

TinkerForge TF-2121 Expansion board Suitable for (single board PCs) TinkerForge 1 pc(s)
Product description
Description
With the Industrial Dual Analogue in Bricklet 2.1, Bricks can precisely measure voltages. Both channels of the Bricklet are calibrated so that the voltage measurement is very reliable.
With configurable events, it is possible to react to voltage changes without constantly polling the values (no polling required).
The Bricklet has no galvanic separation to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. If this leads to unwanted connections, ground loops or short-circuits in the respective application, the use together with an insulator Bricklet is advisable.
The Industrial Digital Out 4 Bricklet 2.1 has a 7-pin Bricklet connector and is connected with a 7p-10p Bricklet cable with a brick.
Characteristics
A/D converter: MCP3911
Power consumption: 50mW (10mA at 5V)
Channels: 2
Measuring range: -35V to +35V (DC)
Resolution: 24Bit
Accuracy: 0.1% / ±4MV over the entire measuring range
Maximum output current: 150mA (3.3V), 150mA (5V)
