Single-chip Bluetooth 5 controllerCombines a BT protocol stack, BT baseband, modem, and BT-RF in a single chipBluetooth® 5.0+EDR with max. 3 Mbps and up to 40 m rangeMultiple active connections in slave or master mode Supports Bluetooth Low Energy (BLE)

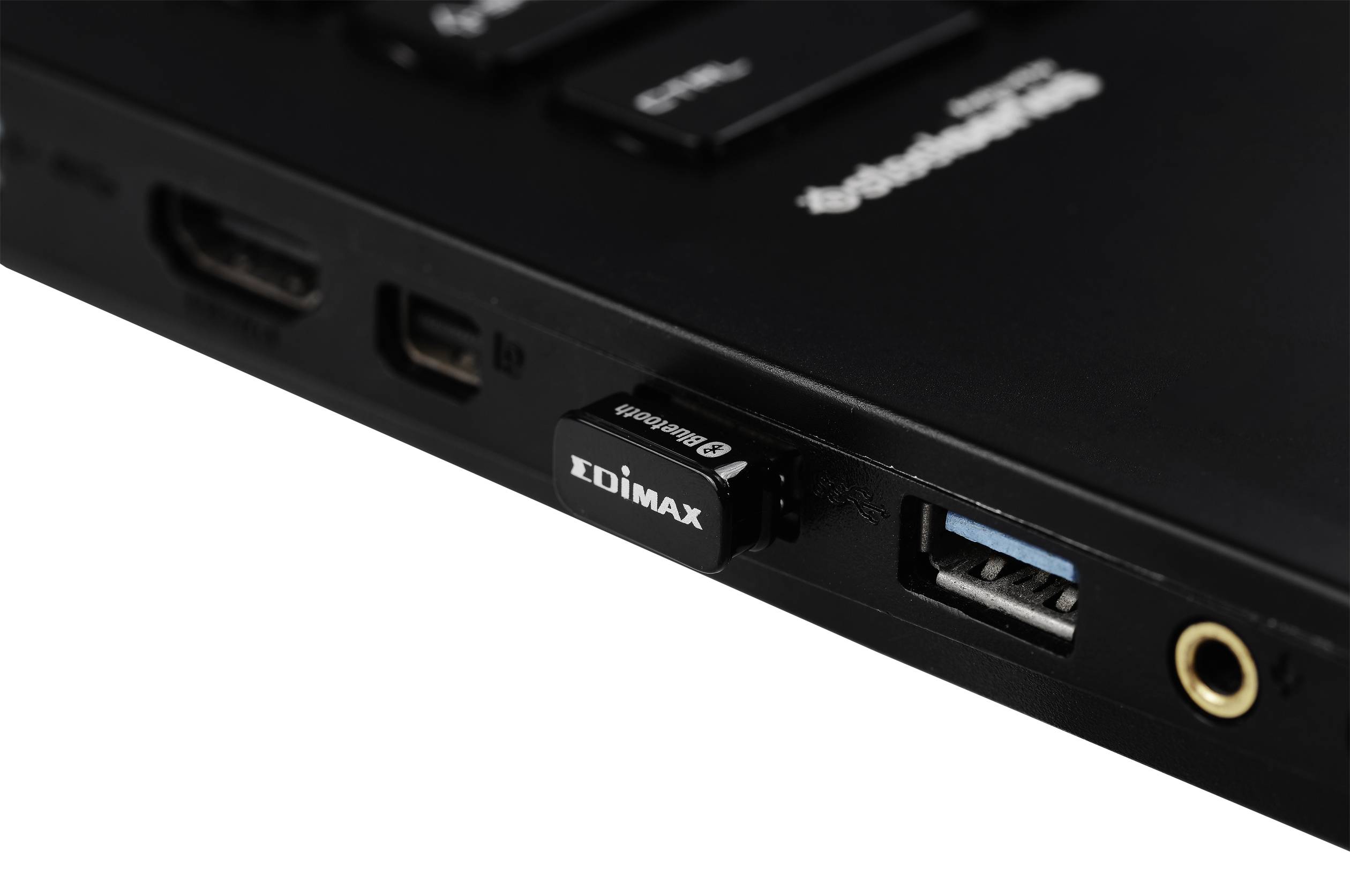

The EDIMAX Bluetooth USB-stick is compact and still powerful: It supports Bluetooth 5 and is thus optimum for all users of the latest Bluetooth-generation. The stick has a very low power consumption during data transfer thanks to its Low Energy function. Because of its small size it does not block any adjacent USB connections, so that it can be used parallel and can be stowed away quickly and easily in each bag. For BR/EDR, several active connections are possible in either slave or master mode.
COMBINES BT PROTOCOL STACK (LM, LL, L2CAP, GATT, RFCOMM, SPP and LE), BT baseband, modem and BT-RFBluetooth core specification v5 and dual mode (BR/EDR + Low Energy Controller)Compatible with previous versions, including v2.1 + LESupports Bluetooth classic (BDR/EDR)Supports Bluetooth Low Energy (BLE) - several low energy conditionsTechnical dataRealtek RTL8761BUV chipset solutionStandard: Corresponds to the Bluetooth 5 specificationUSB 2.0 full speed (USB1.1) type AFrequency range 2402 - 2480MHzData rate: 3 Mbps (class BT-BR/EDR) : 2 Mbps (BLE)Sensitivity:94 dBm (2 Mbps EDR)87 dBm (3 Mbps EDR)98 dBm (BLE)106 dBm (125K BLE large range)Antenna: Internal PIFA antennas x 1Standard data:Operating humidity: 10 to 90%.Storage humidity: Max. 95%.Operating temperature: -0 to + 40 °C.Storage temperature -20 to 60 °C.Product weight 2 gDimension: 17.4 x 14.9 x 7.1 mm
04717964703712, 04064161075105, EDIMAX, BT-8500, bluetooth drive
