14 additional interfaces on your notebook for video signals, data, power, Ethernet & audio
Supports UHD up to 4K/30Hz up to 3840 x 2160p resolution

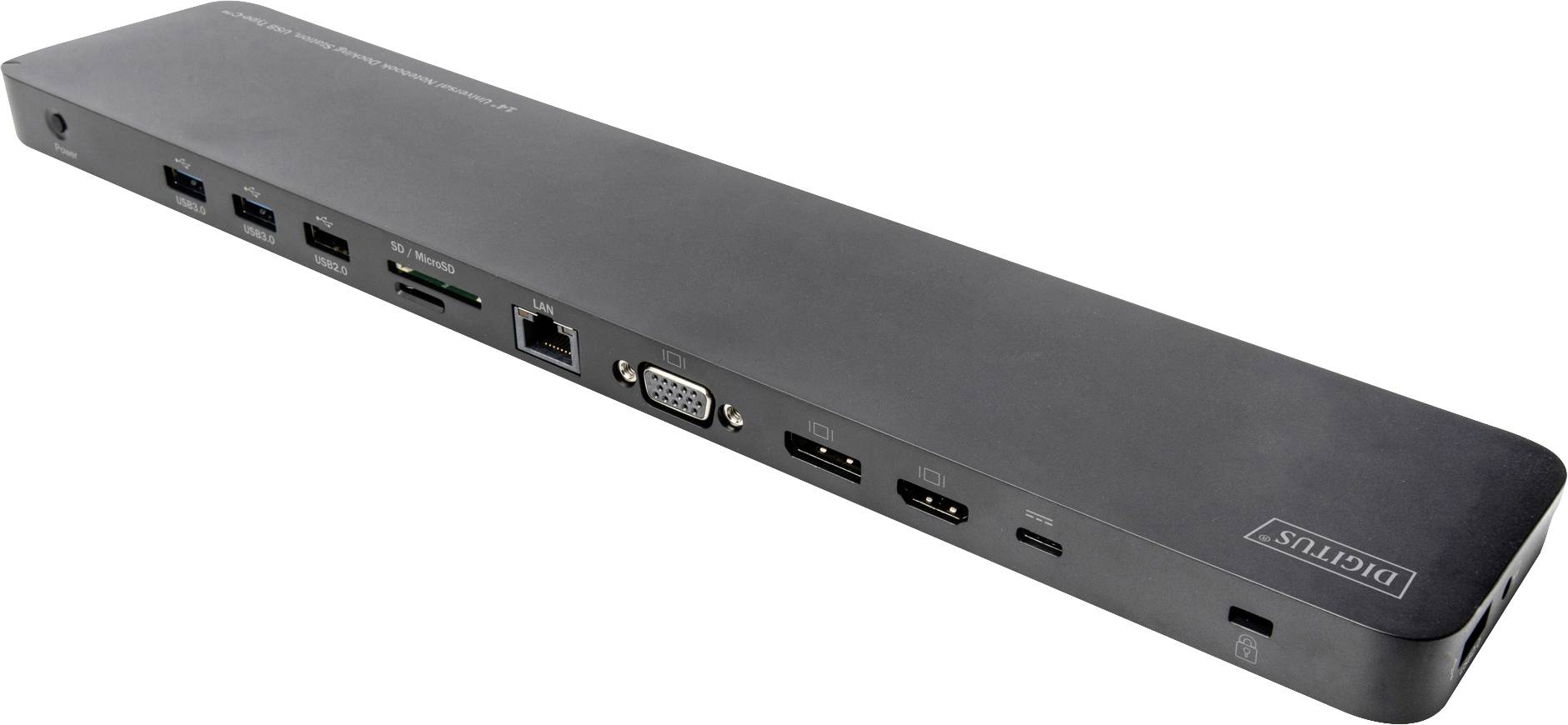

3x video interfaces (HDMI, DP, VGA) for connecting up to three monitors simultaneously (triple display support)
Triple display support under Windows OS - mirroring & expanding the monitor
Triple display support under Mac OS - mirroring the monitor

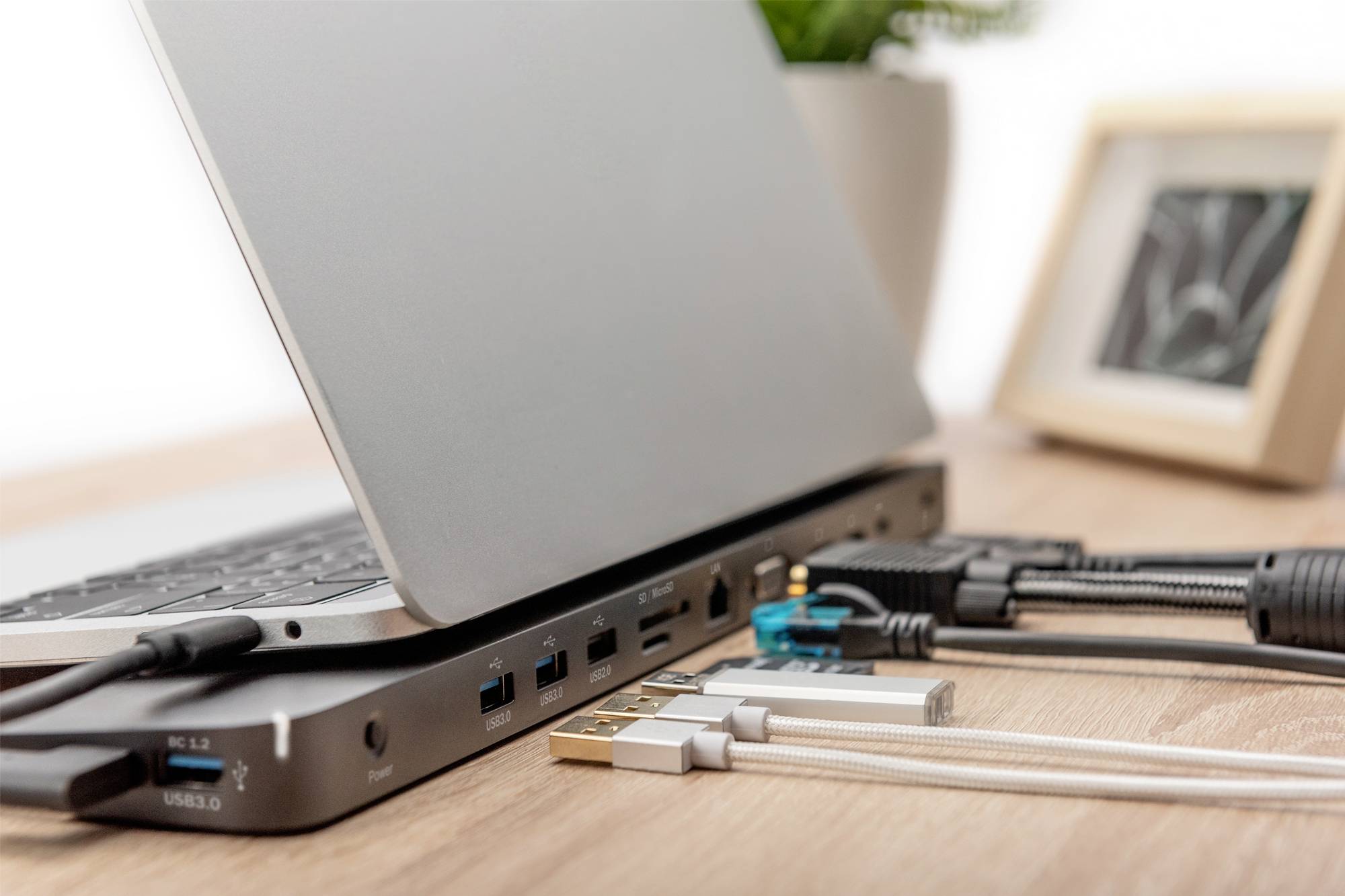

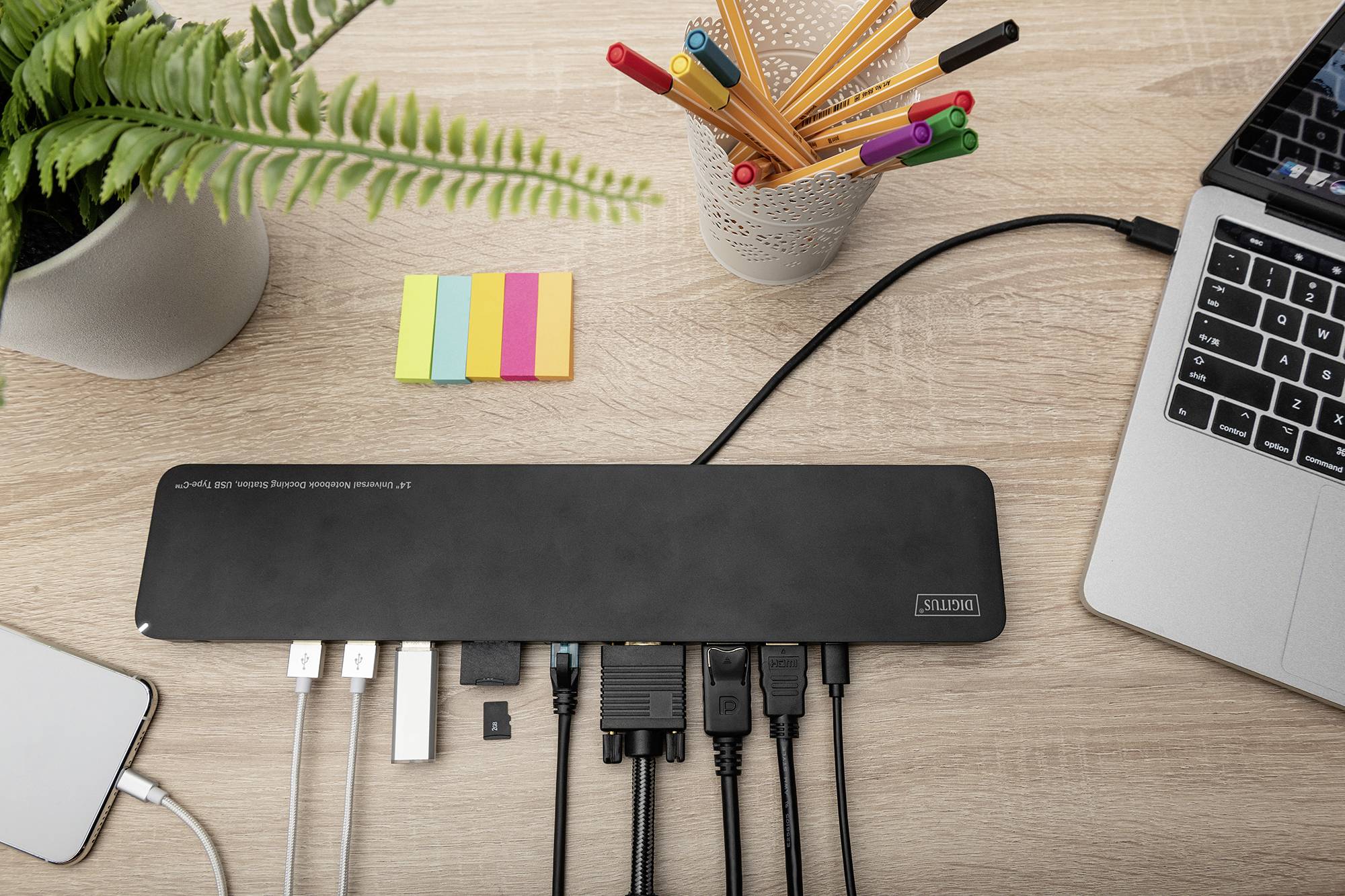

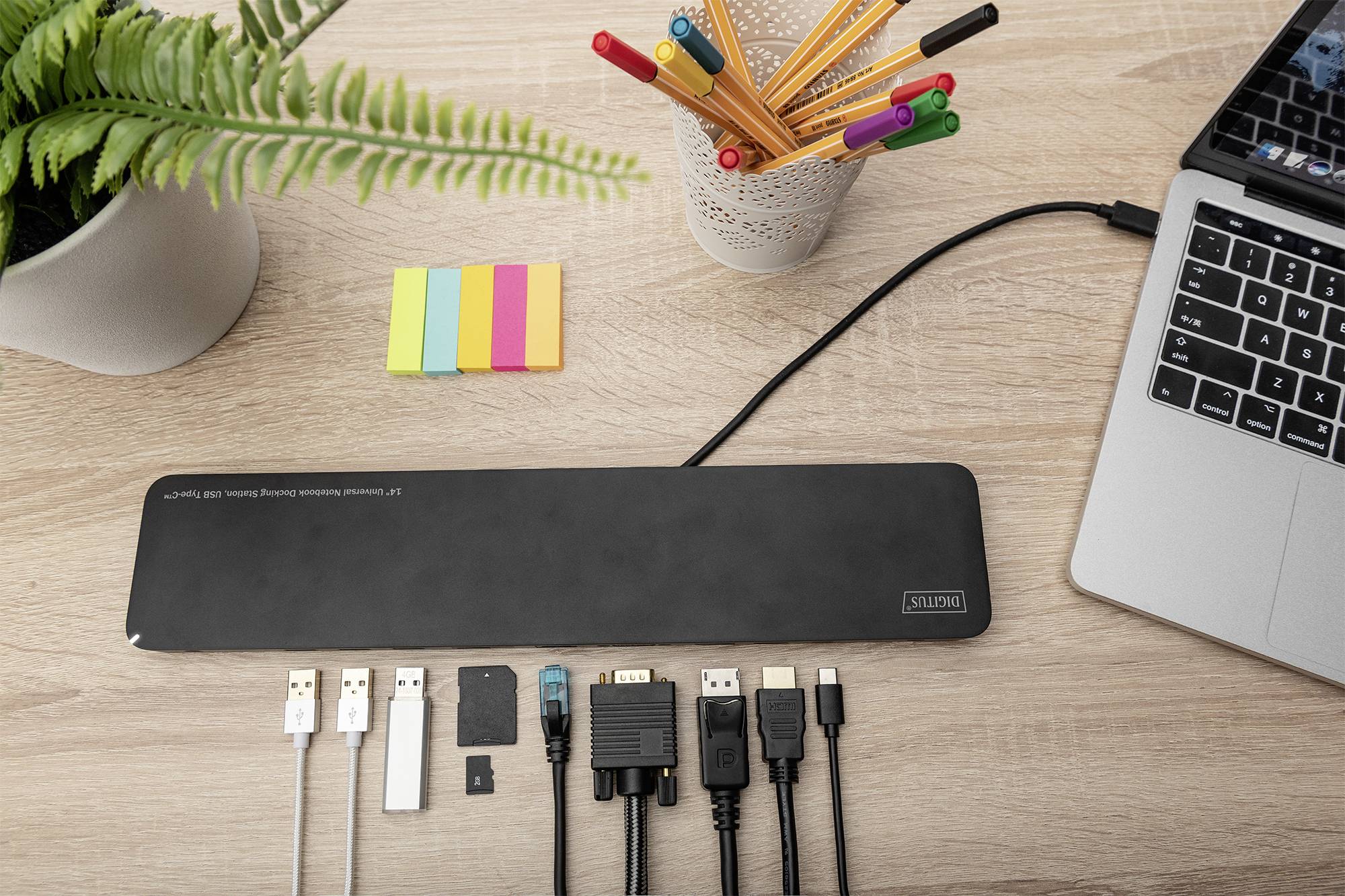

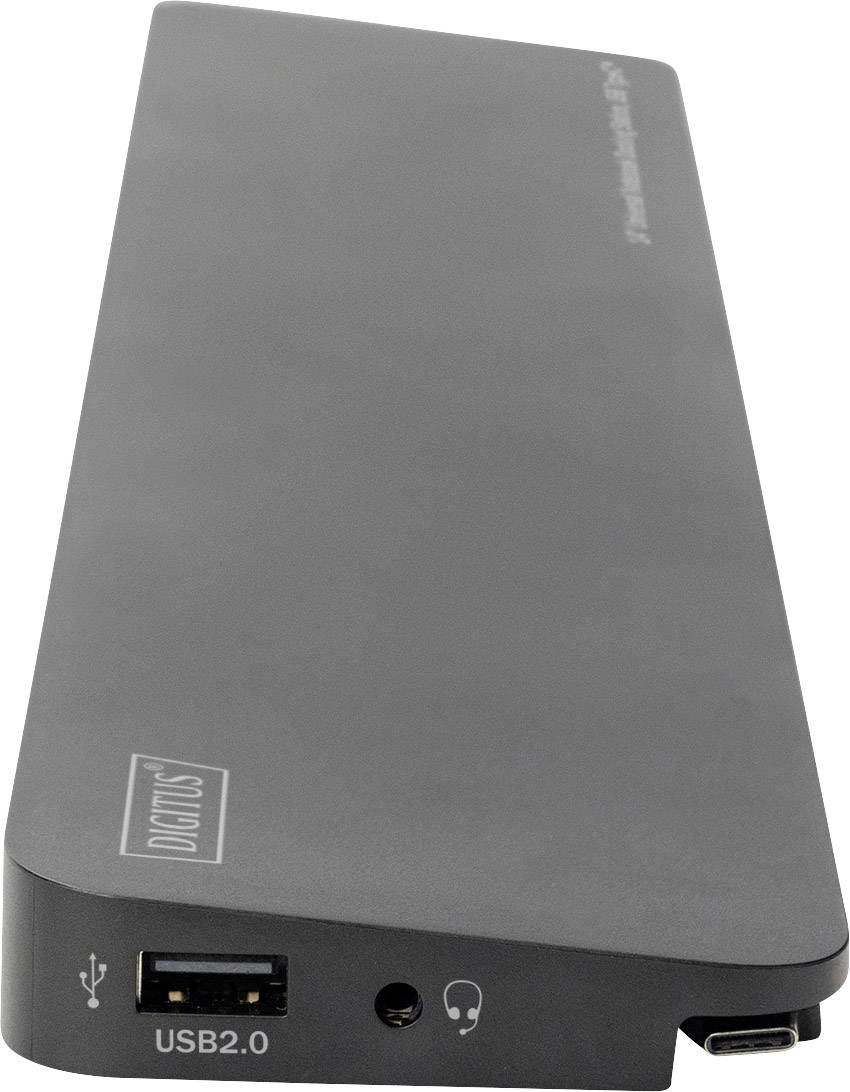

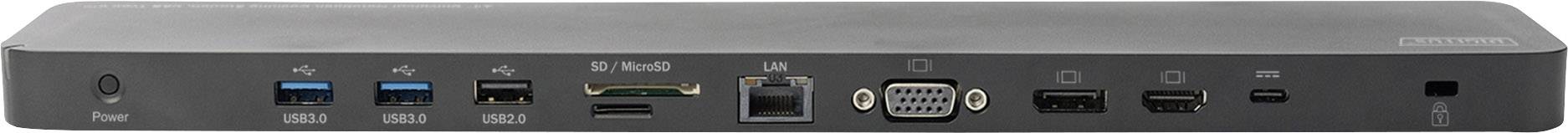

Digitus 14"™ It has 3 video ports (HDMI, DisplayPort, VGA) for connecting monitors, projectors and TVs. Thanks to triple monitor support, these can be operated at the same time. Under Windows, a video signal can be output to the three different video ports simultaneously (SST Mode), in addition, 3 different video signals can be output to the 3 graphics ports (MST Mode). Under Mac OS, only SST mode is supported. The other interfaces provide connectivity to all common ports that a modern docking station must offer. For example, a network connection, other USB ports (USB-C™, USB-A), an audio output and two independant card readers. The integrated USB-C™ port with PD Charging allows you to charge your laptop while using the docking station. The docking station also offers various USB 3.0 and 2.0 ports for data transfer, connection of peripheral devices such as Mouse and keyboard as well as for charging mobile devices. Thanks to smart cable routing below the docking station, the connection is possible on both sides (left or right) at the notebook. - make more of your notebook and expand your options - you only need a free USB-C™ connection.

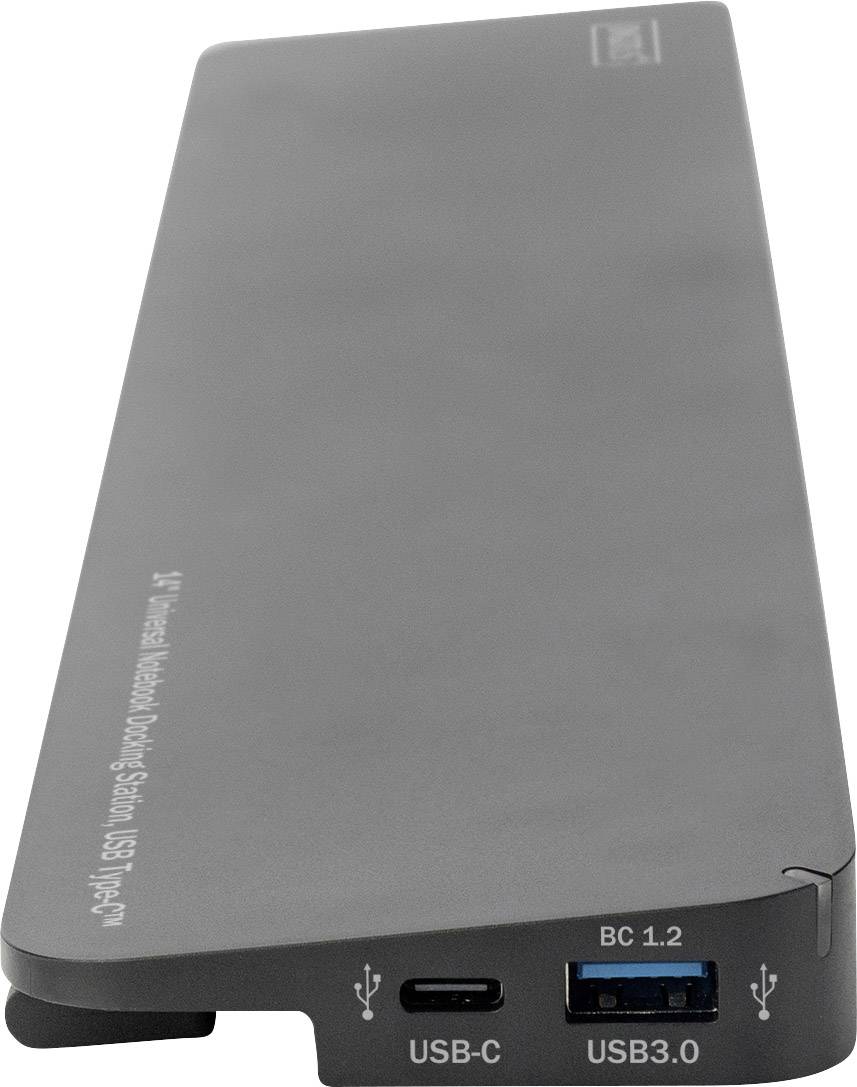

3x USB 3.0 connections with up to 5 Gbps SuperSpeed data transfer, a port with BC 1.2 functionality for charging mobile devices (1.5 A max.)
2x USB-C™ Connections - 1x power delivery (PD) , 1x data transfer with up to 5 Gbps
supports power delivery 3.0 (100W max.) for fast charging of your notebook/laptop
2x USB 2.0 connections with up to 480 Mbps data transfer and 500 mA (downstream) charging function per port

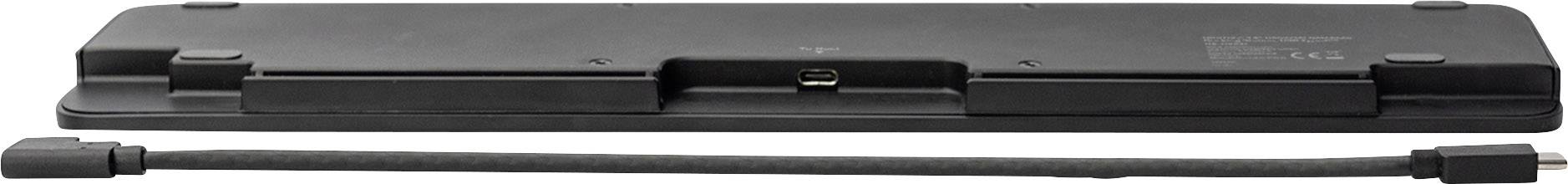

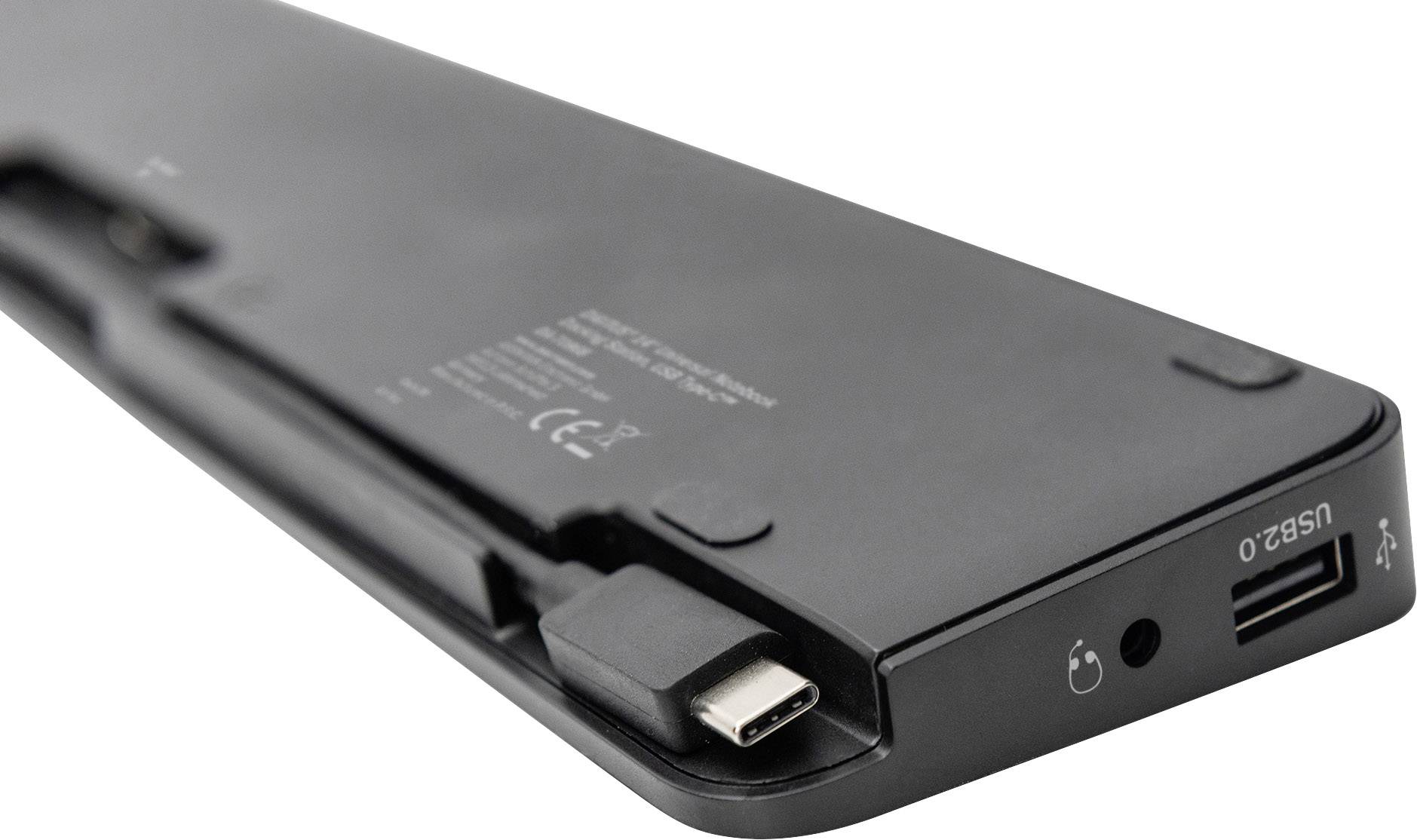

Smart cable routing - connection on both sides (Right or left) is possible on the notebook, cable guide is located below the docking station
Not all USB-C™ ports support all functions of the USB Type-C™ standard. Make sure that your notebook's USB-C™ port supports DisplayPort Alternate Mode (DP-Alt Modes) and USB power delivery (PD).
The video output capability depends on the graphics card of your notebook and the connected monitor. Some graphics cards have limited MST support, while some screens also limit the available resolution.
This docking station does not support Thunderbolt™ 3 devices (notebooks, monitors)
04016032456070, Digitus, DA-70868
