Overview
Large measuring range
Various Sensors available
Battery powered operation
Error and Lunker detection
Internal measurement data memory
Printing via Bluetooth

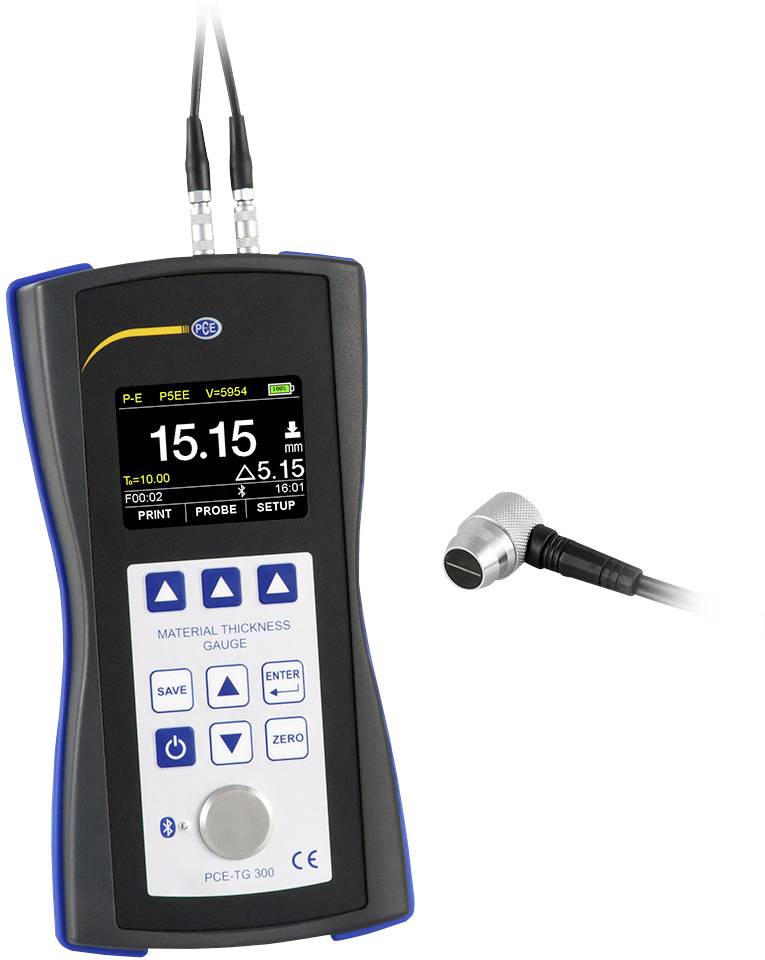

PCE Instruments PCE-TG 300 Thickness gauge 0.65 - 600 mm Calibrated to (ISO standards)
Product description
Description
The PCE-TG 300 is a material tester with special sensors for various applications. In general, the wall thickness of all homogeneous materials can be measured with the PCE-TG 300. A special sensor is available for damping or scattering materials such as plastic or cast iron. An angled 90° sensor also enables measurements at difficult to access measuring points. The sound speed can be freely adjusted on the PCE-TG 300 wall thickness meter and can therefore be adapted to different materials. The measured values are displayed directly on the easy-to-read TFT color display. The internal memory, which can be read out via the optionally available software, allows different measuring points to be stored uniquely. The non-destructive ultrasonic measurement method also enables the measurement of end products. The Echo-Echo working mode allows self-coated workpieces to be measured.
Delivery content
- 1x Material tester PCE-TG 300
- 1x sensor P5EE (measuring range
- P-E: 2 ... 600 mm
- E-E: 2.5 ... 60 mm)
- 1x 100 ml coupling gel
- 1x carrying case 4 x size AA batteries
- 1x operating instructions.
Keywords
PCE Instruments, PCE-TG 300, insulation thickness tester, coating tester, paint-coating thickness tester
Other notes
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
