Kathrein EBX 2920 SAT multiswitch

  • item model number: Y762882

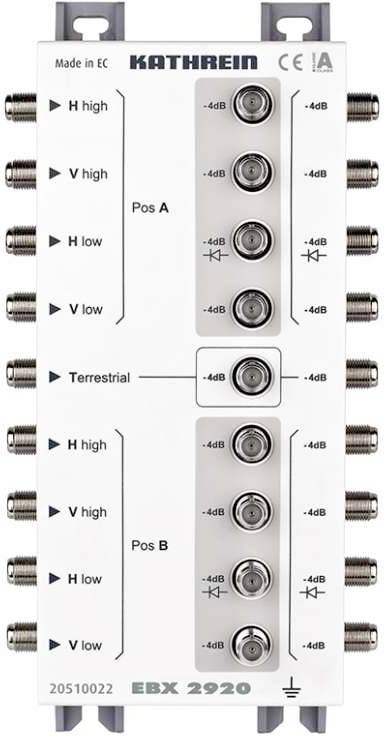

'Kathrein EBX 2920' Multiswitch for satellite and terrestrial signals, 10 inputs and 20 outputs, H/V high/low options.

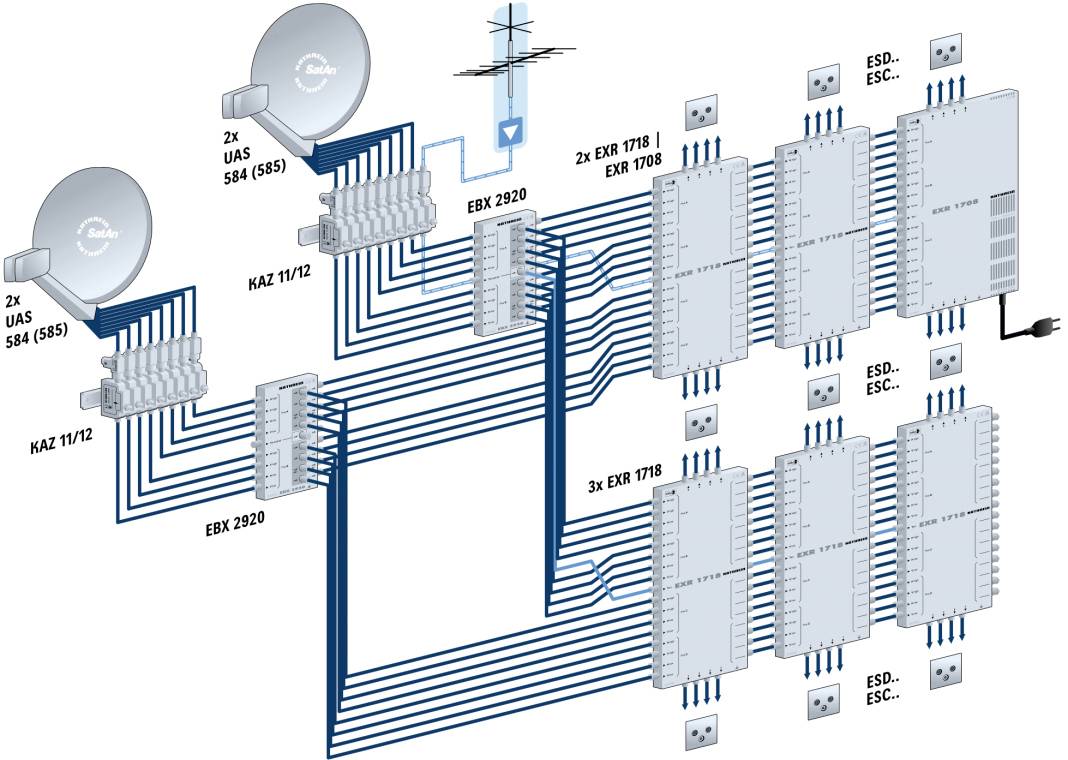

Block diagram of a satellite reception system with two dishes, various distributors and multiple reception modules (EXR 1718, EBX 2920).
127,55 €
VAT included
plus
Delivery time: 1-2 days
available from 27/08/2026
30 days free return shipment
Kathrein EBX 2920 SAT multiswitch
127,55 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : 126,27 € 1,0 % savings
from 5 piece : 124,99 € 2,0 % savings
from 10 piece : 123,72 € 3,0 % savings

Product description

Overview

Double splitter and dual splitter for the Sat IF distribution system (8 x Sat IF)
For signal distribution in very large Sat IF systems with 9er multi-switch cascades
For indoor mounting
Dual distributor for distributing the main lines to two 9er multi-switch cascades
Nine dual distributors (8 x Sat-IF and 1 x terr. Range) in a housing Suitable for remote supply via input - main output (8 x Sat-ZF) and via distribution output horizontal low (diode decoupling to main output); separator capacitors at the other distribution outputs
Cascadable with further EBX 2920 or EAX 2912

Characteristics

Sat-ZF splitter · 5-862 and 8 x 950-2150 MHz · 9 x 2fach splitter 12 dB in one go. · F-connections · Can be cascaded with EXR 9er multi-switch system.

Keywords

04021121464225, Kathrein, 20510022, EBX 2920, multiswitch, multiswitcher

'Kathrein EBX 2920' Multiswitch for satellite and terrestrial signals, 10 inputs and 20 outputs, H/V high/low options.
Block diagram of a satellite reception system with two dishes, various distributors and multiple reception modules (EXR 1718, EBX 2920).
