TRU COMPONENTS TC-9072516 1 pc(s) 16-channel servo module PCA9685PW for BBC micro:bit

Overview

Control of 16-channel PWM output and 16 servos by I2C
Control chip: PCA9685PW

Description

This label enables the micro-bit mianboard control of max. 16-channel servo, the best choice for the production of a micro-bit robot.

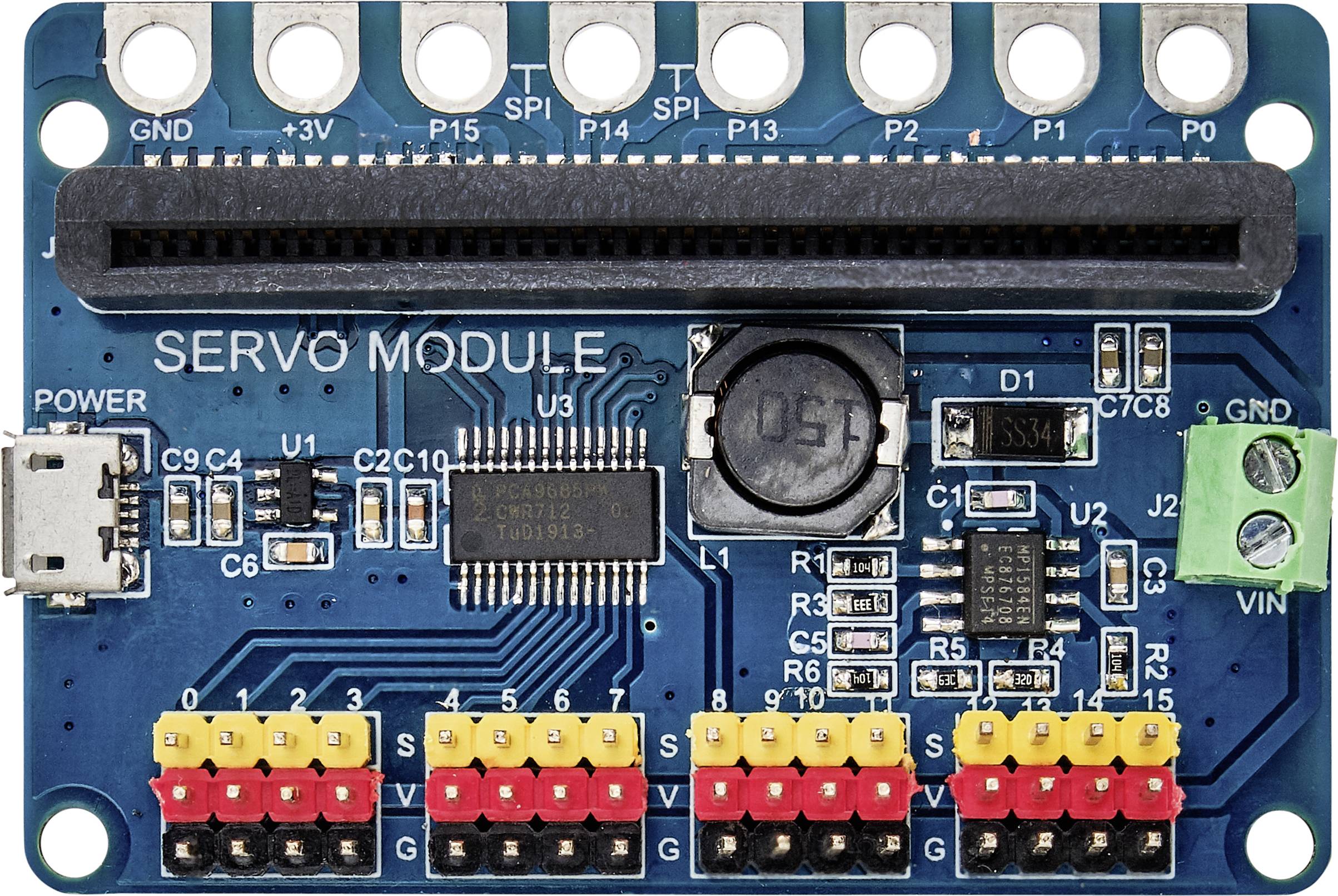

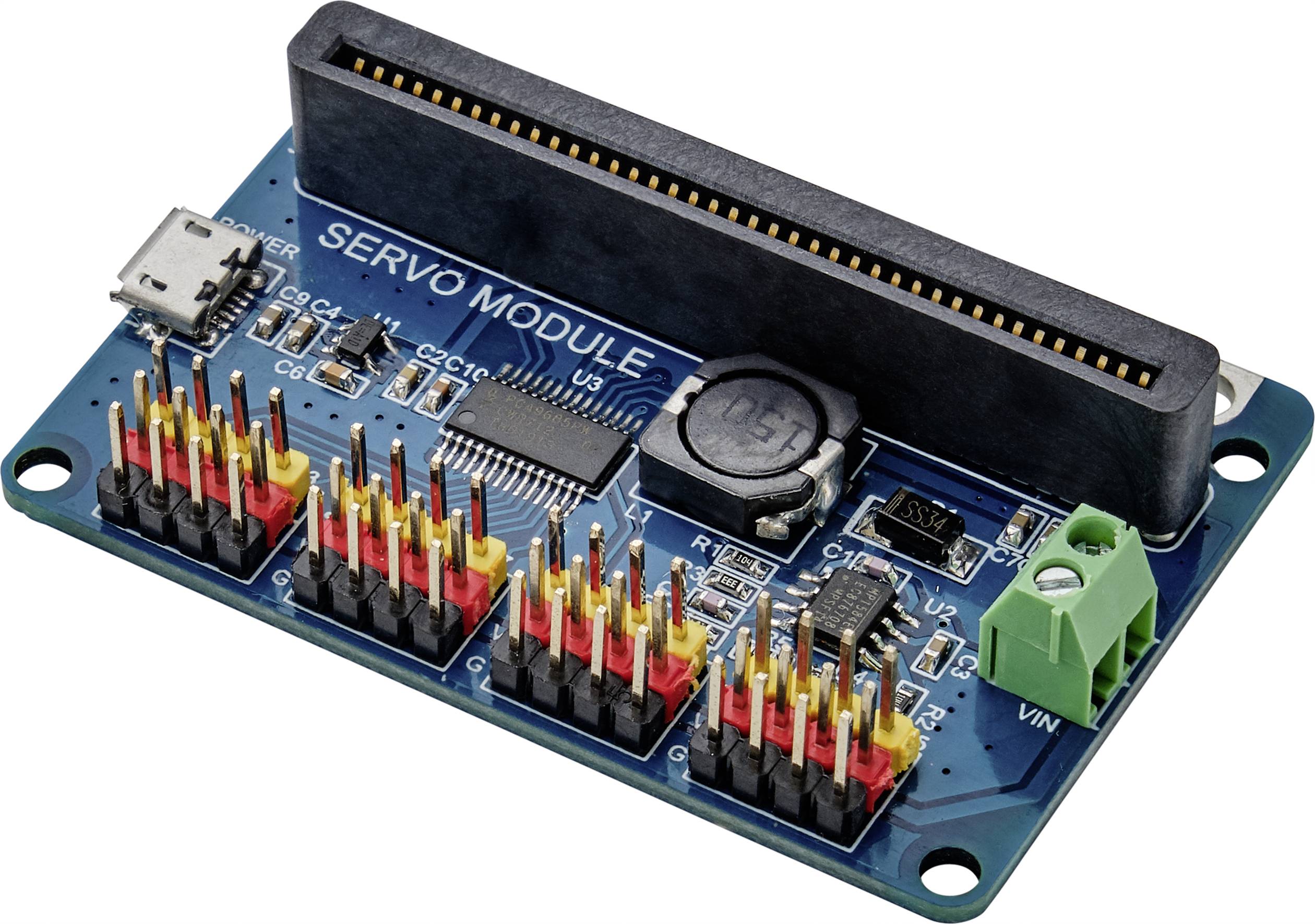

16-channel SERVO shield for micro:bit. It mainly integrates the PCA9685PW chip, which communicates with the micro:bit motherboard via I2C.

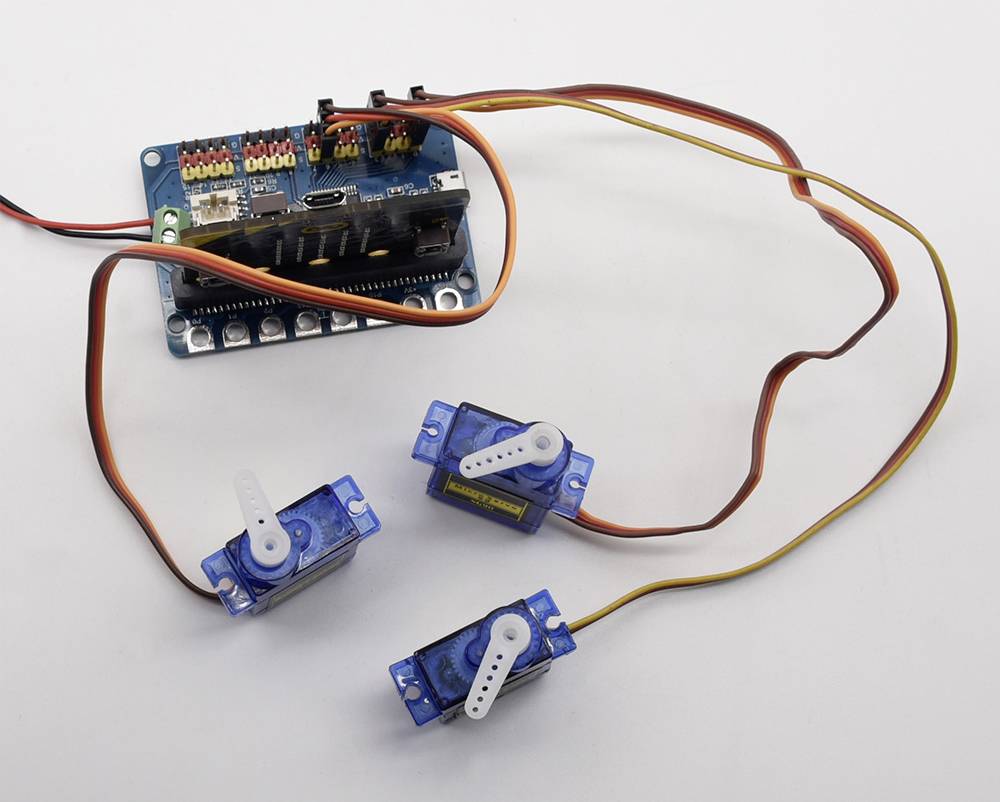

The SERVO shield has 16 IO pins for controlling 16 servo motors. For easy wiring, we extend the control pin of each channel to the G V S interface - 3-pin pin header with a grid of 2.54 mm. The voltage of the V-pin on the servo shielding is 5V. The servo shielding can be supplied with power either via the micro USB connection (DC5V input) or via 2 green terminal blocks (DC 7-12V input).

Delivery content

• 16-channel servo module
