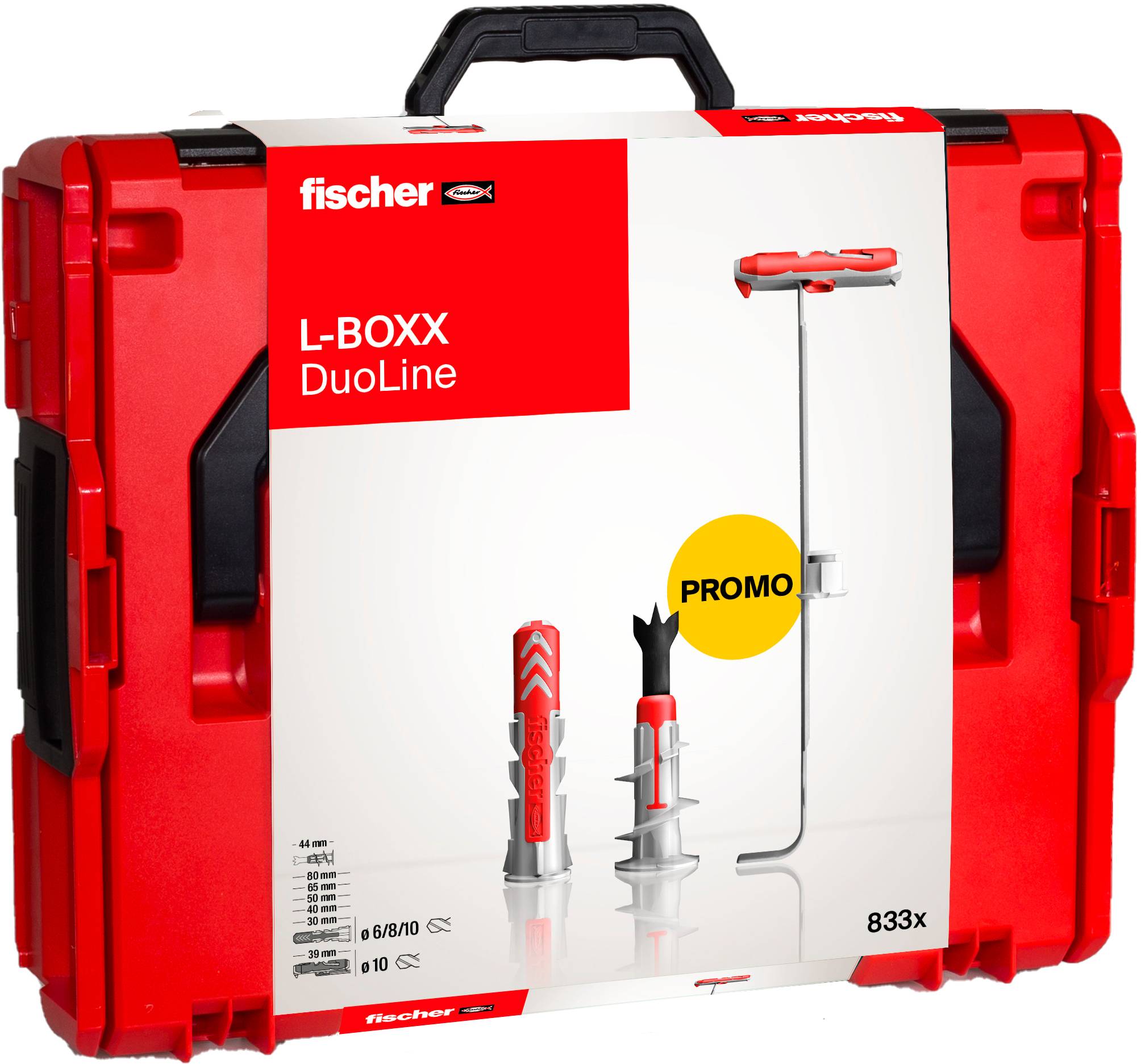

Fischer 558626 DUO-Line Dowel organiser box 833 Parts

Overview

Colour: grey
Design: Without screw
Product line L-BOXX
Material: 2 components
Product type: Assortment box dowel

Description

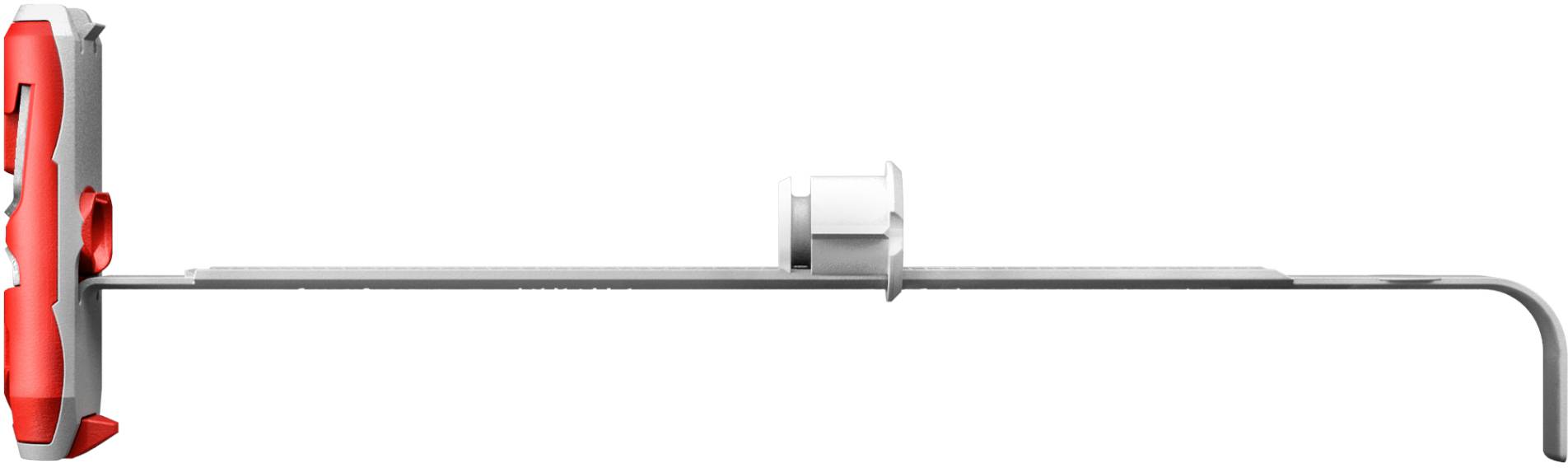

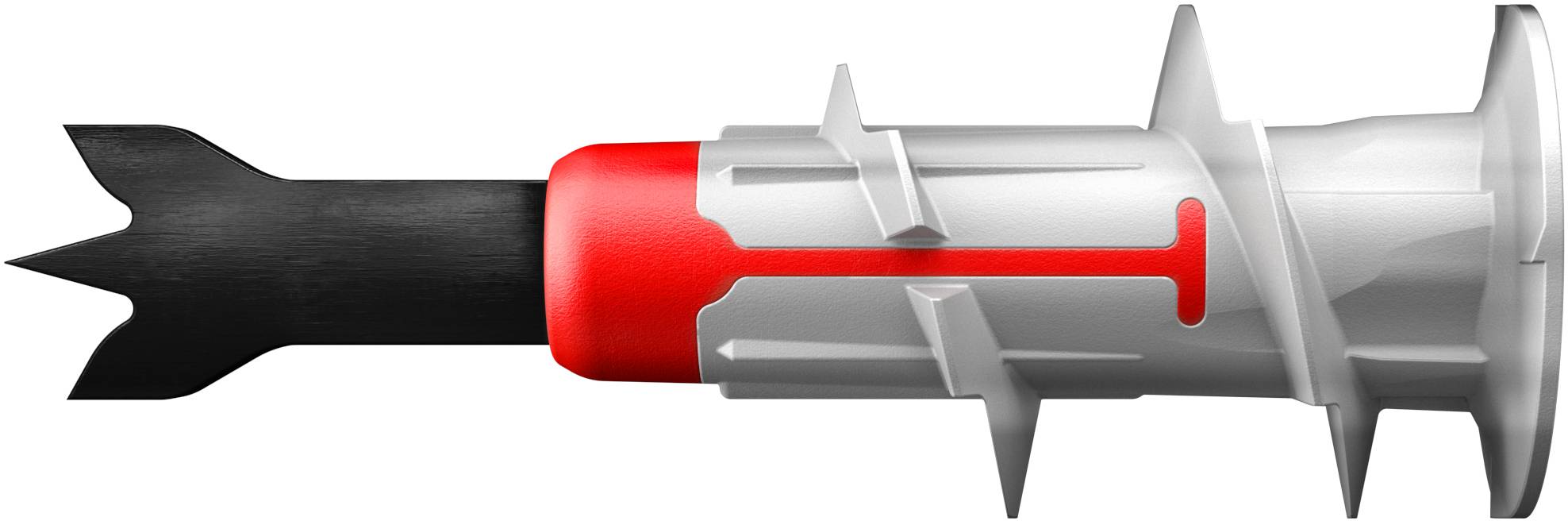

Innovative dowel-line for more function, more power, more safety. Get the handy L-BOXX - filled with 833 dowels in our award-winning DuoLine. DuoPower offers very good holding value through 2 components and it decides depending on the material of the construction, whether it spreads, folds or knots. The nylon dowel Fischer DuoTec allows easy installation even in narrow and insulated hollow spaces. The toggle element opens automatically behind the plate and gives the dowel its load capacity. The flexible screw mount is made of stainless steel and allows the toggle bolt to be used with wood and chipboard screws or with metric hook and threaded rods with locknut. In solid building materials, it functions like a connecting plug. The self-drilling tip of the Duo Blade allows a clean and effective drilling process. The dowel is inserted flush to the gypsum plasterboard with a cordless screwdriver or screwdriver. It is designed for wood, sheet metal and chipboard screws from 4 to 5 mm thickness, and various hooks and eyelets.

Characteristics

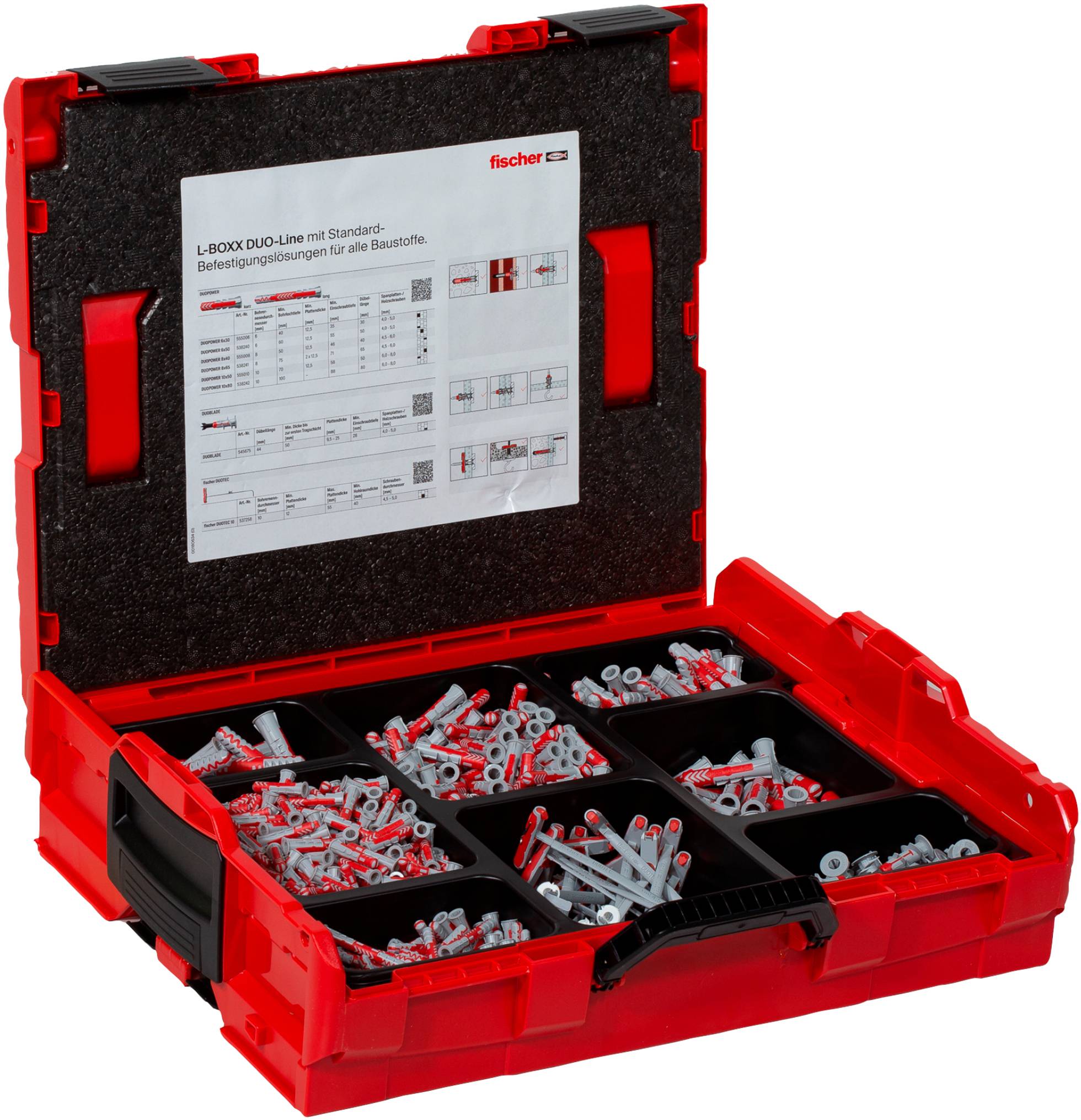

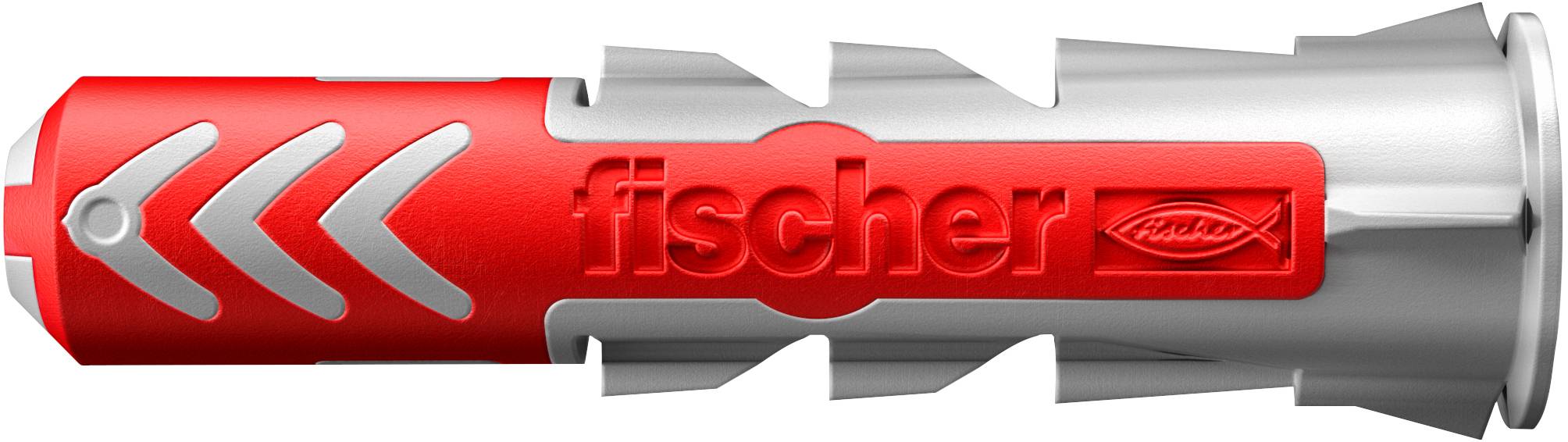

The standard fixings for all construction materials.Materials and functions cleverly combined.fischer DuoPower - the 2-component dowel, which decides whether it expands, folds or knots.Fischer DuoTec - the nylon toggle plug for high loads in all board building materials.Duoffischer Blade - the self-drilling plasterboard plug for quick installation.833 Parts: 770 x Duo Power, 45 x Duo Blade, 18 x Fischer DuoTec.Robust, stackable L-BOXX 102 for safe and easy transport. Two material components for the best load values and intelligent functions depending on the underground.Best possible feedback (felt-good factor) of the dowel. You will feel the dowel if it is fitted perfectly. The small dowel edge prevents slipping into the drill hole. The pronounced corotation lock prevents the dowel from spinning. The DuoPower is suitable for plug-in and hole mounting. The Duo of two materials and multiple functional principles (flaps, spreading, knots) enables the expansion of the application spectrum in additional building materials with maximum loads.The DuoTec is suitable for plug-in mounting. Easy mounting with the help of an conventional 10 mm drill. The toggle element of the dowel tilts automatically behind the plate and gives it its load capacity. In solid building materials, such as concrete or wood, it works like a connecting plug. The DuoBlade is suitable for plug-in mounting. The metal tip has extremely heat-resistant properties. Especially for use in the plasterboard, with its double planked plaster, the tip does not melt down in spite of high temperatures. The Fischer DuoBlade allows the use of wood, sheet metal and chipboard screws from 4 to 5 mm thickness, as well as different hooks and eyelets.

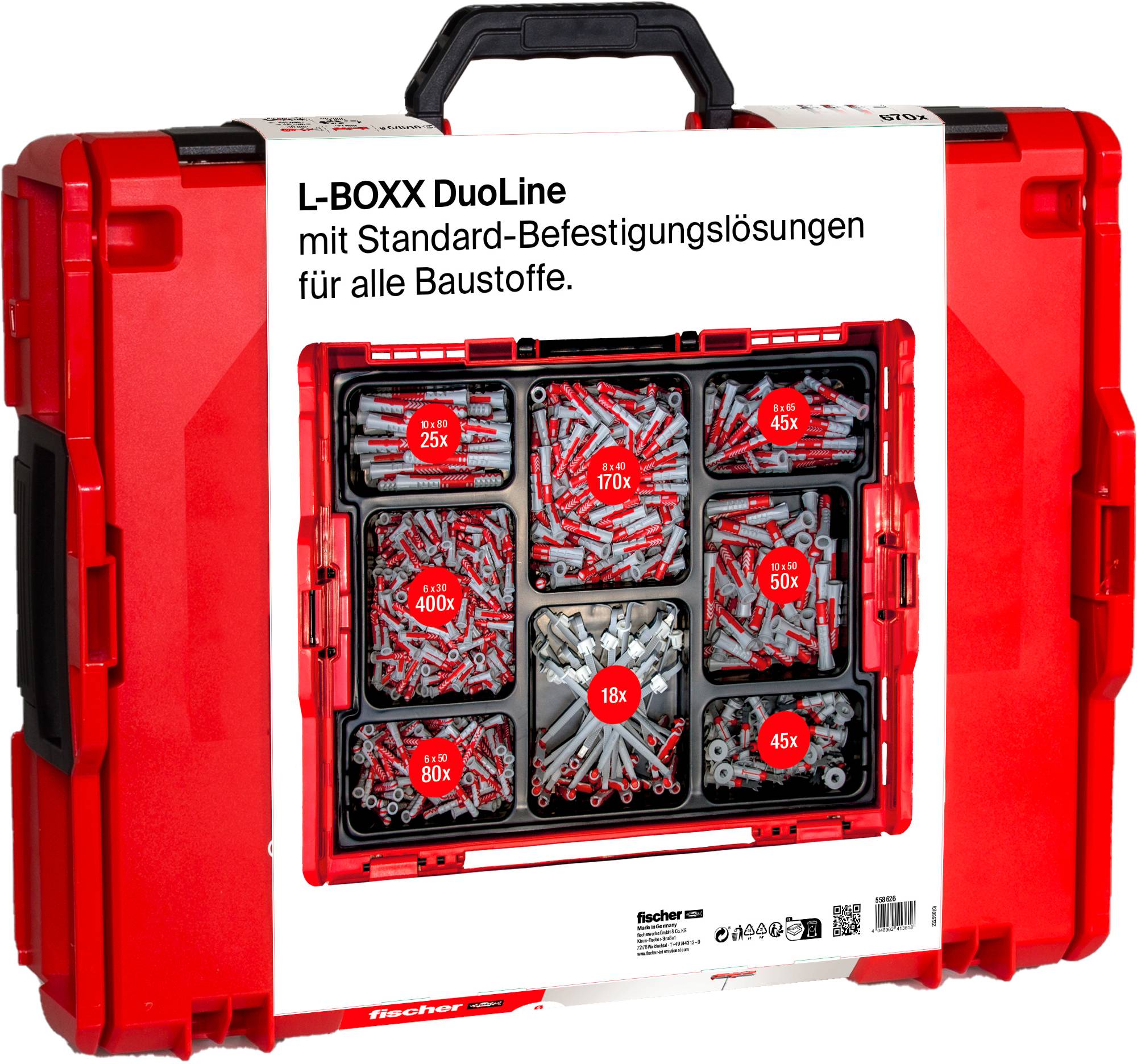

Delivery content

• 400 x Duo Power 6 x 30
• 80 x Duo Power 6 x 50
• 170 x Duo Power 8 x 40
• 45 x Duo Power 8 x 65
• 50 x Duo Power 10 x 50
• 25 x Duo Power 10 x 80
• 45 x Duo-Blade
• 18 x DuoTec 10
