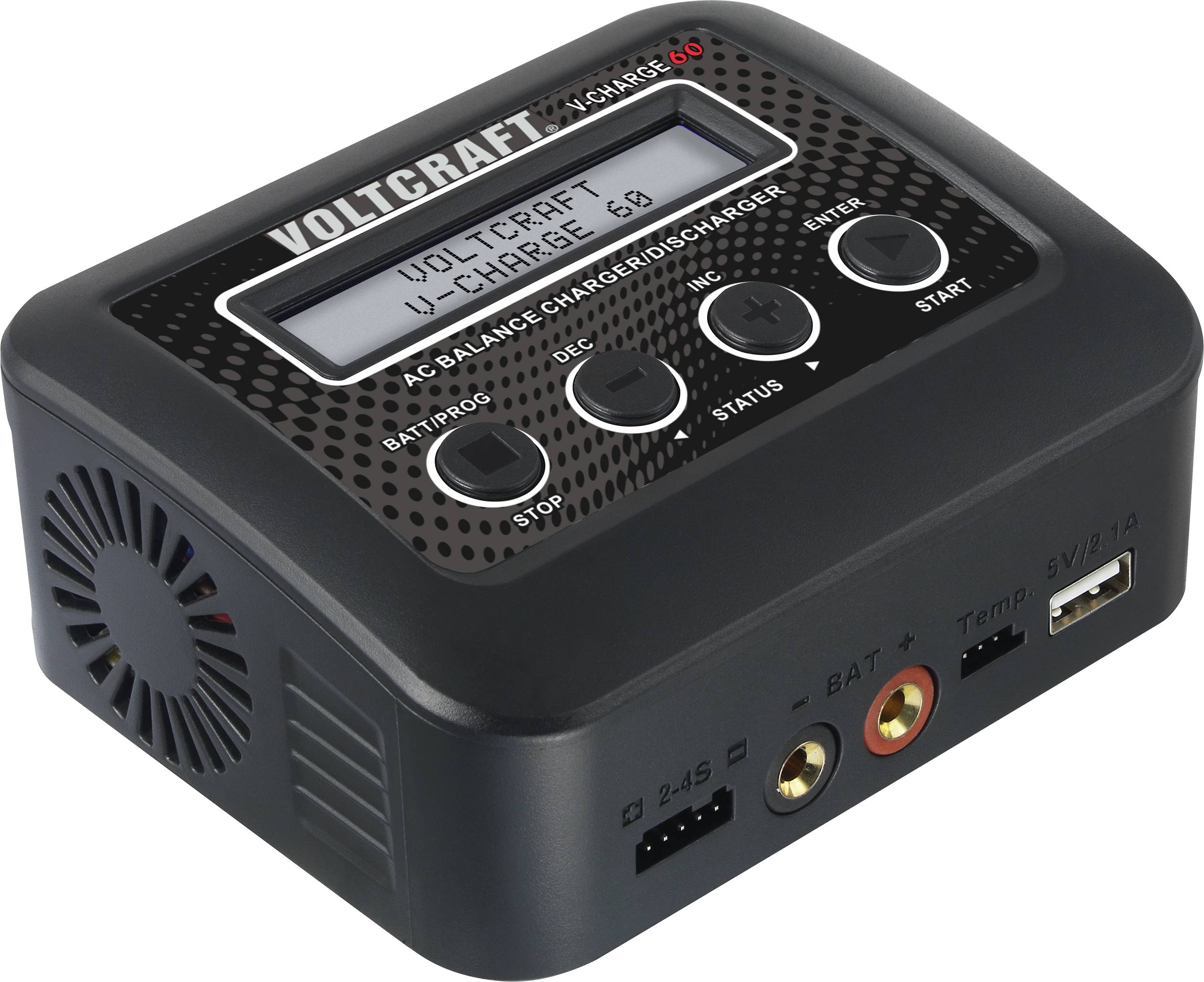

VOLTCRAFT V-Charge 60 Scale model battery charger 6 A

Overview

60 W
Terminal Voltage Control (TVC)
Battery checker
USB charging for smart devices

Description

One charger, more safety
The Voltcraft V-Charge 60 model charger, supplied with a T-to-banana plug cable, has a temperature sensor socket and is thus protected from overheating. The automatic charging current limitation offers even more protection during the charging process. In addition, the charger is equipped with a voltage control terminal and enables the adjustment of individual cells for battery discharge.

Characteristics

Real-time cell voltage (monitor the charging status)
Automatic charging current limit
Balances individual cells for battery discharging
Maximum safety (delta-peak sensitivity for NiMH/NiCd battery)
Temperature sensor socket

Information

No PC interface
Input voltage: AC 100-240 V
Charging power: 60 W
Discharge power: 10 W
Charging current: 0.1-6.0 A
Discharge current: 0.1-2.0 A
Balance current: 200 mA/cell
LiPo/LiFe/LiIo/LiHV cells: 2-4 cells
NiCd/NiMH battery cells: 6-8 cells
Pb battery voltage: 6V- 12V
Battery data memory: 10 profiles
Internal tempeture: 80 degrees Celsius
Internal fan operates at 40 degrees Celsius

Delivery content

• Charger
• T to banana plug cable
• AC power cable
• CD manual
• Safety information

Keywords

VOLTCRAFT, VC-11335920, V-Charge 60
