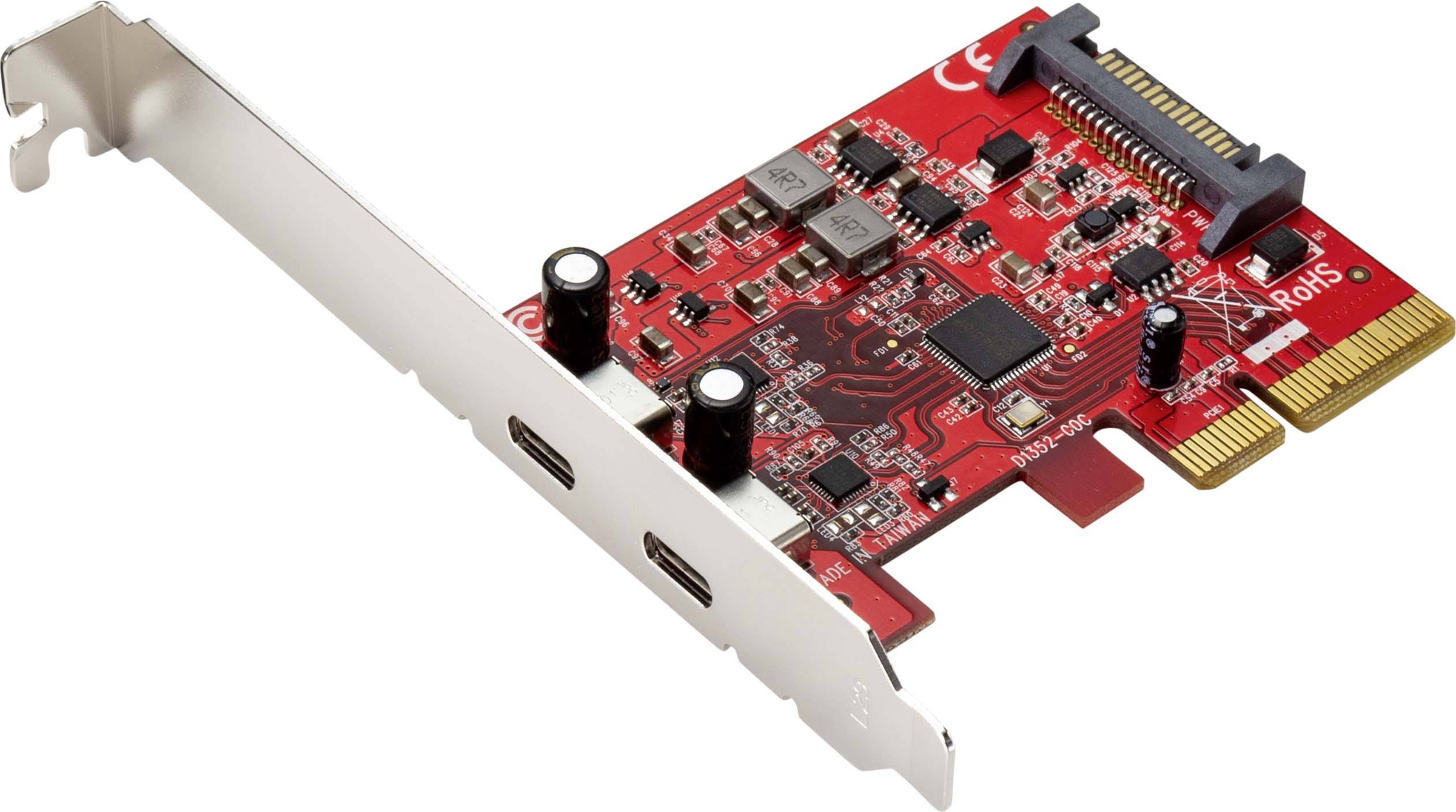

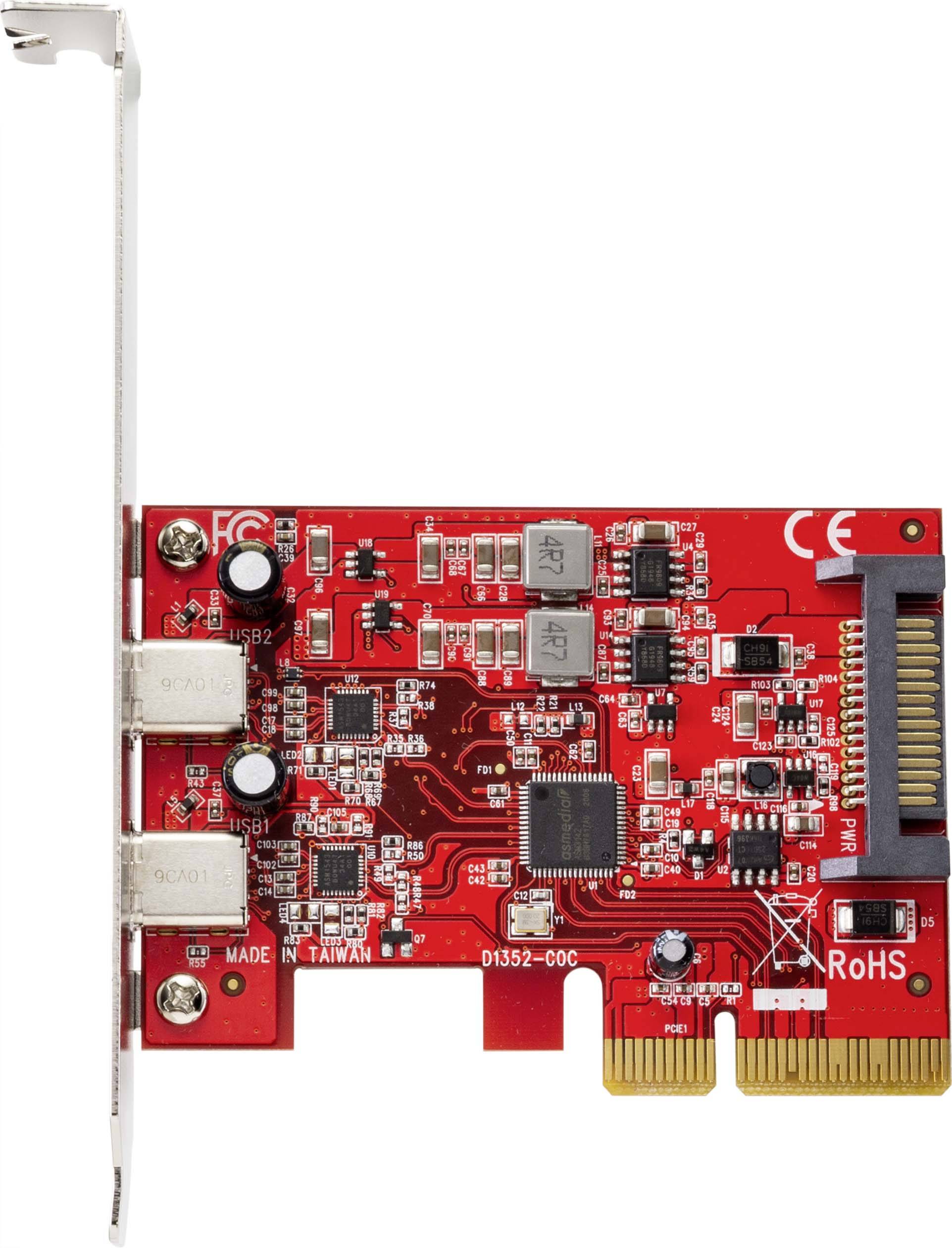

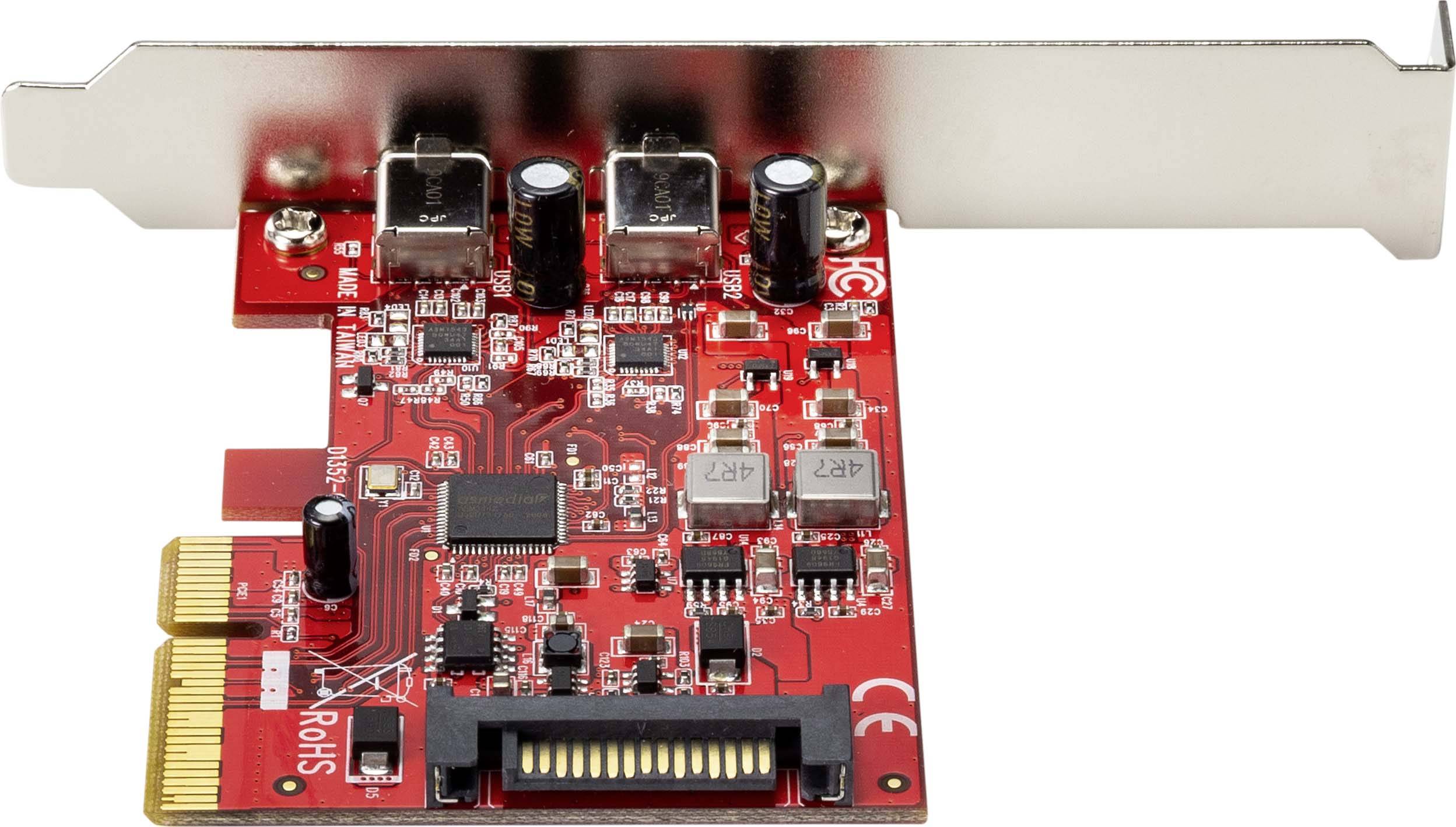

Renkforce RF-4599664 2 ports USB 3.1 2nd gen controller card USB C® (USB 3.1 2nd gen) PCIe

Overview

PCIe x4 Lane Host Adapter with USB3.1 PCIe Gen3 x2 fast chipset
Each USB 3.1 Type-C port provides 5V3A bus power, total 5V6A
Supports USB3.1, USB3.0, USB2.0 and USB1.1 devices
Compliant with PCI Express Specification 3.0
Regular size PCIe bracket on board and low profile PCIe bracket included

Characteristics

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1
Compliant with USB Attached SCSI Protocol Specification 1.0
All USB ports support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfers
Requires an empty PCIe 2.0 or PCIe 3.0 x4, x8 or x16 slot in computer for full USB3.1 performance
Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 or later OS in-box USB driver supports UASP, no additional driver required

Delivery content

• 10 Gbps USB3.1 Gen2 Type-C 5V3A, 2 ports PCIe Gen3 Low Profile Host Adapter
• Low profile bracket
• CD driver
• User manual

Keywords

04064161148359, Renkforce, RF-4599664, interface card
