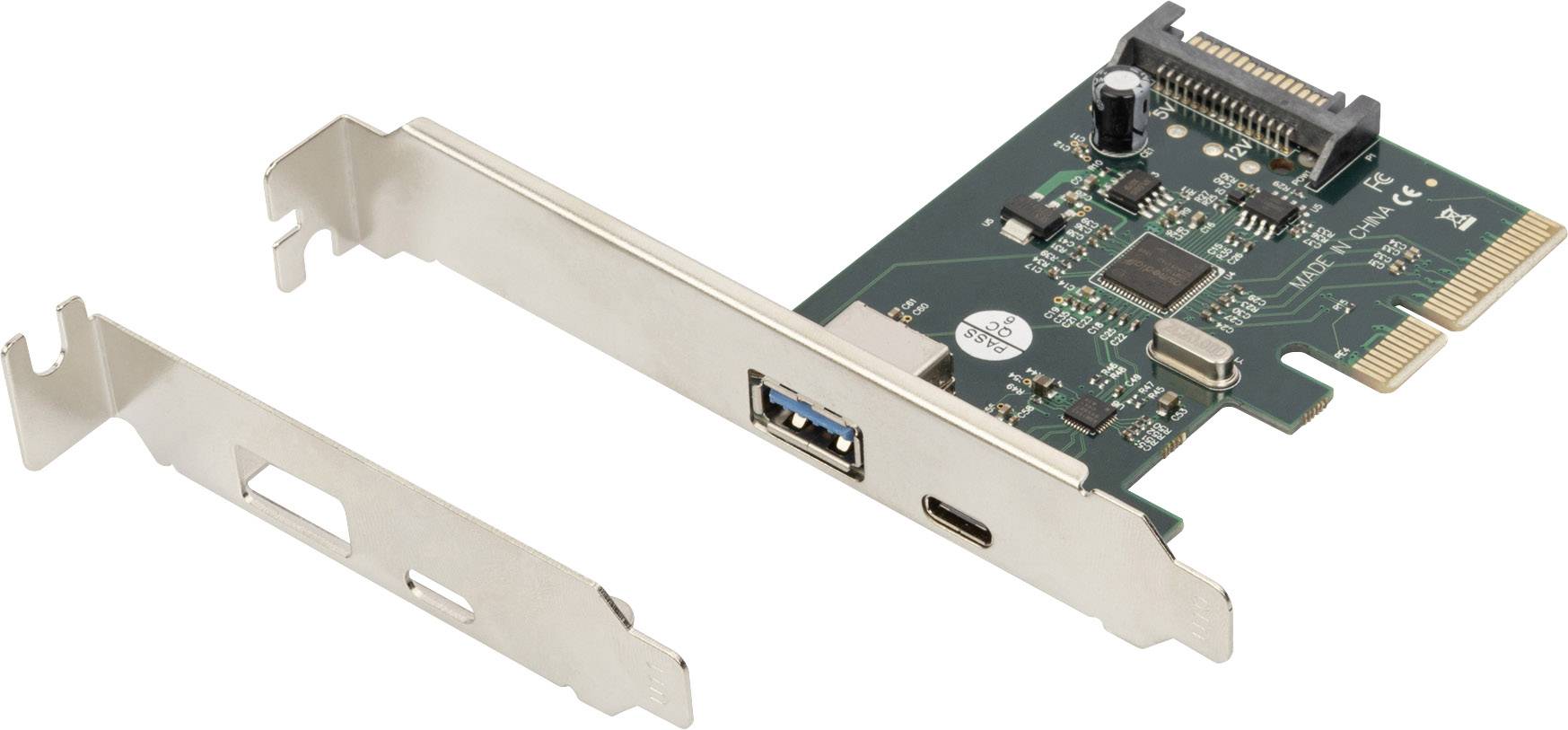

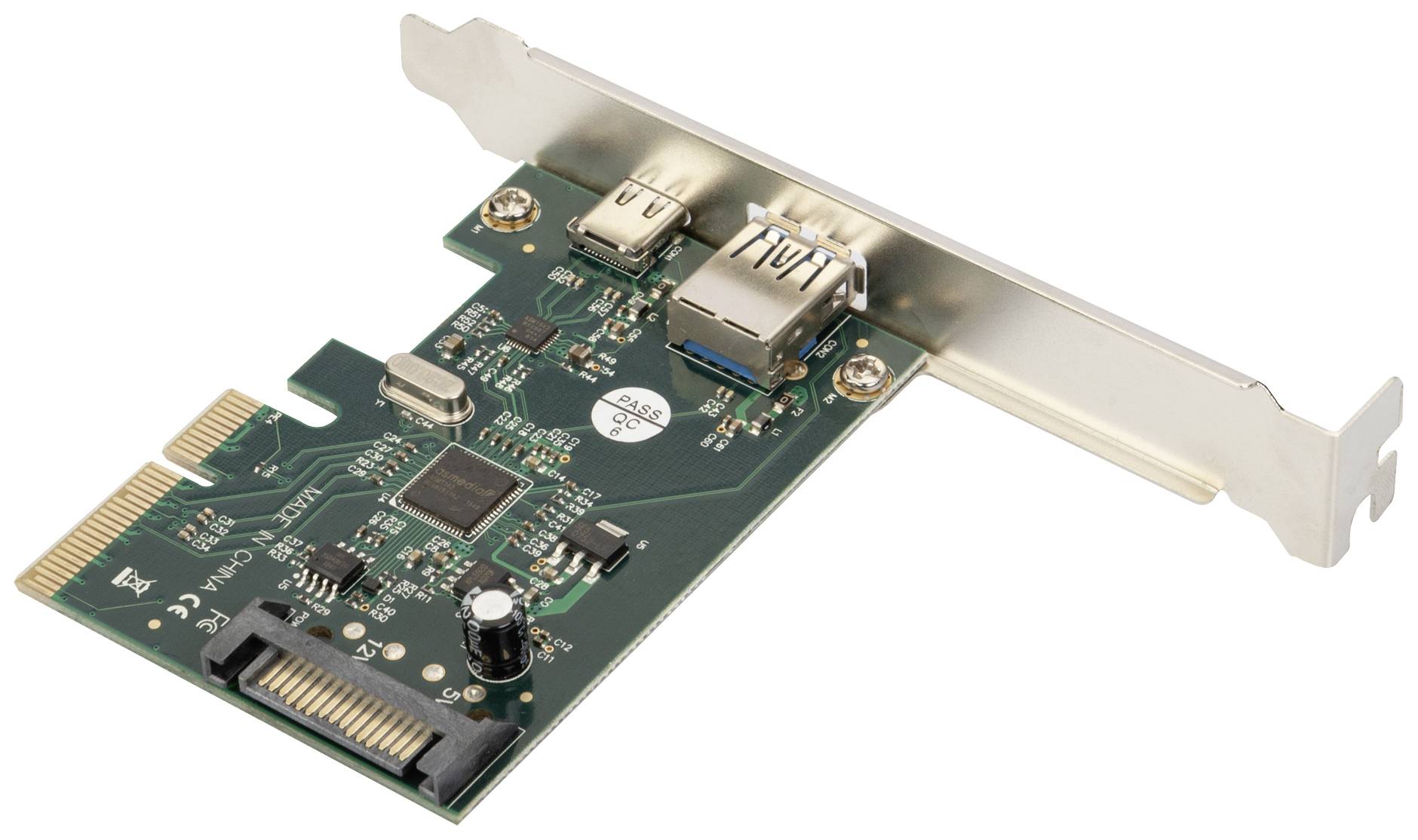

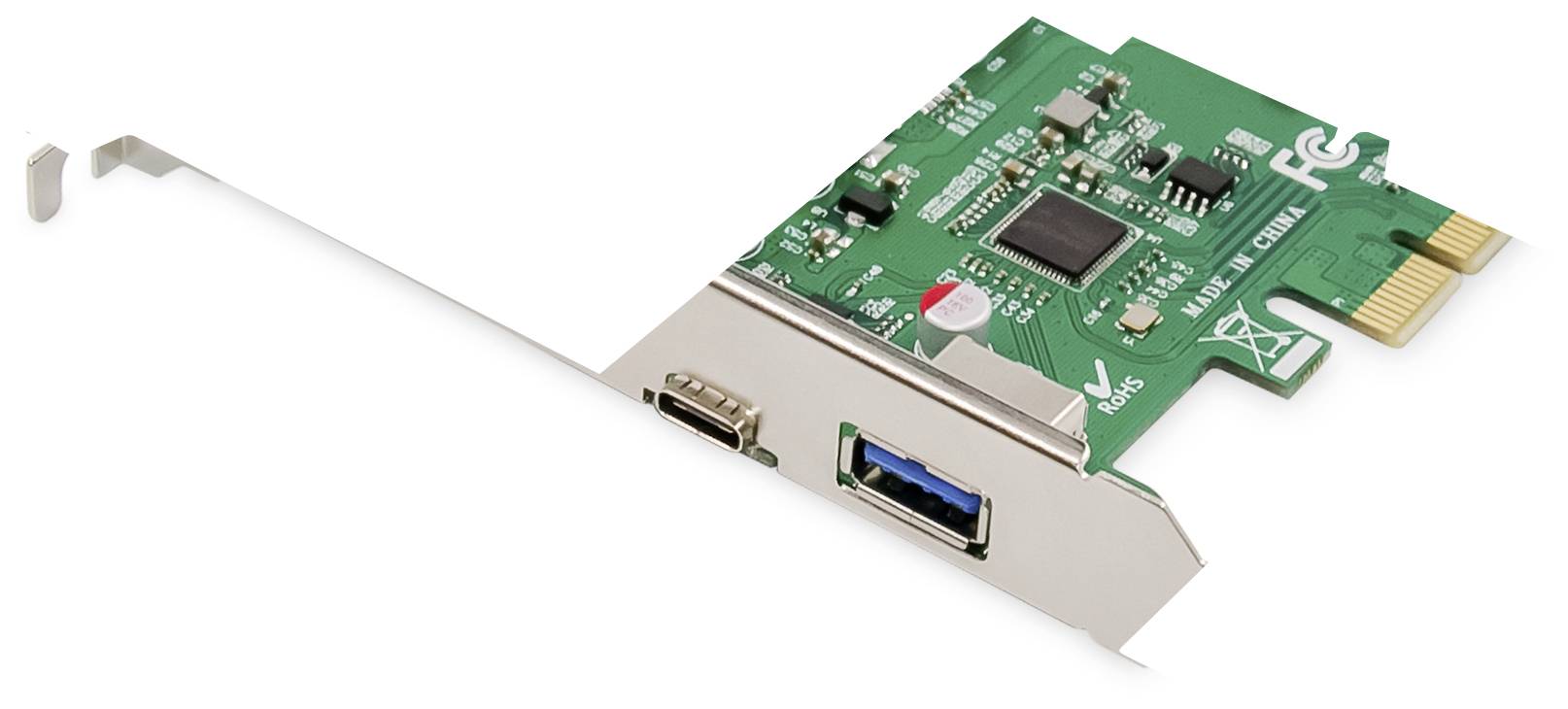

Digitus DS-30225 2 ports USB 3.1 2nd gen controller card USB type A, USB C® PCIe

Overview

USB 3.1 Super Speed up to 10 Gbits
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type C™ socket
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket

Description

Expand your PC by two external USB 3.1 ports, which enable you to connect different USB devices, such as docking stations, card readers, or external housings to your computer. The card has 2 external USB 3.1 connections: 1x USB A socket, 1x USB Type C™ socket and enables a data transfer rate of up to 10 Gbps. The card can also be installed in small computer casings using the low profile cover included in the delivery.

Characteristics

USB 3.1 Super Speed up to 10 Gbits
1 x SuperSpeed USB 10Gbps (USB 3.1 Gen 2) USB Type C™ Socket
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) A socket
supports data transfer rates of 10G / 5G / 480 / 12 / 1.5 Mbps
Power USB Type C™ Port 5 V / 3 A
Power USB Type A Port 5 V / 900 mA
SATA 15-PIN power connection for additional power supply From the mainboard
support of 4-way PCI Express v2.0
supports eXtensible Host Controller Interface (xHCI) Specification 1.1
supports multiple in
overvoltage protection
Supports remote wake-up function by keyboard or mouse

Delivery content

• Low profile slot plate

Requirements

Windows 7/8/8.1/10, Linux

Keywords

04016032460077, Digitus, DS-30225, interface card
