SONEL

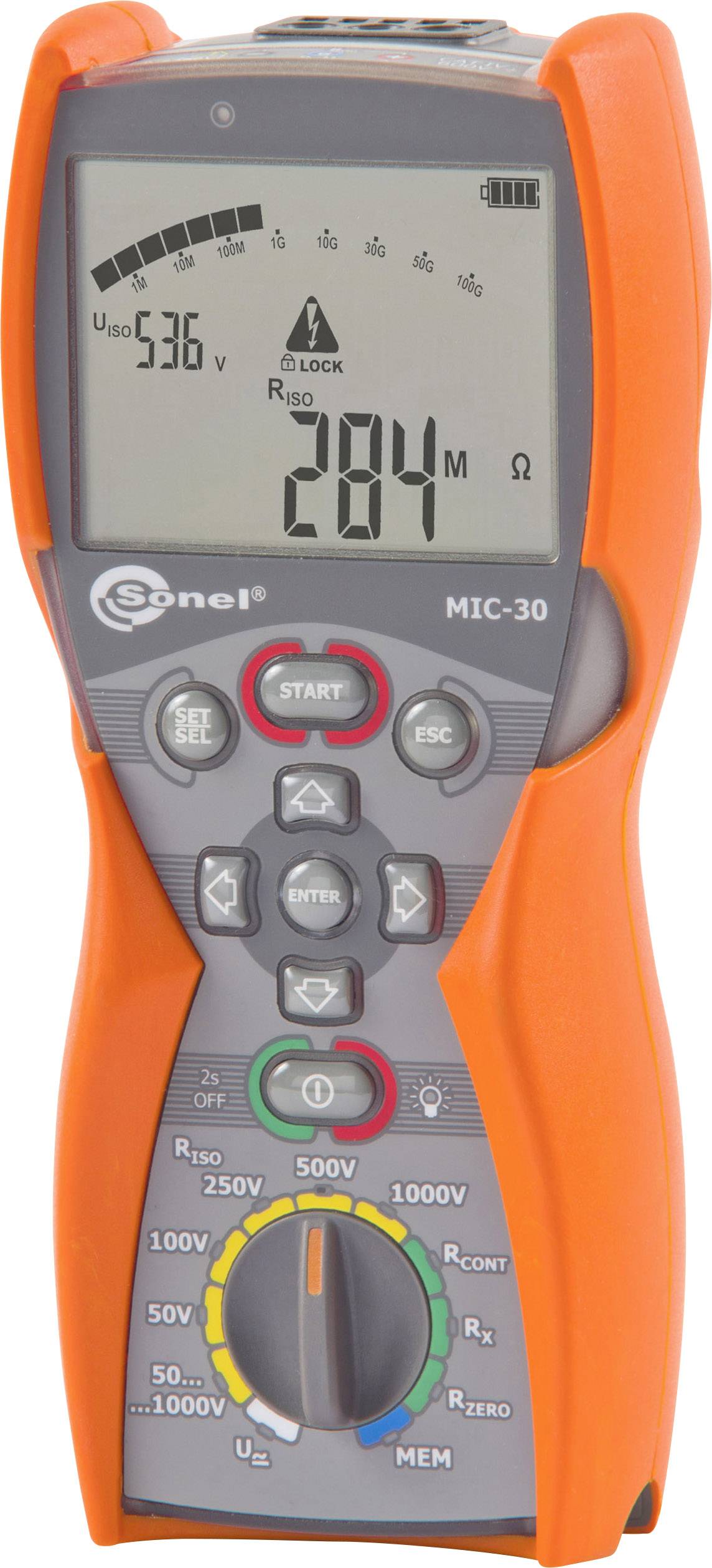

• Test voltage 50V, 100V, 250V, 500V, 1kV
• Protective conductor resistance measurement ±200mA
• Capacitance measurement

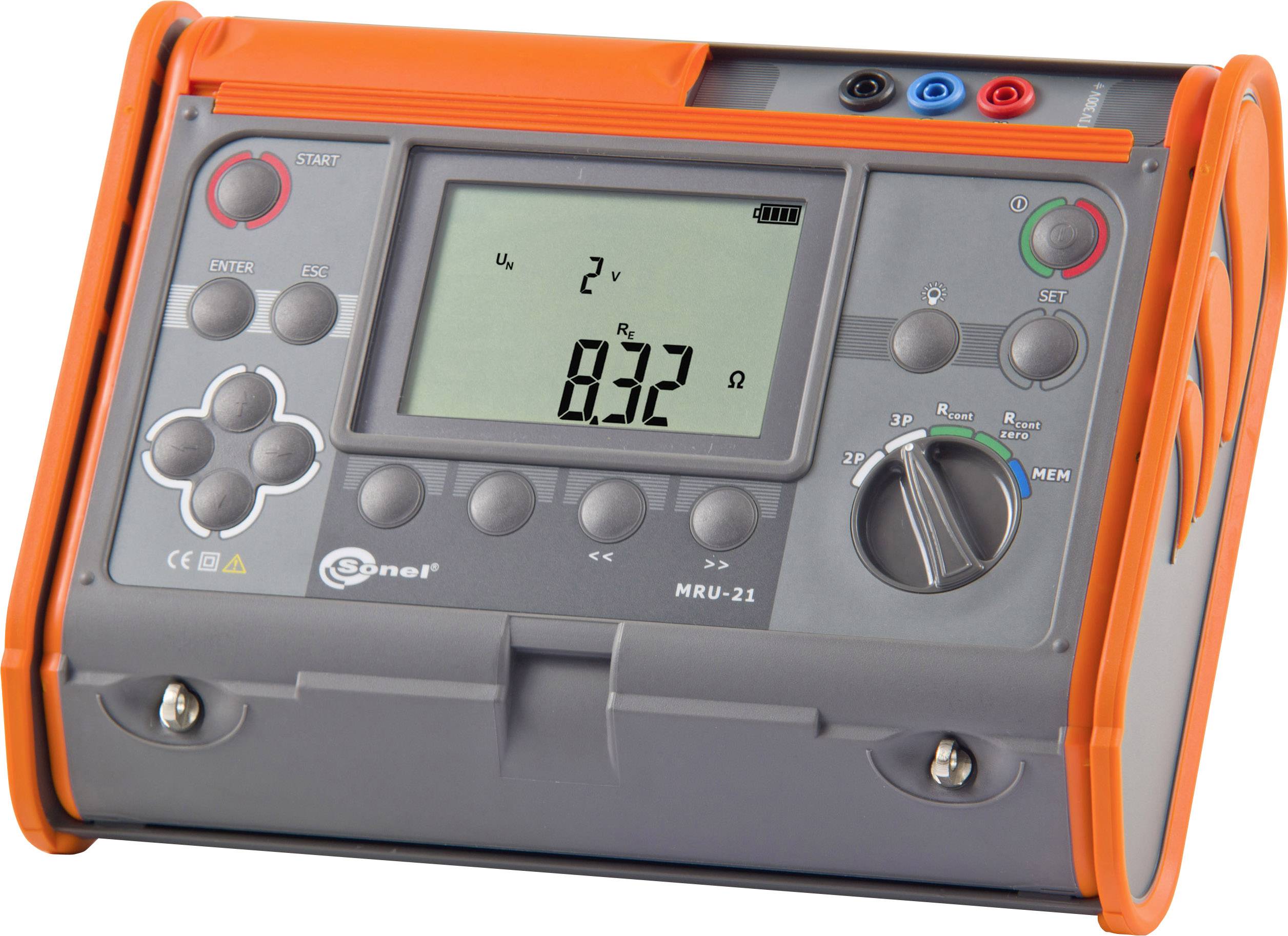

• Earthing measurement 2-pole and 3-pole with auxiliary electrodes RS and RH - Protective conductor resistance measurement with 200 mA - Measurement of interference voltages - Measuring voltage 25 V or 50 V - USB connection

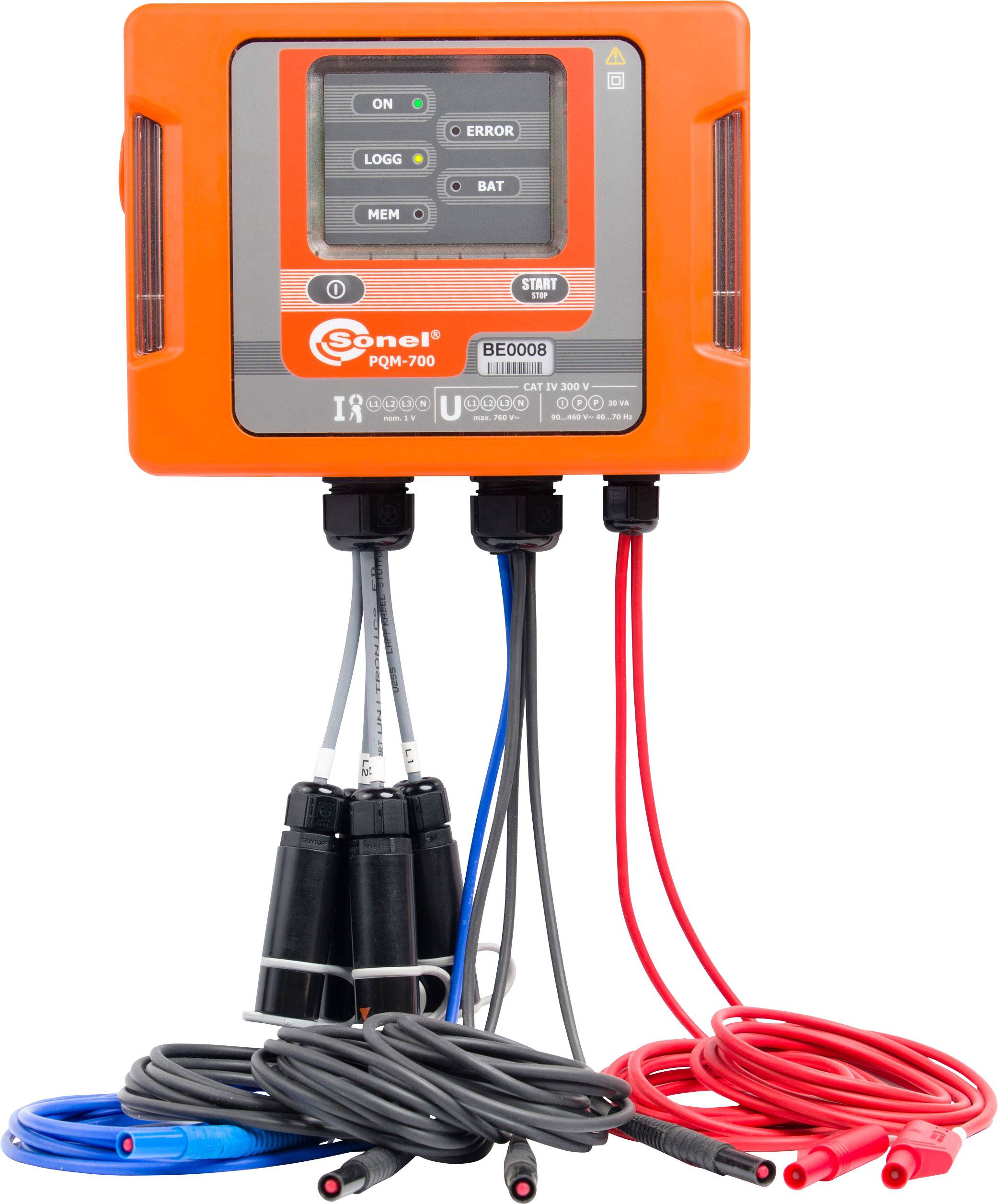

• network quality analysis: IEC61000-4-30, Class S - DIN EN 50160 - Measurement of all important network parameters such as..: V, A, P, Q, D, S, f, E, cosϕ, PF, tgϕ, THD, TID, Pst, Plt - Measurement in networks from 64V-760V with 40-70Hz - Measurements up to the 40th harmonic - Digital recording of power curves and waveforms - Working temperature: -20...55°C

• network quality analysis: IEC61000-4-30 Class A;DIN EN 50160;DIN EN 61000-4-7;DIN EN 61000-4-15;Measurement of all important network parameters: V, A, P, Q, D, S, f, E, cosϕ, PF, tgϕ, THD, TID, K-factor, PST, PLT;Ripple control signals up to 3 kHz;Digital recording of waveforms;Measurement in networks of 64V-760V with 40Hz-70Hz;Data transmission via GSM (GPRS);Integrated GPS receiver for RTC synchronization;Theft protection by SMS warning;Working temperature: -20...55°C

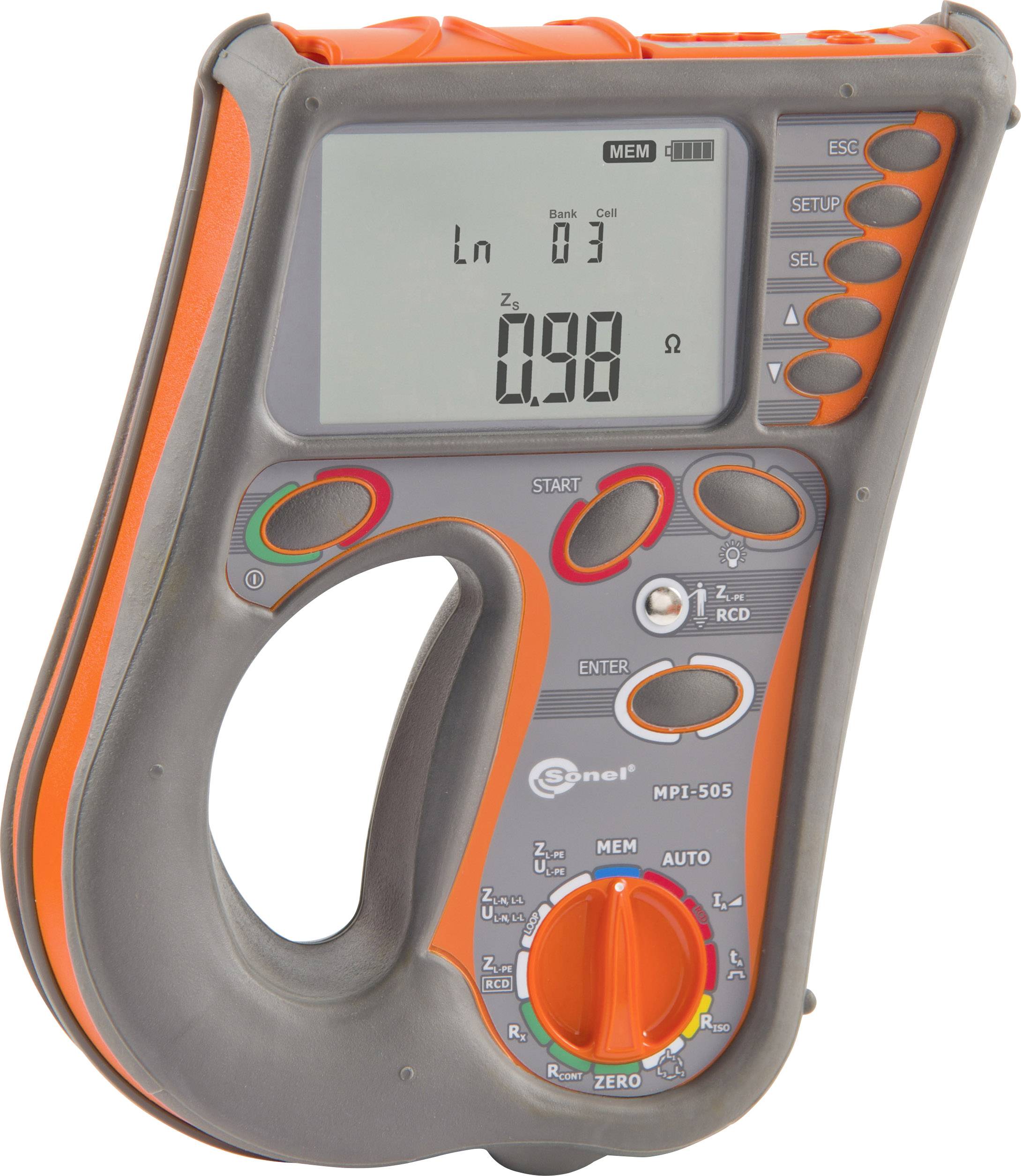

• Loop impedance measurement with Max. 23A/230V and 40A/400V
• Complete RCD/FI type AC/A up to 1000 mA
• Insulation resistance measurement with 100 to 1000 V up to 3 GΩ

• Test voltage 50V, 100V, 250V, 500V, 1kV
• Protective conductor resistance measurement ±200mA
• Capacitance measurement

• To facilitate diagnosis, one of the EVSE-01 jacks provides a pulse width modulation (PWM) signal.
• The EVSE-01 adapter enables measurements at electrical AC charging stations with type 2 connection. Tests are available on 1-phase and 3-phase stations - with and without ventilation.

• Measurement current up to 10 A · Resolution up to minimum 1 µΩ · 3 different measurement modes (normal, car, cont.) · Measurement of resistive and inductive objects · 4-wire measurement · No influence due to interference. · Adjustable limits (min/max).

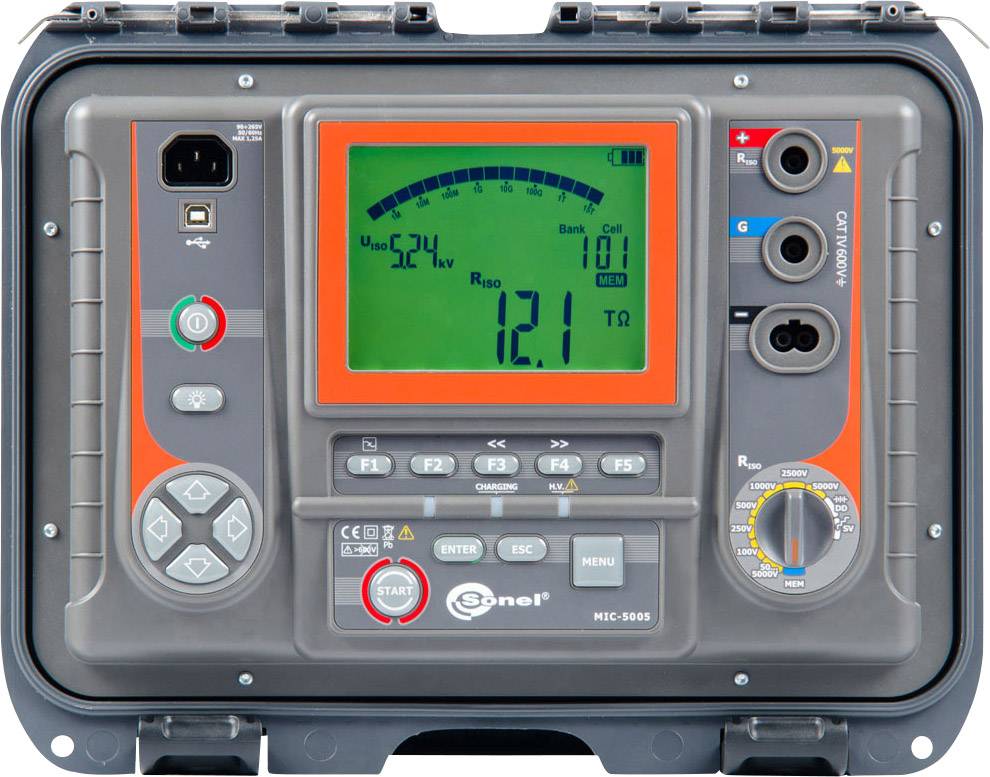

• Test voltage 50...5000 V for measuring range up to 15 TΩ - Test voltage adjustable in 10 V steps (50...1000V) and 25 V steps (1...5kV) - Automatic discharge of the DUT after the measurement - Time interval measurements with acoustic 5 sec.Signalization - 3 test times to determine the absorption coefficient - Determination of the polarization index (PI) and the dielectric absorption ratio (DAR) - Test method (SV) - Index of dielectric discharge (DD) - Adjustable test current (1.2mA, 3mA) - Creepage current measurement - Digital filter function for test environment with large disturbances - AC/DC measurement 0...750V - Capacitance measurement - 5.6" LCD display - Integrated quick charger

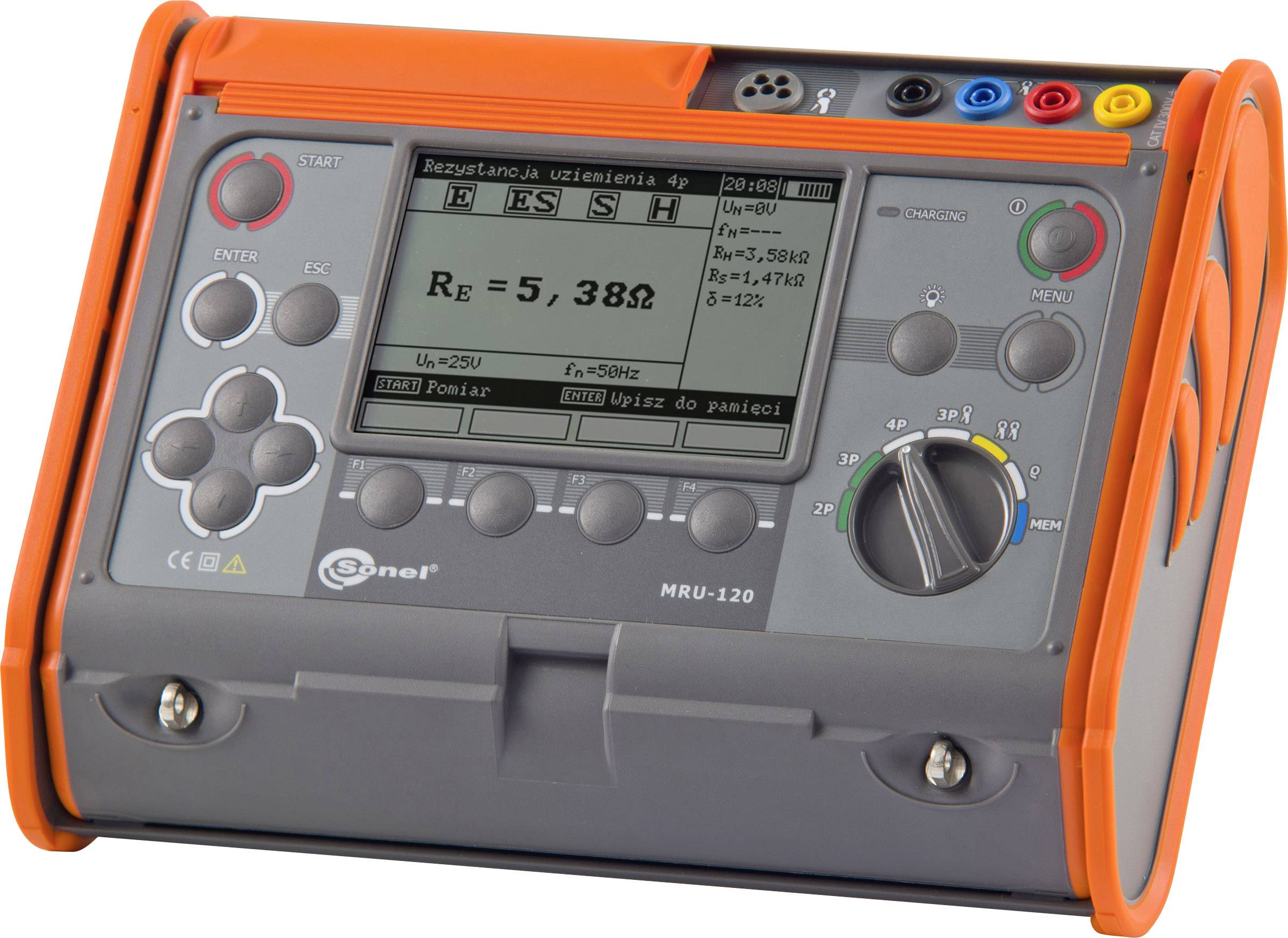

• 2-, 3- and 4-pole earth measurement - 3-pole earth measurement with a clamp - Earth measurement with 2-clamps without disconnecting the earth - Specific resistance - Current measurement with clamps - Earth measurement with auxiliary electrodes RS and RH - Protective conductor resistance measurement with 200 mA - Measurement of interference voltages in networks with 50 Hz, leakage current measurement - 60 Hz - Measurement voltage 24 V or 50 V - Distance in meters (m) or feet (ft) - Real time clock (RTC) - USB connection

• 2-, 3- and 4-pole earthing measurement - 3-pole earthing measurement with one clamp - Earthing measurement with 2-clamps without disconnecting the earth electrode - Specific earth resistance - Current measurement with clamps - Earthing measurement with auxiliary electrodes RS and RH - Lightning protection method (surge method) - Protective conductor resistance measurement with 200 mA - Measurement of interference voltages in networks with 50 Hz, 60 Hz, 16 2/3 Hz and 400 Hz - Measuring voltage 24 V or 50 V - Distance in meters (m) or feet (ft) - Real time clock (RTC) - USB connection - GPS module for position storage of test objects
