SONEL buy online | getgoods smart shopping

This offer is only valid for business customers

Loop impedance measurement according to EN 61557: ZL-PE,ZL-N,ZL-L at mains voltage up to 415V
Measuring current 7.6/13.3A also without triggering the RCDs
Continuity test with 200mA

This offer is only valid for business customers

Earthing measurement 2-pole and 3-pole with auxiliary electrodes RS and RH - Protective conductor resistance measurement with 200 mA - Measurement of interference voltages - Measuring voltage 25 V or 50 V - USB connection

This offer is only valid for business customers

2-, 3- and 4-pole earth measurement - 3-pole earth measurement with a clamp - Earth measurement with 2-clamps without disconnecting the earth - Specific resistance - Current measurement with clamps - Earth measurement with auxiliary electrodes RS and RH - Protective conductor resistance measurement with 200 mA - Measurement of interference voltages in networks with 50 Hz, leakage current measurement - 60 Hz - Measurement voltage 24 V or 50 V - Distance in meters (m) or feet (ft) - Real time clock (RTC) - USB connection

This offer is only valid for business customers

Loop impedance measurement with a resolution of 0.01 Ω
Loop impedance measurement in networks that are secured with a FI switch ≥30 mA with a resolution of 0.01 Ω (180 to 270 V)
Measurement in mains 220/380 V, 230 V/400 V, 240/415 V (range 180 to 460 V)

670,79 €

VAT included

Free shipping

Delivery time: 2-3 days

in stock

network quality analysis: IEC61000-4-30, Class S - DIN EN 50160 - Measurement of all important network parameters such as..: V, A, P, Q, D, S, f, E, cosϕ, PF, tgϕ, THD, TID, Pst, Plt - Measurement in networks from 64V-760V with 40-70Hz - Measurements up to the 40th harmonic - Digital recording of power curves and waveforms - Working temperature: -20...55°C

This offer is only valid for business customers

network quality analysis: IEC61000-4-30 Class A;DIN EN 50160;DIN EN 61000-4-7;DIN EN 61000-4-15;Measurement of all important network parameters: V, A, P, Q, D, S, f, E, cosϕ, PF, tgϕ, THD, TID, K-factor, PST, PLT;Ripple control signals up to 3 kHz;Digital recording of waveforms;Measurement in networks of 64V-760V with 40Hz-70Hz;Data transmission via GSM (GPRS);Integrated GPS receiver for RTC synchronization;Theft protection by SMS warning;Working temperature: -20...55°C

This offer is only valid for business customers

This offer is only valid for business customers

This offer is only valid for business customers

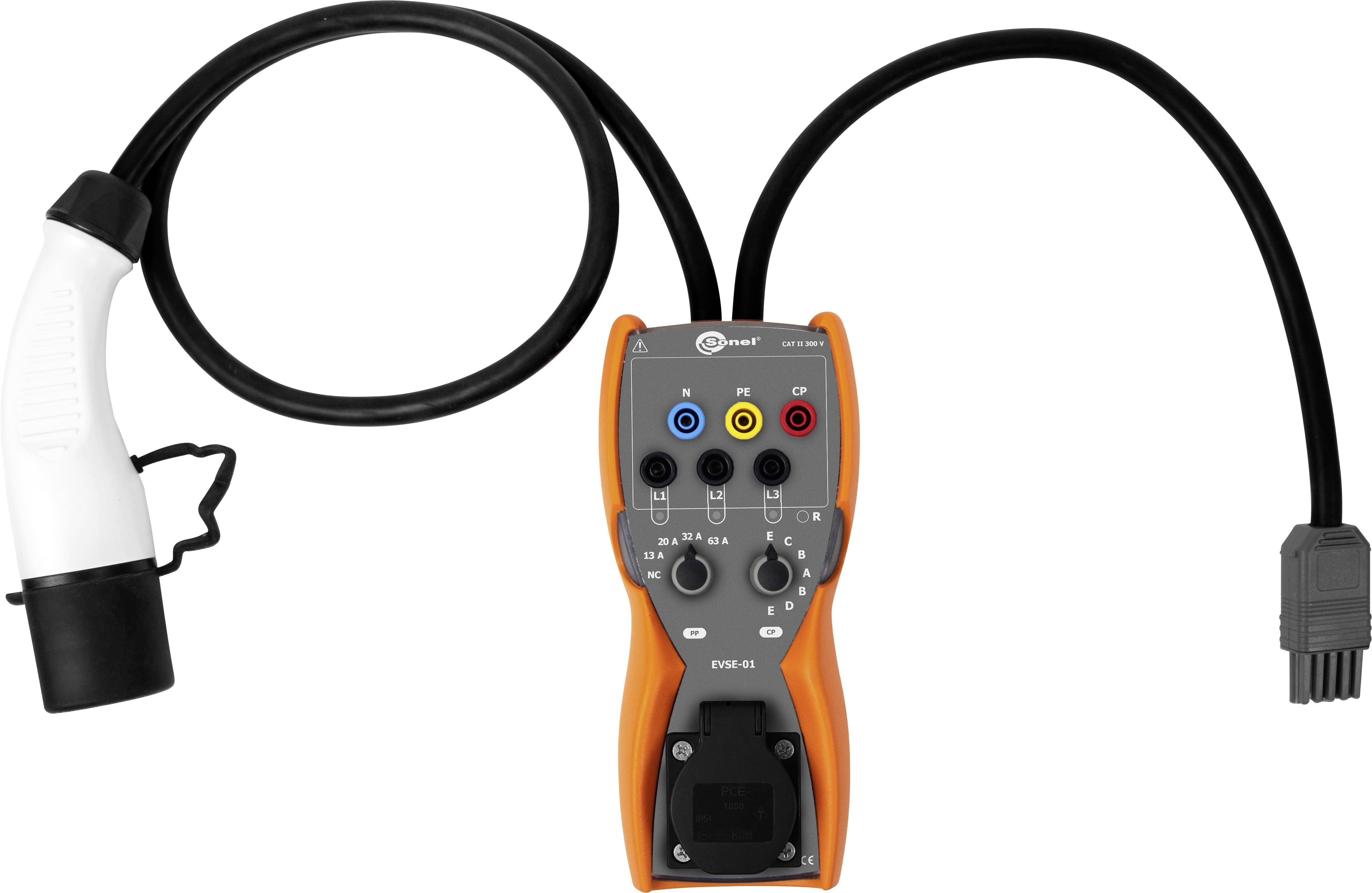

To facilitate diagnosis, one of the EVSE-01 jacks provides a pulse width modulation (PWM) signal.
The EVSE-01 adapter enables measurements at electrical AC charging stations with type 2 connection. Tests are available on 1-phase and 3-phase stations - with and without ventilation.

This offer is only valid for business customers

Measurement current up to 10 A · Resolution up to minimum 1 µΩ · 3 different measurement modes (normal, car, cont.) · Measurement of resistive and inductive objects · 4-wire measurement · No influence due to interference. · Adjustable limits (min/max).

This offer is only valid for business customers

Loop impedance measurement with max. 41 A at 415 V · Loop impedance test without tripping the RCD · Short-circuit current calculation · Insulation resistance measurement with max. 1000 V up to 10 GΩ · Protective earth resistance measurement with ± 200 mA · RCD/FI type AC, A and B up to 1000 mA · TRMS current measurement up to 400 A · AC voltage measurement up to 500 V · Effective, apparent and reactive power measurement including p.f. · Earthing measurement with 2 clip-on ammeter without disconnecting of the erders by the wenner Method Method · Specific earth resistance ρ · Lighting Measurement · Rotary field indicator; · Power quality analysis

Currently not available

SONEL
