Operating voltage 5 V or 9 V DC
Measurement input 200 mV DC
Combined total of measuring voltage and operating voltage possible
Display 1999
Accuracy ±0.1 %
Display symbols ºF, ºC, μ, m, A, V, K, M, Ω can be individually selected
Decimal point can be set
Background lightning Green
Configuration via solder bridges
Electrical connection at pin header with 2.54 mm pitch

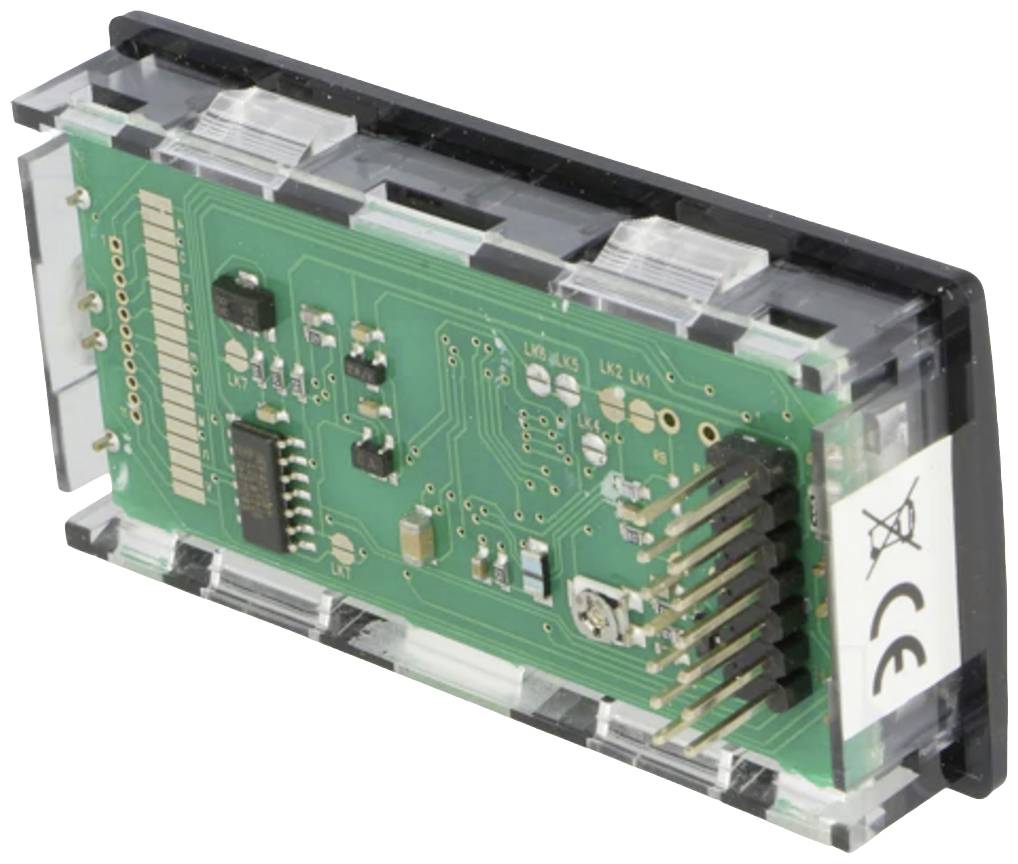

TDE Instruments DPM962-TW is a digital multimeter panel-mounted instrument with different display symbols, data hold function and low-bat display. Supply voltage 5 V or 9 V DC. This digital panel-mounted instrument does not require galvanic isolation of measuring and operating voltage in 5 V operation.
In 5 V mode, this digital instrument generates its own internal negative 5 V supply voltage, so that signals with the same signal ground as the supply voltage can also be measured. The connections enable different operating modes such as absolute measurement, differential voltage measurement and relative voltage measurement. This digital panel-mounted instrument is ideal for use in power supplies or when using only one voltage source. By connecting resistors, almost any measuring range can be achieved with this digital instrument.
Linearity ± 1 digit · Sampling rate 3/s (typically) · Temperature stability 30 ppm/ °C (typical) · Operating temperature -10 to +50 ºC · Current consumption without backlight 2 mA · Input impedance 100 MΩ · Display ±199.9 · Tolerance ± 0.1 % (+1 digit) · Full scale ±200 mV · Data-hold · Low-battery indicator
