TDE INSTRUMENTS

TDE Instruments Digalox DPM72-PP Digital rack-mount meter

Display with bar chart shows the fill level of Tank 3. The current value is 29.5. Line below shows the trend over the last 3 minutes.

Graphic display 16 grey levels with white backlight
Pointer and digital display
USB interface, galvanically isolated

Delivery time: 1-2 days

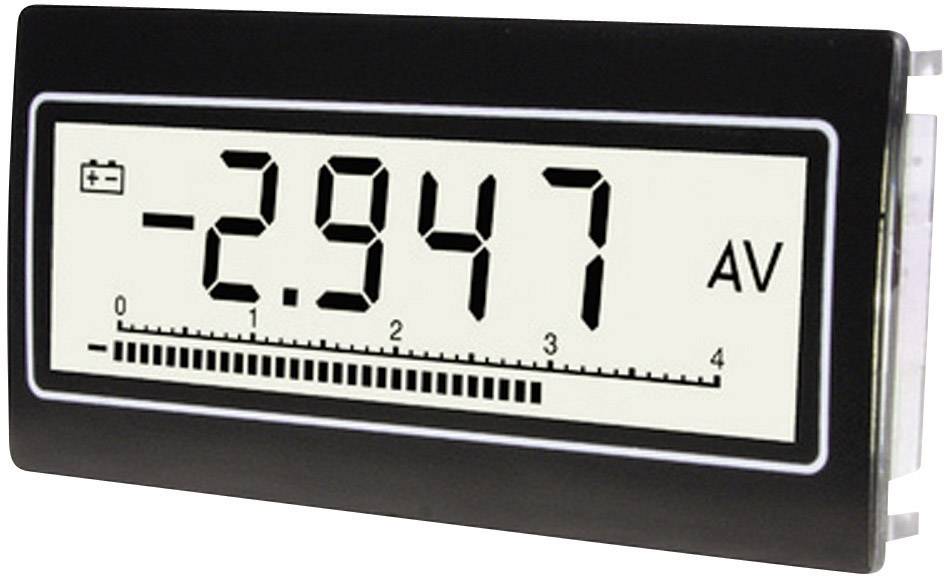

TDE Instruments DPM-802-TW-TV Digital rack-mount meter

Digital display of a voltmeter showing '-2.947' volts with a bar graph underneath.

LCD viewing angle from above
Direct measuring volt and ammeter for AC or DC
measuring range 0.1 mV - 300 V or 0.1 uA - 10 A

TDE Instruments Digalox DPM72-AV Digital rack-mount meter

Digital display with pointer indicating 325 volts AC. Scale ranges from 0 to 500 volts. 'Digalox' written underneath.

Graphic display 16 grey levels with white backlight
Pointer and digital display
Adjustable scale-endpoint

TDE Instruments Digalox DPM72-AV2 Digital rack-mount meter

Digital measuring instrument showing AC voltage, scale from 0 to 500 volts, pointer at 325 volts. 'Digalox' marking at the bottom.

1 measurement input ±300 V AC/DC, 10 - 500 Hz
1 measurement input ±10 A AC/DC and 5 A AC for current transformers, 10 - 500 Hz
LCD graphic display 16 gray scales 192 × 160 pixels

Delivery time: 1-2 days

TDE Instruments Digalox DPM72-AVP Digital rack-mount meter

Digital measuring device displays: 'Phase 1 V AC' with a needle positioned at 325 on a scale from 0 to 500.

Graphic display 16 grey levels with white backlight
Pointer and digital display
USB interface, galvanically isolated

Delivery time: 1-2 days

TDE Instruments DPM36-AV Digital rack-mount meter

TDE Instruments DPM36-AV Digital rack-mount meter

this an historic product which is not available, thus not updated anymore

Delivery time: 1-2 days

TDE Instruments DPM962-TW Digital rack-mount meter ± 200 mV

Digital display shows '2.94', alongside symbols for temperature, voltage and resistance.

Operating voltage 5 V or 9 V DC
Measurement input 200 mV DC
Combined total of measuring voltage and operating voltage possible

Delivery time: 1-2 days

TDE Instruments Digalox DPM72-MPP-RS485 Process display

Black and white display shows 'Tank 3 Level', with a bar graph and a line graph underneath. Current value: 29.5.

1 measurement input 0/2 to 10 V.
1 measurement input 0/4 to 20 mA
LCD graphic display 16 gray scales 192 × 160 pixels

Delivery time: 1-2 days

TDE Instruments DPM72-MPPA-XBEE-DIN Analogue rack-mount meter

Black electrical device with an antenna and green connection terminals, mounted on a DIN rail, used for industrial communication.

Depending on the model, the analog signal (2×) measuring types 0/2 to 10 V and/or (2×) 0/4 to 20 mA AC / DC are supported....

Delivery time: 1-2 days

TDE Instruments Digalox DPM72-MP+-RS485-DIN Digital rail-mount meter

A black electrical module with multiple green terminal blocks and LED indicators, mounted on a DIN rail.

1 measurement input voltage ±500 V AC/DC, 10 - 500 Hz
1 measurement input current ±10 A AC/DC and 5 A AC for current transformers, 10 - 500 Hz
Measured value recording for up to 14 days

Delivery time: 1-2 days

while stocks last

TDE Instruments DPM962-TG Digital rack-mount meter ± 200 mV

Digital display shows '2.94', with symbols for temperature in degrees Celsius and other units.

Operating voltage 5 V or 9 V DC
Measurement input 200 mV DC
Combined total of measuring voltage and operating voltage possible

Delivery time: 1-2 days

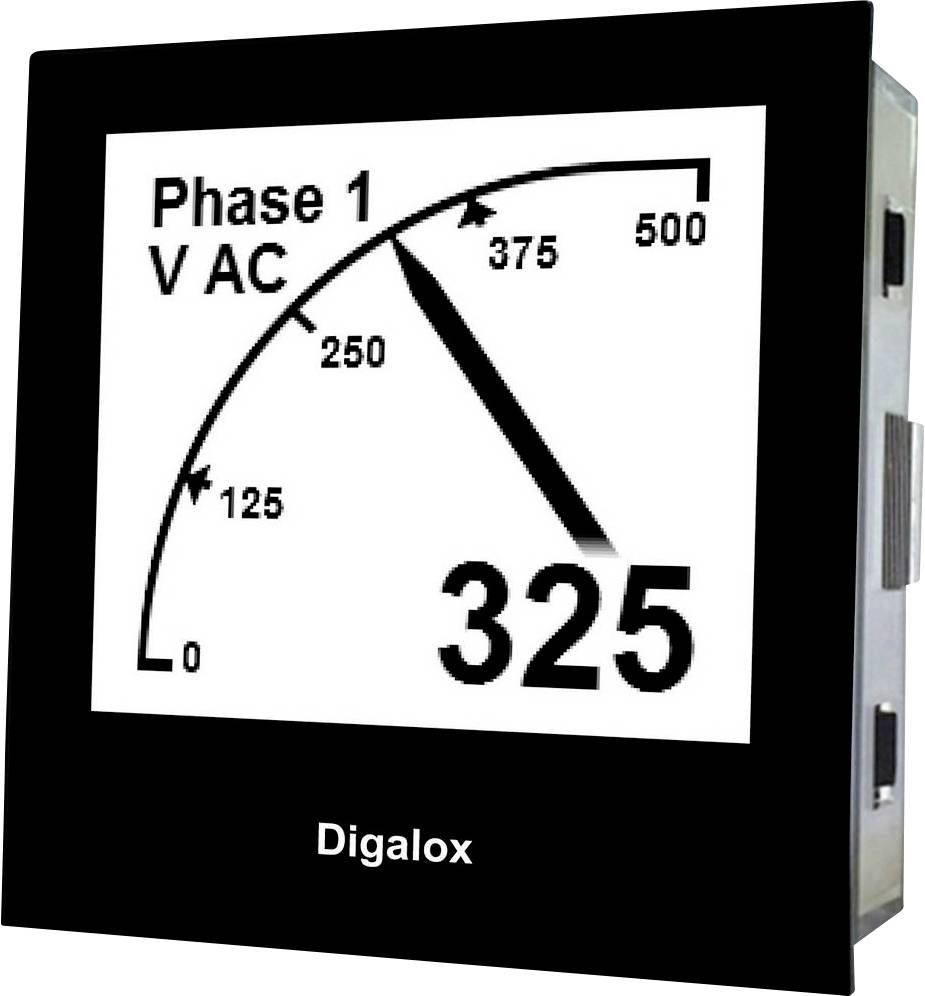

TDE Instruments DPM72-MPN Digital rack-mount meter

Digital measuring device shows 'Phase 1 V AC' with a pointer at 325 on a scale of 0 to 500.

1 measurement input ±500 V AC/DC, 10 - 500 Hz
1 measurement input ±50/60 mV AC/DC for shunt resistor, 10 - 500 Hz
LCD graphic display 16 gray scales 192 × 160 pixels

Delivery time: 1-2 days
