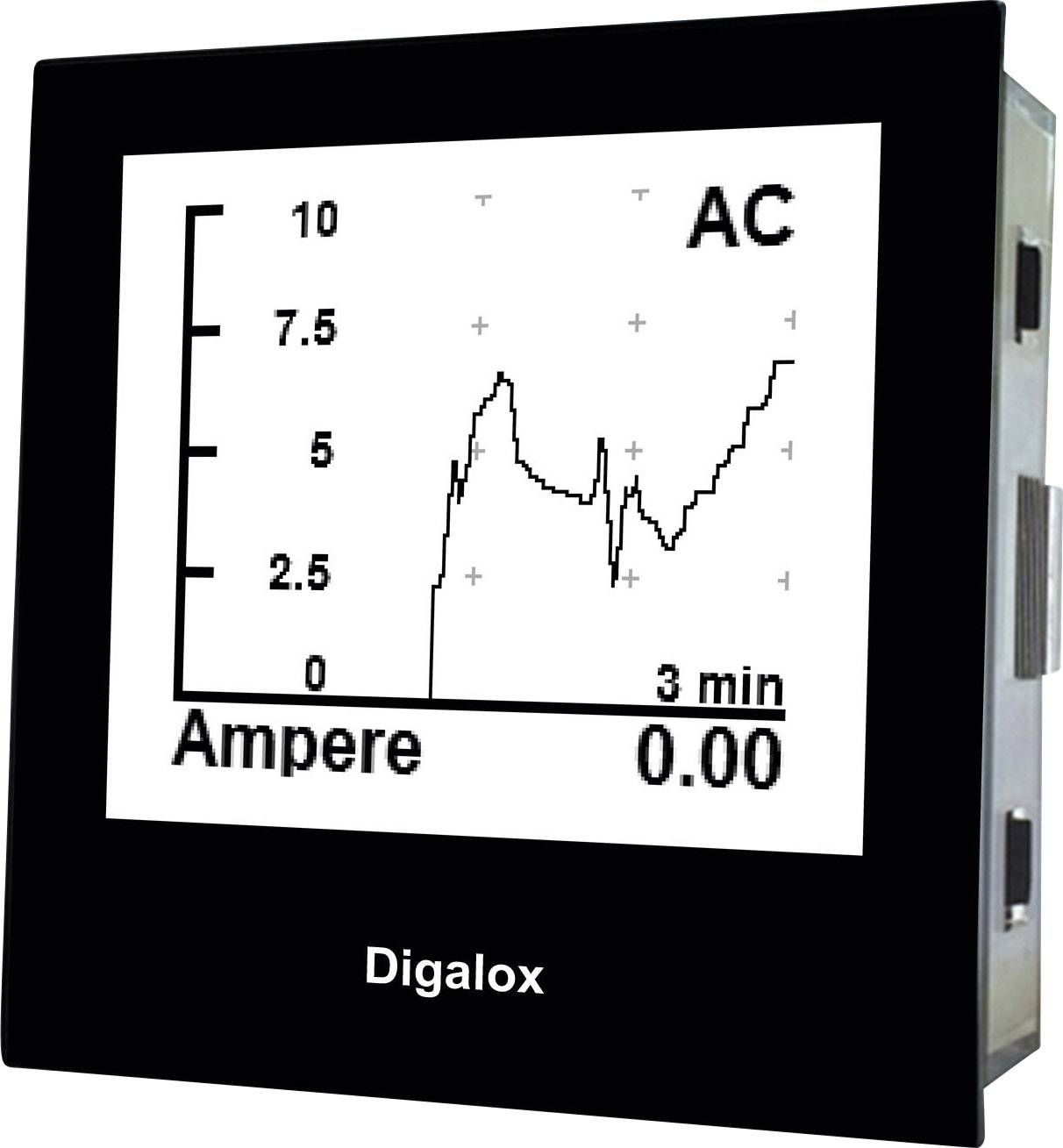

TDE Instruments Digalox DPM72-AV Digital rack-mount meter

Overview

Graphic display 16 grey levels with white backlight
Pointer and digital display
Adjustable scale-endpoint
Recording of measurement over up to 14 days
Accuracy 1% true RMS

Description

Graphical measuring instrument which unites the benefits of an analogue display with the accuracy of a digital instrument. The common measuring modes (Volt AC/DC, Ampere, frequency, analog signal 0/2 to 10 Volts and 5A current transformer) are supported. Scale-endpoint of the indicator as well as scaling of the analog signal and current transformer measurement can be adjusted freely via the DIP-switch, alternatively there is an option for automatic adaption of the scale-endpoint. The unit can be switched between Volt and Ampere measurement via an external switch. Minimum and maximum values are recorded and can be displayed optionally using an external switch. Measure values are recorded over a timespan of 3 minutes to 14 days. The timebase as well as the display of the measuring history can be activated by an external switch.

Characteristics

Graphic display · analog display and digital display · Backlight · Standard DIN case 72x72mm · Measurement of current and voltage · Configurable scale

Delivery content

• Instrument
• Instruction manual
