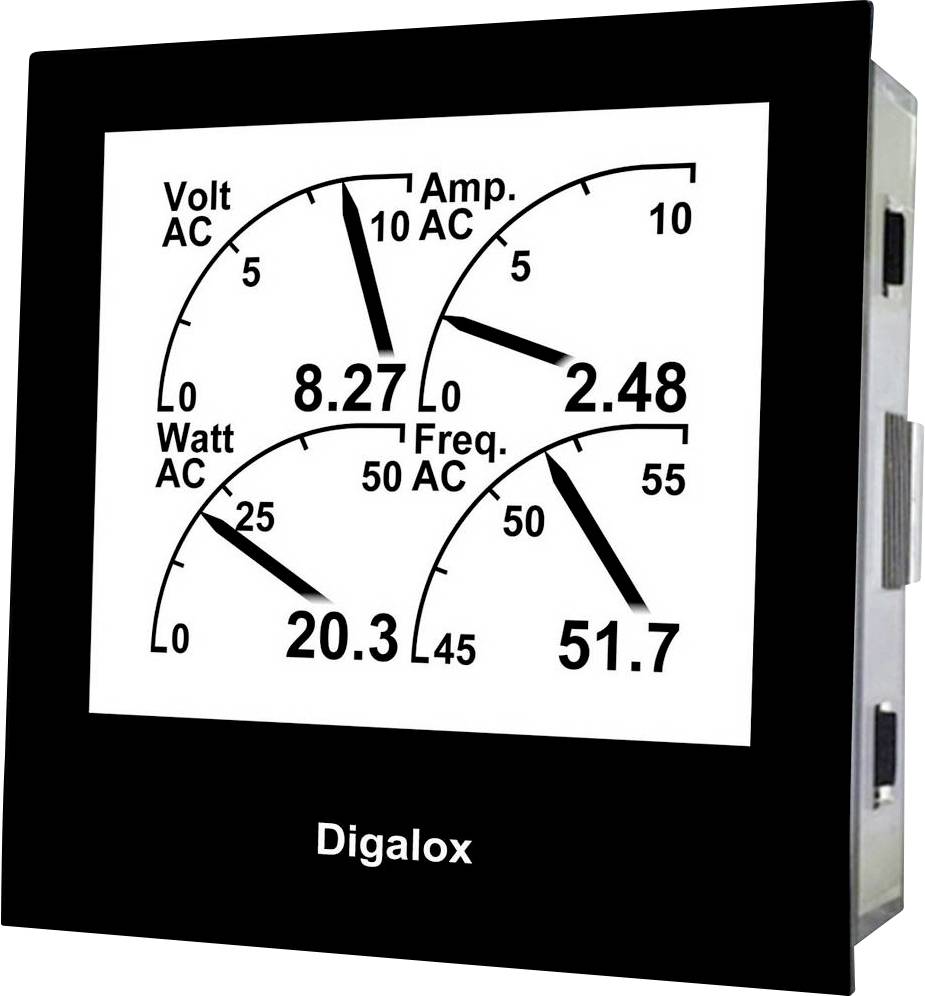

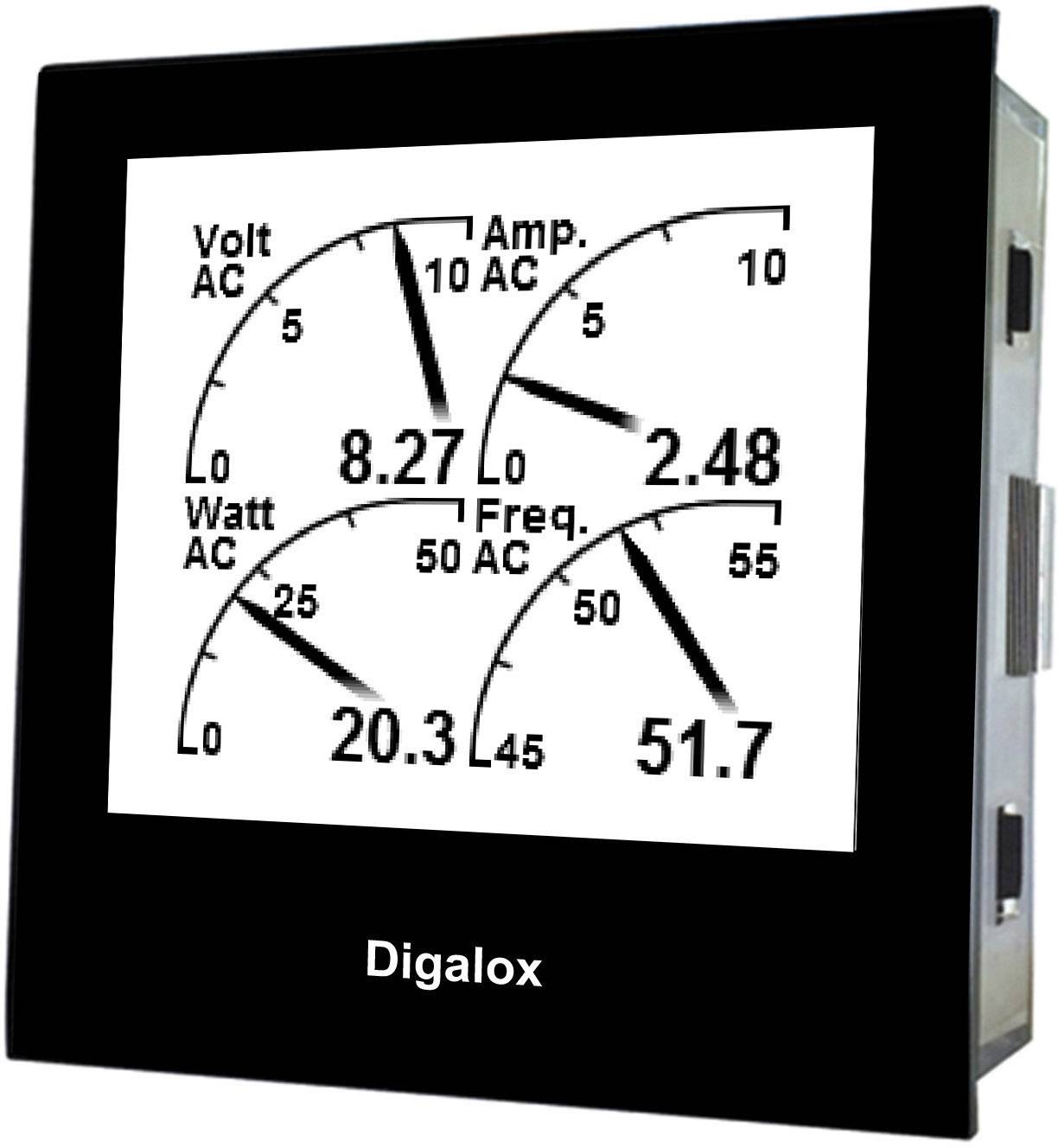

TDE Instruments DPM72-MPN Digital rack-mount meter
item model number: W757951
185,34 €
VAT included
Free shipping
Delivery time:
1-2 days
in stock
30 days free return shipment
185,34 €
VAT included
Free shipping
One article is not enough for you and you want to save money?
from 3 piece:
183,48 €
1,0% savings
from 5 piece:
181,63 €
2,0% savings
from 10 piece:
179,77 €
3,0% savings
Product description
Overview

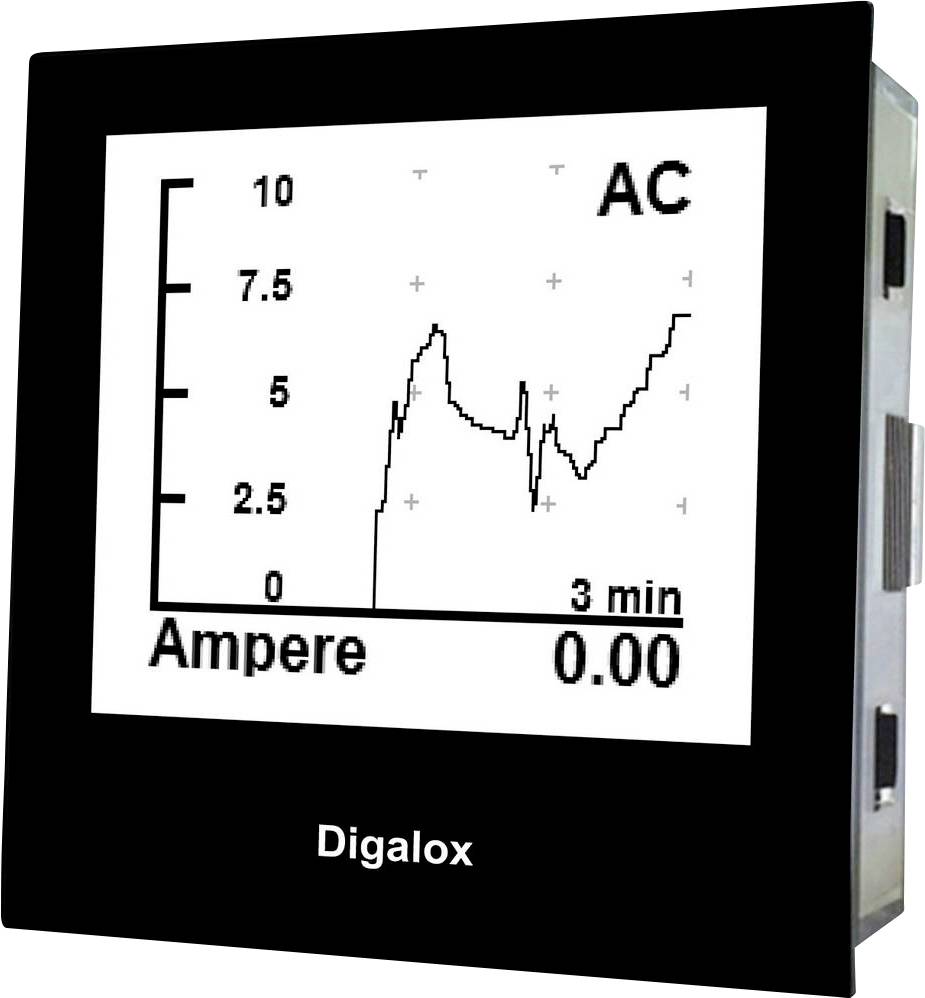

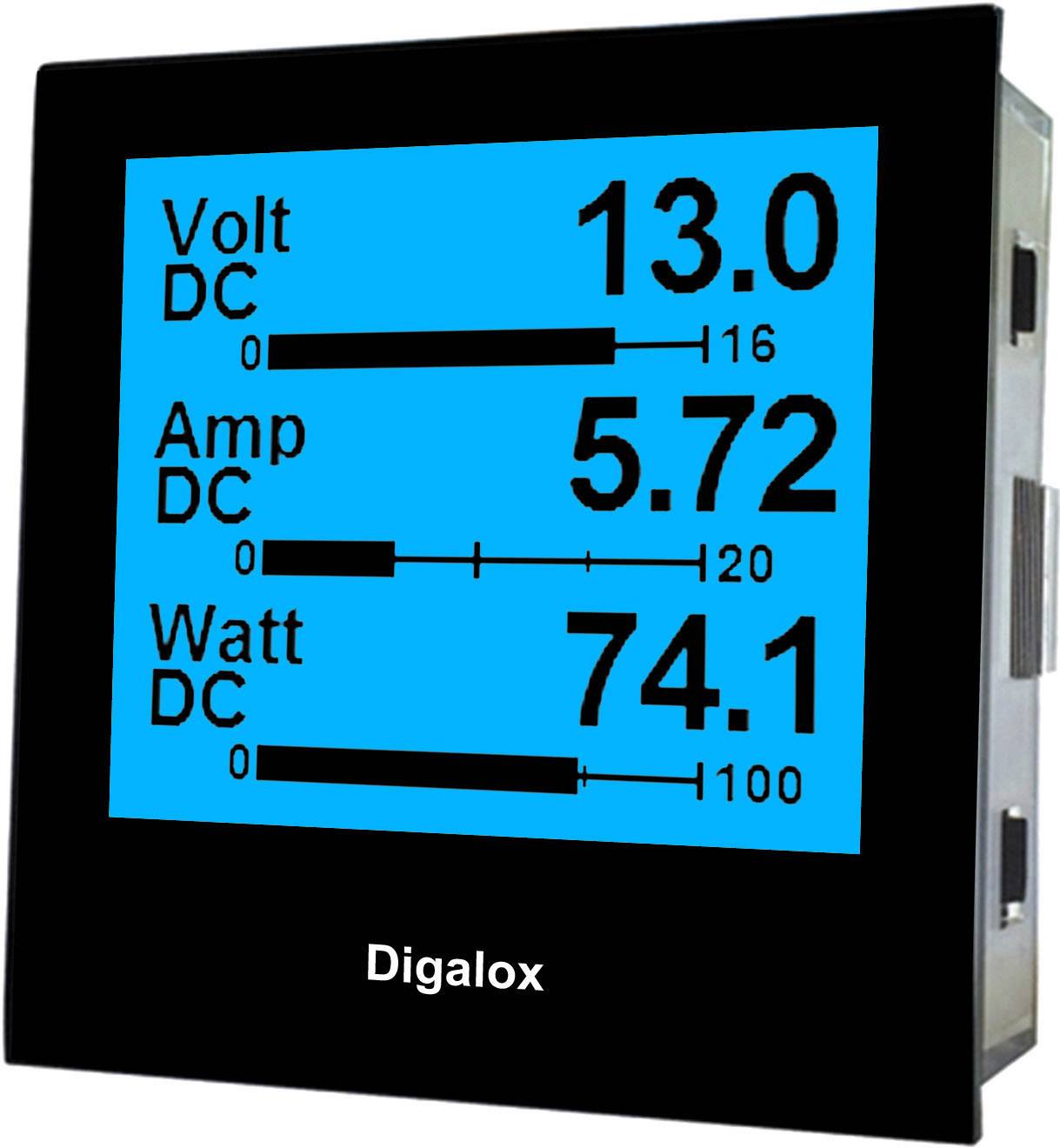

1 measurement input ±500 V AC/DC, 10 - 500 Hz 1 measurement input ±50/60 mV AC/DC for shunt resistor, 10 - 500 Hz LCD graphic display 16 gray scales 192 × 160 pixels RGB background lighting Pointer graphics and digital display Multiple display of up to 4 parameters Adjustable scale deflection and labeling Measured value recording for up to 14 days Alarm outputs with adjustable thresholds, galvanically isolated Individual alarm lighting color Customer-specific start screen Various display designs are available, e.g. speedometer, bar graph, history display Real-time measurement transmission Bimetal function (averaging) USB interface Supply 12-24V AC/DC or via USB, galvanically isolated Measuring accuracy 1% true RMS PC software for individual configuration and measurement data recording included
Description
Innovative, individual and multifunctional: The DPM72-MP+ and DPM72-MPN+ measuring instruments for electrical sizes are characterized by extensive functions and configuration options. Suitable for measuring the comprehensive measurement types (Volt AC/DC, Current AC/DC, Frequency, Power, Cosinus phi), The measuring devices are equipped with extensive functions. The individual configuration of the devices as well as the real-time transmission of all measured values is ensured by the Modbus interface. Thus, the DPM72 meters are versatile and enable a wide range of applications for industrial applications. The multifunctional measuring instruments are particularly in demand in the area of monitoring machine and operating data and are suitable for modernizing old systems, as they are particularly suitable for retro fitters. In addition, they can be attached to DIN rails as well as to other backgrounds by corresponding holes on the housing.Comprehensive software customizationThe measuring instruments can be individually set up using the configuration software "Digalox Manager". Once set up, the DPM72 transmits your measured values reliably and in real time. The software enables the reading of the measured values in the measurement memory, which can then be evaluated graphically and exported as a CSV file.Switching outputsTwo galvanically isolated alarm outputs enable an alarm to be triggered and activated or Abschaltvorgänge when individually adjustable threshold values are reached.Modbus interfaceThe RS485 Modbus interface of the DPM72 meters allows the configuration as well as the transmission of all measured values. The RS485 Modbus protocol is in line with the established industry standard, making the DPM72 instruments with Modbus interface universally compatible with existing Modbus devices from other manufacturers. This enables, above all, an unstateless modernization of older or technically obsolete machines (Retrofit) without having to replace these costs and time-consuming.
Characteristics
USB interface, galvanically isolated; alarm outputs with customizable thresholds, galvanically isolated; PC software for individual configuration and measurement data recording including
Information
Micro USB cable not included. Software Digalox® Manager available for download.
Requirements
Windows Vista, 7 or 8 (the .Net Framework 4)
Keywords
04016139046945, 4016139046945, TDE Instruments, Digalox DPM72-MPN, DPM72-MPN, voltage display
