WAGO PLC digital output module 750-537 1 pc(s)

  • item model number: Q09089

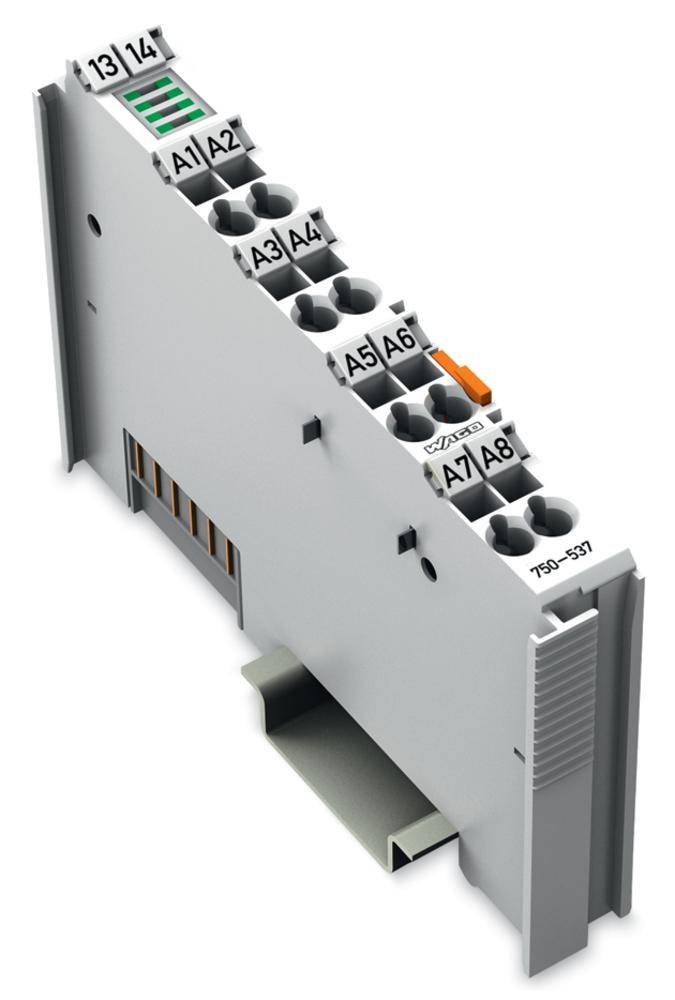

Terminal module with connections A1 to A6 and 13/14, suitable for mounting on a DIN rail, grey housing.

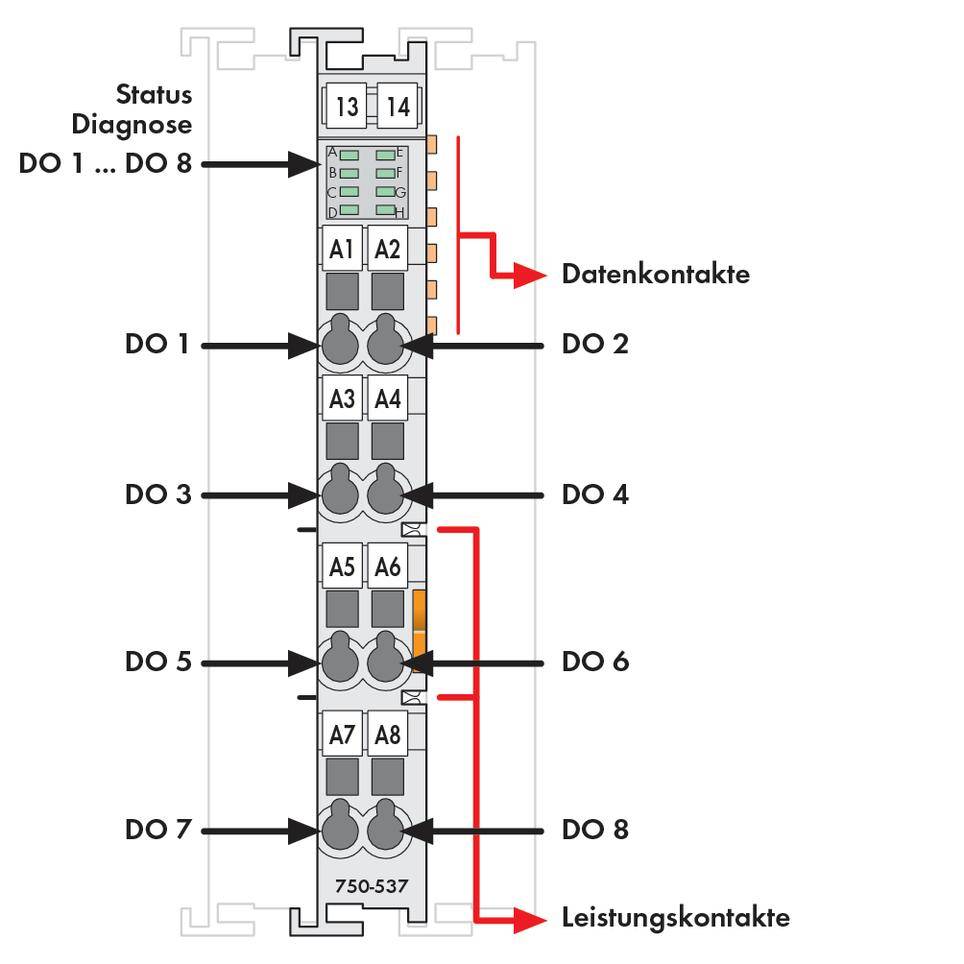

Figure shows an electronic module with eight outputs (DO1 to DO8), data and power contacts. Top: Status diagnosis.

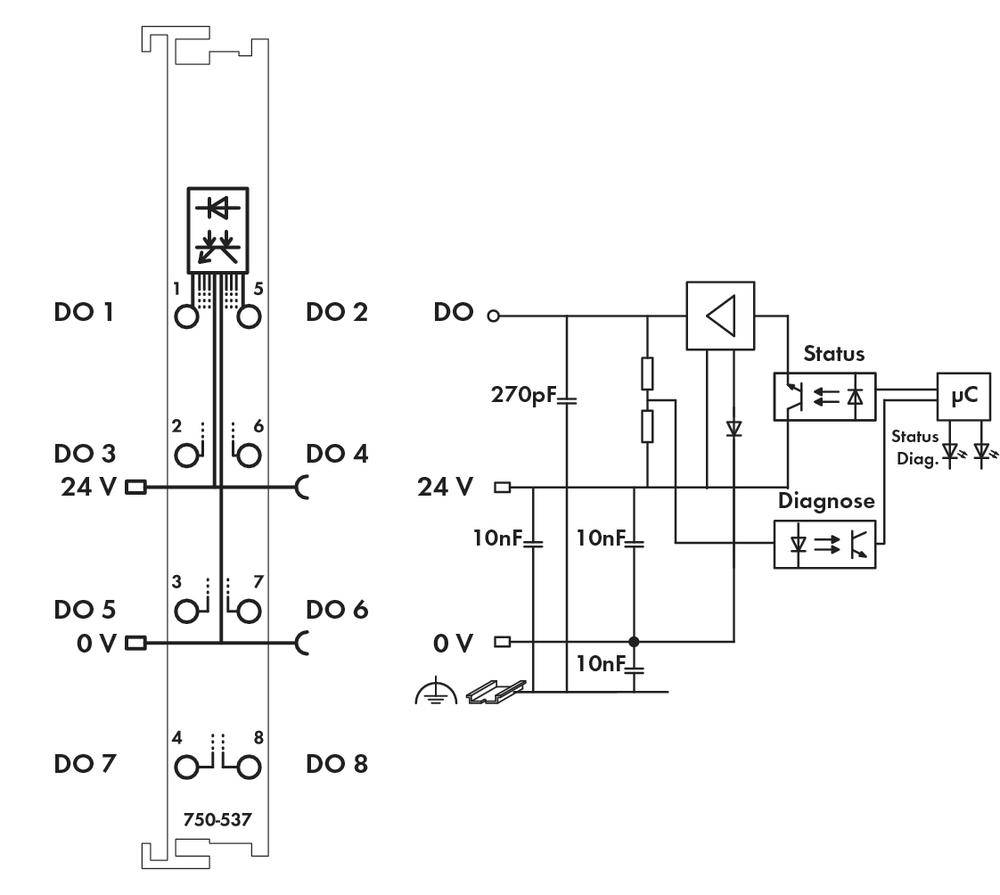

Circuit diagram of an electronic module with eight digital outputs, diagnostic and status LEDs, and various electronic components.
CHF 111.80
VAT included
plus
Delivery time: 6-8 days
available from 15/09/2026
30 days free return shipment
WAGO PLC digital output module 750-537 1 pc(s)
CHF 111.80
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 110.68 1,0 % savings
from 5 piece : CHF 109.56 2,0 % savings
from 10 piece : CHF 108.44 3,0 % savings

Product description

Description

DC 24 V,00,2083333333333333333, positive switching, short-circuit proof, with diagnostics, light grey.

Keywords

04045454431853, 4045454431853, WAGO, 750-537, plcs, plc

Terminal module with connections A1 to A6 and 13/14, suitable for mounting on a DIN rail, grey housing.
Figure shows an electronic module with eight outputs (DO1 to DO8), data and power contacts. Top: Status diagnosis.
Circuit diagram of an electronic module with eight digital outputs, diagnostic and status LEDs, and various electronic components.
