Toner and probe kit Fluke Networks MT-8200-60-KIT Networks

Toner and probe kit Fluke Networks MT-8200-60-KIT Networks
  • Manufacturer: FLUKE NETWORKS
  • (3)
  • Write review
currently not available
currently not available

Everything with just one click

product specifications

Overview

Digital IntelliTone sound testing technology
Never more confusion with cable location
Noise and interference signals are discarded
Locates cables in active networks even when connected to a switch
Isolates cables and wires of a bundle despite signal radiation
Checks cable routing and continuity and detects errors (interruptions), Short circuits and reversed pairs) in one step
Analogue SmartTone® audio testing technology
Allows you to accurately isolate individual pairs of wires based on a change in tone during a short circuit
Effective location and tracking of voice, audio and video cables

Description

Digital network cable signal generator/toner and receiver/probe tracks and locates cables in active networks. IntelliTone Pro 200 Toner and Probe Kit: IntelliTone 200 LAN toner and 200 sample, coaxial F connector adapter, (2) RJ11 and (2) RJ45 patch cables, test leads with crocodile clips, (2) loops, quick reference guide, and (2) 9 volt batteries. Enhanced vision for more effective cable location on patch panels, switches, terminal blocks or in large cable bundles. Our new IntelliTone Pro 200 LAN Toner and Probe Kits find cables hidden from othersAdvanced Vision for more effective cable location on patch panels, switches, connector blocks or in large cable bundles. Our new IntelliTone Pro 200 LAN Toner and Probe Kits find cables hidden from others. The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first network cable toner and sample system of its kind to offer digital and analog signaling in one product. That means it's equipped with the most powerful cable location technologies in any working environment. Use digital mode to safely and effectively locate and track data cables in active networks. Use analog mode to isolate individual wire pairs and track voice, audio, and video cables. The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you unsurpassed precise location of cables in floors, ceilings, walls and cable bundles. Thanks to groundbreaking digital technology, this network cable system is the first device that can be safely and effectively used in active networks to generate and track audio signals.

Characteristics

Advanced SuperVision technology for more effective cable location on patch panels, switches, connector blocks or in large cable bundles - Our new IntelliTone Pro toner and probe kits find cables hidden from others - The IntelliTone™ Pro Toner and Probe Series from Fluke Networks is the first system of its kind to offer digital and analog signaling in one product - That means..: It is equipped with the most powerful technologies for cable location in any working environment - Use digital mode to safely and effectively locate and track data cables in active networks - Use analog mode to isolate individual wire pairs and track voice - Use digital mode to isolate and track data cables in active networks, Audio and Video Cables - The IntelliTone™ Pro Toner and Probe Series from Fluke Networks gives you unsurpassed precise location of cables in floors, ceilings, walls and cable bundles - Thanks to breakthrough digital technology, it's the first device that can be safely and effectively used in active networks to generate and track audio signals.

Delivery content

IntelliTone 200 Toner and Probe Kit consisting of: IntelliTone 200 Toner and 200 Probe - Coax-F-Adapter - 2 RJ11 and 2 RJ45 patch cables each - Test leads with crocodile clips, carrying strap, batteries, CD, short manual

Keywords

754082127444, Fluke Networks, 4586068, MT-8200-60-KIT, Sounds and sample: cable detector, tone generator

Item number:
Y719491
Manufacturer number:
4586068
EAN:
0754082127444

technical data

General Specifications: Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to +140°F (-20°C to °C)
Relative air humidity (RH% without condensation) 95% (50°F to 95°F; 10 °C to 35 °C) 75% (95°F to 104°F; 35°C to 40°C) not controlled< 50°F (<10°C)
Vibration automatically, 2G, 5Hz to 500 Hz
Shock 1 m drop test with and without module
Safety EN 61010-1 1. Output + after carrying 1, 2
Altitude 3000 m
Emc: EN 61326-1
Battery type and battery life 9 V, alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications copper cable including; 75 or 50-Ohm coaxial cables; two-wire control, security, cable in general. 10Base-T or 10/100Base-T datacom networks. POTS telecommunications services and UTP cable. STP (Shielded Twisted Pair) supports in cablemap-funktion of the IntelliTone 200.

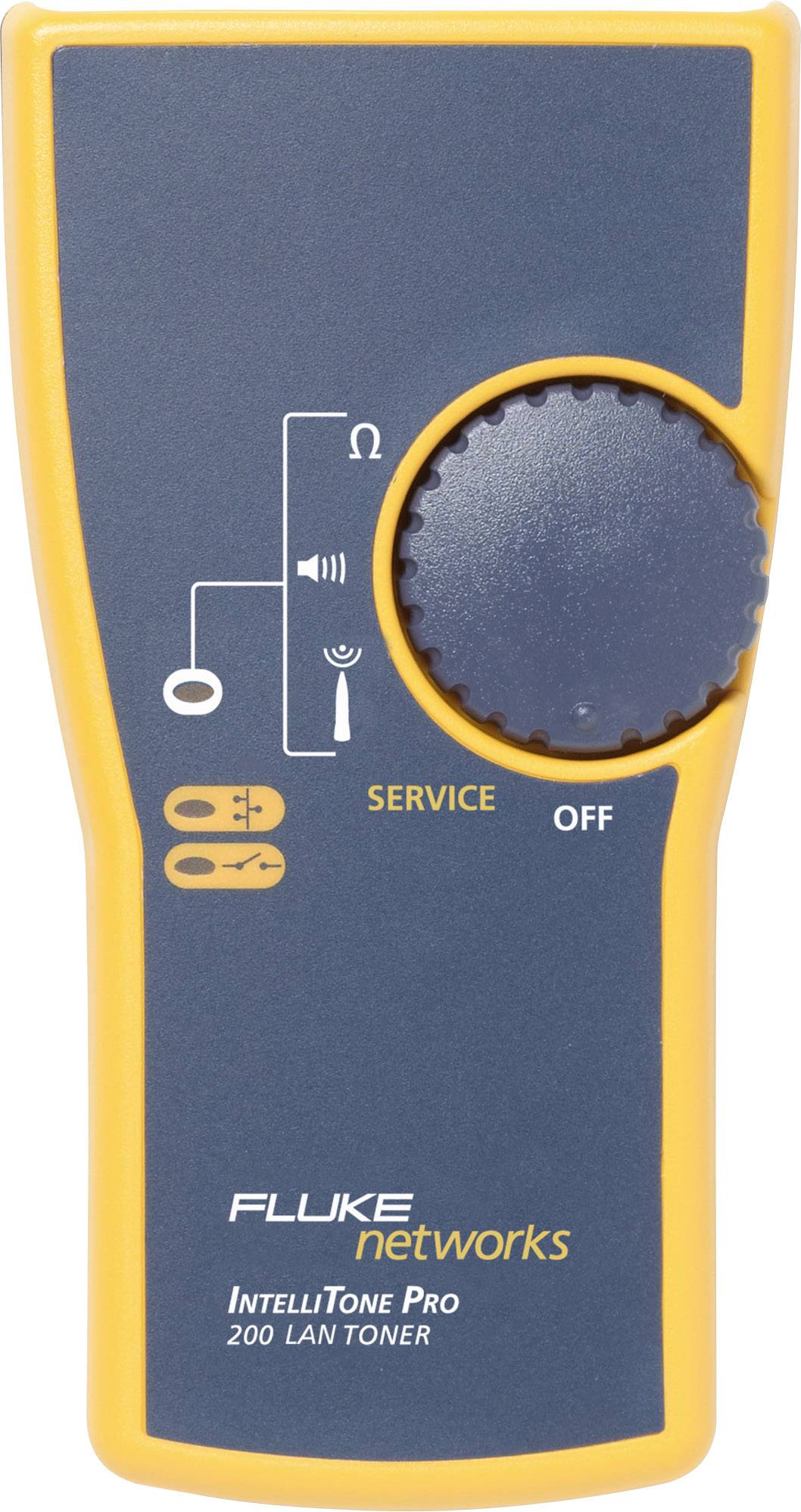

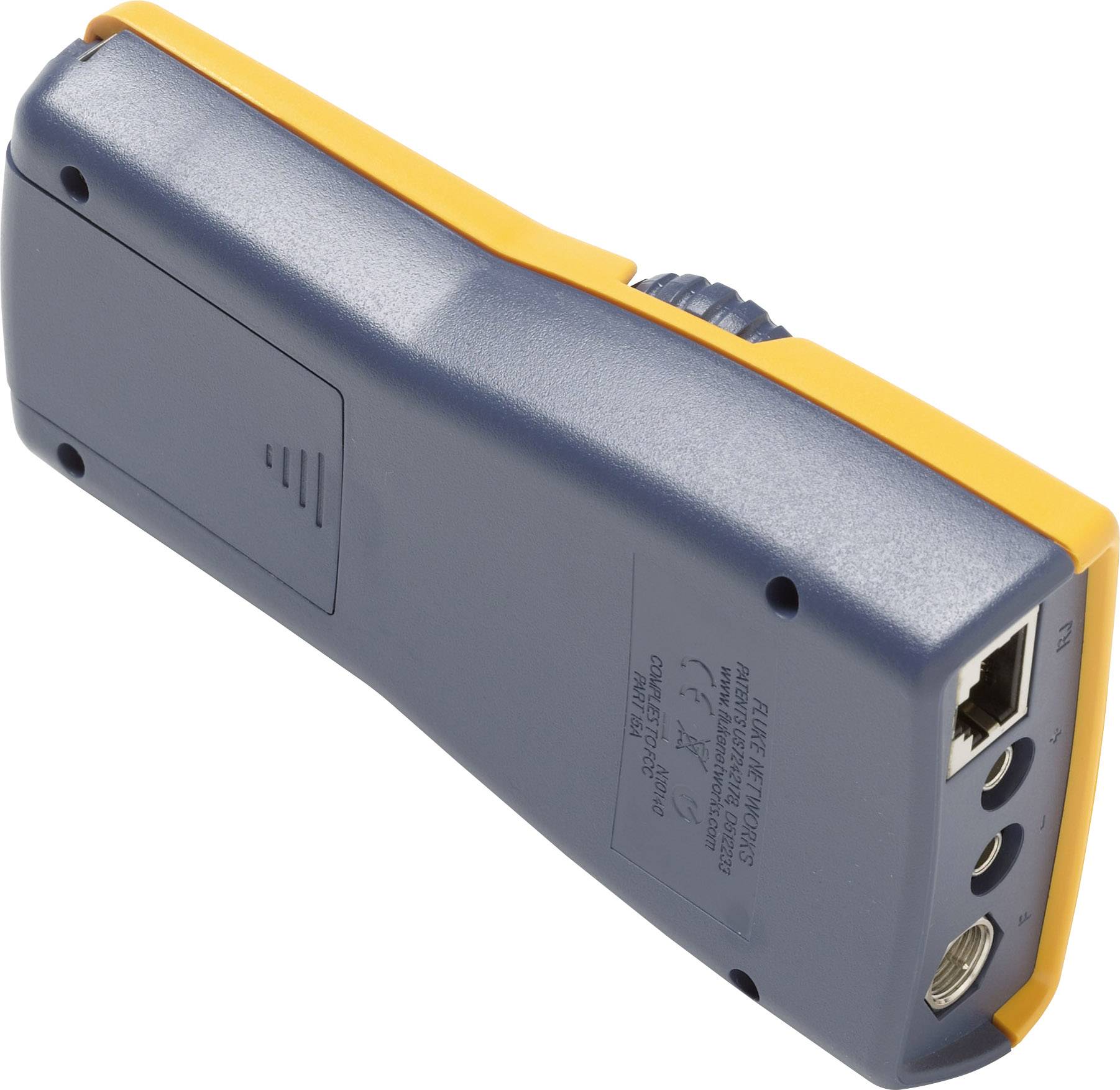

TONER SPECIFICATIONS
Dimensions 5.54" x 2.94" x 1.25 inch (14.1 cm x 7.5 cm x 3.2 cm)
Display LED
Control Thumbwheel switch

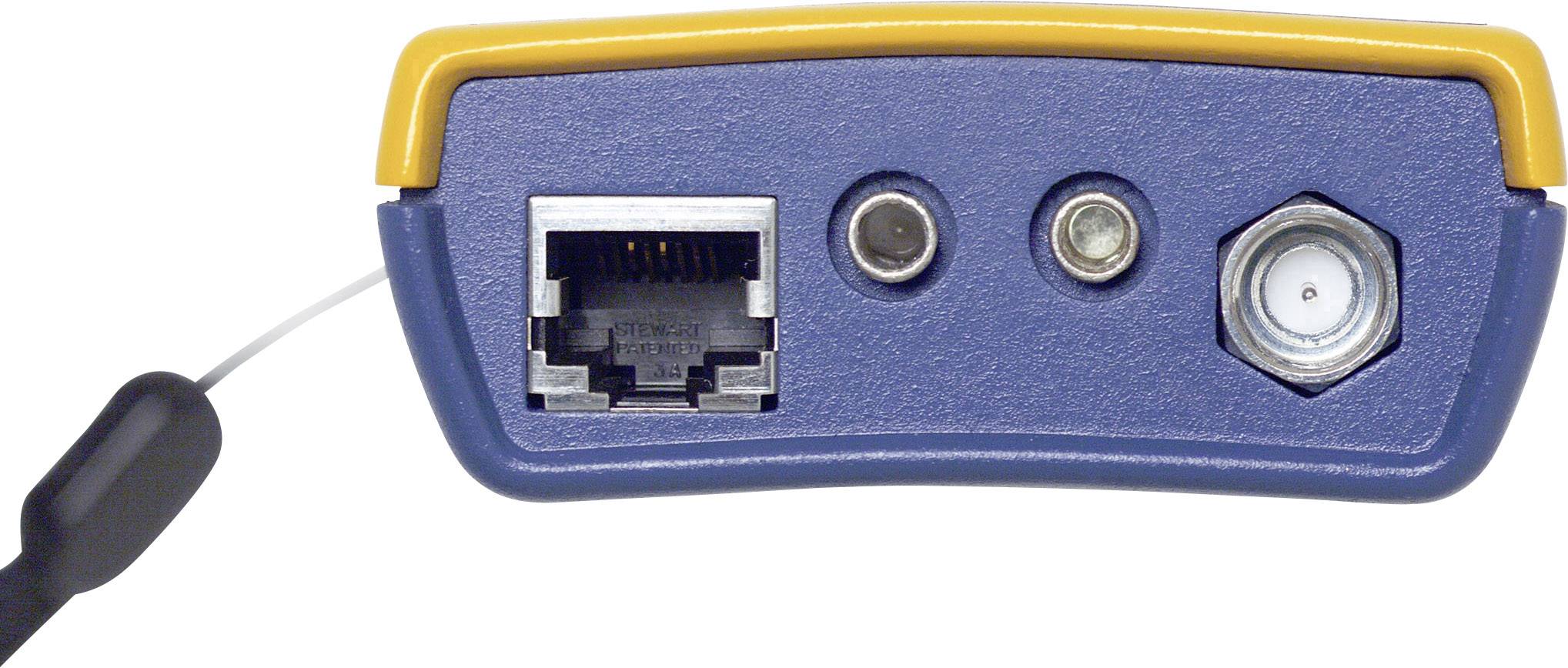

Haupt-Mod toner interface 8-connection for sound generation on all 4 pairs of UTP/STP cable. F-connection for coaxial cable banana socket plug (2) - Two-wire wiring
Frequency IntelliTone™ Signal encoded digital signal
Analogue Smart tone signal
500 - 1200 Hz, 4 melodies
Speaker battery voltage 6 V in 600 W
Output power 5 V ss
Voltage protection 100V
Automatic switch-off switches off automatically after 2 hours of inactivity

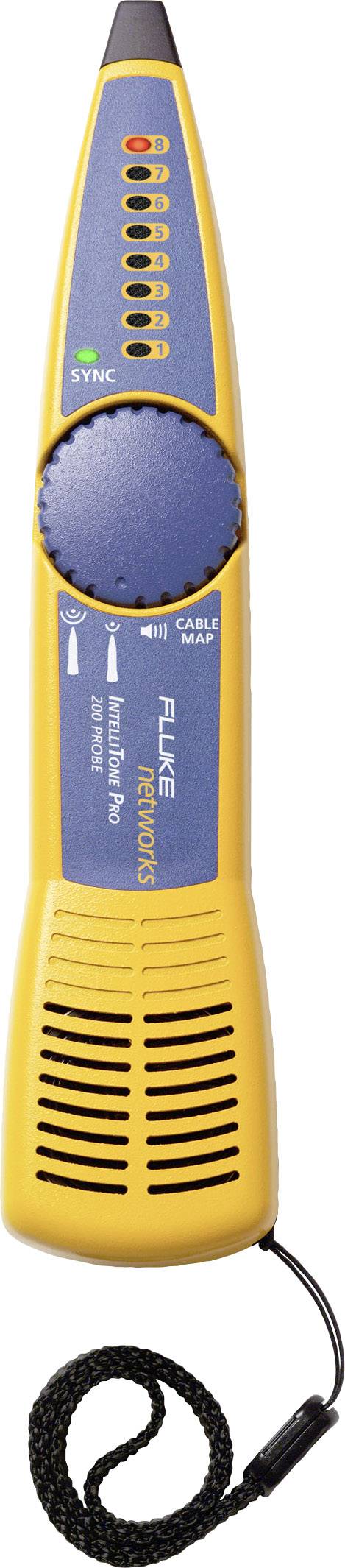

Receiver SPECIFICATIONS
Dimensions 8,73 inch x 1.88" x 1.26 inch (22.2 cm x 4.8 cm x 3.2 cm)
(8) LED indicator, sync-LED indicator
Audio IntelliTone microprocessor-controlled audio files
Analogue unrecognized toner signal
Control Thumbwheel switch, volume control
Tone Detection detects IntelliTone™ digital signal and 1-khz signal from analogue signal transmitters
Recognizes the analogue signal (500-1200 Hz) and Smart tones other analogue signal generator

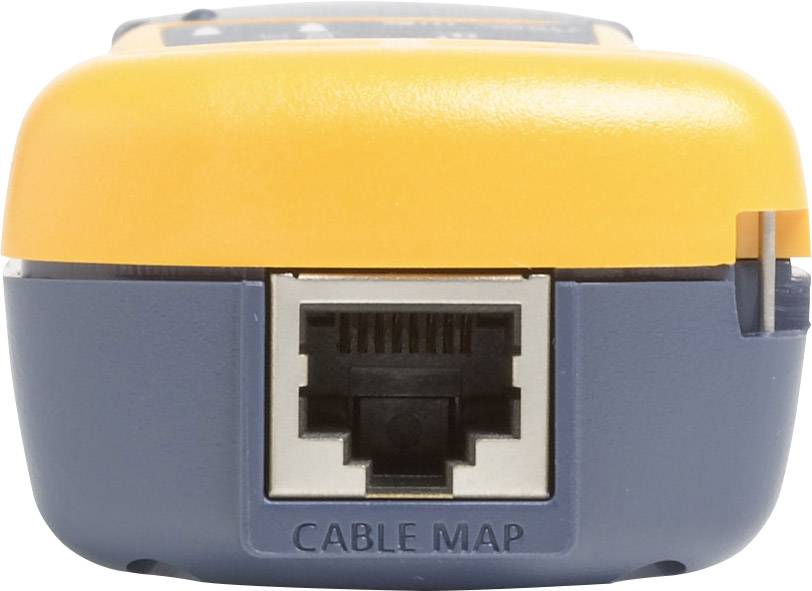

Haupt-Mod toner interface 8-connection for cablemap on all 4 pairs of UTP/STP-cable.
Automatic switch-off switches off automatically after 1 hour of inactivity
Display:
LED
Range:
Networks
Product type:
Toner and probe kit
Calibrated to:
Manufacturer's standards (no certificate)
Test sockets:
RJ45 socket
Brand:
Fluke Networks
Functions:
Break + Continuity
Optical display:
Yes
Category:
Toner and probe kit

Information provided by the manufacturer
