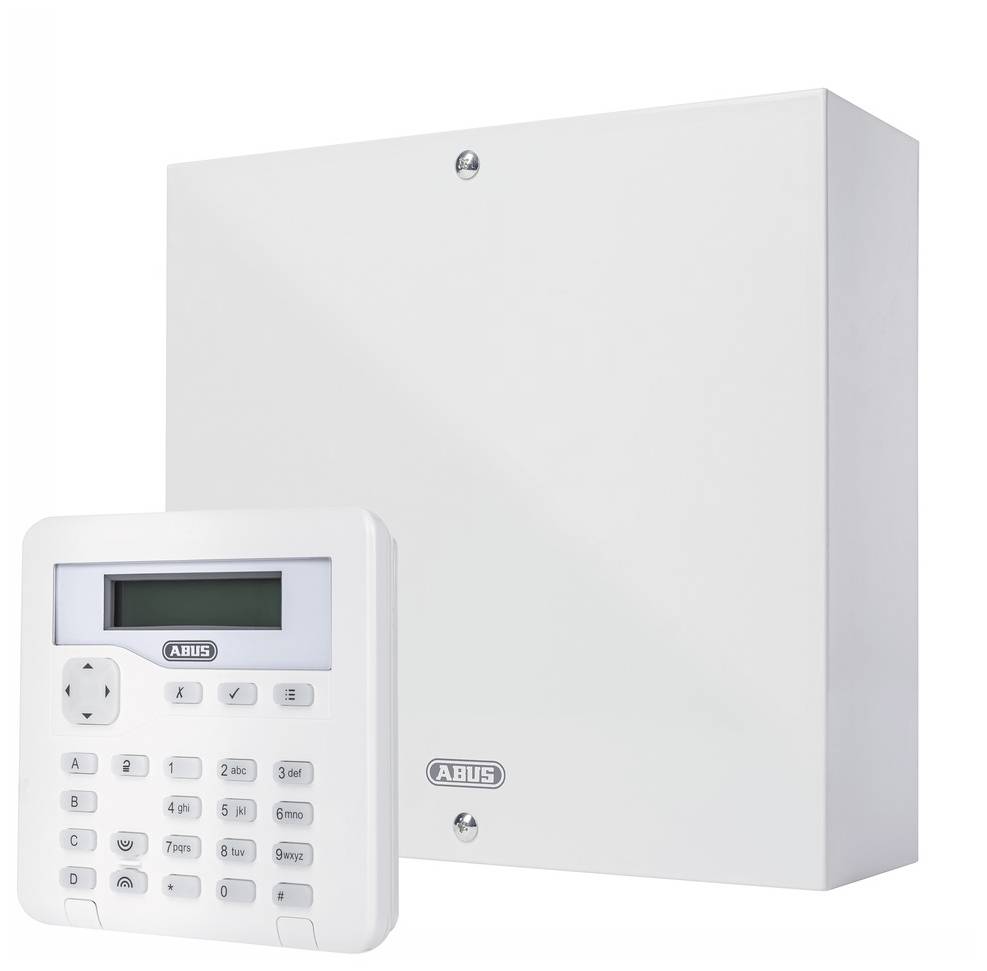

ABUS AZAA10000 Terxon SX Alarm hub

Overview

Operation via LCD control panel
Optional extension by pluggable relay module
Compact casing
Sabotage-monitored central unit, operating panel and detector

Description

Terxon SX
The Terxon SX Alarm Control Centre is the burglary alarm center for small objects from the house of ABUS security center. Ten zones ensure complete security. The Terxon SX is the ideal entry model in the world of the wired alarm technology. From private homes to small commercial properties: This system brings your safety to the center. During installation, ten freely programmable zones for wired detectors are available. The type of wiring - 2-wire CC, 4-wire CC or FSL in series or each as your own zone - is left to you. A separate sabotage zone on the main circuit board is reserved for the signaling device. Three transistor switching outputs with a max. switching capacity of 500 mA can be assigned to a specific event (alarm, fire, robbery) and are also located on the motherboard. If desired, the Terxon SX can be extended with a relay board (eight relays with 3 A switching capacity). The scope of delivery already includes an LCD control unit, which allows the system to be quickly and conveniently programmed or activated or deactivated. You can connect four additional control units. The connection is made via 4-wire bus cabling. 10 users with their own code can operate the system.

Delivery content

• 1 x Terxon SX burglary alarm center
• 1 x control element
• 1 x installation materials
• 1 x quick guides
• 1 x safety instructions.
