Schneider Electric EVA2HPC3 Schneider Charge Charge management module

Overview

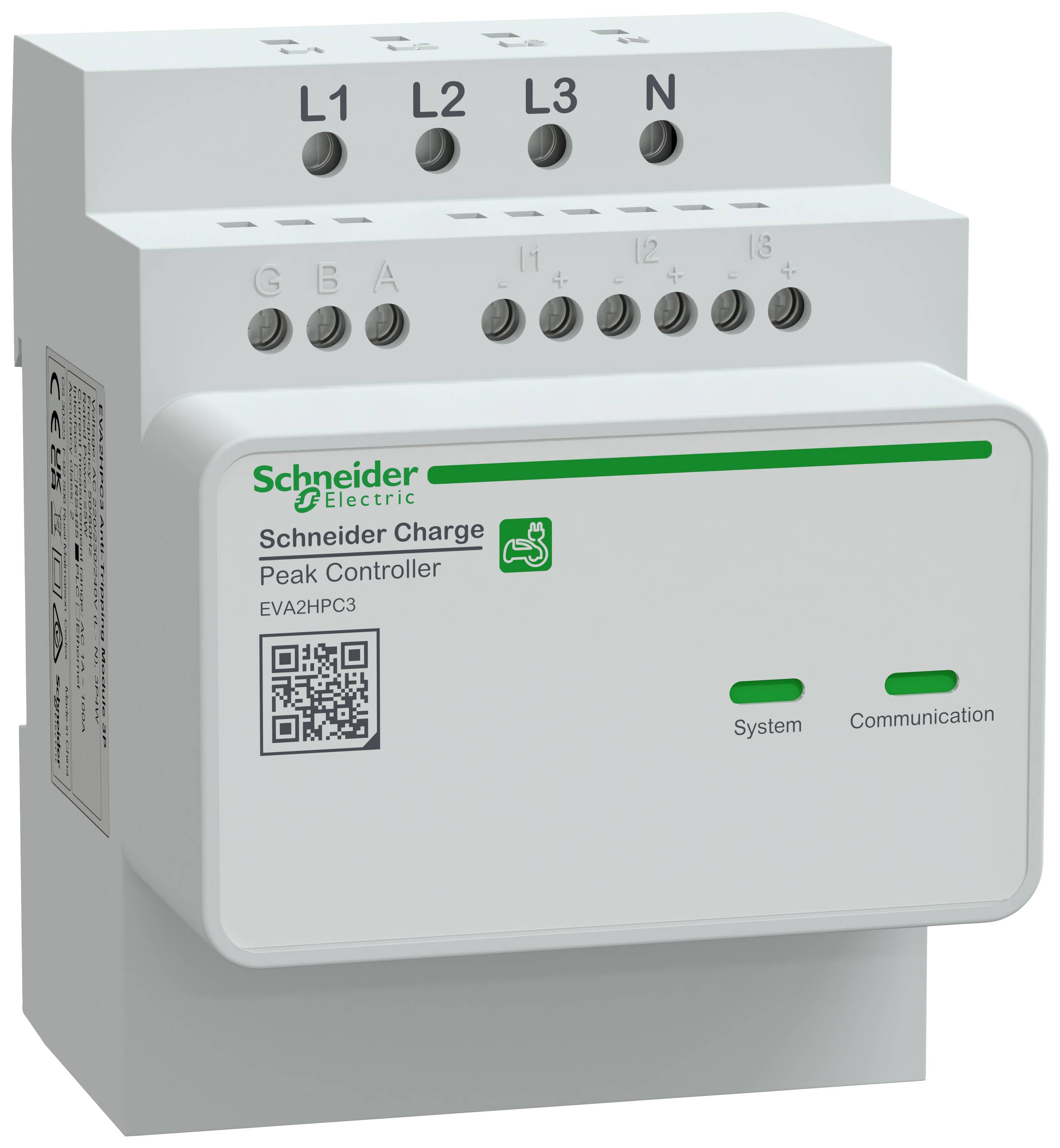

Schneider Charge Peak Controller for EVlink Home Wallbox
Anti trip module
Overload protection
3-phase, PLC.
Pairing with 1 Wallbox

Description

Schneider Charge Peak Controller for 3-phase wall speakers of the Schneider Charge series. Dynamic power reduction as a function of the load on the house connection (up to 50A) of the Schneider Charge via PLC incl. pairing with the Wallbox. Actual value recording using clip-on converter (included in delivery) with 50cm feed line to the peak controller. Simple installation and configuration by means of 2 keys in the front, status message via LEDs on the front. Top-hat rail device with 4 TE width, 230V power supply via L1 and N, PLC communication to Wallbox takes place via the power supply. Dimensions (W x H x D) 72 x 89 x 75, weight 0.18 kg, color: White. Power consumption 4W, control range 1-100A, control interval 1000ms, operating temperature -30 to +50°C, storage temperature -40 to +85°C, relative air humidity 5-90%, maximum installation height 2000m. Overvoltage category 3, degree of contamination 2, standards CE, EN 61010-1-2010, EN 61326-1-2013.

Information

Charging stations for electric vehicles and their accessories should always be installed by a qualified electrician. The charging station must be registered with the energy supplier.
Caution!
High-voltage tankless water heaters:
Supplying this tankless water heater requires a 3-phase AC outlet.
Installing and connecting high-voltage tankless water heaters requires prior approval of your utility provider. More over, HV tankless water heaters must be installed by the utility provider, or a qualified and certified subcontractor only.

Delivery content

• Charging management module
• Installation guide.

Requirements

3-phase house connection

Keywords

Schneider Electric, EVA2HPC3, Schneider Charge
