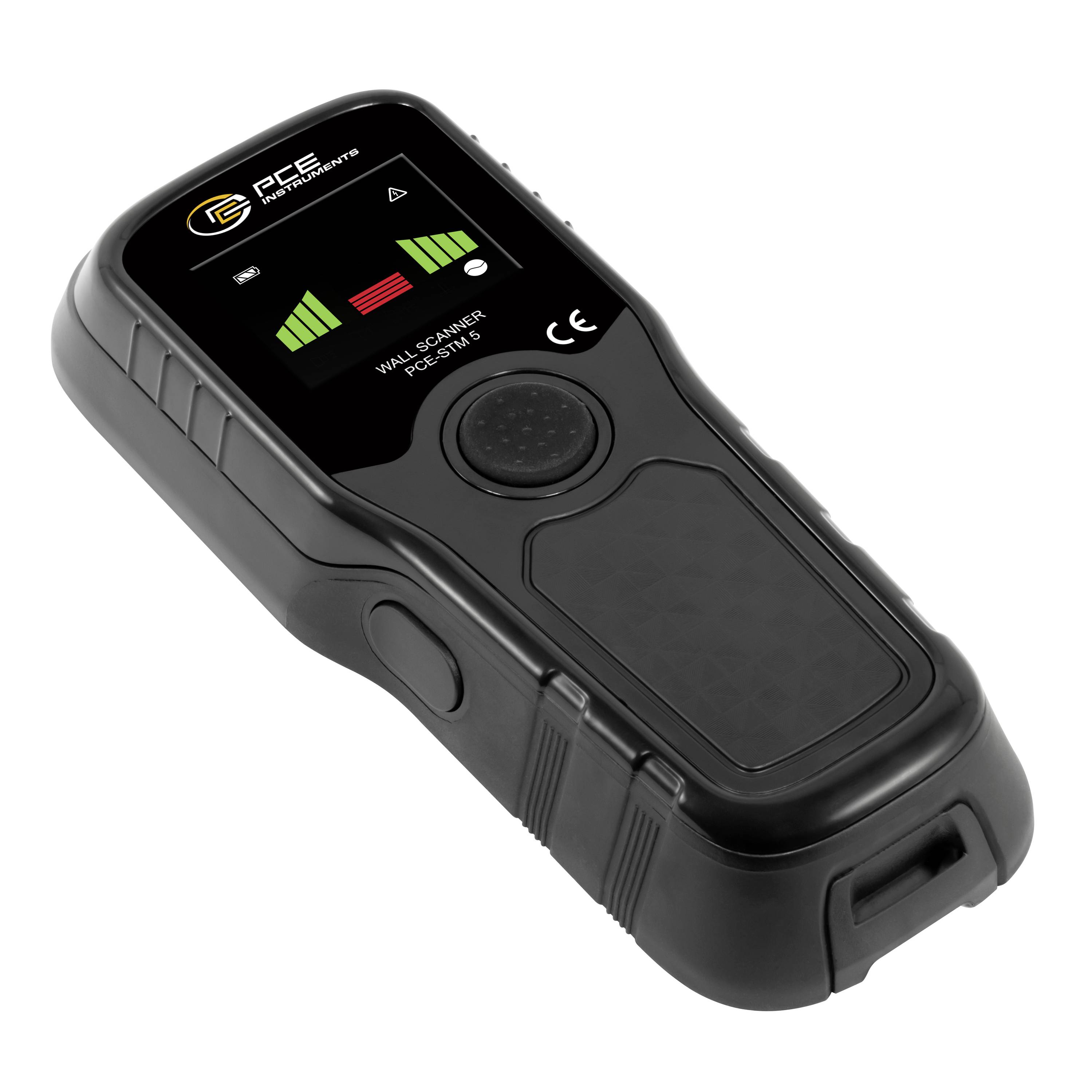

Cable locator PCE-STM 5 PCE Instruments PCE-STM 5

Overview

Detects metal, wooden beams and power lines
Locates depth up to 60 mm
Displays the center point of timber beams
Shows the edges of an object
Alert: Visual and acoustic
Easy calibration

Description

The cable detector offers a reliable solution for the precise detection of objects hidden in walls, floors and ceilings. The built-in calibration function enables exact calibration before each scan, in order to maximize the accuracy and reliability. The device quickly and efficiently finds metal, wood, beams and conductor cables.

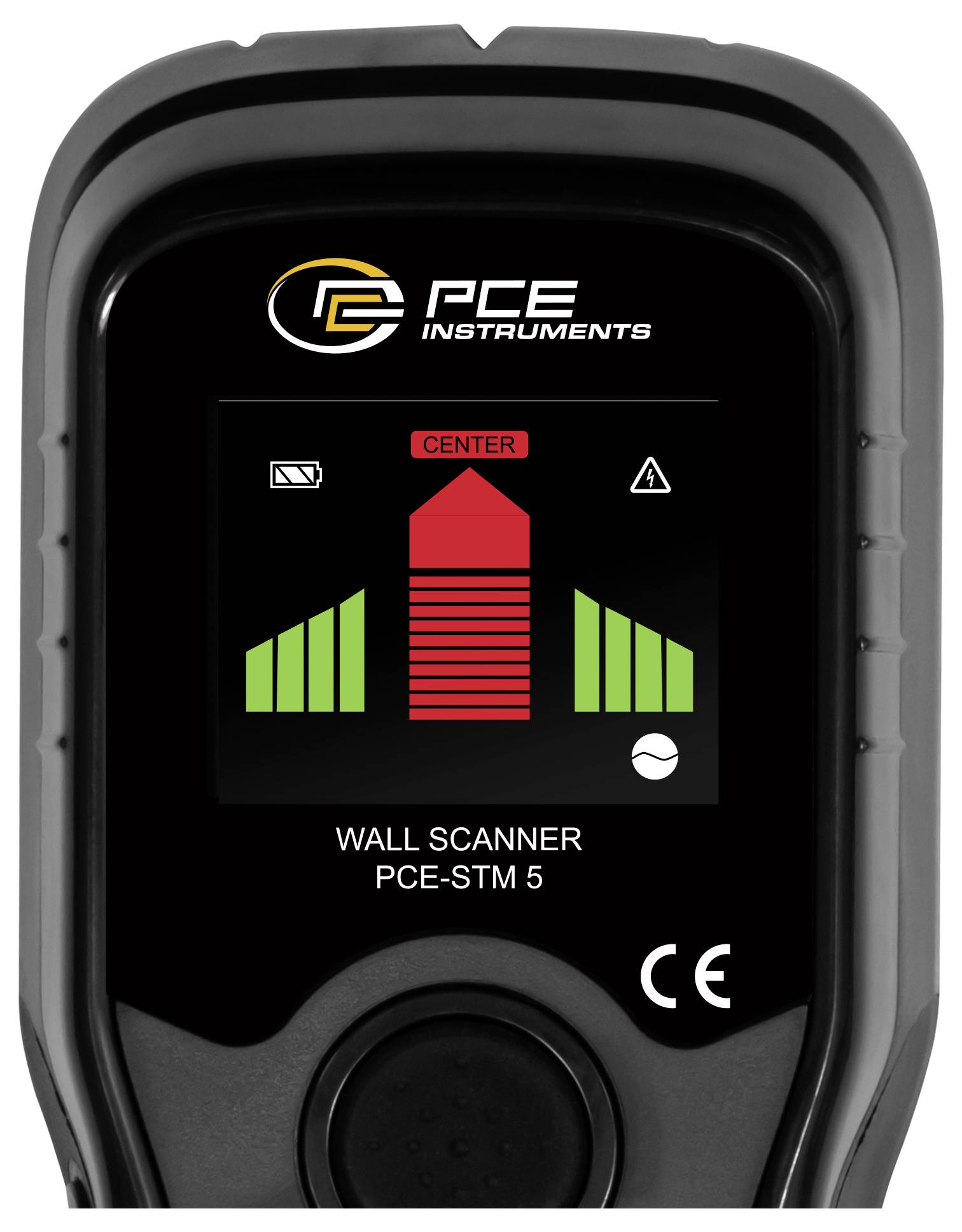

The cable detector is equipped with an HD-color LCD display, which enables a clear visual display of the scan results. In addition to the acoustic signal, the cable detector provides a visual display that takes the user exactly to the location of the detected object. The direction arrows and signal bars on the display provide information about the proximity and the direction of approaching objects in real time.

The cable detector is equipped with five different scanning modes, which cover different requirements and enable the detection of different materials and depths. These include ½ inch, 1 inch and 1½ inch bar modes, metal and power line detection. The cable detector reliably locates the center and the edges of metal, beams and supports in up to a depth of 38 mm. The metal mode detects iron and non-ferrous metals up to a depth of 60 mm, while the cable mode detects current-carrying not shielded cables up to a depth of 51 mm. Our cable detector can be a useful tool for DIYers and handymen.

Delivery content

• 1 x cable detector PCE-STM 5

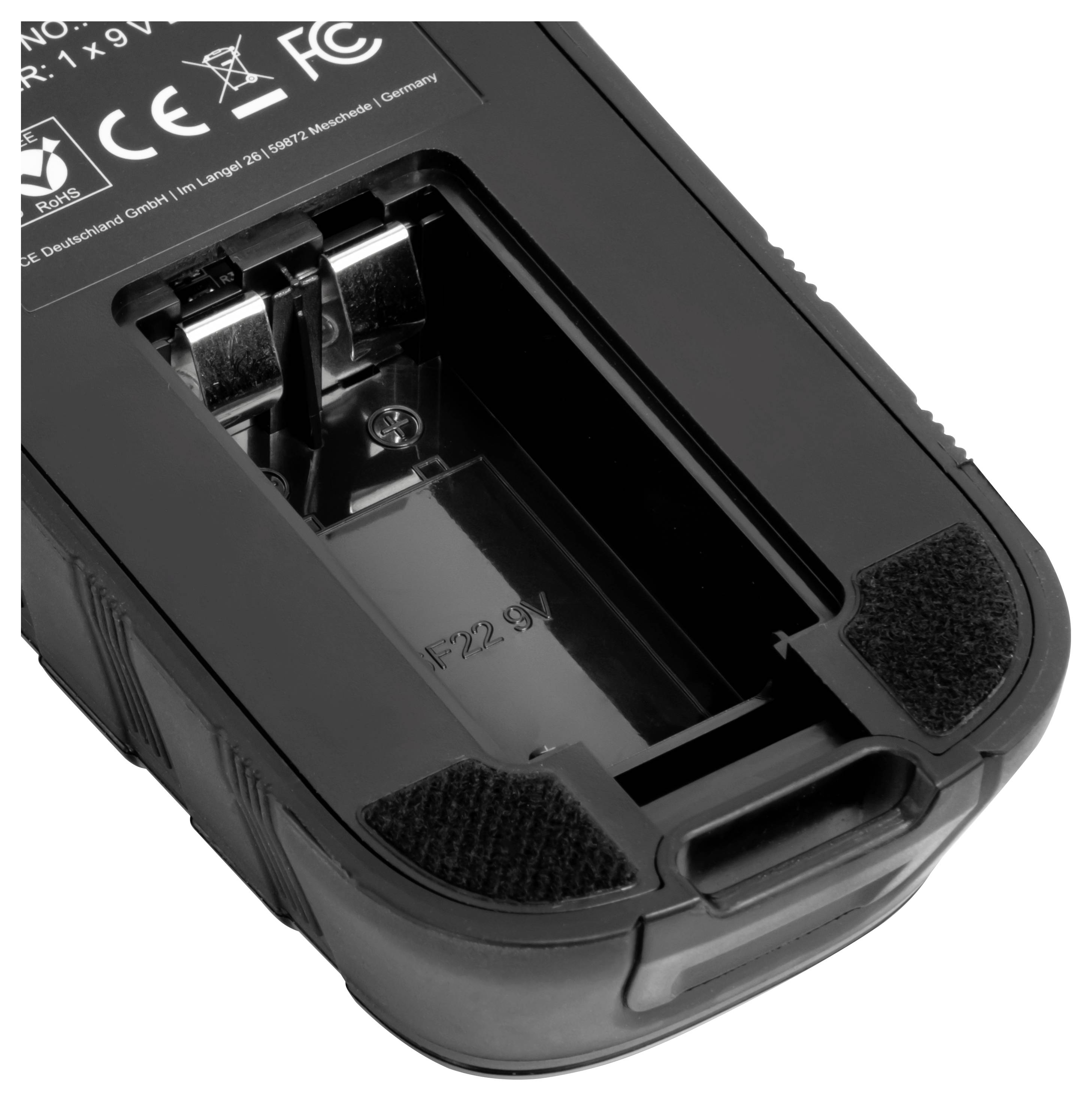

• 1 x 9 V battery
• 1x user manual
