Overview
Wide-angle field of view (120°)
IR sensitive (NOIR)

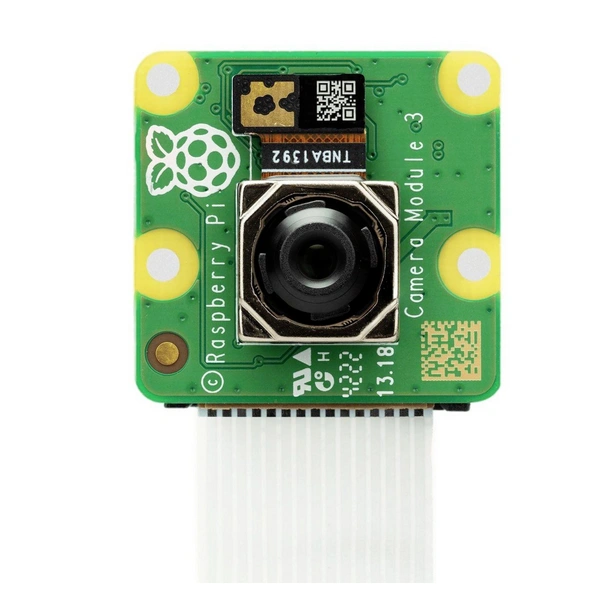

Raspberry Pi® SC0896 Camera Module 3 Sensor Assembly Wide NoIR CMOS colour camera unit Compatible with (development kits)
Image is similar
57,41 €
VAT included
plus
Delivery time:
2-3 days
available from 01/22/2026
30 days free return shipment
57,41 €
VAT included
plus
Product description
Description
The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and auto-focus functions as the Raspberry Pi Camera Module 3 AF (Auto Focus), allowing you to integrate the functions of the 3 Camera Module into a greater number of form factors. This assembly provides a cost-effective way to equip smaller devices with imaging capabilities to reduce manufacturing complexity and time-to-market.
Characteristics
Sony IMX708 sensor
11.9 megapixel resolution
Sensor size 7.4 mm sensor diagonal
Pixel size: 1,4μm × 1,4μm
Horizontal/vertical: 4608 × 2592 pixels
Integrated IR-blocking filter in the standard variants; not present in the NOIR-versions
Auto-focus phase detection
Operating temperature 0 °C to 50 °C.
On-board EEPROM for storage of camera data
Information
Raspberry Pi Camera Module 3 Sensor Assembly will remain in production until at least January 2030
Keywords
Raspberry Pi®, SC0896, Camera Module 3 Sensor Assembly Wide NoIR
