2-inch HD LCD screen
Photo and video recording functions
Resolution: Image: JPG 2 MP / Video: 720 pixels 30fps
400 ... 800-fold magnification
Single and time-controlled continuous shooting

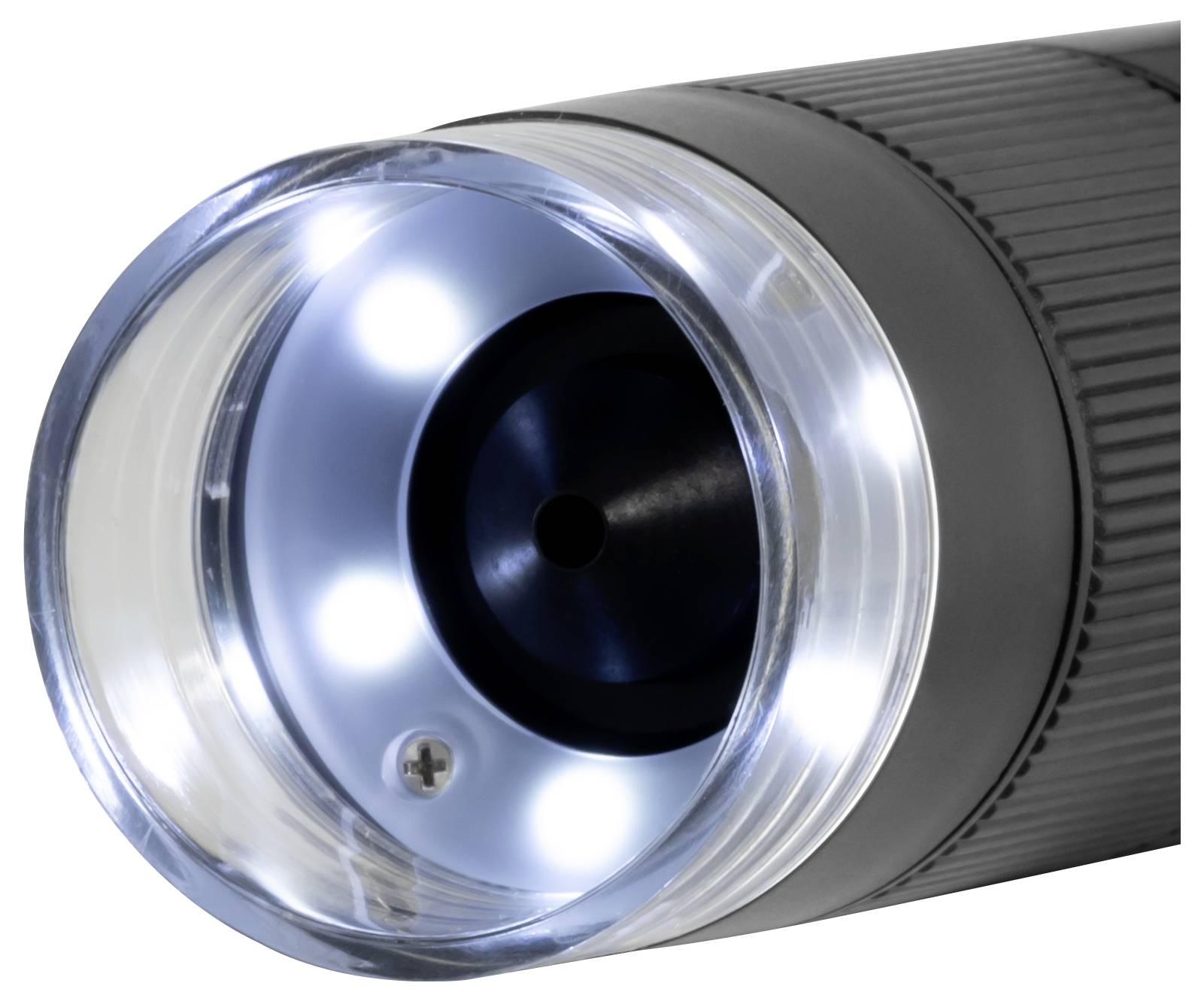

6 dimmable LED's
22 menu languages

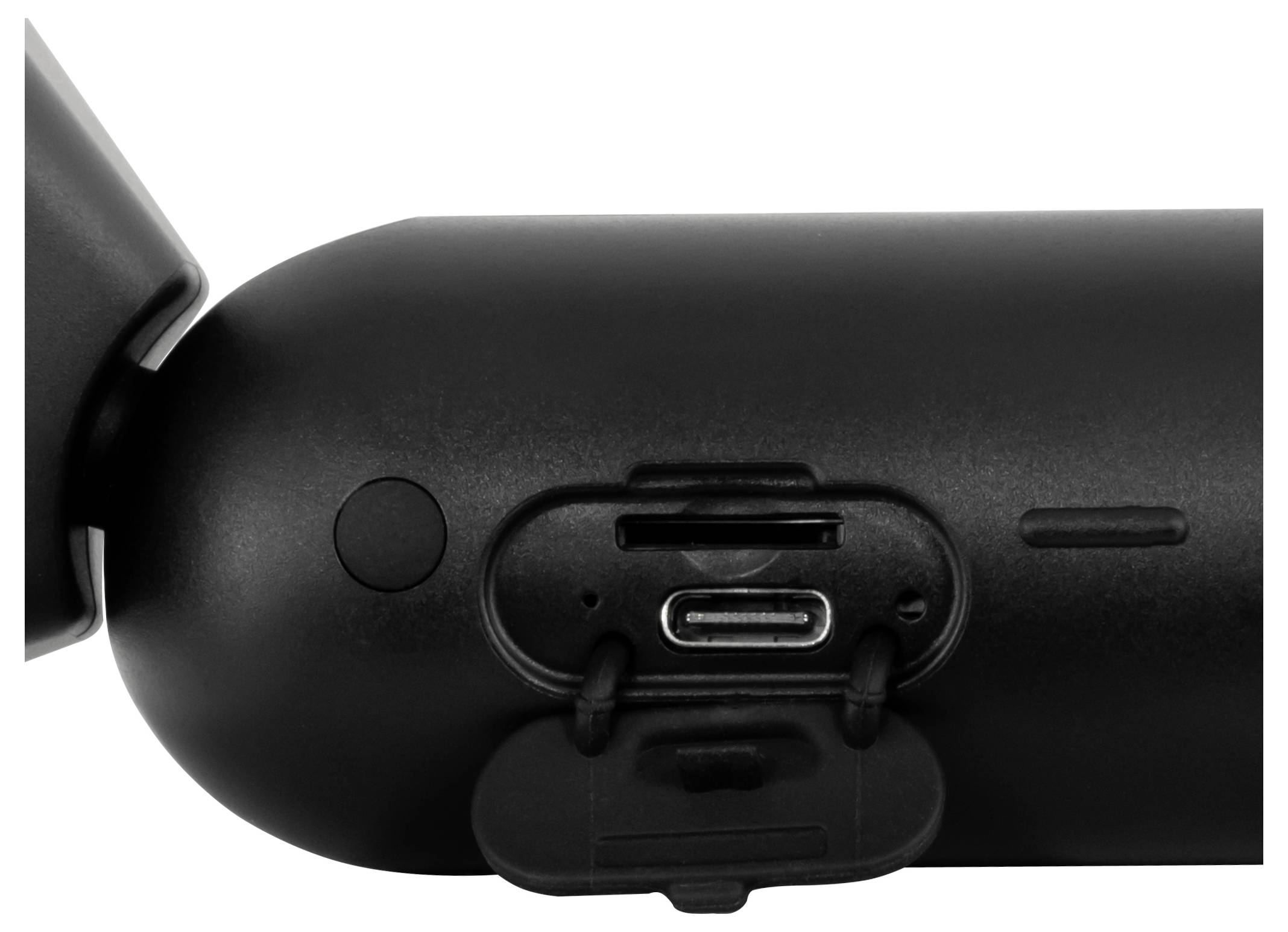

USB-C interface
For indoor and outdoor use
Date and time display
Auto switch-off
StandBy function

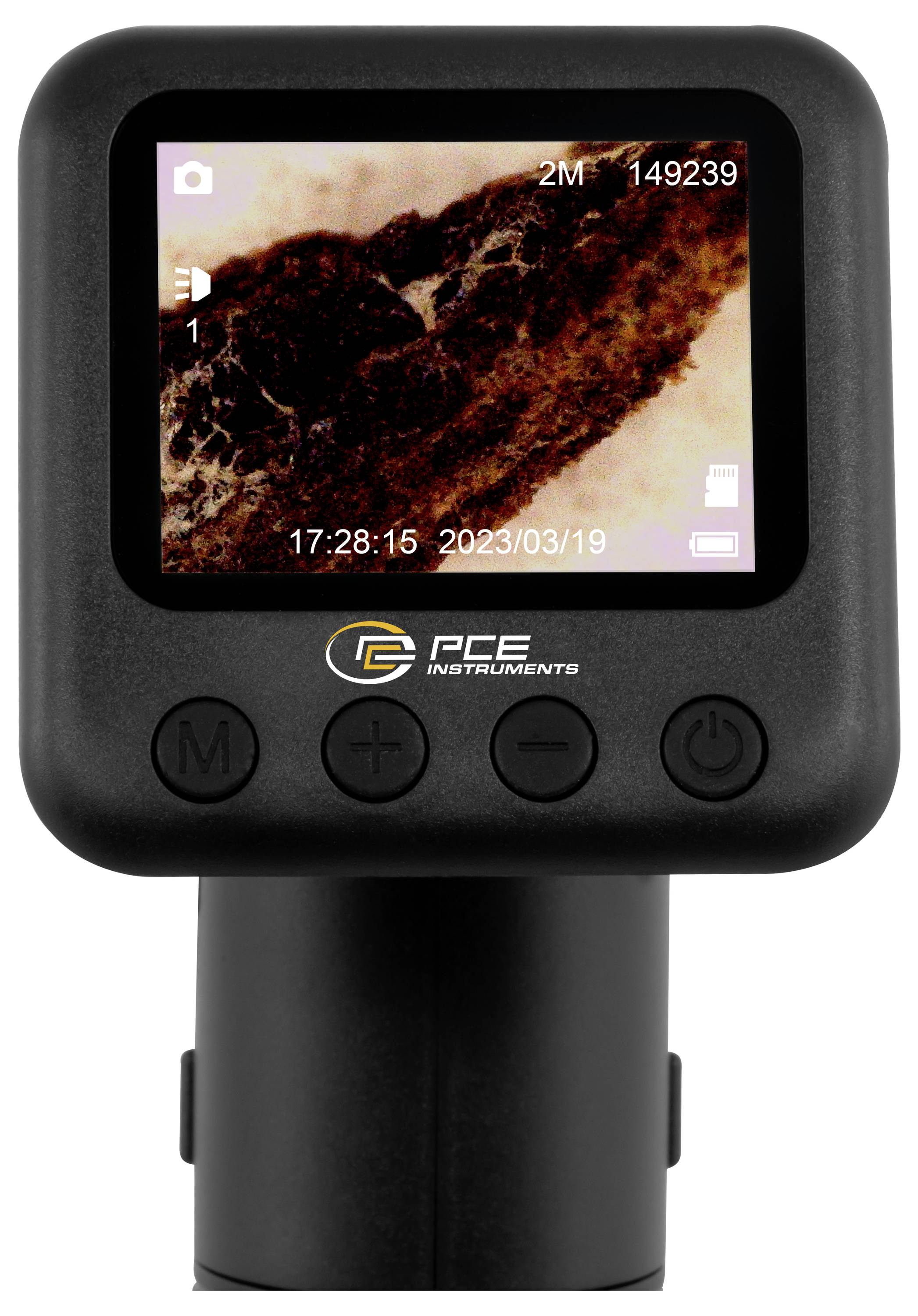

Our mobile digital microscope offers a 400 ... 800-fold magnification and a 2-inch IPS-HD screen for recording pictures and videos. Six dimmable LEDs ensure optimum illumination and two brightness levels ensure that objects can be recognized even in dark conditions. The mobile digital microscope supports photo and video recording functions. Images can be taken during monitoring and stored on a micro SD memory card (not included in the delivery, max. 32 GB). The mobile digital microscope can also be connected to a PC via a USB cable to display objects on a larger screen.
There are several recording modes available, including single recordings and time-controlled series recordings (2, 3, 5 or 10 seconds). Our mobile digital microscope with the continuous recording function enables the automatic recording of pictures at fixed time intervals and is Ideal for long-term observation and time-lapse studies. The loop recording offers adjustable intervals from 5 seconds up to 30 minutes. Sharpness and exposure can be adjusted as needed. Various color effects such as black and white and reminiscence are available. The line assist function includes options such as Kern and cross and allows precise positioning and measurement of samples. Our mobile digital microscope supports 22 menu languages, displays the date and time on the screen and has a formatting function on the memory card.
In addition, the loop recording feature allows continuous video recording, whereby older recordings are overwritten automatically when the memory is full. This is especially beneficial for prolonged monitoring. With a compact size of 165 x 60 x 60 mm and an integrated, rechargeable lithium battery with an operation duration of up to 3 hours, it is suitable for mobile use. The microscope enters standby mode after 30 seconds, 1 minute or 2 minutes of inactivity to save energy. When connected to a PC, the image can be transferred to the computer monitor, or the memory can be read directly.
The mobile digital microscope is a widely used instrument that is used for various purposes. It is used, among other things, for inspection of printed circuit boards, for monitoring plant roots and for quality control of textiles. This microscope could therefore be used for teachers, students, adults, craftsmen, parents of small children, Farmers or simply suitable for beginners in the world of microscopy.
Photo and video recording function
22 menu languages
Date and time display
Auto switch-off
StandBy function
