High performance data transfer – Supports transfer rates of up to 10 Gbit/s for maximum network performance
Optimum shielding – Shielded design reduces electromagnetic interference for stable signal quality.
Tool-free mounting – quick and easy connection without the need for special tools.
Robust design – durable housing and high-quality materials ensure reliable performance, even in demanding environments
The Digitus® CAT 6A connector for field mounting is a modern and high-quality RJ45 connector, which is not only distinguished by its extremely simple application, but also provides the field-ready assembly with reliable and time-saving support for every application. The fast installation in just 60 seconds without the special tools, as well as the enormous flexibility, makes it the perfect choice at all application places. It is suitable for all networks, from voice to 10 Gigabit Ethernet. Satisfied customers through fast and cost-saving installation, repair and maintenance are the logical consequence of this innovative RJ45 connector.
Category 6A, 10GBASE-T, 500 MHz
ISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51
Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 3AT, 3BT)

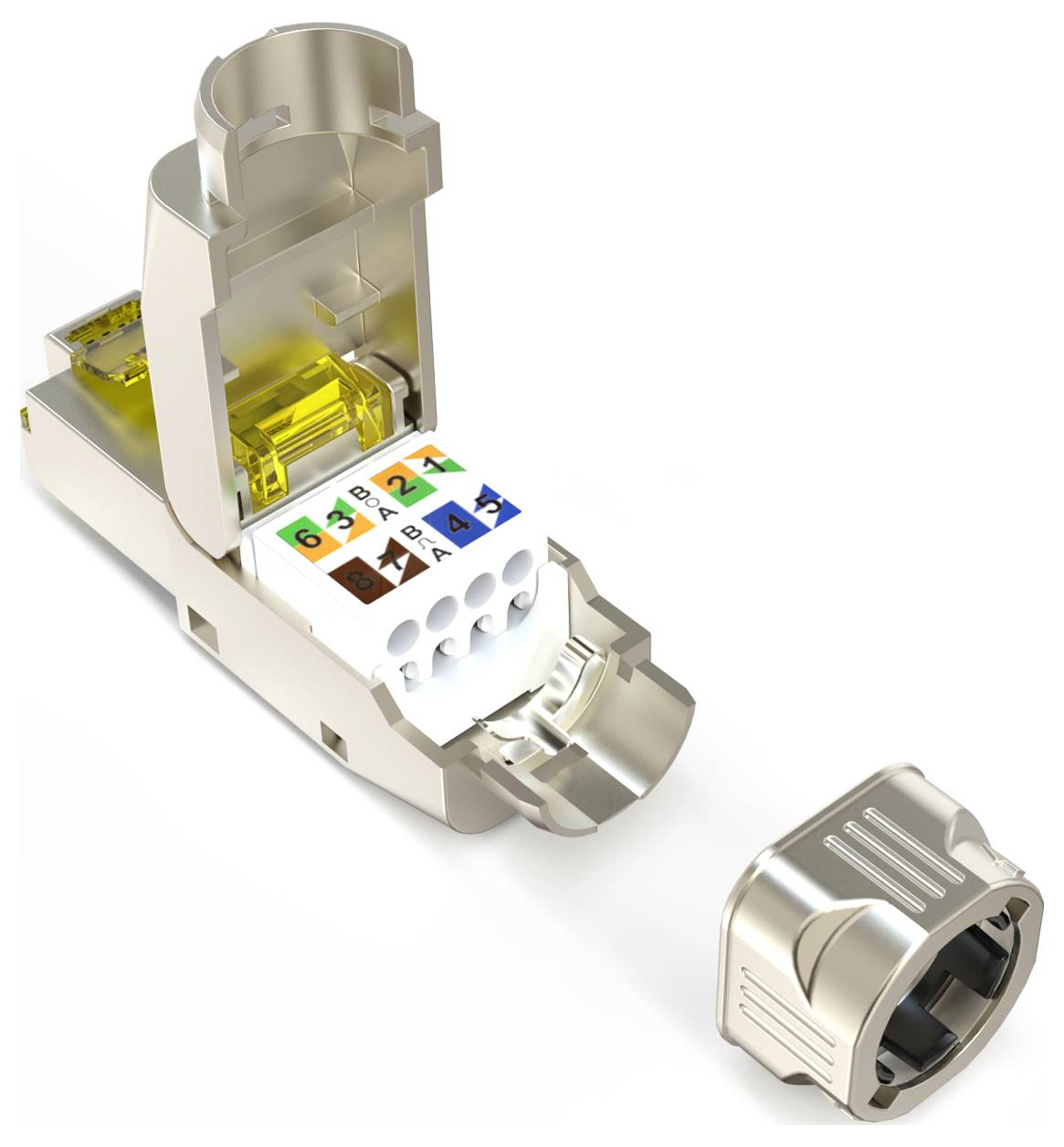

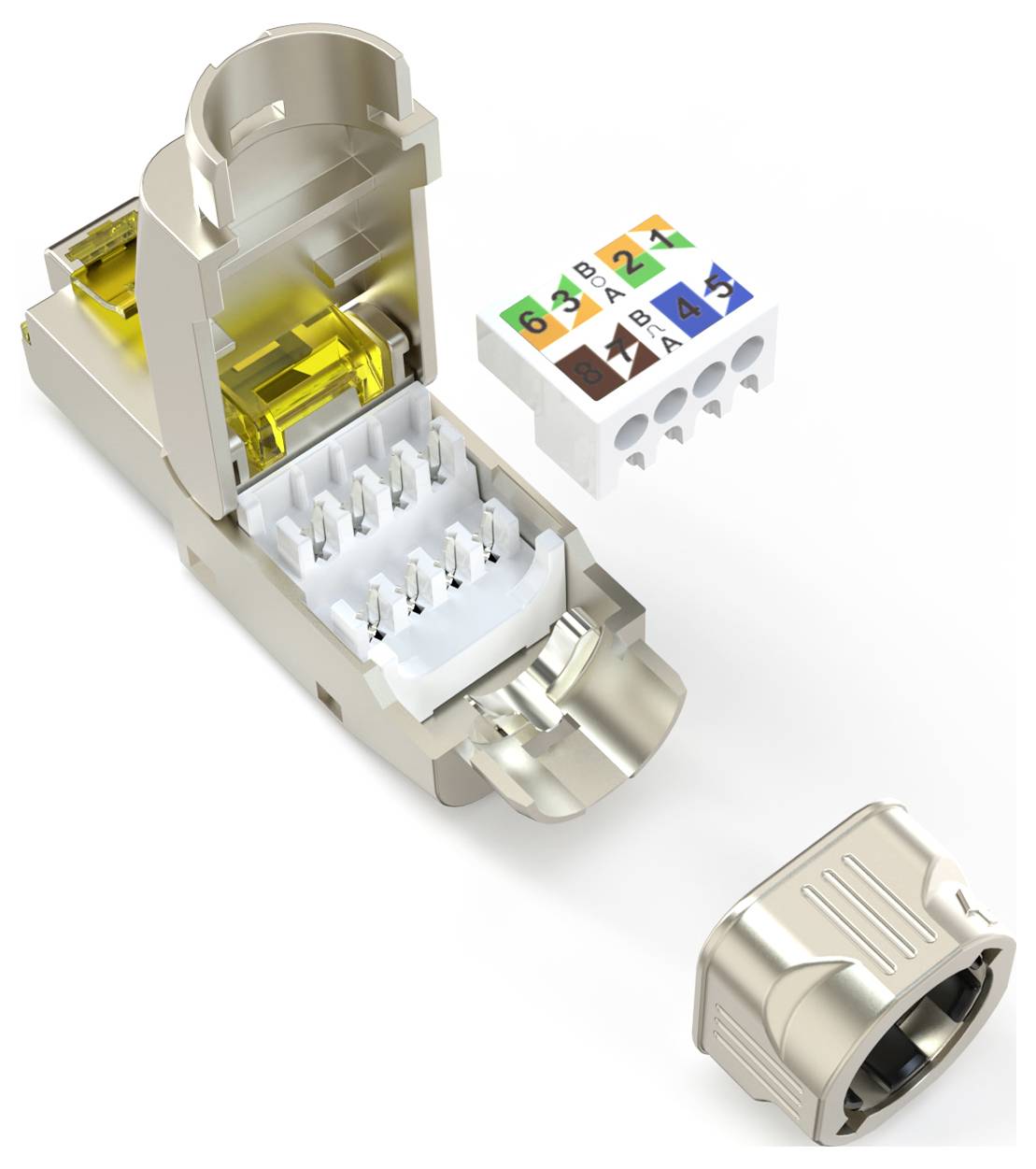

Cable installation via LSA insulation displacement terminal, color coded according to EIA / TIA 568 A&B
RJ45 8p8c plug
Strain relief and cable fixing with the help of screw cap
360°-Shield contact
Tool-free installation
Material housing: Zinc-Druckguss
Contact material: Phosphorbronze
Nickel coating, gold-plated 0.5 µ
Digitus, DN-93638, network modules, network outlet modules
