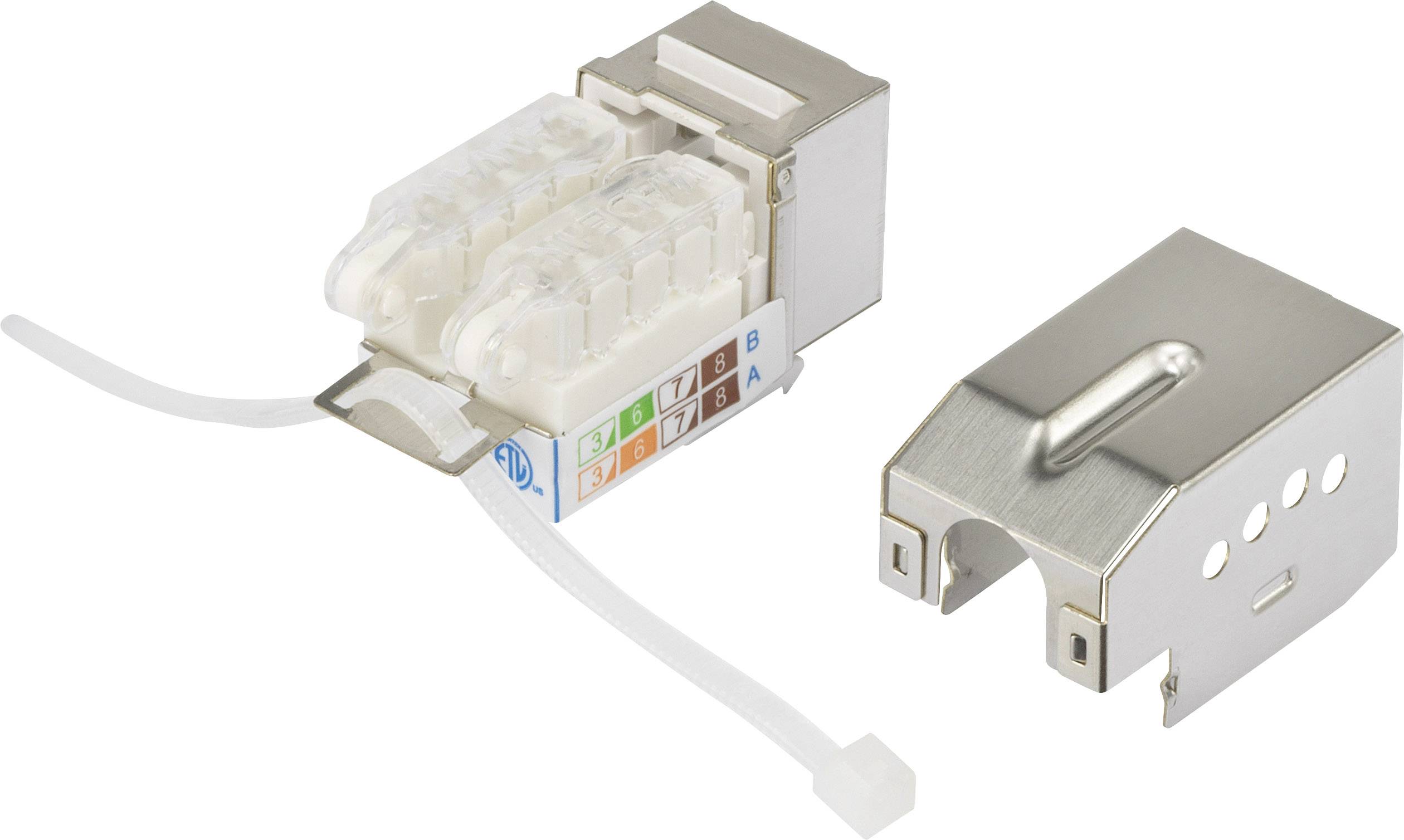

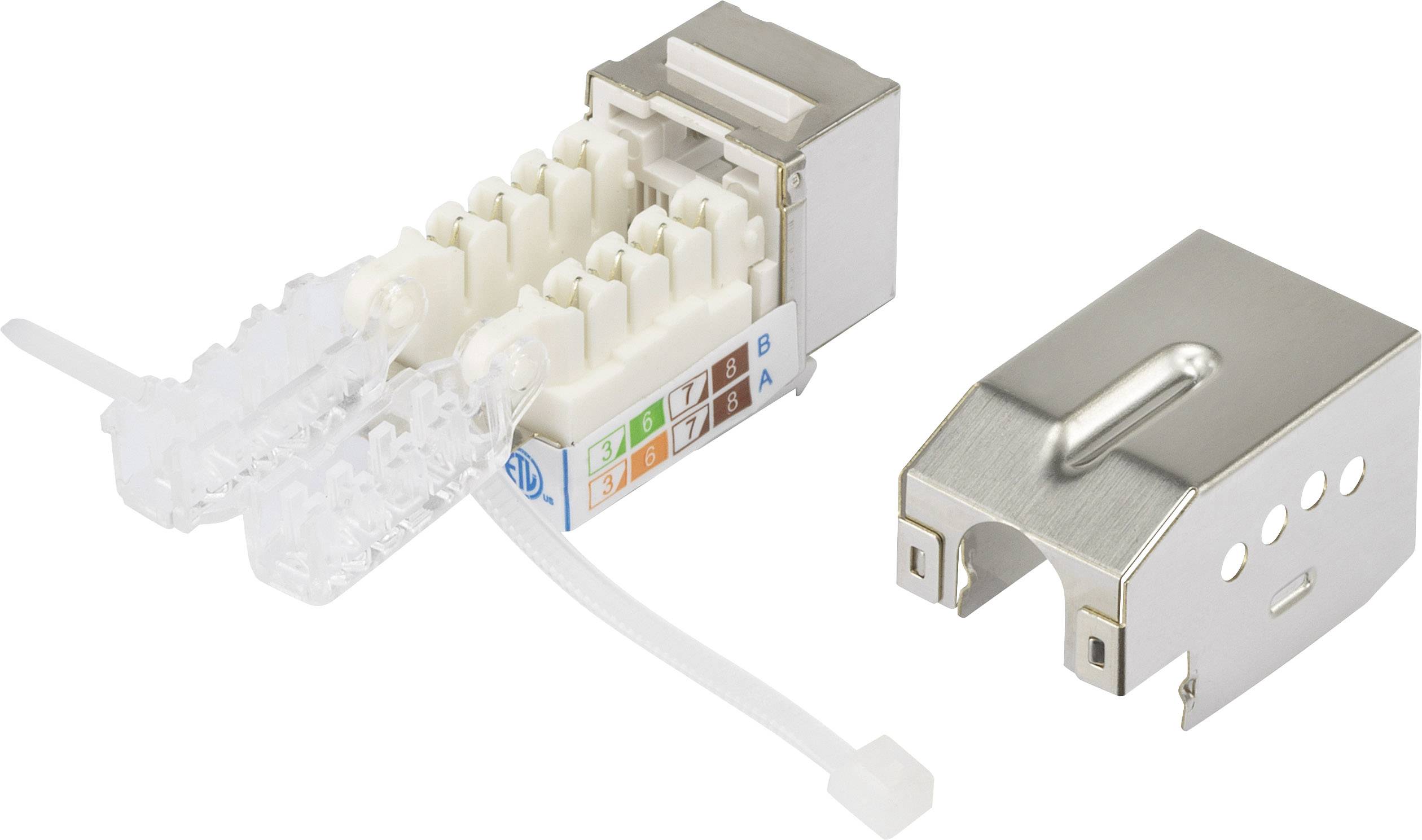

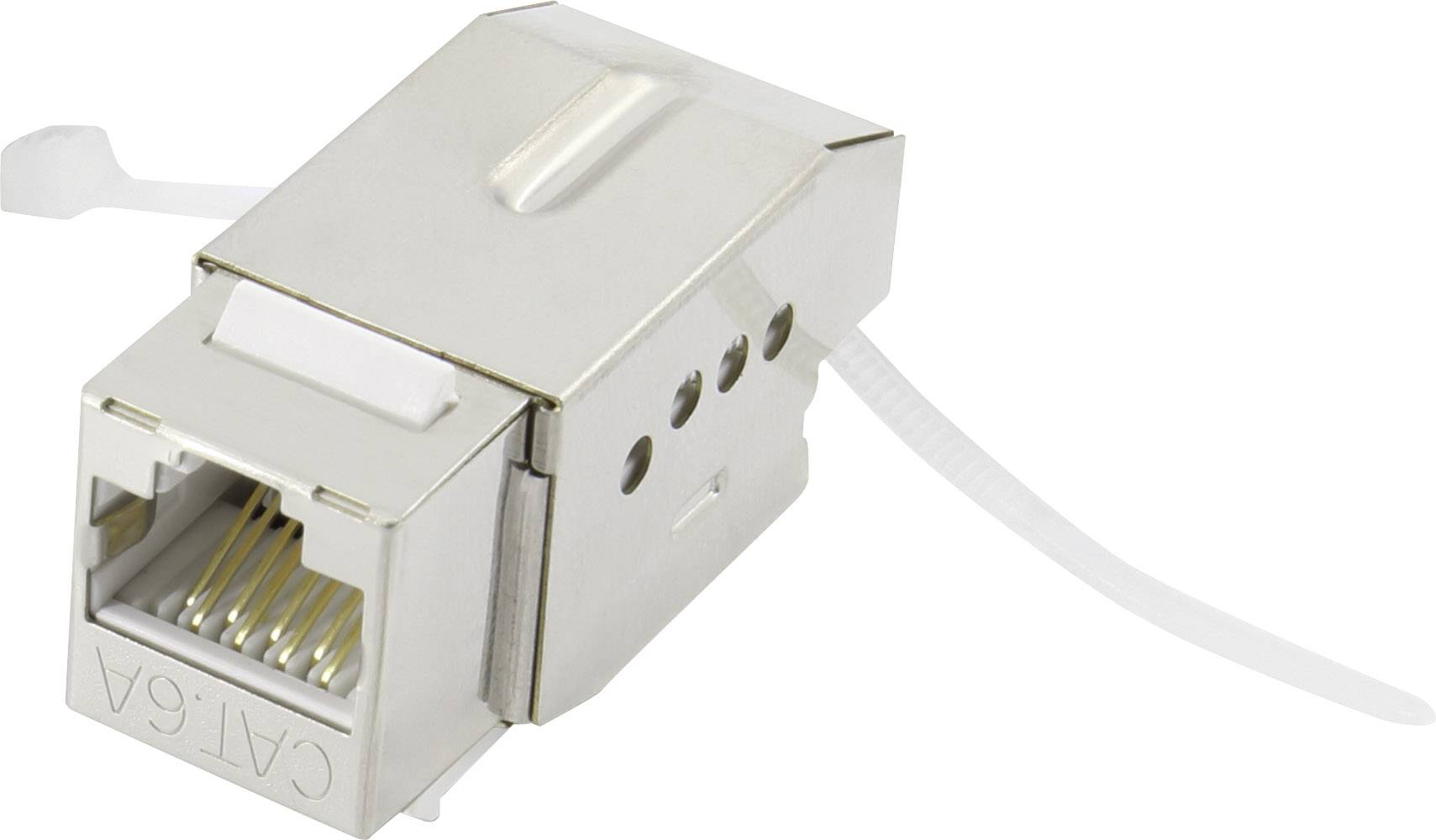

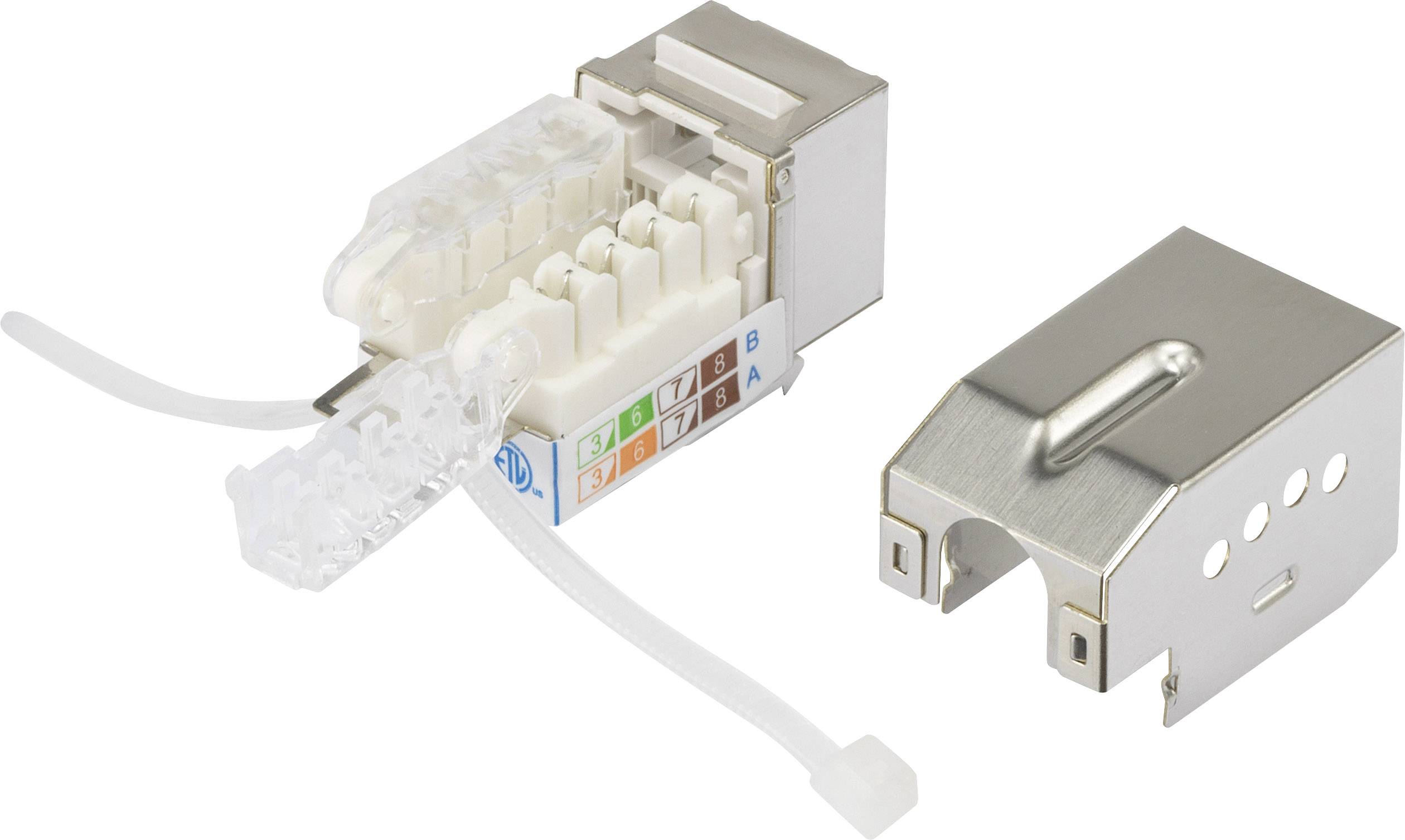

RJ45 module Keystone CAT 6A Renkforce KS10

Overview

Suitable for network distributors and patch panels
CAT 6A rating (tested at 500 MHz)
Strain relief via cable tie
Tool-free installation

Description

The KS10 has been designed for network distributors and patch panels. Strain relief via attached cable tie.

Tool-free installation
Fitting the RJ45 jack doesn't require any speciality tools.

Easy and tool-free installation

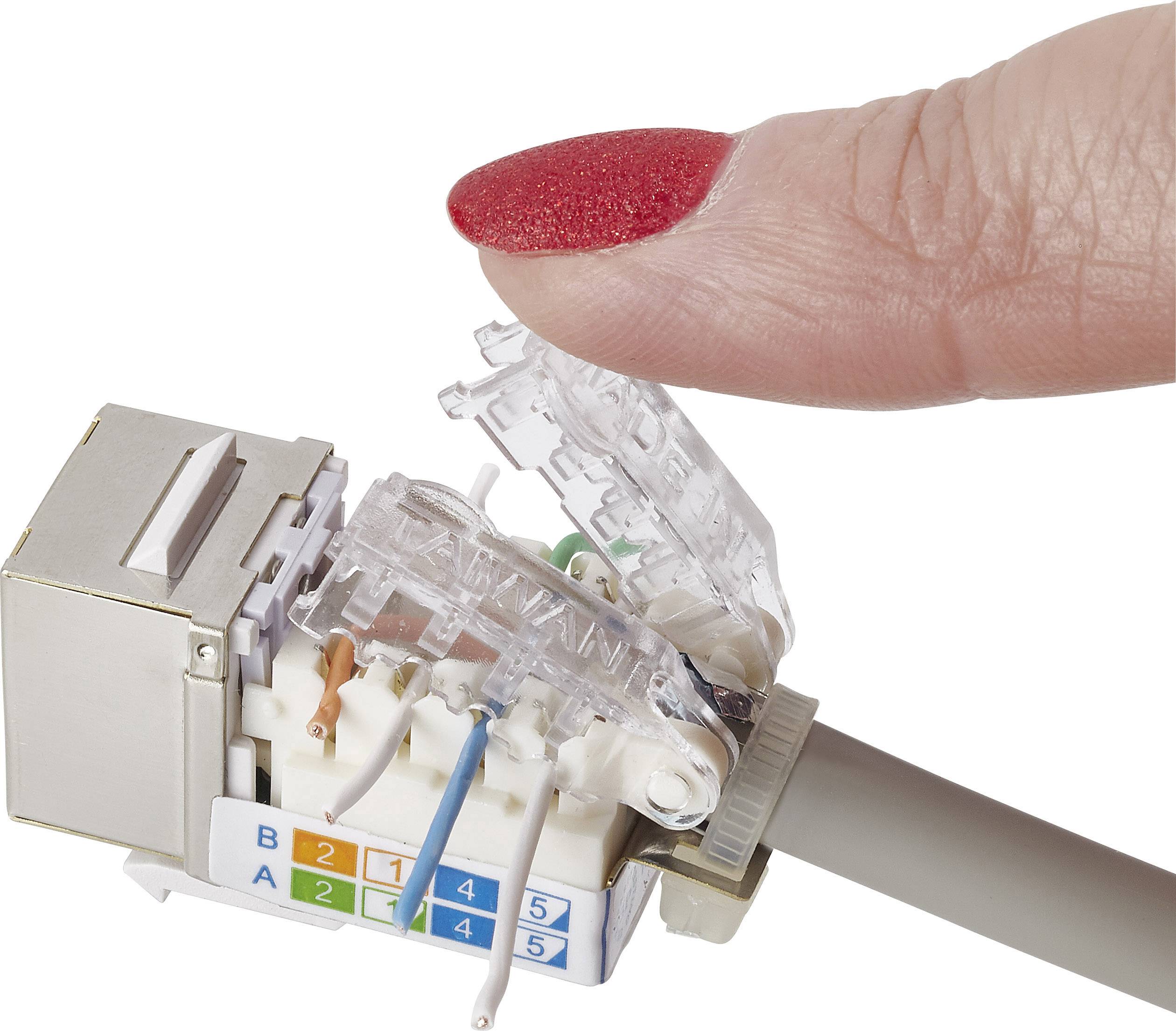

Fitting the RJ45 jack doesn't require any speciality tools. Use your tumb to connect the cable. All leads are pushed in one after another, and not, like with other tool-free modules, all at the same time. Simply close the cover

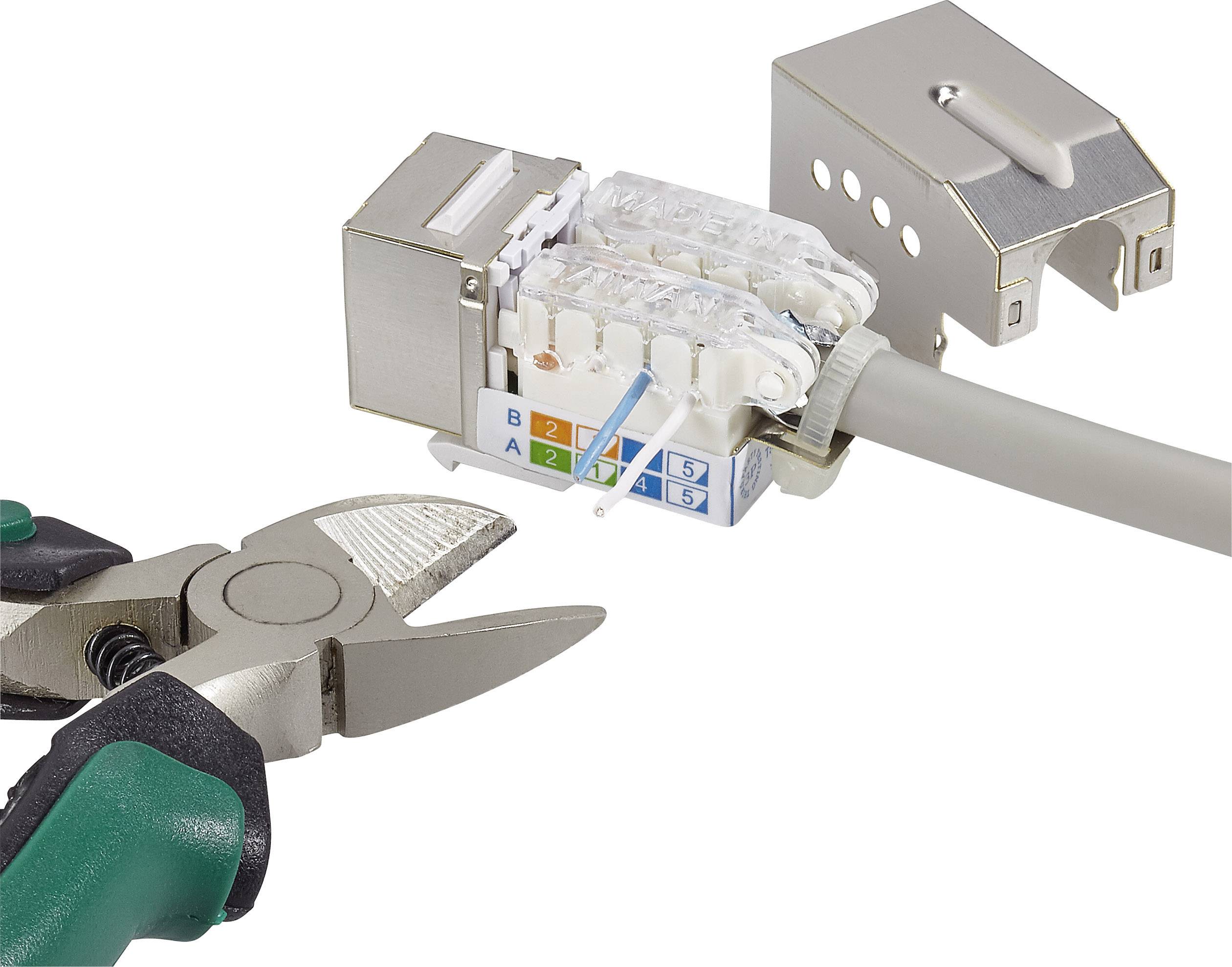

Use side cuter to cut excess cable lengths. Done

Strain relief via attached cable tie.

Characteristics

Compatible with all common AWG 22 - 26 patch cables
Width: 17.3 mm
C6A EIA/TIA 568C compliance
Housing: metal
Board: FR-4/UL-94 V0
IDC cap: fire-resistant PC
IDC body: fire-resistant ABS UL-94 V0
IDC pin: tin-plated phospho bronze
Insulation resistance: 500MΩ (min.)
Contact resistance: 20MΩ (max.)
Current rating: 1.5A
DC resistance: 0.1Ω (max.)
Voltage: 1000 VAC RMs @ 60Hz/1 min
IDC punch down cycle: over 250 cycles (min)
Jack insertion cycle: More than 2000 cycles (min)

Delivery content

• 1 x 8PORT blank keystone patch box
• 8 X KS CAT6A MODULE KS10
