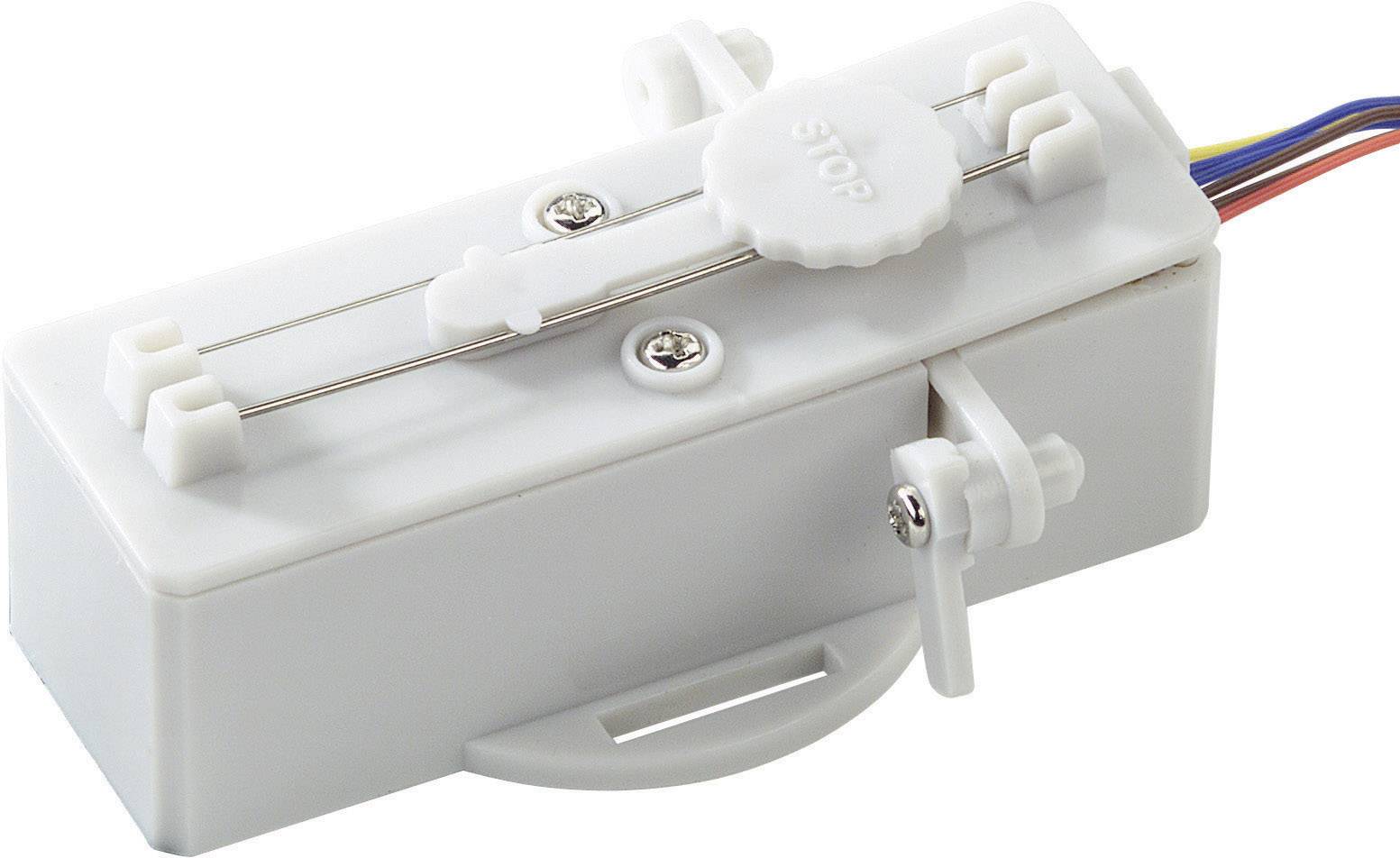

2201977 Universal point motor 16 V AC

Overview

With limit stop and polarity change-over
Setting time 0.2 s at 12 V.

Description

Accurate assembly and adjustment of the strong lower floor panel drive are particularly simple: Push rod in the centre position and fix, bring the flank pointers in the central position, connect the flanks-adjusting lever and push rod with the spring wheel wire, release the connecting rod - done! For points with a polarizable heart piece, the drive is equipped with a built-in switch. The outputs for the cardiac reverse polarity can also be used for feedback.

Delivery content

• Point mechanism
• 2 spring steel wires of different hardness
• User manual.
