Phoenix Contact RIF-1-RPT-LDP-24DC/2X21MS Relay component Nominal voltage: 24 V DC 2 change-overs 1 pc(s)

A relay module in a grey housing with an orange locking mechanism. It is designed for DIN rail mounting and has multiple connection terminals. Image is similar

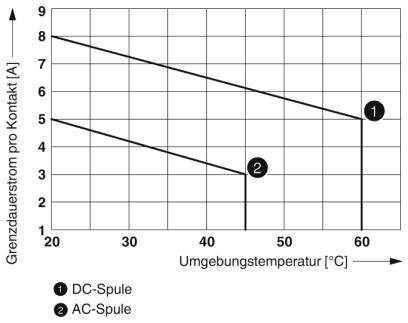

Graph shows limit duration current per contact [A] against ambient temperature [°C] for DC and AC coils. AC coil has lower limit value.
Switching symbol with two electromechanical relays: On the left, a 2-pole changeover switch (make/break), on the right a 1-pole changeover switch. Circuit diagram with diode below.
The diagram shows the relationship between ambient temperature and coil voltage. DC coils run up to 1.05, AC coils up to 1.15 at 60°C.

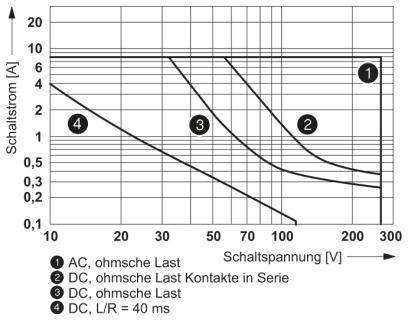

Diagram shows switching current [A] against switching voltage [V] for various load types: 1) AC with resistive load, 2) DC with series load, 3) DC with resistive load, 4) DC, L/R = 40 ms.
The diagram shows a decreasing reduction factor from 1 to 0.3, depending on 'cos φ' between 0.2 and 1.
Graphic shows an electrical circuit diagram: two switches connected in parallel at the top, with diode, resistor, and circuit paths connected below.

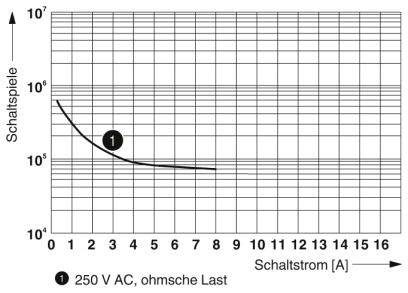

Graph shows the lifetime of switch contacts as a curve dependent on switching current (A) and number of switching cycles at 250 V AC.
CHF 7.75
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Phoenix Contact RIF-1-RPT-LDP-24DC/2X21MS Relay component Nominal voltage: 24 V DC 2 change-overs 1 pc(s)
CHF 7.75
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 7.67 1,0 % savings
from 5 piece : CHF 7.59 2,1 % savings
from 25 piece : CHF 7.36 5,0 % savings

Product description

Description

Pre-assembled relay module with push-in connection, consisting of: Relay socket, relay holding bracket and power contact relay with test button, integrated status LED and snubber diode. Contact type: 2 changeover contacts. Input voltage 24 V/DC

Keywords

04046356945370, Phoenix Contact, 2905291, RIF-1-RPT-LDP-24DC/2X21MS, relay, relays

A relay module in a grey housing with an orange locking mechanism. It is designed for DIN rail mounting and has multiple connection terminals. Image is similar
Graph shows limit duration current per contact [A] against ambient temperature [°C] for DC and AC coils. AC coil has lower limit value.
Switching symbol with two electromechanical relays: On the left, a 2-pole changeover switch (make/break), on the right a 1-pole changeover switch. Circuit diagram with diode below.
The diagram shows the relationship between ambient temperature and coil voltage. DC coils run up to 1.05, AC coils up to 1.15 at 60°C.

Product specifications
