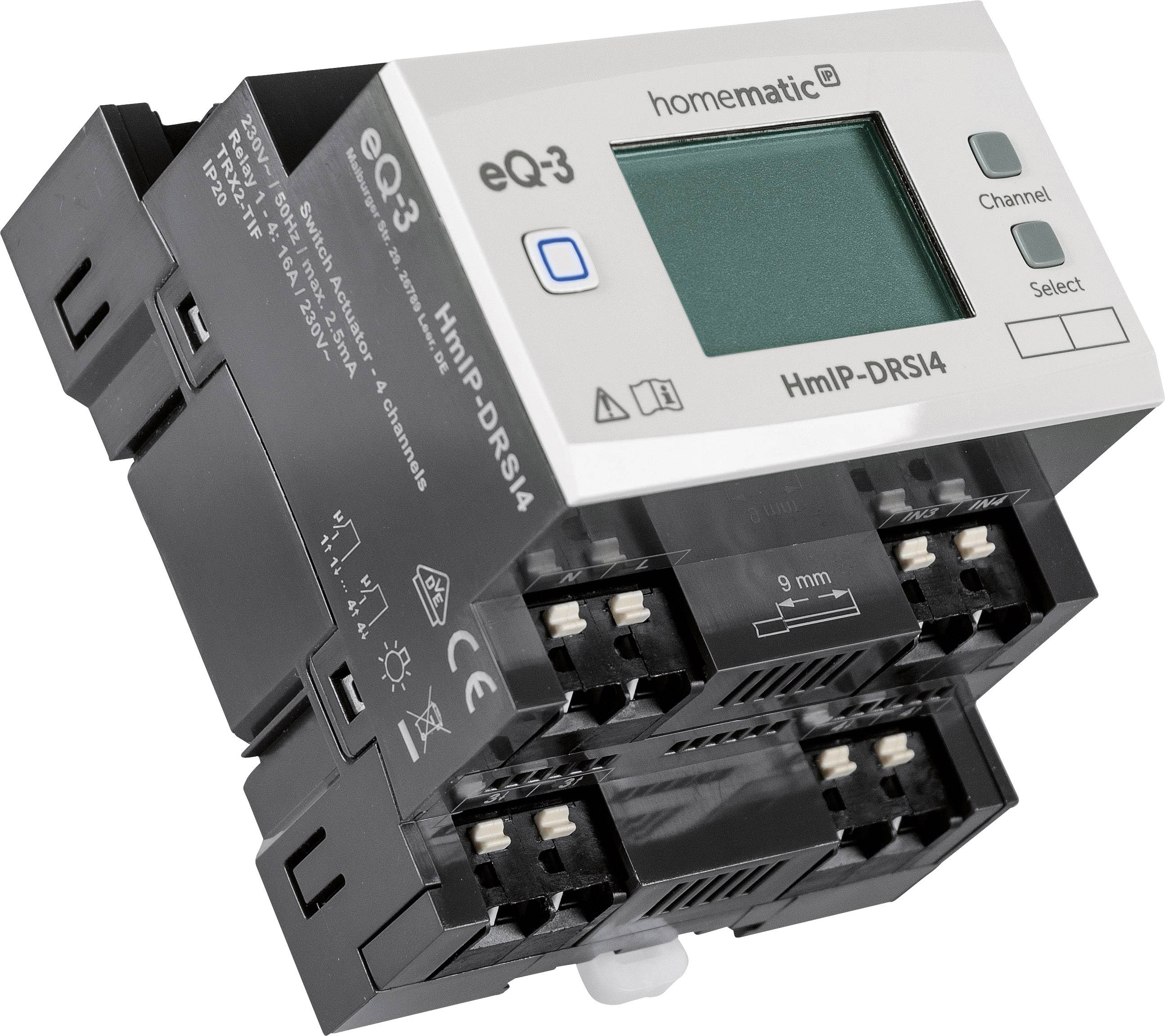

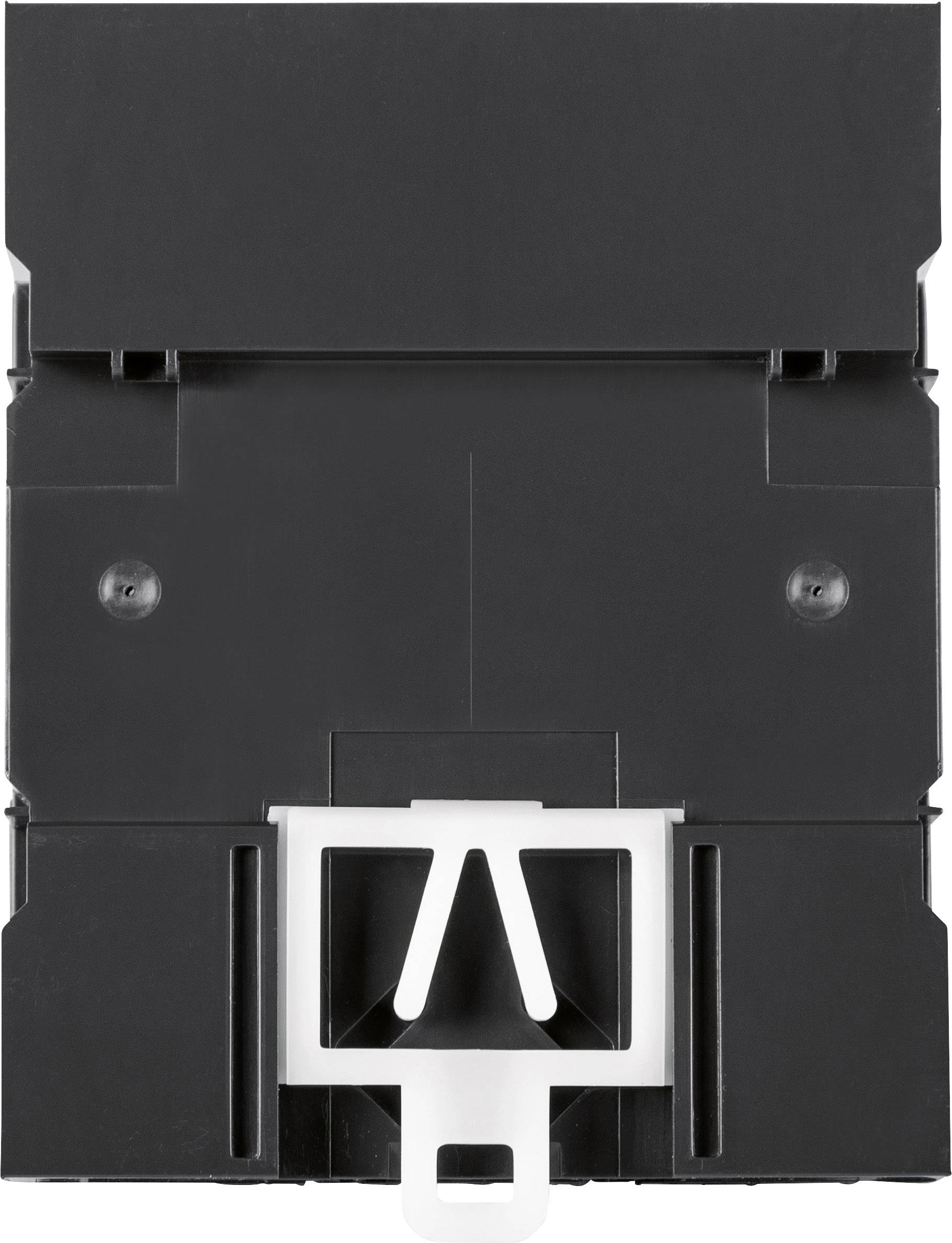

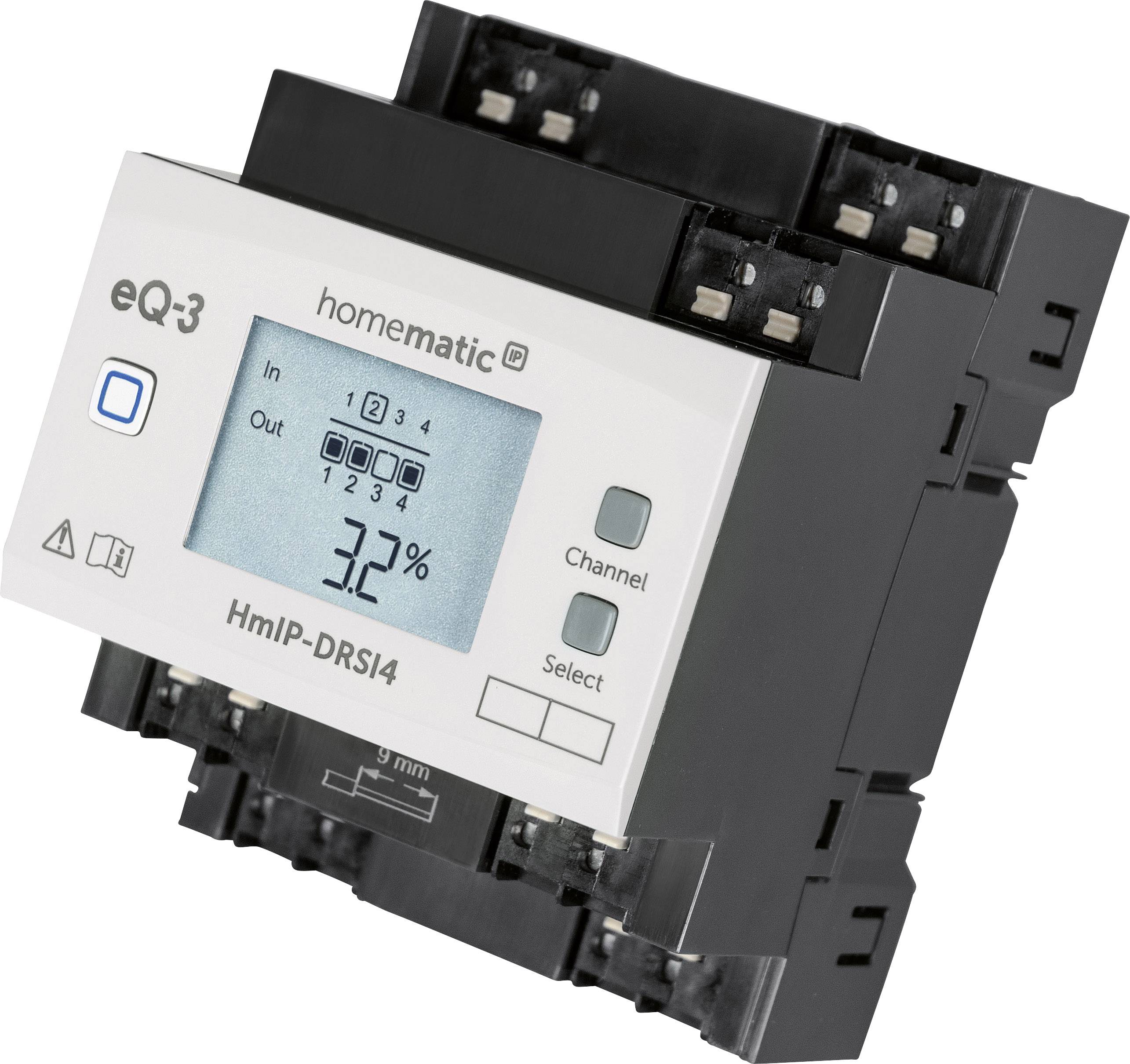

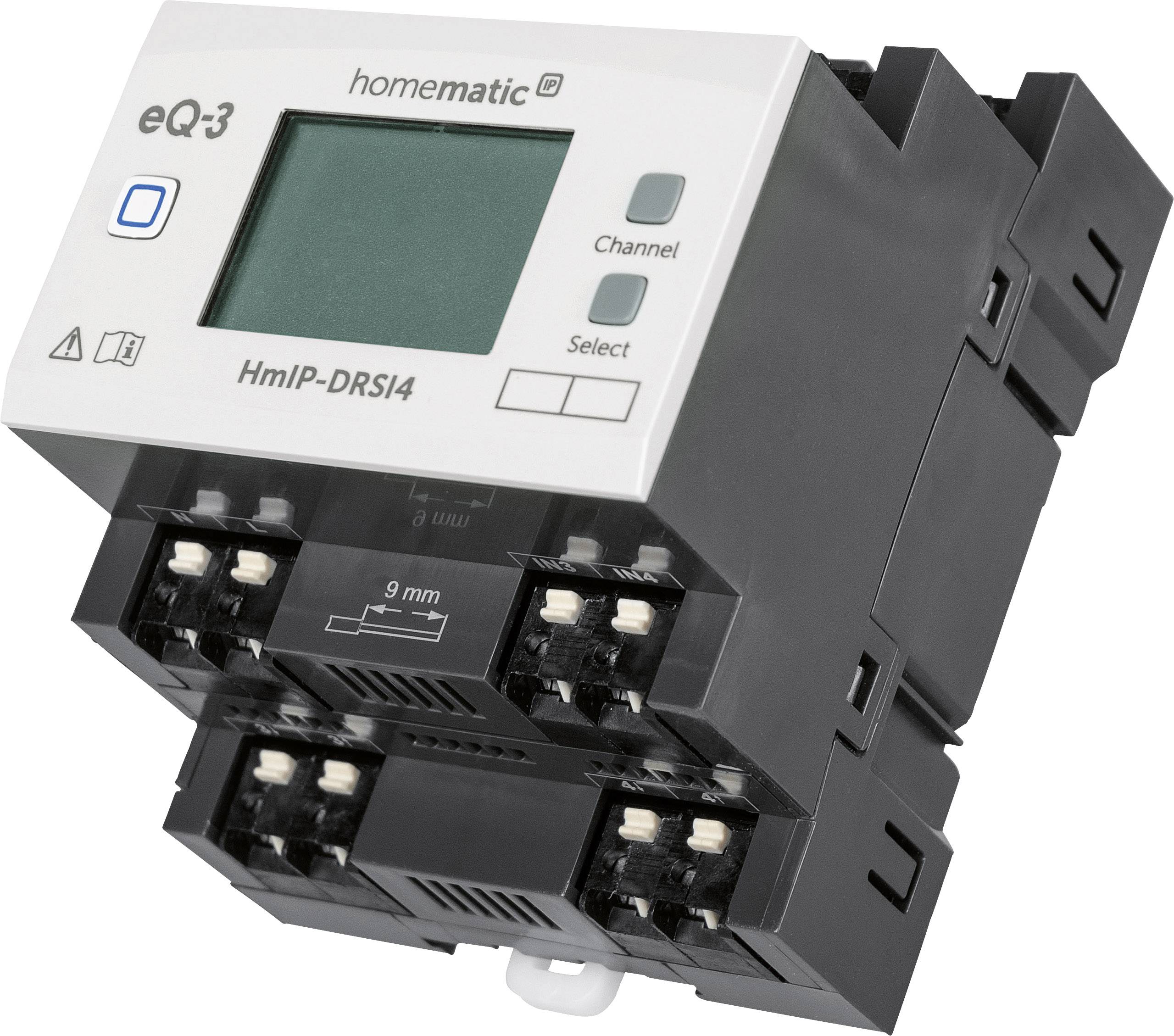

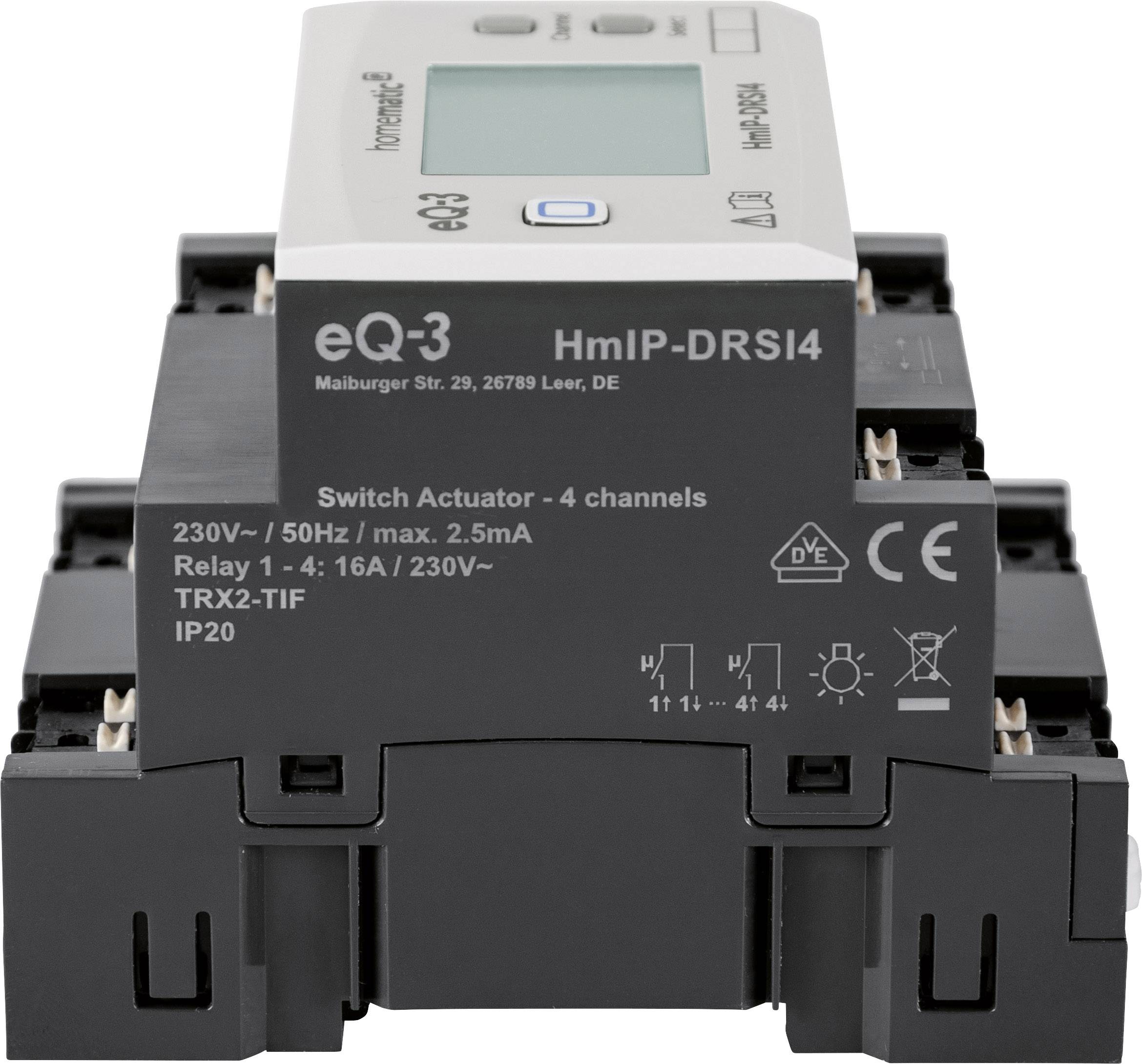

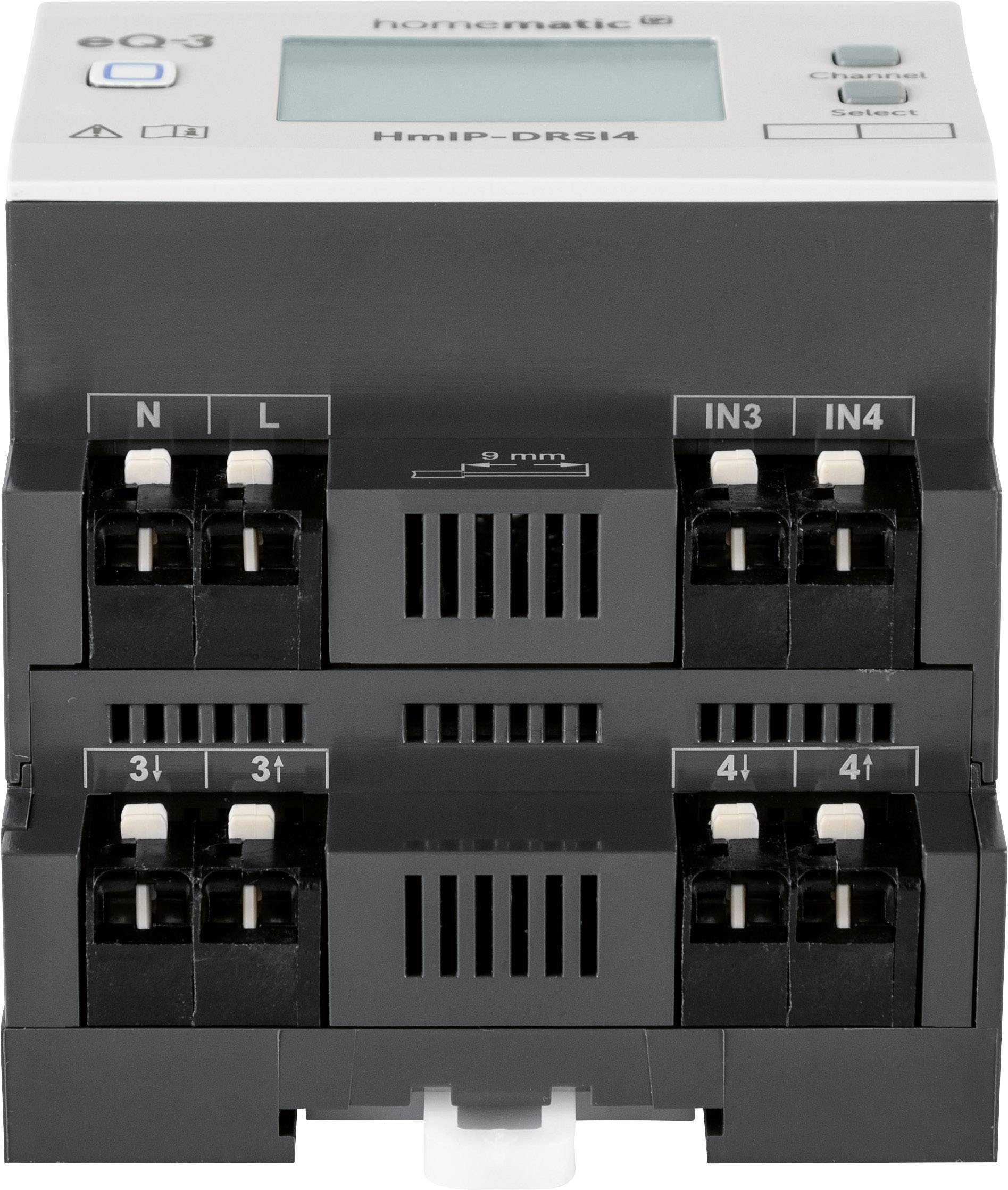

Homematic IP Wireless Actuator HmIP-DRSI4

Overview

Switch up to 4 channels
Switch light intelligently
Easy retrofitting

Description

Switches up to four channels from the distribution cabinet: The robust housing design offers professional yet simple installation on standard DIN rails. Then versatile control options are available directly via standard 230 V buttons, via radio via HomeMatic IP buttons or remote controls and even at any time via the smartphone app.

SUITABLE FOR MANY CONSUMERS
Resistive loads (16 A per channel) - incandescent lamps (1500 W per channel) - lamps with internal ballast (LED/compact fluorescent lamp) (200 W per channel) - HV halogen lamps (1500 W per channel) - LV halogen lamps with electronic or iron core transformer (1500 W per channel) - uncompensated or parallel compensated fluorescent lamps (1500 W per channel) - Electrical radiators and electrical heating systems (8 A, 200,000 cycles per channel).

SWITCH LIGHT INTELLIGENTLY
Convenient switching of up to four connected lights on or off via independant channels for the ideal lighting mood in the smart home.

COMFORTBALE INSTALLATION
Mounting on standard DIN rails is particularly easy thanks to spring-loaded terminals. Each channel can be connected to a different phase and thus enables an independant control of each individual channel. Even without programming, the function and cabling can be checked even during installation directly on the device thanks to the illuminated display and the device keys.

FLEXIBLE OPERATION
Connected lights can be flexibly controlled via radio buttons or remote controls as well as at any time via the HomeMatic IP APP (e.g. via time profiles). Alternatively, manual operation via conventional wired buttons is also possible.

THE ADDED VALUE FOR A SMART HOME
Also for extensions (e.g. Attic) as well as suitable for retrofitting. Can be installed without any problem in the distribution cabinet. No need to interfere with the installation at room level. Existing switches and buttons can easily be used. ideal for example Replace the surge current switch.

Information

Operation requires connectivity to one of the following solutions:
- Homematic IP Access Point with free smartphone app and toll-free cloud service
- CCU2/CCU3 headquarters with local WebUI user interface
- third-party partner solutions.

Delivery content

• HomeMatic IP switch actuator for DIN rail mounting - 4-way
• User manual.

Keywords

04047976544318, Homematic IP, 154431A0, HmIP-DRSI4, Home automation, radio
