Whadda WPM400 Relay board 1 pc(s)

  • item model number: Y274602

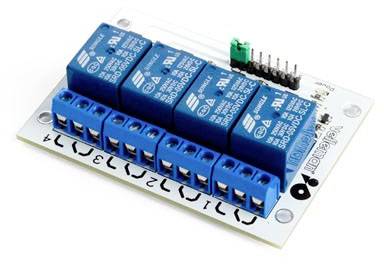

Four-channel relay module for controlling electronic devices; shows four blue relays on a white circuit board with connections.

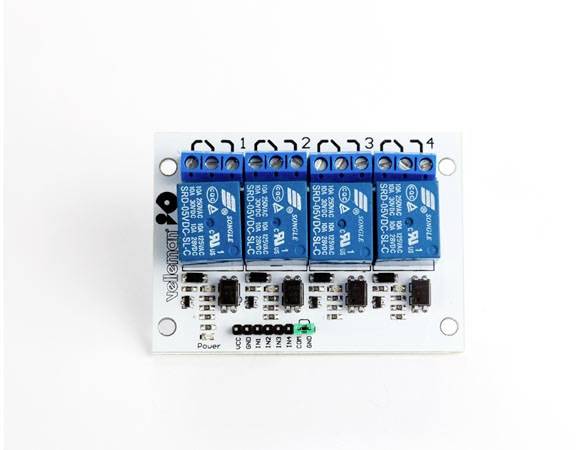

Relay module with four blue relays on a white circuit board, numbered 1 to 4. LED indicator and terminal strip along the bottom edge.
CHF 7.05
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Whadda WPM400 Relay board 1 pc(s)
CHF 7.05
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 6.97 1,1 % savings
from 5 piece : CHF 6.83 3,1 % savings
from 10 piece : CHF 6.69 5,1 % savings

Product description

Description

This 4-channel relay interface card can control various devices and other devices with hohem current. It can be controlled directly by any microcontroller.

Features:
Standard interface that can be directly controlled by any microcontroller
optically isolated inputs
Display LEDs for relay output statusSpecifications:
Control input current (in1 to in4): 5 - 15 mA
Control input voltage: 5 - 12 VDC
Relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
Dimensions: 75 x 55 x 19 mm
Weight: 61 g

Keywords

00810036660891, 05410329725389, Whadda, WPM400, arduino

Four-channel relay module for controlling electronic devices; shows four blue relays on a white circuit board with connections.
Relay module with four blue relays on a white circuit board, numbered 1 to 4. LED indicator and terminal strip along the bottom edge.
